Name: Plan 264024KMD: One-Story Transitional House Plan with Split Bed Layout - 4010 Sq Ft
SKU: 264024KMD
Price: 3670.0 USD
Availability: InStock

Plan 264024KMD

One-Story Transitional House Plan with Split Bed Layout - 4010 Sq Ft

Heated S.F.

4,010

Beds

Baths

Stories

Cars

Floor Plan

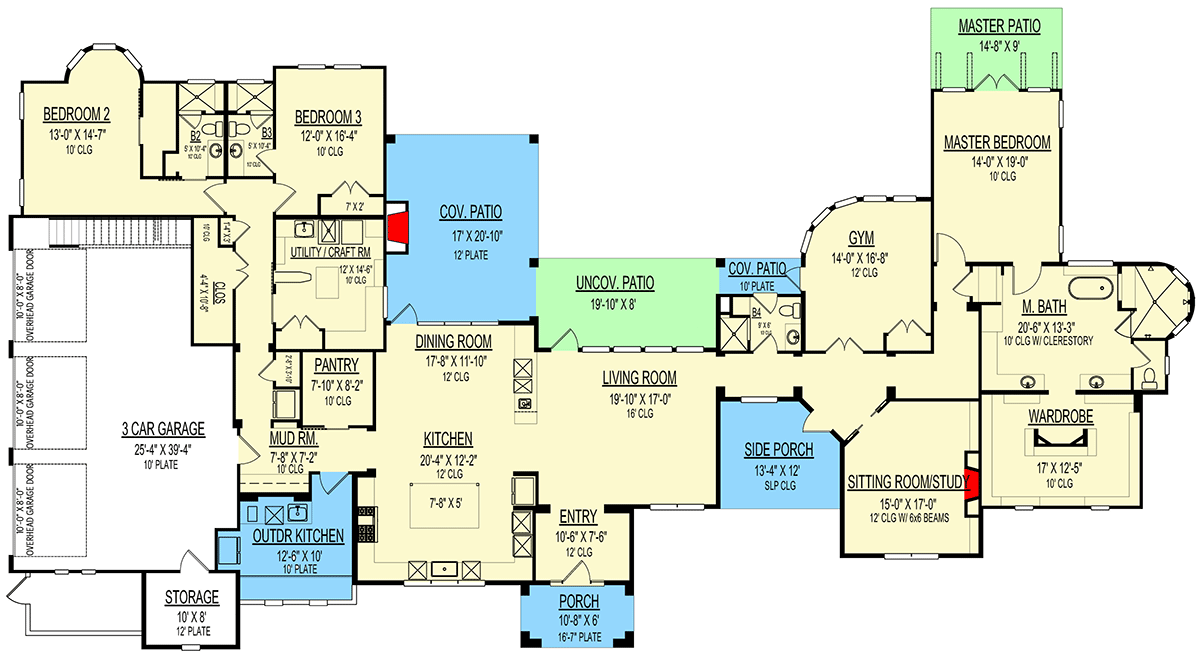

Main Level

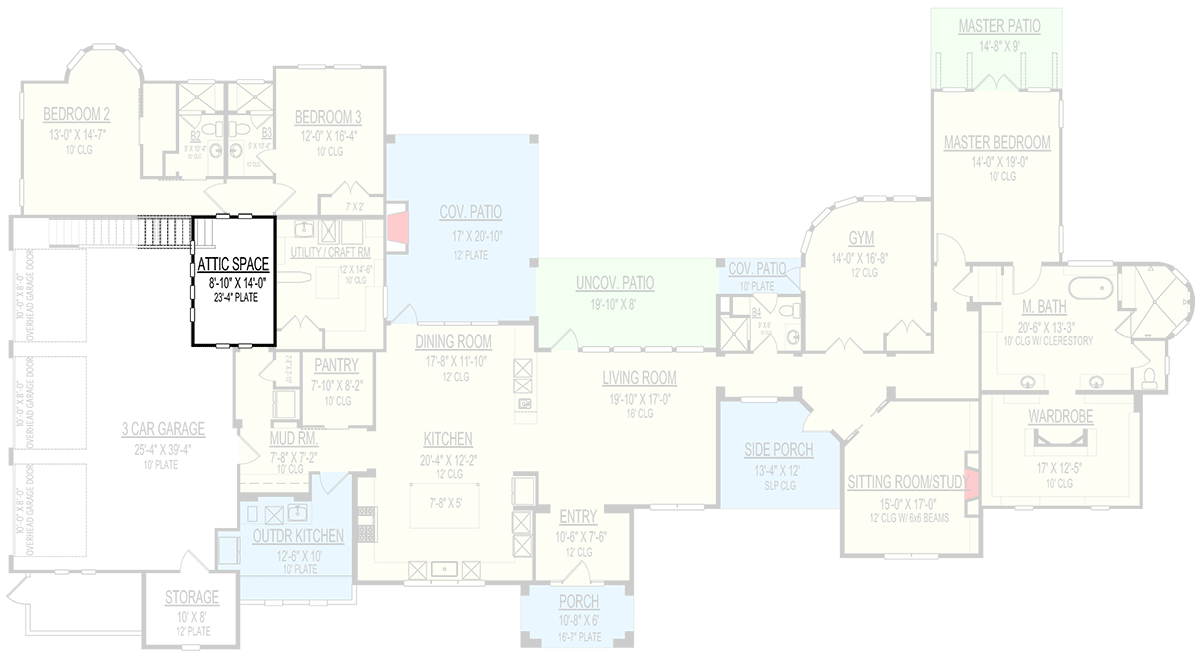

Attic Space

Plan Details

This one-story Transitional house plan gives you 4010 square feet of heated living with 3 bedrooms, 4 baths and a 921 square foot 3-car garage.
There are 7different outdoor spaces - 5 covered and 2 uncovered - including an outdoor kitchen and a covered patio with fireplace, giving you great fresh air spaces to enjoy
A split bedroom layout maximizes your privacy with the right side of the home dedicated to the master suite. The bedroom has access to a private patio, the bathroom has two vanities and a 3-head walk-in shower, and a giant walk-in closet with built-in wardrobe in the center. Nearby, a home gym overlooks the back through a curved wall of windows and a quiet sitting room with fireplace can serve as a home office.
A wet bar separates the living room from the dining room which is open to the kitchen with a large 7'8" by 5' island and a sink set below a window looking out front.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction. Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

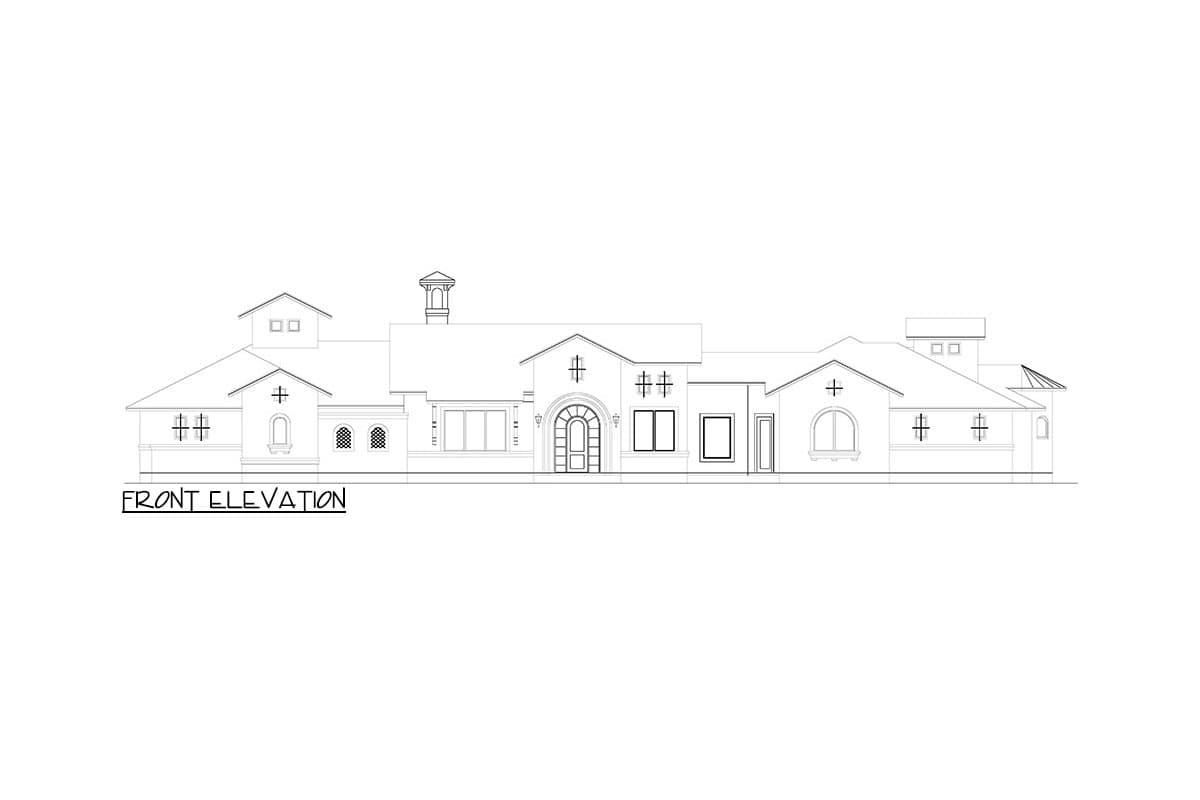

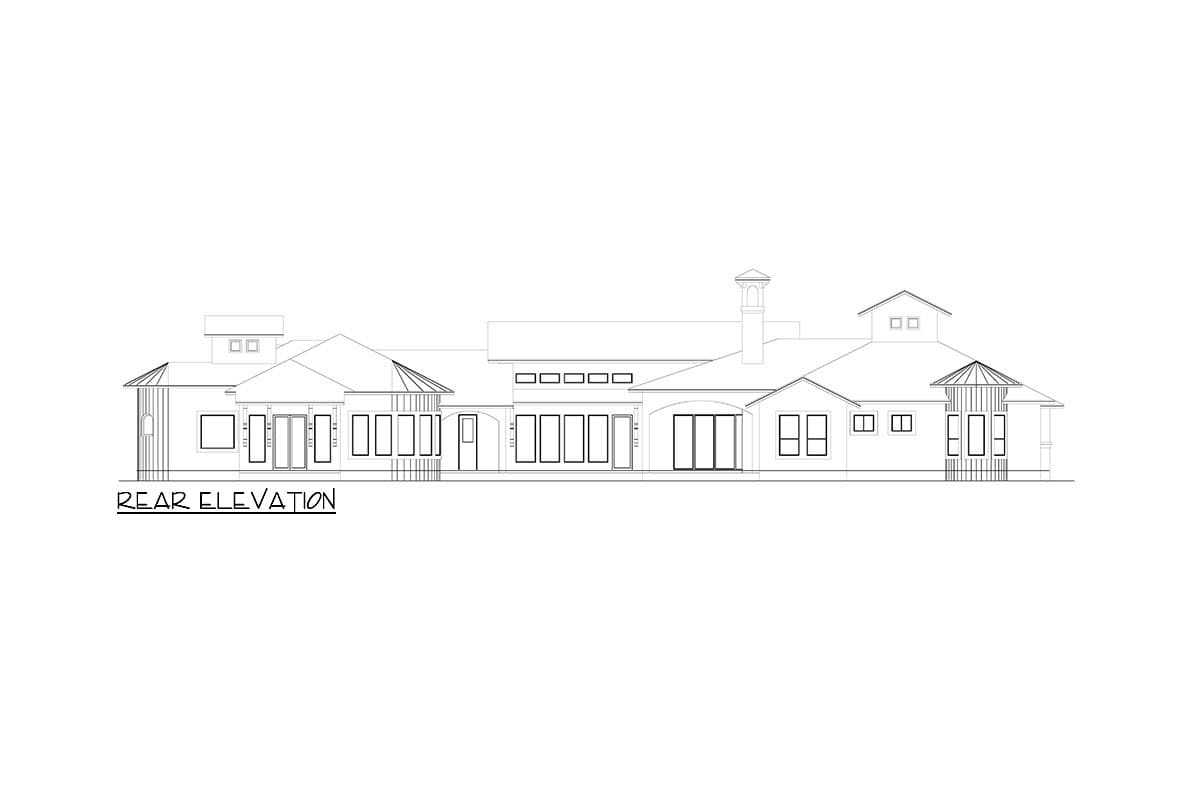

Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure. Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.
Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed. Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
Sections: Also known as a cut through the entire structure. This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
Electrical Plan: Complete with layout and location of lights, switches and plugs. When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
