Plan 69013AM
Open Cottage Home Plan
Heated S.F.
1,275
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 69013AM

Main Level
slide image 0
Basement Option
slide image 1
Basement
slide image 2

Plan 69013AM

1-800-854-7852

1-262-521-4596

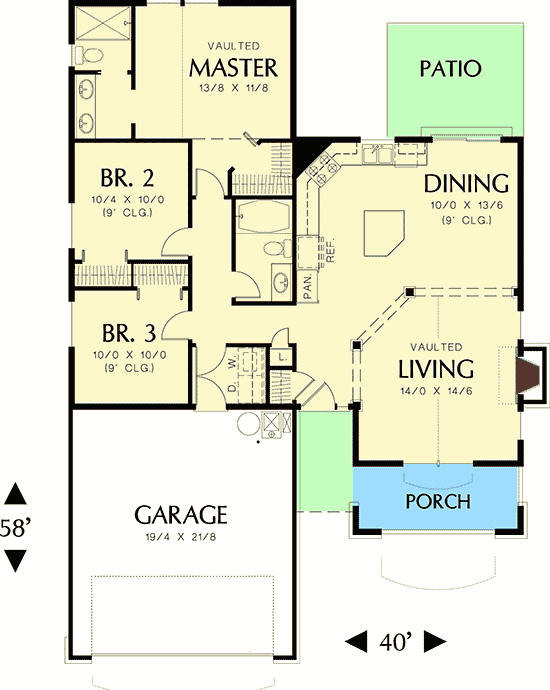

Main Level
floor plan image Main Level

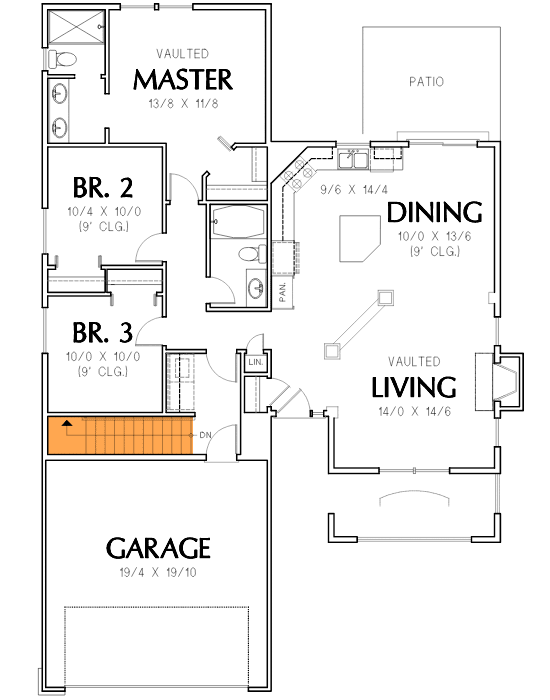

Basement Option
floor plan image Basement Option
Basement
floor plan image Basement
Plan Details
  • Arches accented with keystones, a mix of siding materials, a trio of roof peaks, and a covered porch stamp this home with time-honored appeal.
  • Supremely efficient and comfortable, the floor plan links the kitchen, dining area, and living room. The open plan works well for day-to-day family life and also for entertaining. The kitchen features an island and built-in pantry. Those who love to barbecue will appreciate the nearby patio, accessible through the sliding patio doors in the dining area. The living room is defined by a series of columns and the vaulted ceiling. It features a fireplace.
  • In the left wing of the home, the master suite, two additional bedrooms, a bath, and the laundry room are aligned along a central hall.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
