Plan 22423DR
Open Floor Plan Craftsman House
Heated S.F.
1,783
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 22423DR

Main Level
slide image 0

Plan 22423DR

1-800-854-7852

1-262-521-4596

Main Level

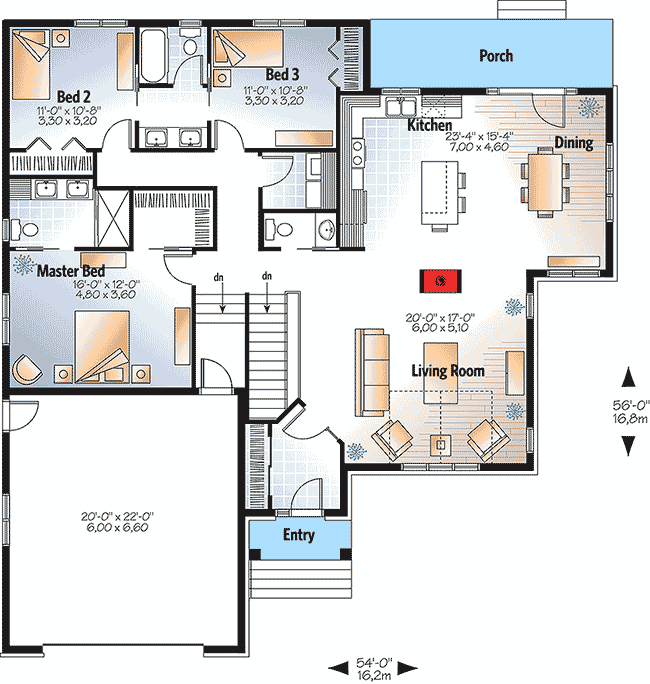

floor plan image Main Level
Plan Details
  • Decorative wood trim gives this Northwest house plan a Craftsman look.
  • With one huge open living area, you'll be able to see from the living room to the kitchen and dining area.
  • A zero clearance fireplace between the kitchen and living room warms the whole space.
  • The master suite has plenty of wall space for furniture placement and a walk-in closet.
  • Pockets doors are used as a space-saving measure.
  • The two family bedrooms in back share a connected bathroom and the laundry closet is close by all the bedrooms.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,783 sq. ft.

1st Floor

1,783 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

56' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,783 sq. ft.

1st Floor

1,783 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

56' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
