Plan 59851ND
Open Floor Plan with Courtyard
Heated S.F.
1,747
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 59851ND

Main Level
slide image 0

Plan 59851ND

1-800-854-7852

1-262-521-4596

Main Level

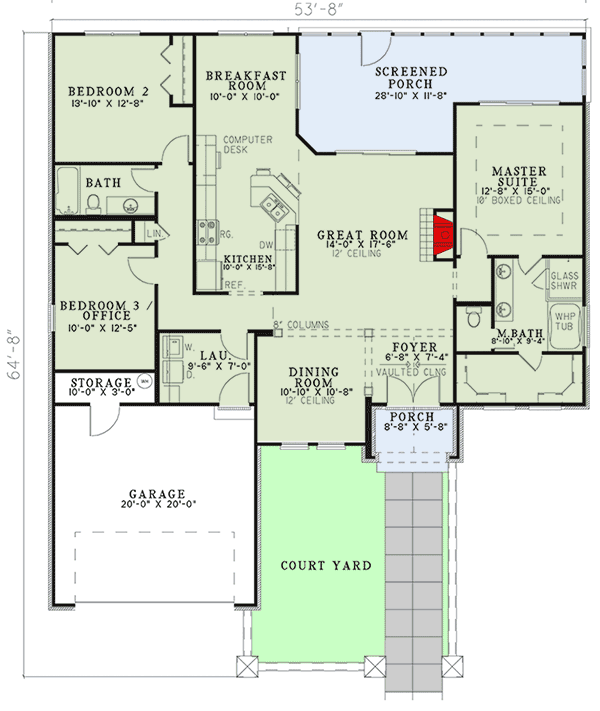

floor plan image Main Level
Plan Details
  • An open floor plan with a front courtyard enhances the charm of this Mediterranean home with a Tuscan exterior.
  • A 12' vaulted foyer, great room and dining room make the home seem even more spacious.

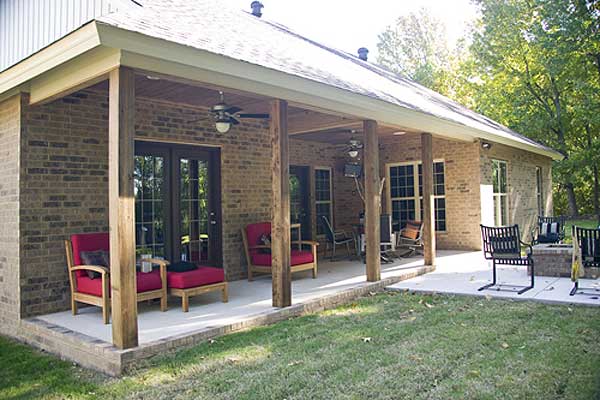

  • Windows on two sides brighten the breakfast nook with access to a large screened porch in the rear.
  • The master suite has a 10' boxed ceiling, a large walk-in closet, its own private bath and sliding doors to the rear porch.
  • On the opposite side of the home, two bedrooms and a hall bath provide room for family or guests.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Porch, Rear

276 sq. ft.

Entry

49 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 8"

Depth

64' 8"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Plan Collections
