Plan 35124GH
Outdoor Spaces Abound
Heated S.F.
2,057
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 35124GH

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 35124GH

1-800-854-7852

1-262-521-4596

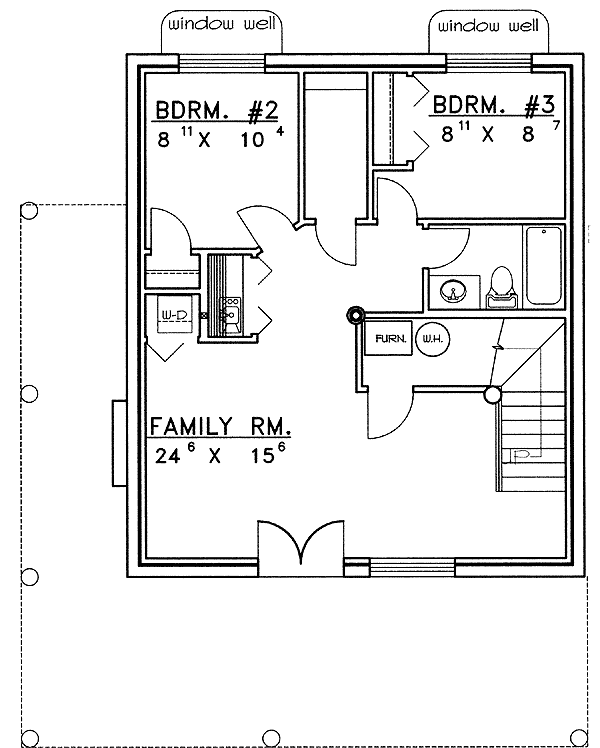

Basement
floor plan image Basement

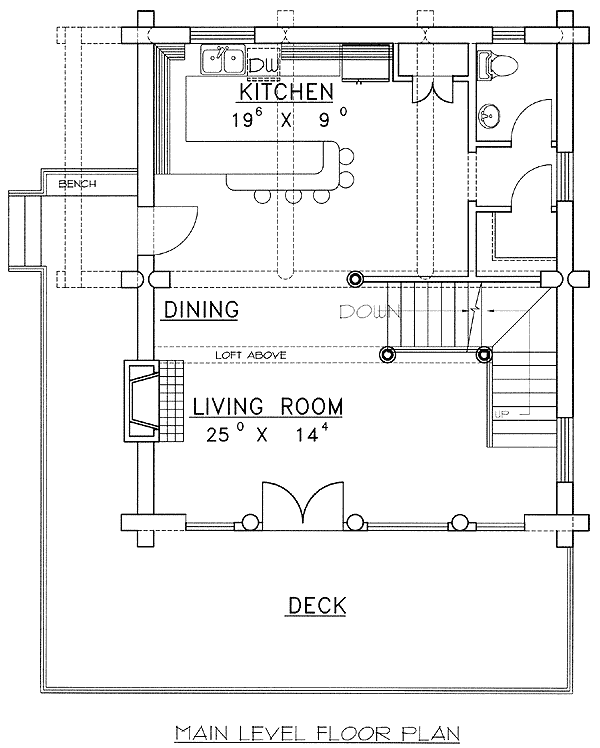

Main Level
floor plan image Main Level

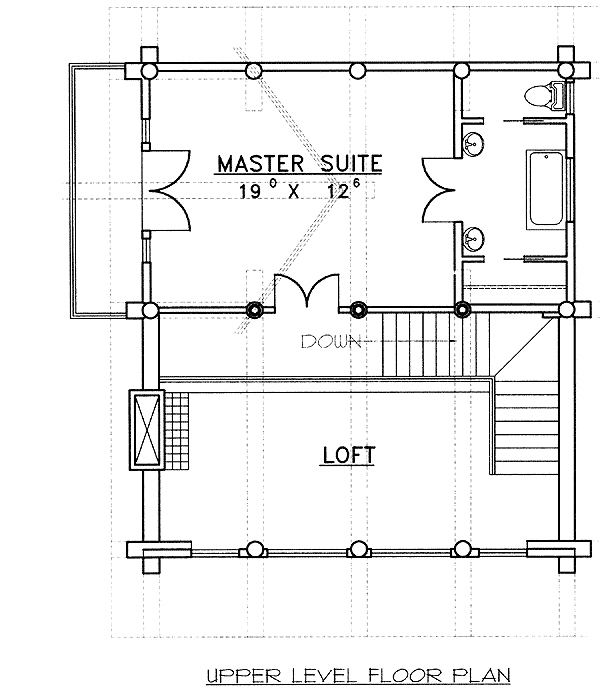

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Outdoor spaces abound in this home plan designed for great views with 12"-14" diameter exterior log walls.
  • A deck wraps around two sides of the main floor and the lower level. Plus there is the balcony off the ' suite.
  • The master suite commands the upstairs while the open loft is a perfect spot to watch the sunset.
  • Related Plan: See house plan 35129GH for a larger version at 2,408 square feet.
What's Included

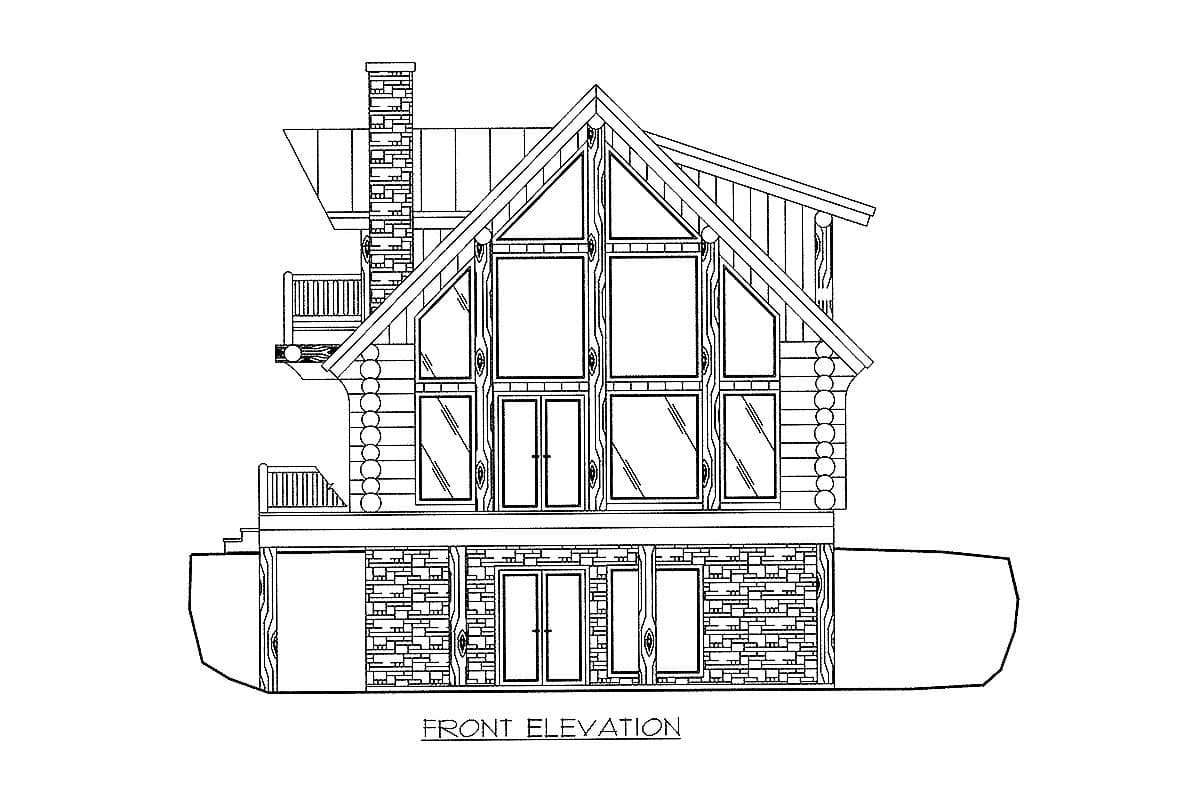

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,057 sq. ft.

Lower Level

830 sq. ft.

1st Floor

795 sq. ft.

2nd Floor

432 sq. ft.

Bonus

75 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

Log

Dimensions

Width

34' 0"

Depth

41' 0"

Max Ridge Height

34' 11"

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9' 2"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

N on N

Framing Type

Stick

Architectural Style

Log Cabin

Mountain

Rustic

Vacation

Special Features

Butler Walk-in Pantry

Game/Rec Room

Laundry - Lower Level

Loft

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Metric

Sloping Lot
