Plan 57063HA
Outdoorsman's Getaway Cottage - 576 Sq Ft
Heated S.F.
576
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 57063HA

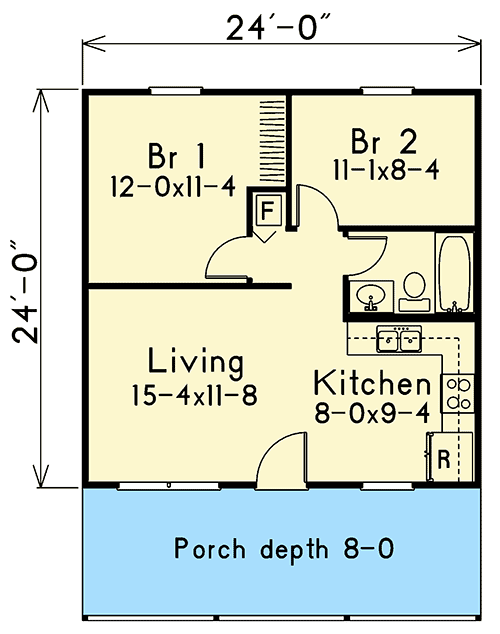

Main Level
slide image 0

Plan 57063HA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • We've pared things back to a minimum in this 2 bedroom outdoorsman's getaway cottage: two beds, a bath, and an open living area.
  • The roof has a 6:12 pitch and the ceilings are 8'.

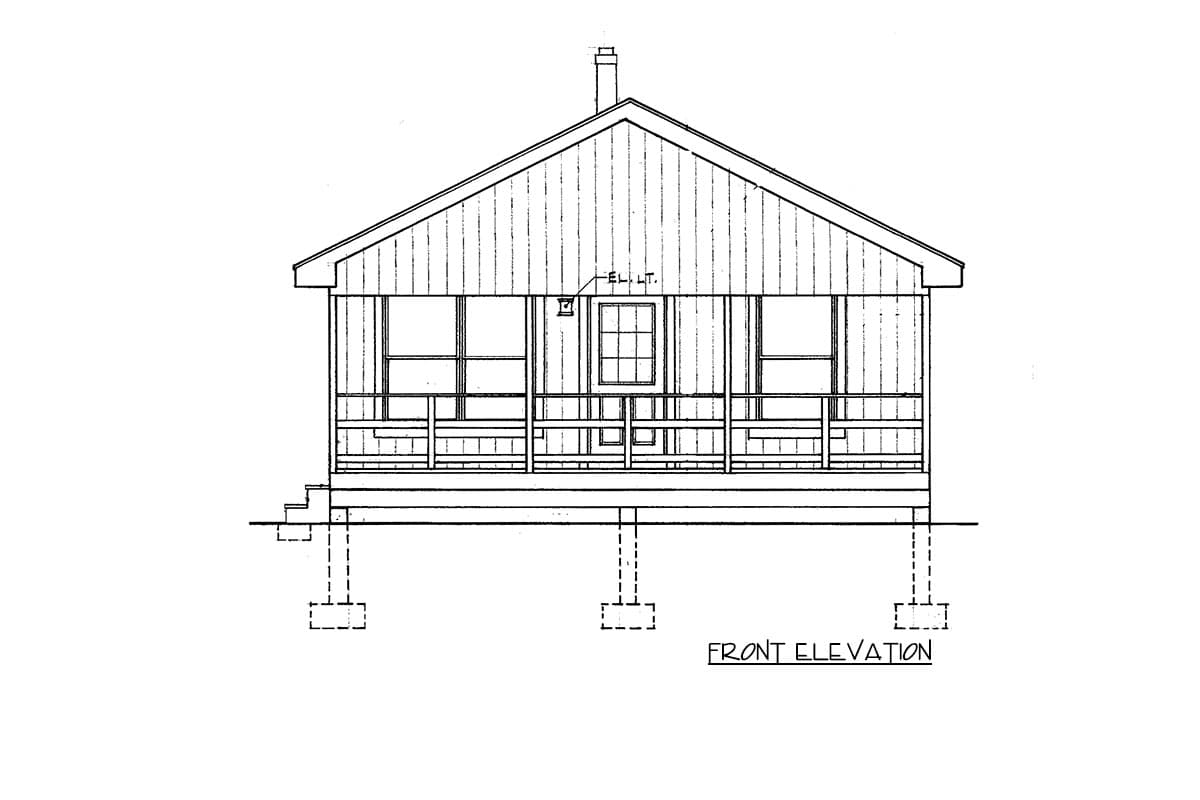

  • The front porch is covered and extends across the entire front of the home. It is 8' deep, plenty of room for rocking chairs.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

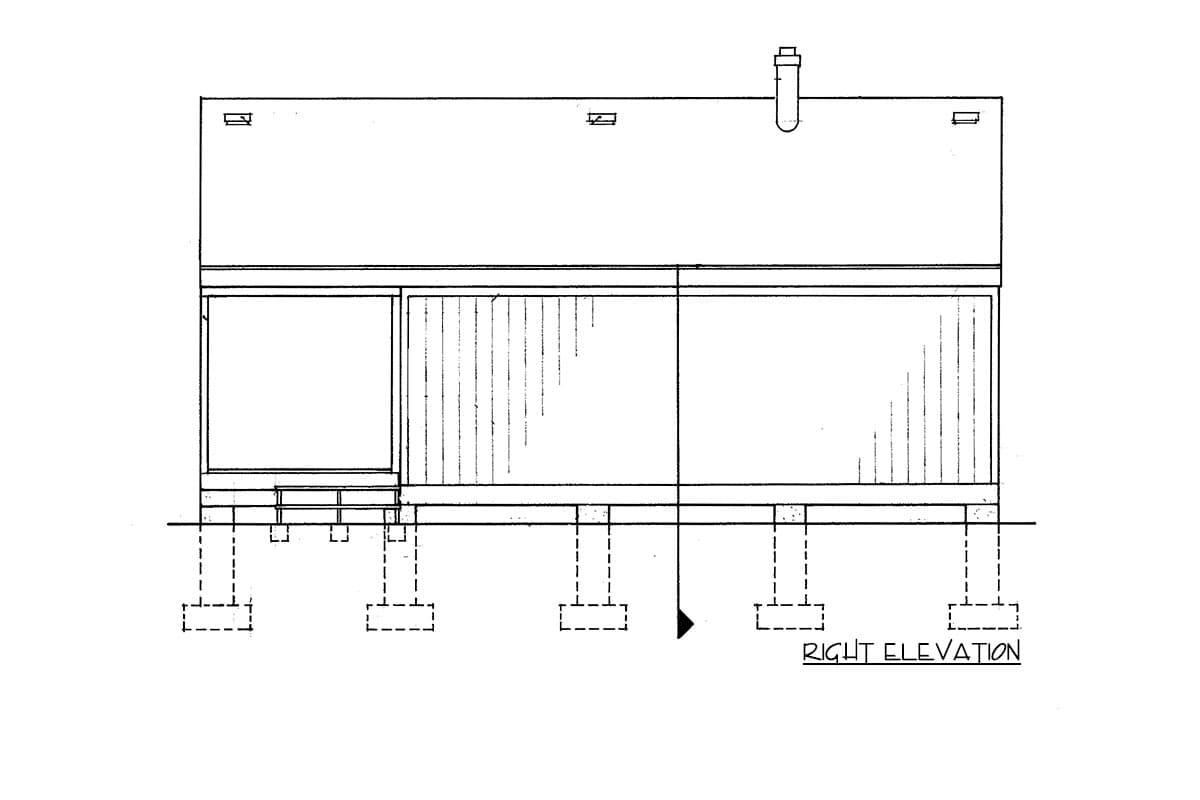

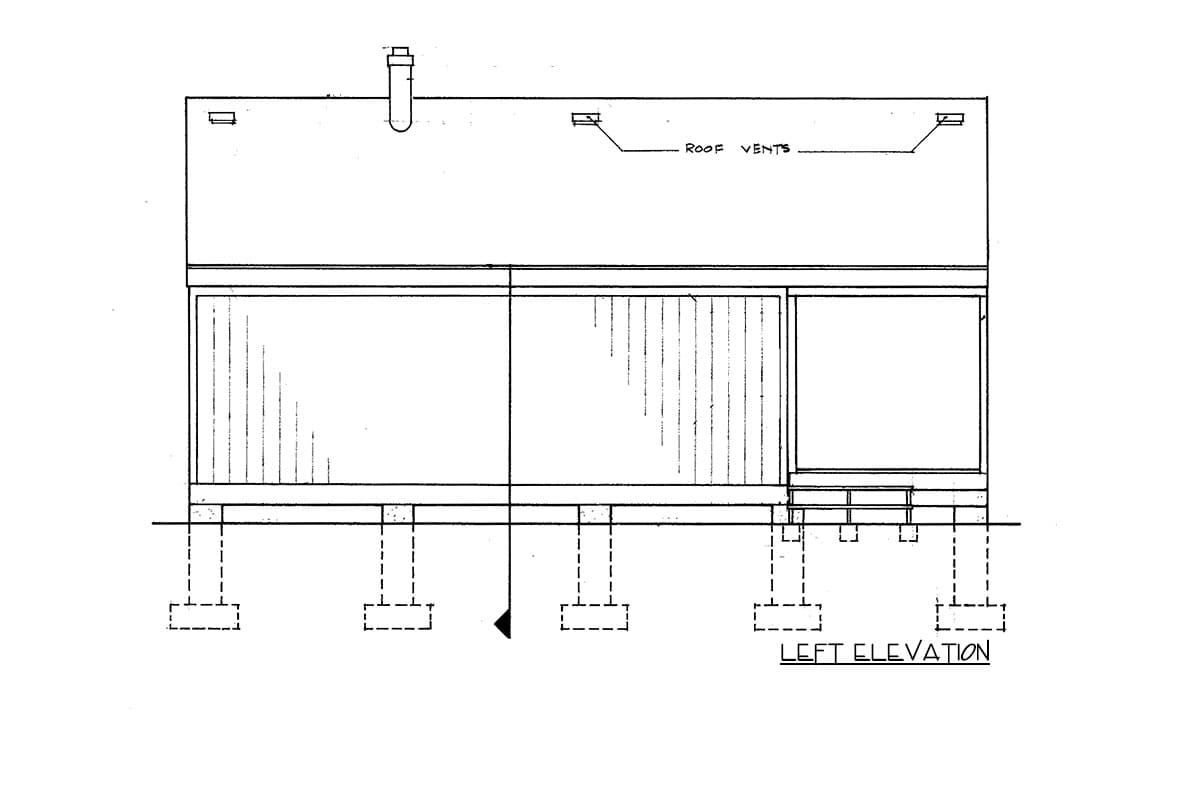

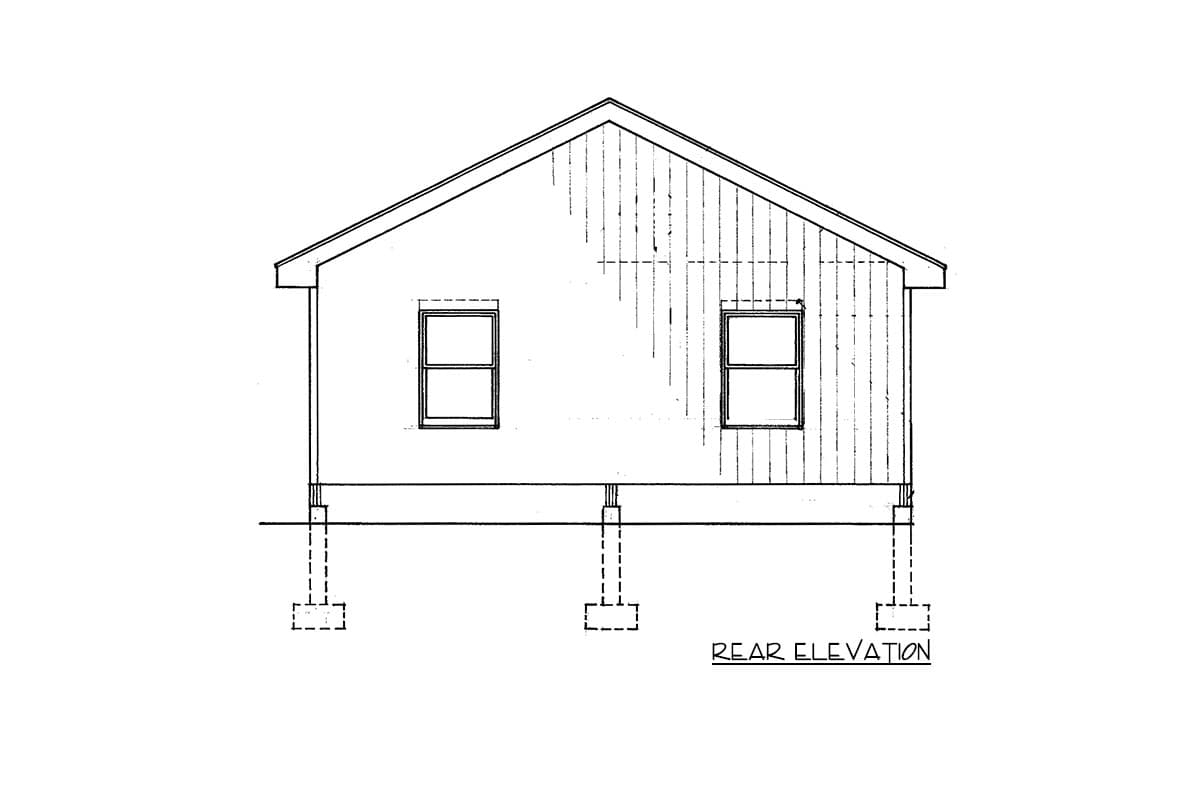

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Cottage

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Cottage

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Tiny Home House Plans
