Plan 818020JSS
Over 3,600 Square Foot New American Ranch with Split-bed Layout and Flex Room
Heated S.F.
3,621
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 818020JSS

Main Level
slide image 0

Plan 818020JSS

1-800-854-7852

1-262-521-4596

Main Level

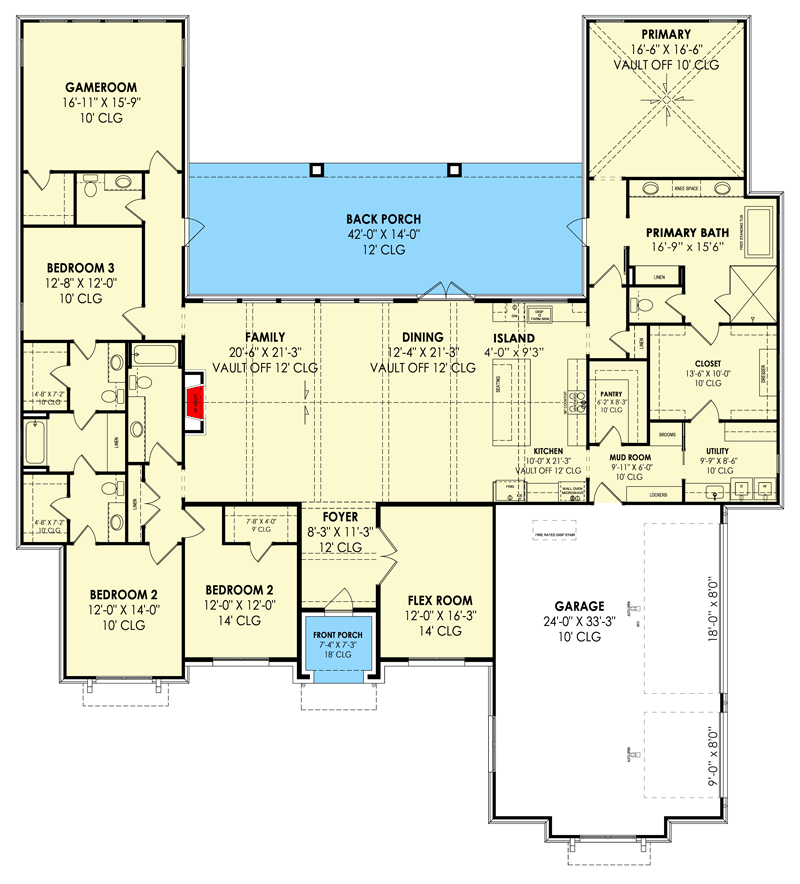

floor plan image Main Level
Plan Details
  • Large windows ensure a light and airy interior throughout this 3,600 square foot New American Ranch plan.
  • The split-bedroom, u-shaped layout offers the homeowner the utmost privacy, while the remaining 3 bedrooms line the left side of the home; two share a Jack-and-Jack bathroom.
  • A vaulted ceiling soars above the combined family room, dining area, and kitchen, centered over a fireplace and island on either end. Carve out time to spend on the dreamy back porch, or retreat to the game room for more family fun.
  • The primary suite is crowned by a vaulted ceiling and includes a 5-fixture bathroom with a pass-thru closet that connects to the laundry room.
  • Other notable features include a flex room, 3-car garage, mudroom, and walk-in pantry.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

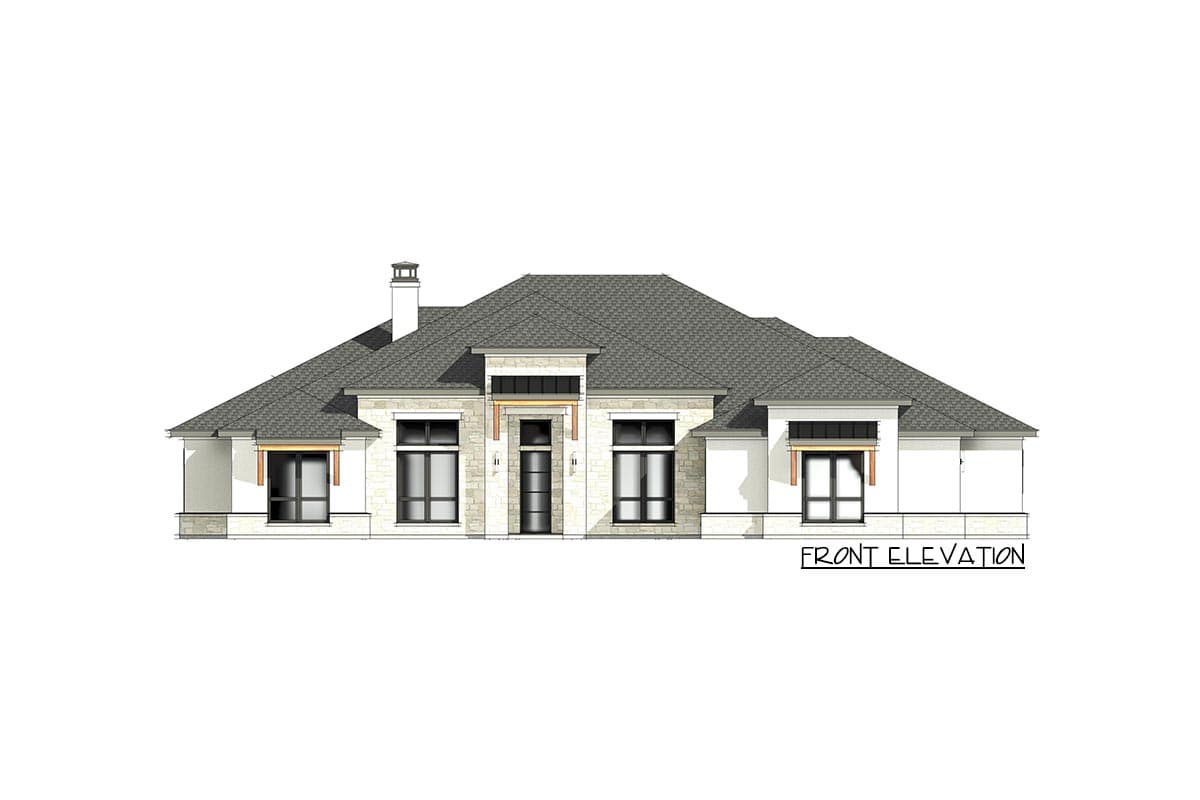

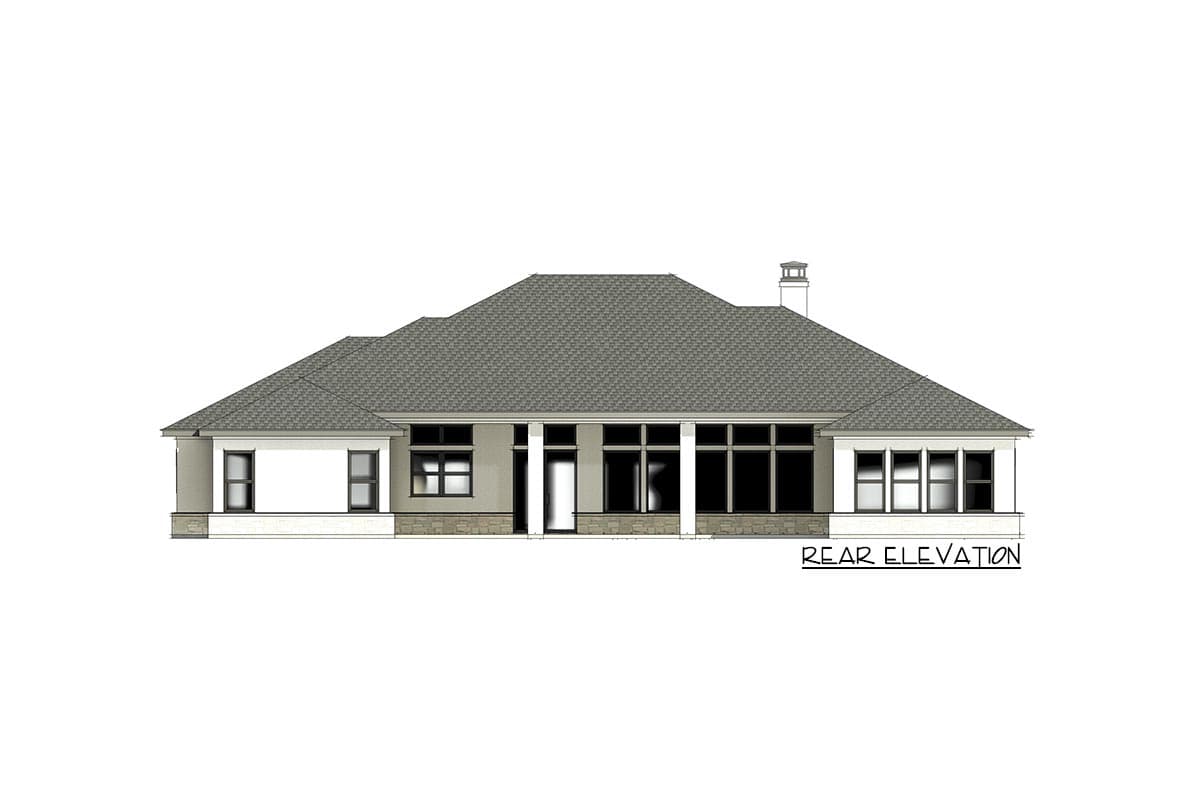

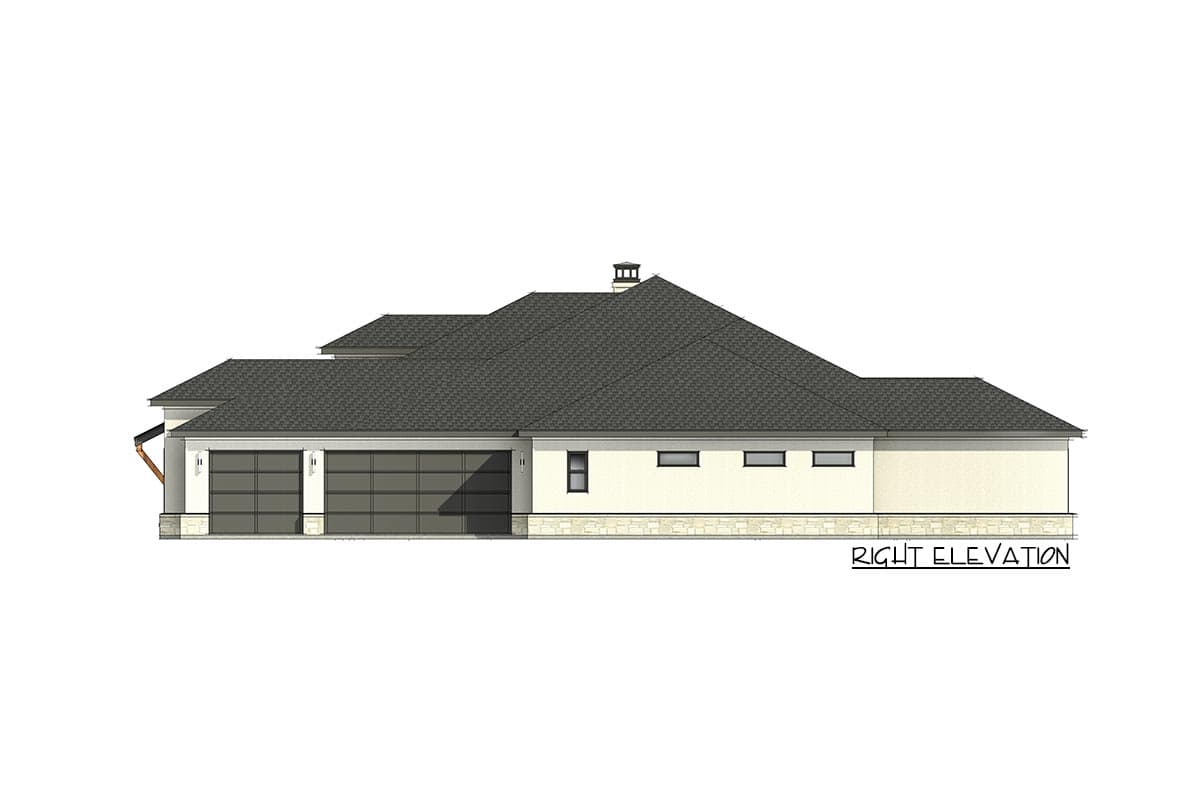

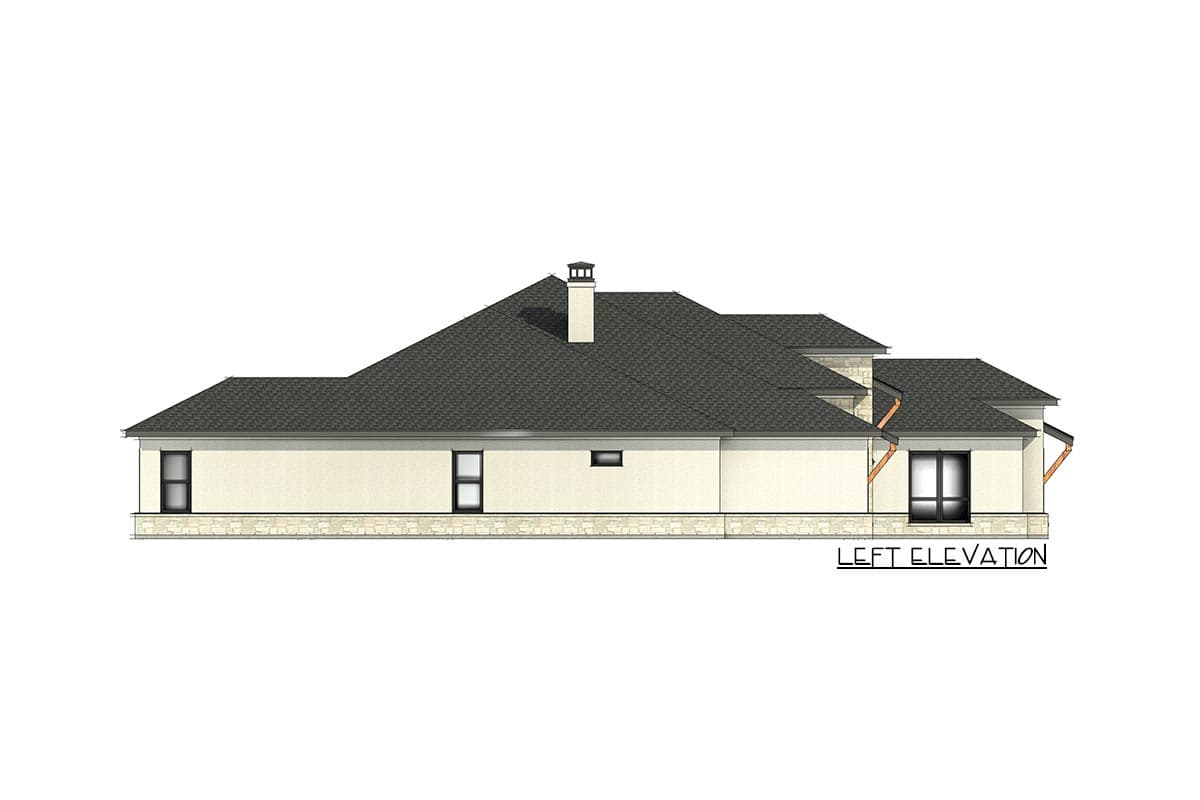

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,621 sq. ft.

1st Floor

3,621 sq. ft.

Porch, Front

55 sq. ft.

Porch, Rear

587 sq. ft.

Porch, Combined

642 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 11"

Depth

88' 3"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

857 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Prairie

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,621 sq. ft.

1st Floor

3,621 sq. ft.

Porch, Front

55 sq. ft.

Porch, Rear

587 sq. ft.

Porch, Combined

642 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 11"

Depth

88' 3"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

857 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Prairie

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
