Plan 666201RAF

Over 4,000 Square Foot New American Home Plan with Office and Bonus Room

Heated S.F.

4,054

Beds

4

Baths

4.5

Stories

2

Cars

2

Floor Plan

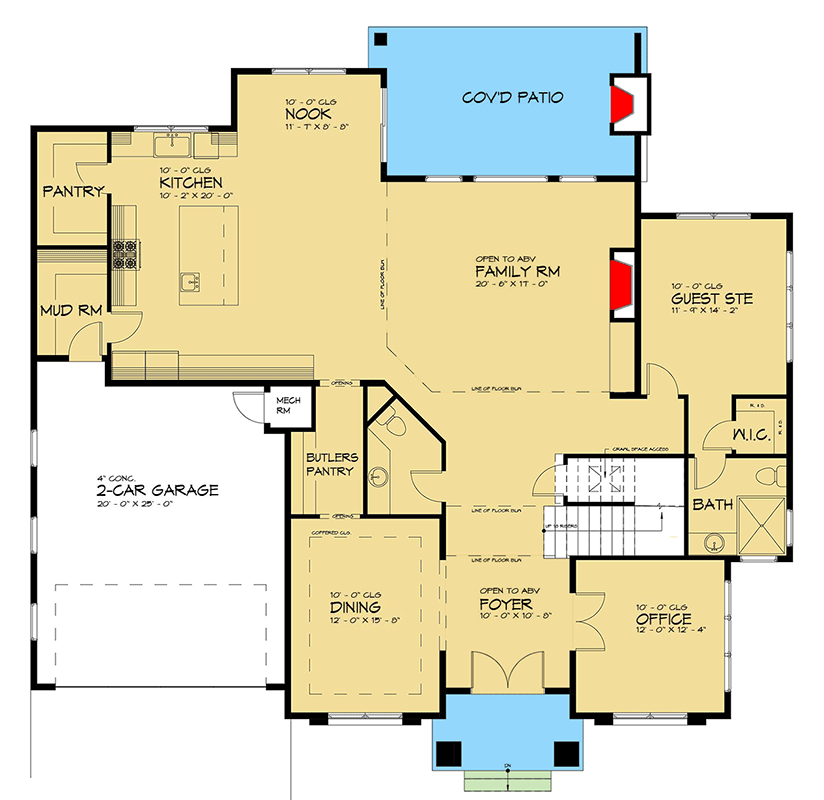

Main Level

floor plan image Main Level

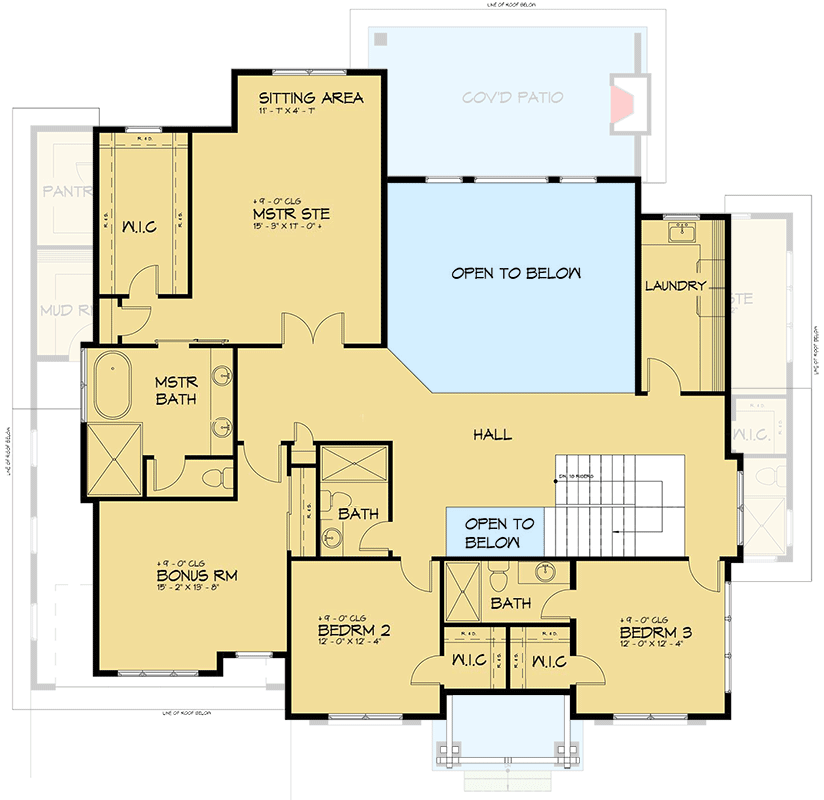

2nd Floor

floor plan image 2nd Floor

Plan Details

This 4,054 sq. ft. house plan gives you 4 beds, 4.5 baths and a 2-car garage (508 sq. ft.) wrapped in a tongue-in-groove wood siding exterior.
As you enter through the foyer, you'll pass the dining room on the left and home office on the right. The open concept living room is flanked by a kitchen on the left, with a spacious walk-in pantry, and a secluded guest suite on the right, with a private bath and walk-in closet.
In back, a covered patio is adorned with an fireplace perfect for smore-making with family and friends all year round.
Upstairs, you'll find the remaining bedrooms interlocked by a hallway that overlooks the 2-story family room below. A bonus room is tucked between the master suite and bedroom 2, perfect for a kids' playroom or extra storage if left unfinished.
Related Plan: Find a similar plan with an alternate exterior in 666202RAF.
