Plan 55038BR
Parade of Homes Design
Heated S.F.
2,888
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 55038BR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 55038BR

1-800-854-7852

1-262-521-4596

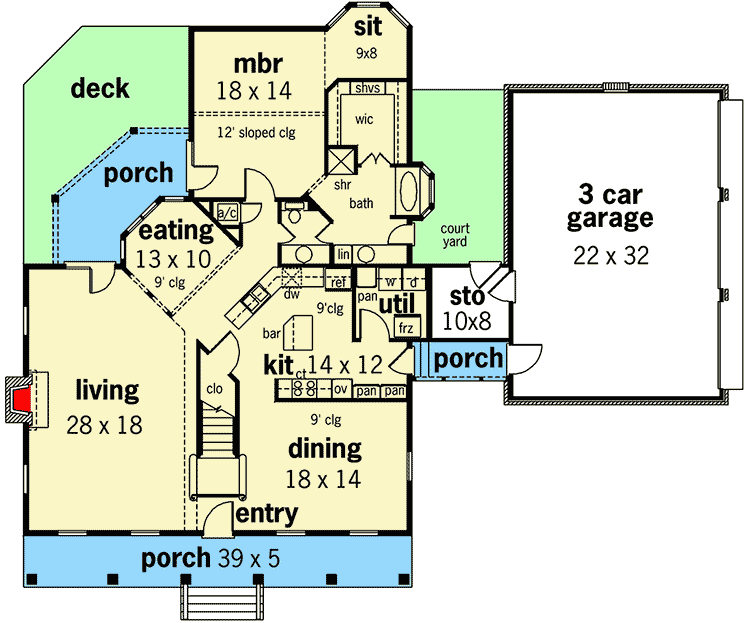

Main Level
floor plan image Main Level

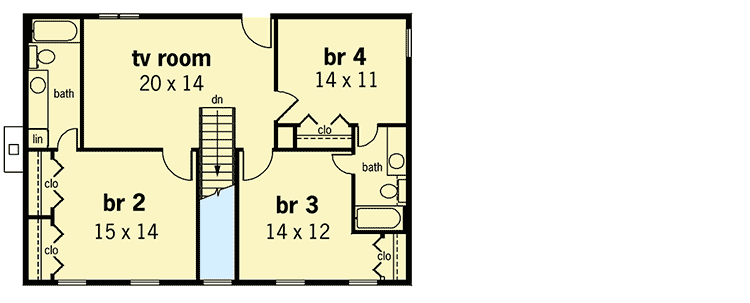

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Designed as a 'Parade of Homes' model home plan, it was necessary that the elevation for this compact floor plan fit well with the stately homes of the area.
  • To capture the golf course views to the side and rear of the site, it was designed with an angular bay eating area with a surrounding porch.
  • A sitting area with full-length windows in the master suite allows for equally pleasing views.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,888 sq. ft.

1st Floor

1,768 sq. ft.

2nd Floor

1,120 sq. ft.

Porch, Front

195 sq. ft.

Porch, Rear

162 sq. ft.

Storage

64 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

58' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

704 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Master Suite - 1st Floor

Master Suite - Sitting Area
