Plan 66090WE
Perfect Plan for Warm Climates
Heated S.F.
3,043
Beds
3
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 66090WE

Main Level
slide image 0

Plan 66090WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

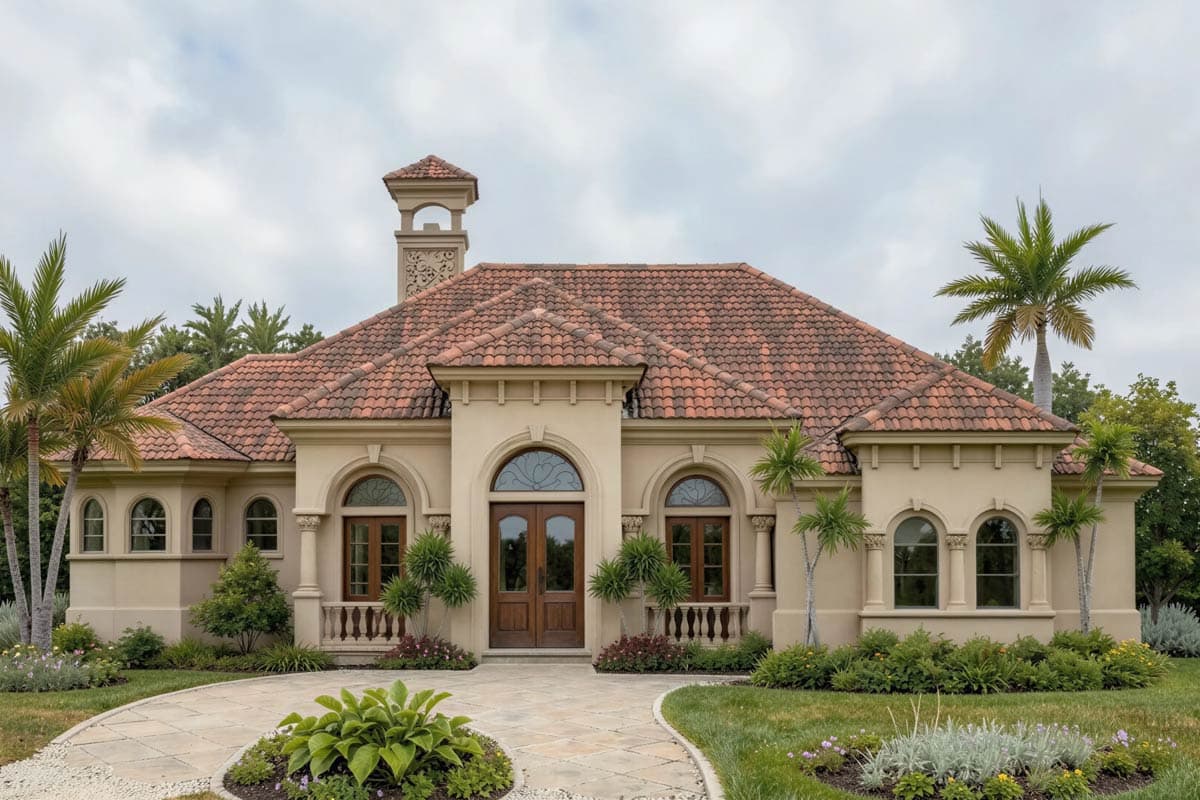

  • Accented by Corinthian columns and symmetric keystone balusters, the attention to detail is evident in this Mediterranean inspired home. Once inside, the double coffer ceilings and openness of the rooms make this house plan a bright and roomy home, yet still intimate with a fireplace to cozy up to in the living room.
  • The spacious family room, with an intricate ceiling and fireplace, is open to the kitchen and dinette, providing a great gathering area. The tall, angled sliding glass doors welcome the outdoors in.
  • The split bedrooms give everyone utmost privacy. Located in the left wing for privacy, the master suite enjoys views to the rear and access to the lanai through sliding glass doors. A luxurious bath awaits the owners and features a shower with room for two. All three bedrooms have private baths.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,043 sq. ft.

1st Floor

3,043 sq. ft.

Entry

252 sq. ft.

Lanai

677 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

70' 6"

Depth

110' 0"

Max Ridge Height

31' 9"

Garage

Type

Attached

Area

874 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

Coffered

10' 11''

Living Room

Coffered

11' 9''

Kitchen

Flat

12' 0''

Dining Room

Coffered

11' 9''

Master Bedroom

Coffered

10' 11''

All Bedrooms

Flat

10' 0''

Study

Coffered

10' 11''

Lanai

Flat

12' 0''

Master Bath

Flat

12' 0''

Foyer

Coffered

12' 9''

Dinette

Coffered

10' 11''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
