Plan 80867PM
Petite Contemporary House Plan
Heated S.F.
1,144
Beds
2
Baths
1
Stories
1
Cars
1
Floor Plan

Plan 80867PM

Main Level
slide image 0

Plan 80867PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Live all on one floor with no wasted space in this petite house plan with contemporary influences.
  • Just the right size for a couple starting out or those who don't want a lot of space, the house is easy to clean and maintain.
  • The open layout and 9' high ceilings have the effect of making the home feel larger.
  • In the kitchen the island has room for three stools for informal dining.
  • The master bedroom gets a walk-in closet and there's a handy laundry closet ready to serve both bedrooms.
  • A one car garage completes this home.
  • Related Plan: Get an alternate exterior with house plan 80868PM.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

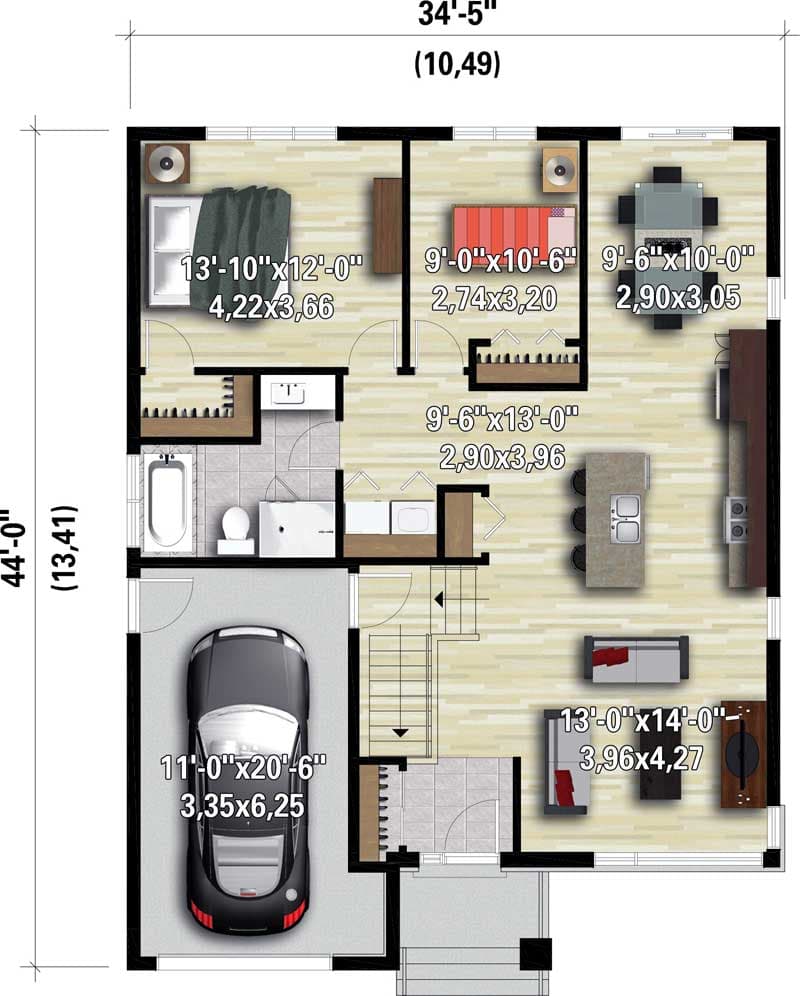

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,144 sq. ft.

1st Floor

1,144 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 5"

Depth

44' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

254 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,144 sq. ft.

1st Floor

1,144 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 5"

Depth

44' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

254 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
