Plan 17768LV
Petite European House Plan
Heated S.F.
1,400
Beds
3 - 5
Baths
2.5 - 5.5
Stories
1
Cars
2
Floor Plan

Plan 17768LV

Main Level
slide image 0
Bonus
slide image 1

Plan 17768LV

1-800-854-7852

1-262-521-4596

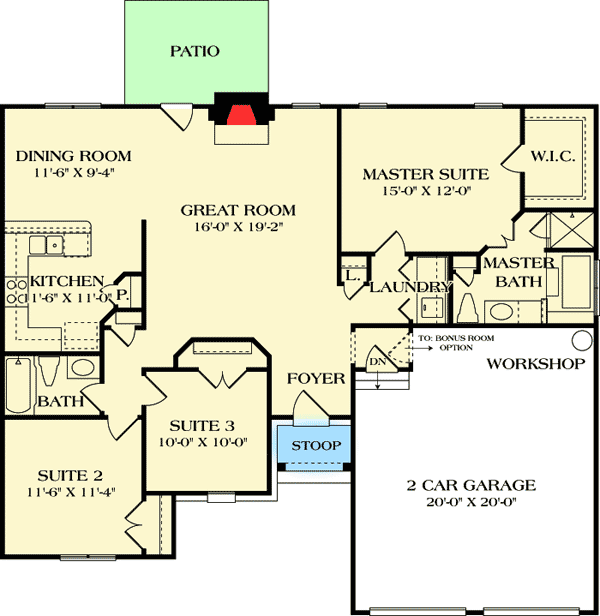

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • An elegant roofline and beautiful decorative shutters make this petite European cottage a delightful place to come home to.
  • The split bedroom layout sets the master suite away from the family bedrooms, allowing privacy for all.
  • The giant great room is anchored by the big fireplace that can be seen all the way from the foyer.
  • An optional bonus room over the garage gives you more flexibility and can be finished on your own timetable.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,400 sq. ft.

1st Floor

1,400 sq. ft.

2nd Floor

3,040 sq. ft.

3rd Floor

938 sq. ft.

Bonus

297 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1, 2, or 3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

42' 8"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

416 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

18 on 12

Architectural Style

European

French Country

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Elevator

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Photo Gallery
