Plan 76001BW
Petite Mediterranean Home Plan
Heated S.F.
1,896
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 76001BW

Main Level
slide image 0

Plan 76001BW

https://www.architecturaldesigns.com

1-800-854-7852

1-262-521-4596

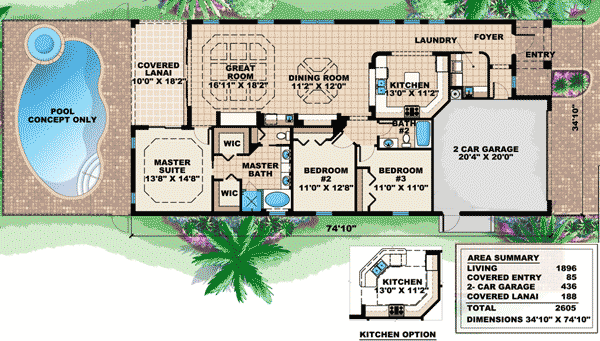

Main Level
floor plan image Main Level
Plan Details
  • This petite Mediterranean home plan is long and lean at only 34'10" wide.
  • Arched windows, stucco and a tile roof create a Florida vibe.
  • An open layout in the main living area extends the views over 40' from the kitchen to the back of the great room.
  • Relax on your covered lanai at the back of the house.
  • The master suite also faces the back of the home and has a tray ceiling and large deluxe bathroom with two walk-in closets.
  • Bedrooms 2 and 3 are a generous size and share a hall bath.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,896 sq. ft.

1st Floor

1,896 sq. ft.

Entry

85 sq. ft.

Lanai

188 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

34' 10"

Depth

74' 10"

Max Ridge Height

21' 1"

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Square Footage Breakdown

Total Heated Area

1,896 sq. ft.

1st Floor

1,896 sq. ft.

Entry

85 sq. ft.

Lanai

188 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

34' 10"

Depth

74' 10"

Max Ridge Height

21' 1"

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss
