Plan 860000MCD

Exclusive

Petite Southern Beauty

Heated S.F.

1,510

Beds

3

Baths

2

Stories

1

Cars

2

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Get a big open floor plan with a large archway separating the living room from the kitchen and dining area in this petite Southern house plan..
On center of the arch is the fireplace and the kitchen island.
The home is just the right size to be easy to clean and maintain.
With the master bedroom separated from the other bedrooms you have privacy and a quiet refuge.
A generous rear porch open on two sides allows for natural light and air flow.

What's Included

This set of working drawings has 8 pages as follows:

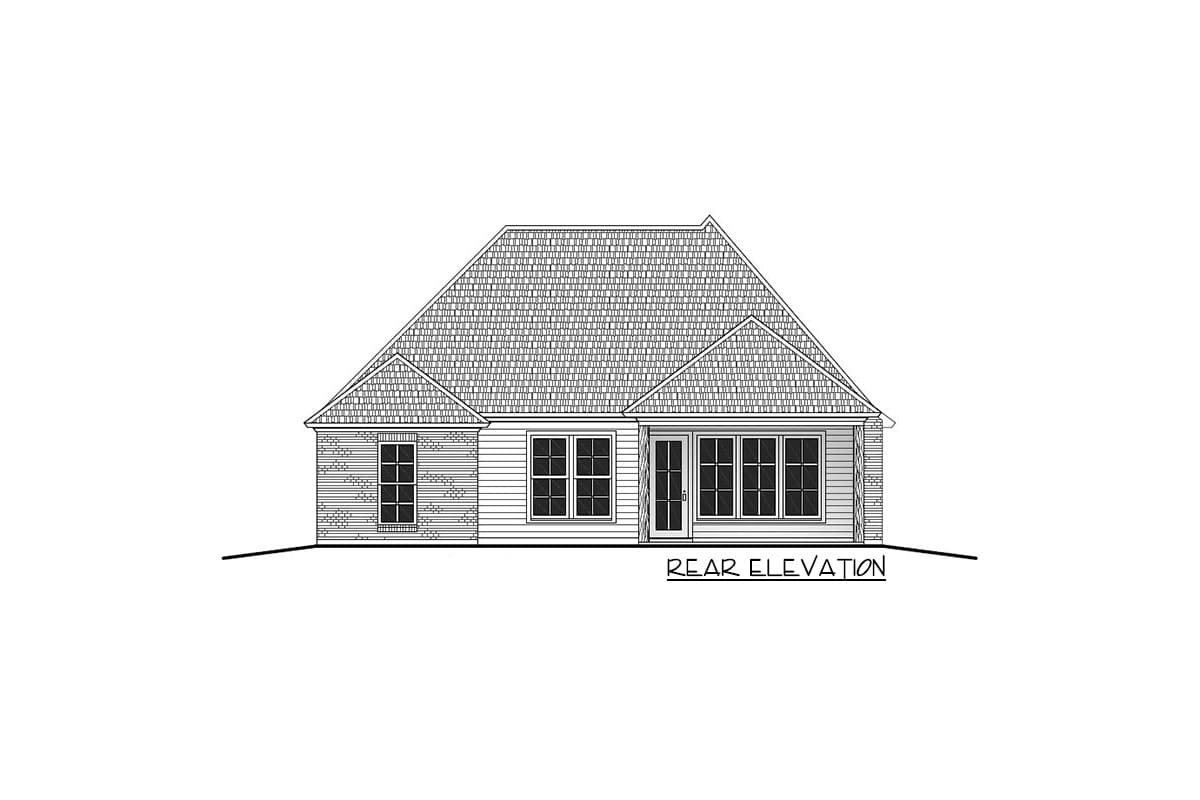

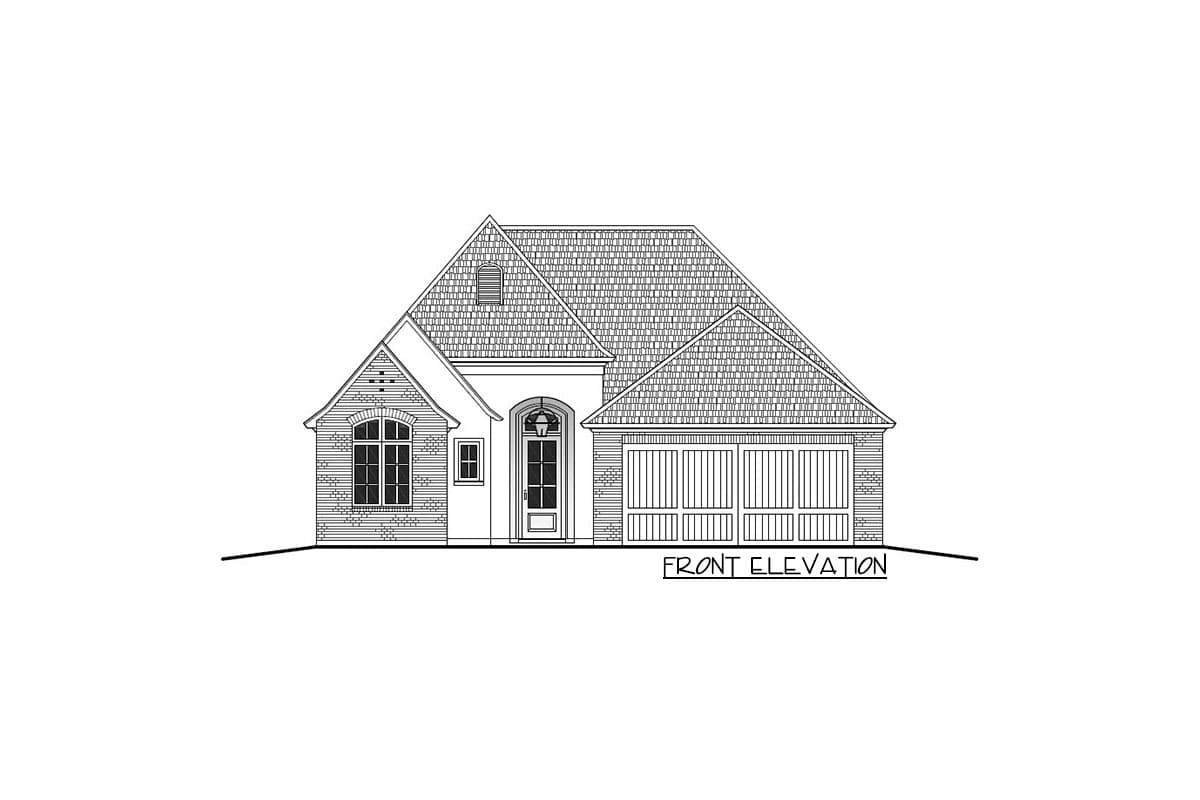

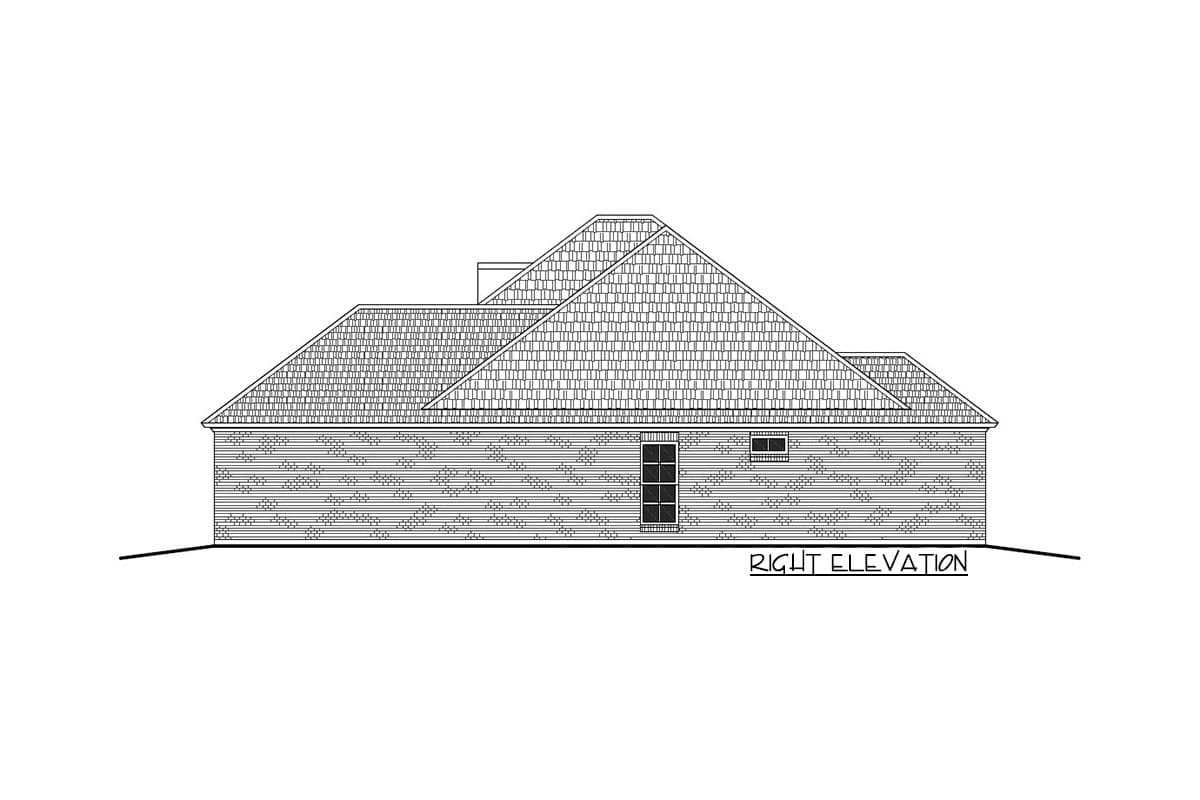

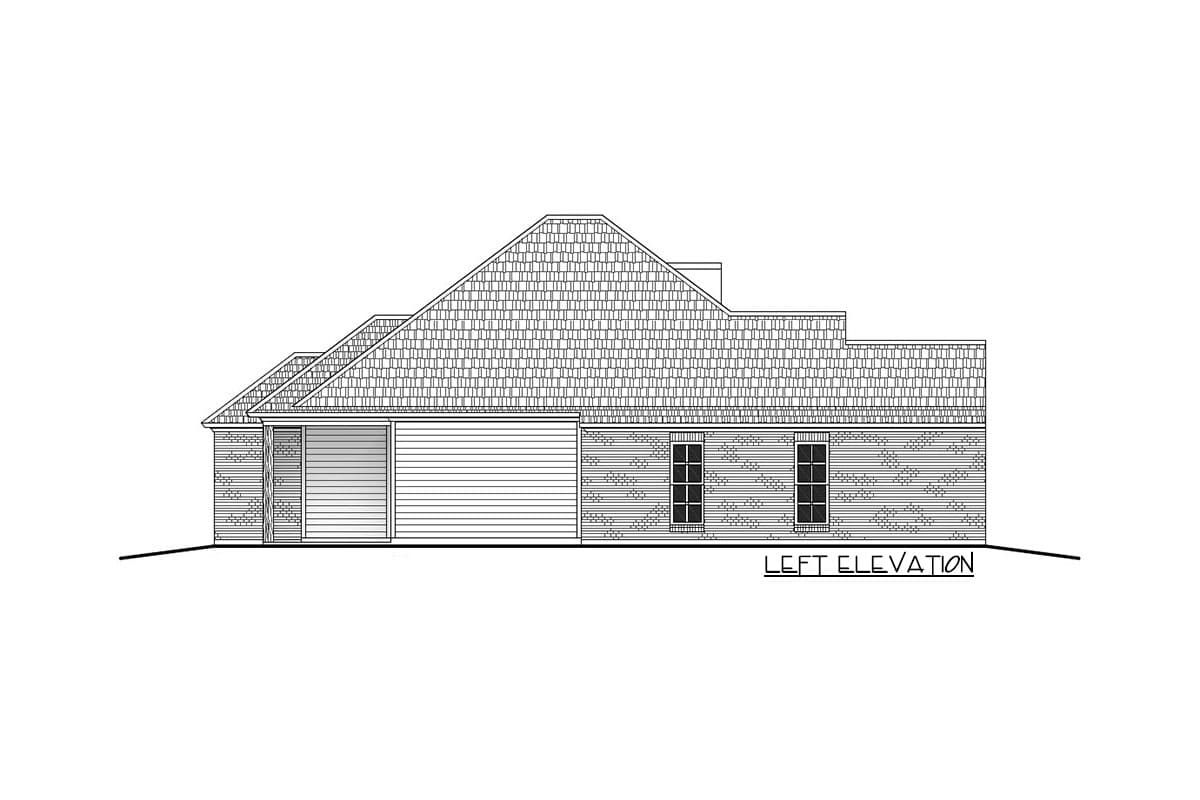

Cover sheet with rendering, roof plan, and all four exterior elevations

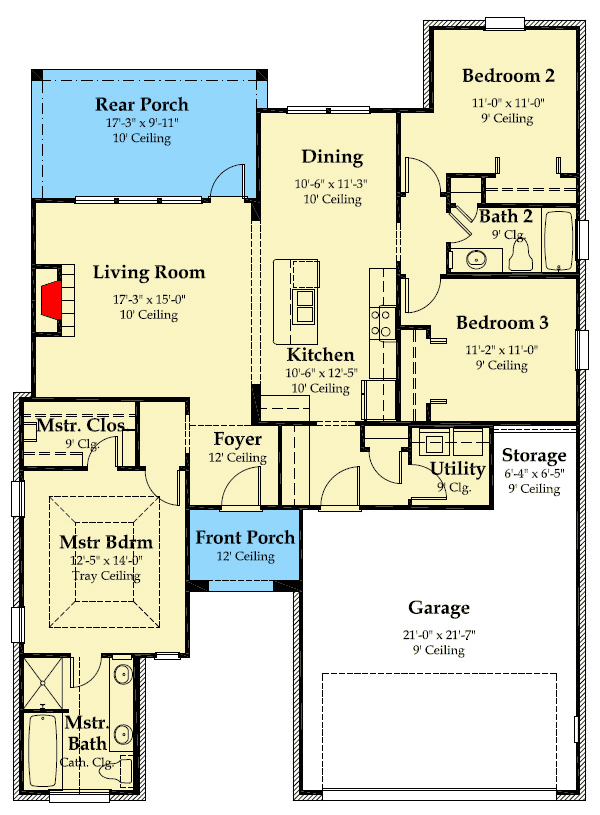

Main floor plan, window schedule, door schedule and room finish schedule
Foundation plan and details
Interior elevations
Wall sections
Electrical plan
General notes

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,510 sq. ft.

1st Floor

1,510 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

60' 0"

Garage

Type

Attached

Area

547 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

1,510 sq. ft.

1st Floor

1,510 sq. ft.

Porch, Combined

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

44' 0"

Depth

60' 0"

Garage

Type

Attached

Area

547 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
