Plan 62938DJ

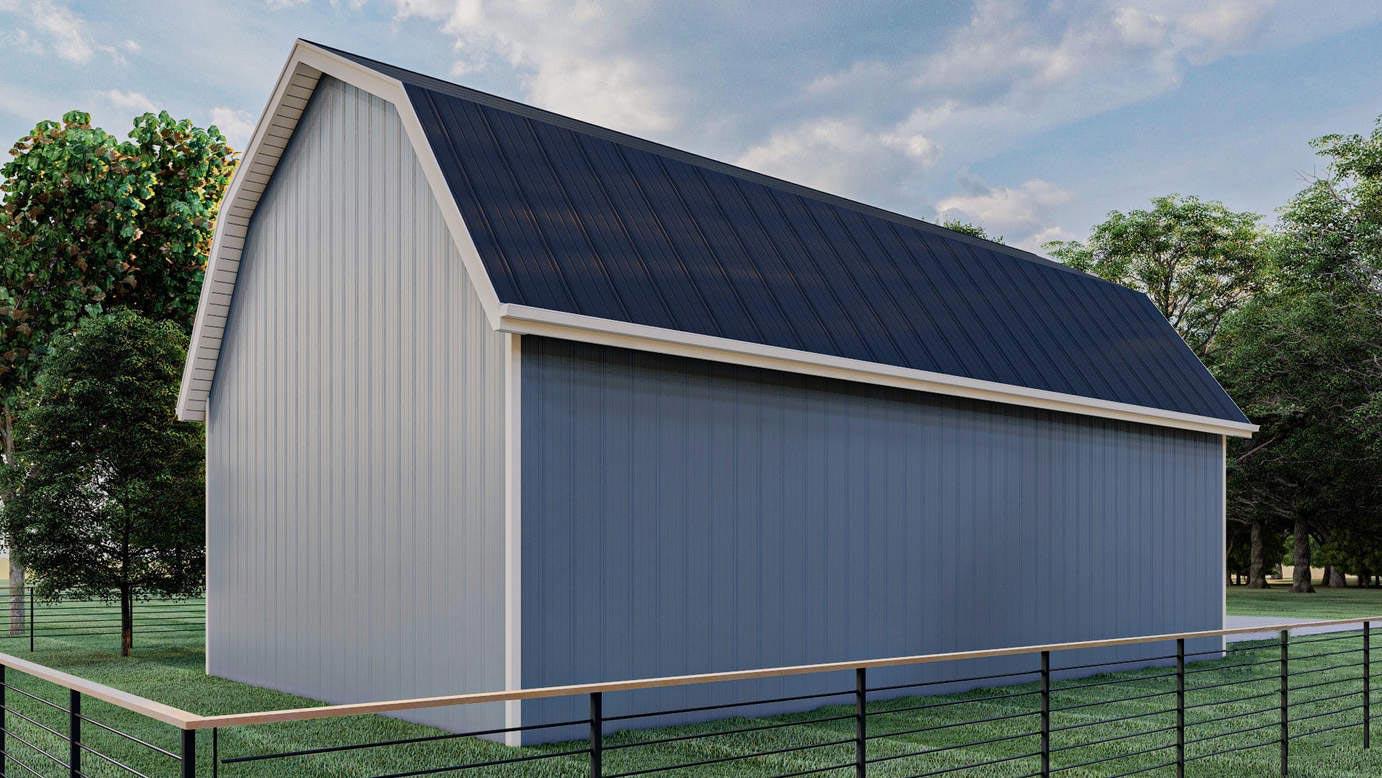

Pole Barn Garage with 11'-high Overhead Door
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
1- 2
Floor Plan

Plan 62938DJ

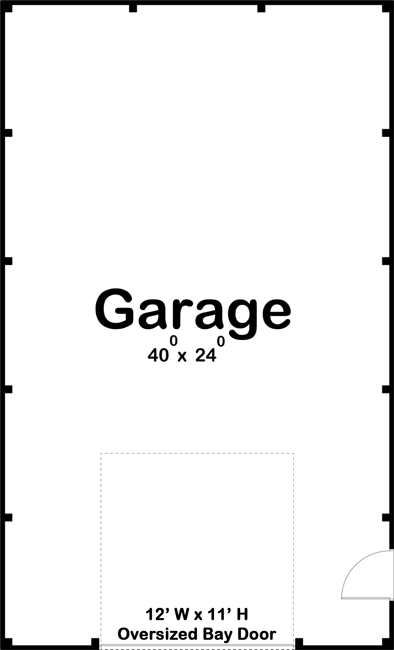

Main Level
slide image 0

Plan 62938DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

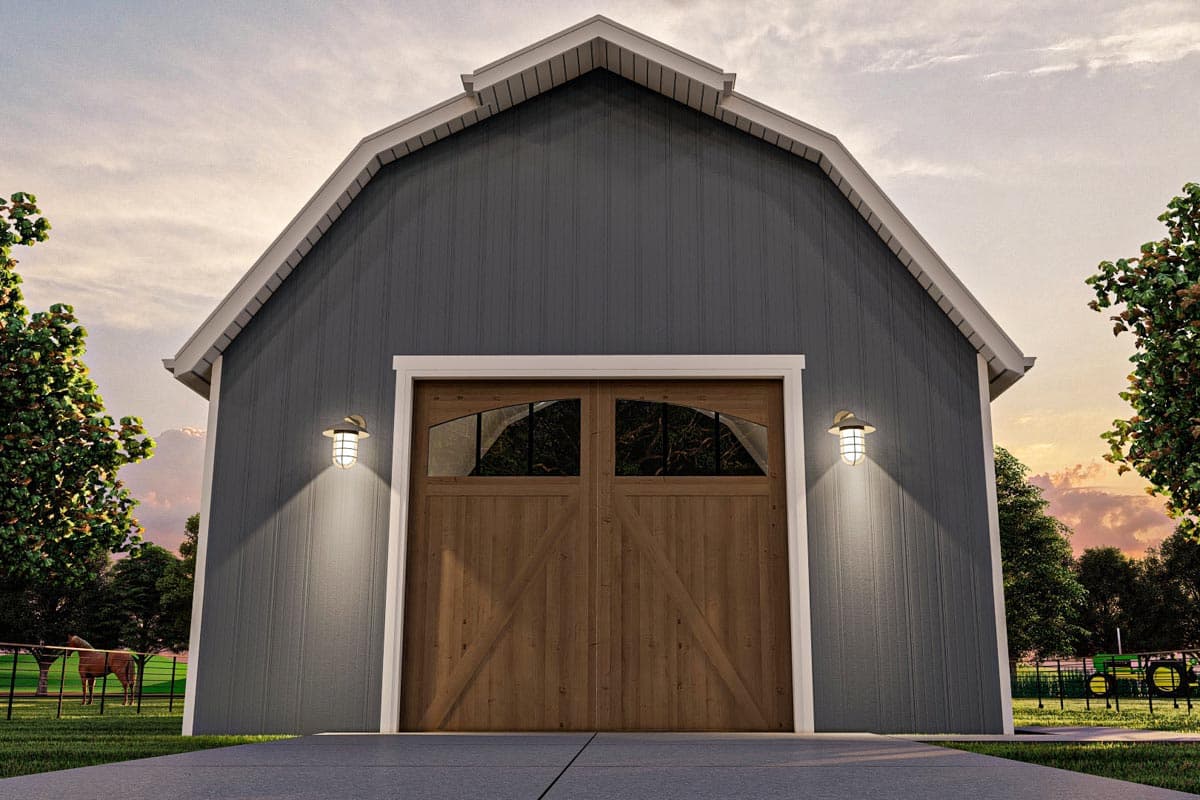

  • This detached garage plan gives you a single bay with an oversized 12' wide by 11' tall overhead door giving you clearance for taller vehicles.
  • A man-door is located on the right side of the garage.
  • This garage plan is designed for post-frame construction. The loads are carried by the post/poles, meaning the exterior walls are not load bearing. This form of construction is less expensive to build compared to a conventional framed design.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post Frame

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

24' 0"

Max Ridge Height

24' 0"

Garage

Type

Detached, RV Garage

Area

960 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

16 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Rustic

Special Features

Workshop

Plan Collections

Post-Frame
