Post and Beam Timber-Framed 2-Car Garage Barn Plan with Workshop Loft - 1456 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 373007TMB

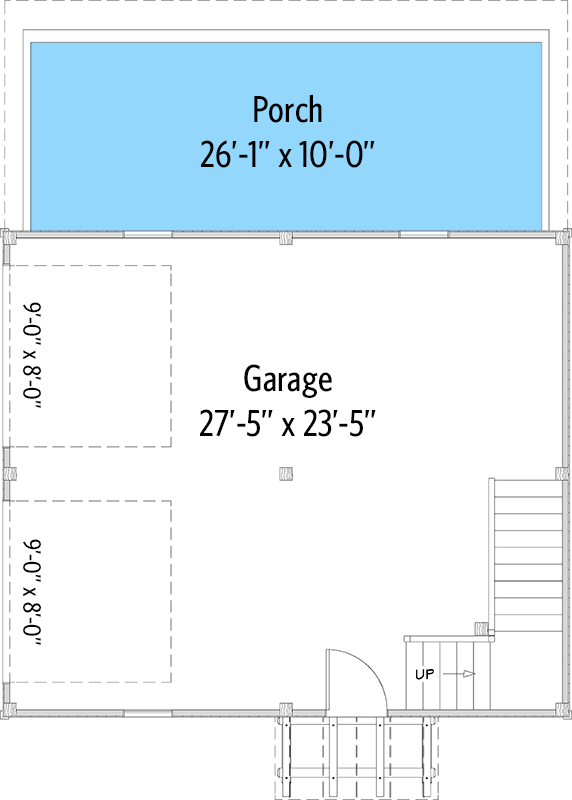

Main Level
slide image 0

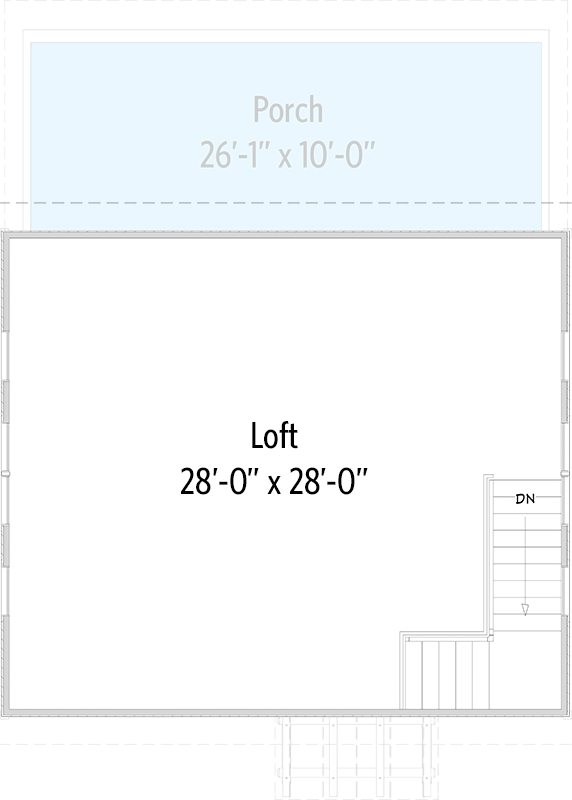

2nd Floor
slide image 1

Plan 373007TMB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Introducing our 24' x 28' Versatile Barn Garage Plan with Workshop Loft, an ideal addition for any property. Regardless of where you envision your barn standing, this comprehensive Timber-Framed Post and Beam garage barn plan provides all the essential elements to kickstart your building journey.
  • Begin with a strong foundation using our meticulously crafted layout, ensuring stability and durability. From there, maximize your barn's interior space with thoughtfully designed floor plans tailored to meet your unique needs.
  • Elevate the aesthetics of your barn with detailed architectural elevations, complete with door and window schedules for both functionality and style. Our cross-section detail offers a comprehensive view, ensuring structural integrity and visual appeal from every angle.
  • For multi-level functionality, follow our staircase specifications, seamlessly incorporating safe and stylish stairs into your barn. Plan for the future with our electrical layout, ensuring your barn is equipped to meet all your electrical needs.
  • Guard your investment against the elements with a meticulously crafted roof plan. Our plan includes a timber/fastener/connector list, guiding you through every step of the material acquisition process, so you can focus on bringing your vision to life.
  • Navigate the construction process effortlessly with detailed wall layouts, beam layouts, rafter layout, and fastening details. Master every aspect of your barn with step-by-step guidance provided in all single beam drawings.
  • Designed for timber-frame post and beam construction, the plans specify all materials to complete your build including 8x8 posts, 8x12 plate beams, 8x8 and 8x12 band joists, 6x10 joists, 4x6 knee braces, 8x12 ridge plates, and 4x8, 6x10, and 8x10 rafters.
  • These plans are comprehensive and go beyond standard blueprints by including detailed shop drawings. The shop drawings provide precise measurements for cutting the timbers, empowering you or your contractor to accurately cut and assemble the timber frame using the provided plans. This level of detail ensures a smooth and efficient building process.
  • We can modify any house plan you see on our site. Learn more about modifications here.
What's Included
  • Cover Sheet
  • Foundation Layout
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Elevations
  • Cross Section Detail
  • Electrical Plan
  • Roof Plan
  • Framing Overview
  • General Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

784 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

24' 0"

Depth

28' 0"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 9"

Second Floor

13' 3"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Post and Beam

Architectural Style

Barndominium

Country

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

784 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

24' 0"

Depth

28' 0"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 9"

Second Floor

13' 3"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Post and Beam

Architectural Style

Barndominium

Country

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame
