Plan 911041JVD
Post-Frame Barndominium Garage Workshop Plan with Vaulted Interior - 2697 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
8
Floor Plan

Plan 911041JVD

Main Level
slide image 0

Plan 911041JVD

1-800-854-7852

1-262-521-4596

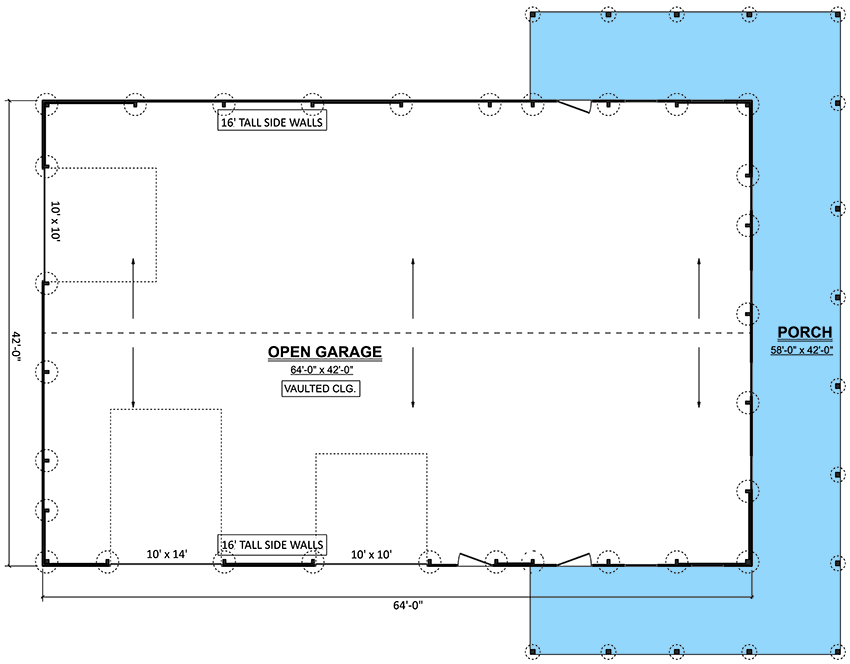

Main Level
floor plan image Main Level
Plan Details
  • This post-framed Barndominium-Style Garage Workshop plan gives you 2,697 square feet of flexible space, with 16' walls vaulting up to the ridge peak. A covered porch wraps around the right side of the structure, providing a covered outdoor space as well as a charming aesthetic to this functional outbuilding.
  • This is a post-frame structure, intended to be constructed with 3-ply 2x6 posts framed with 2x4 purlins.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

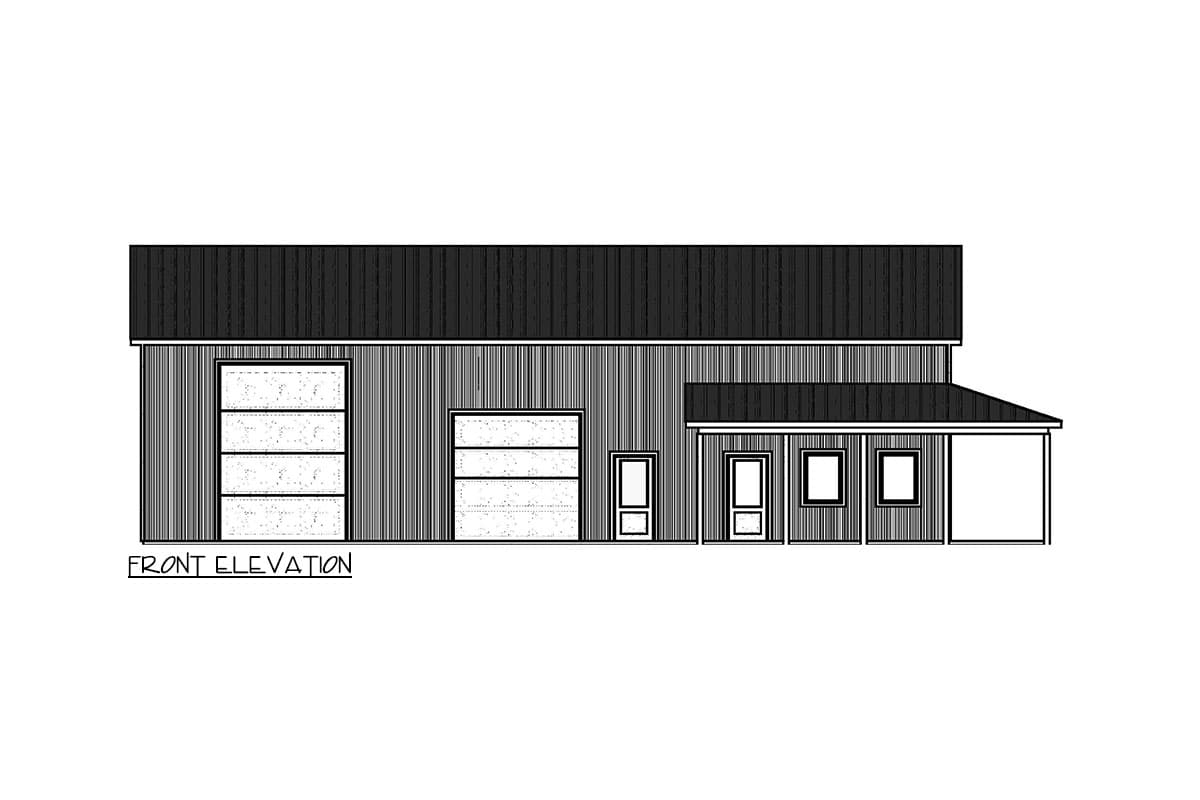

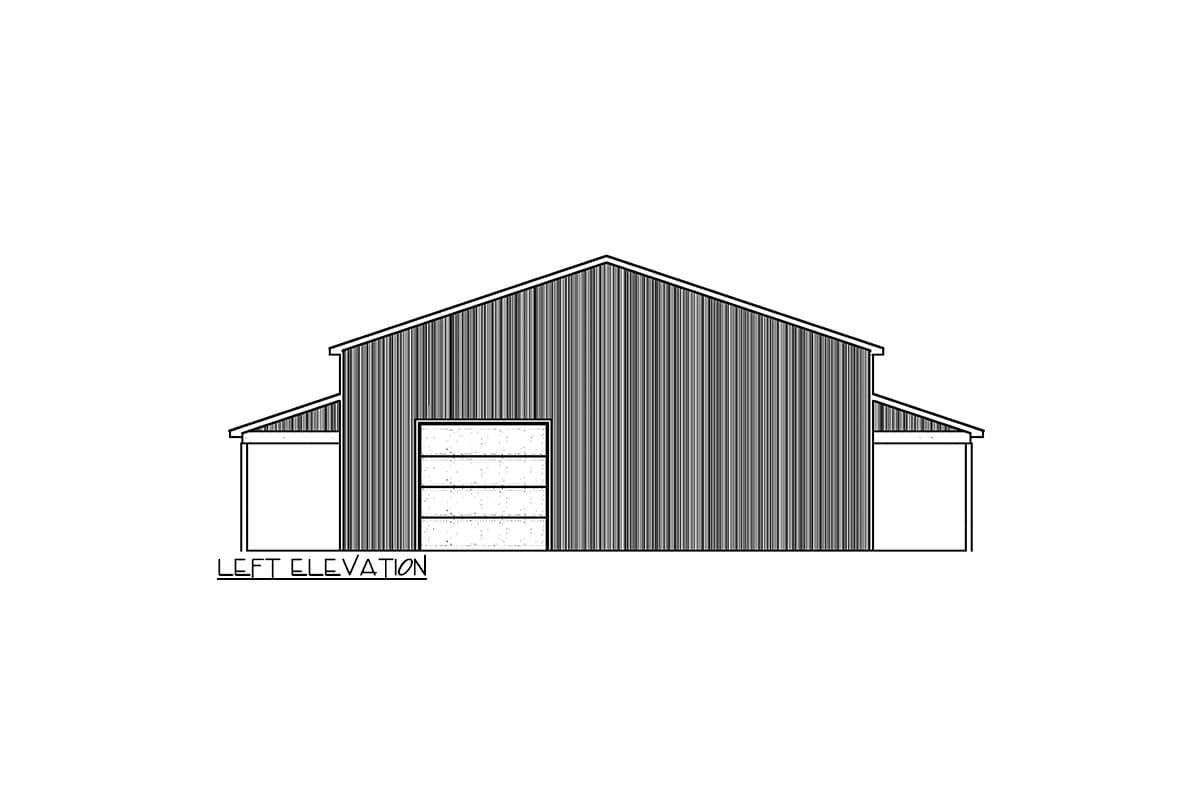

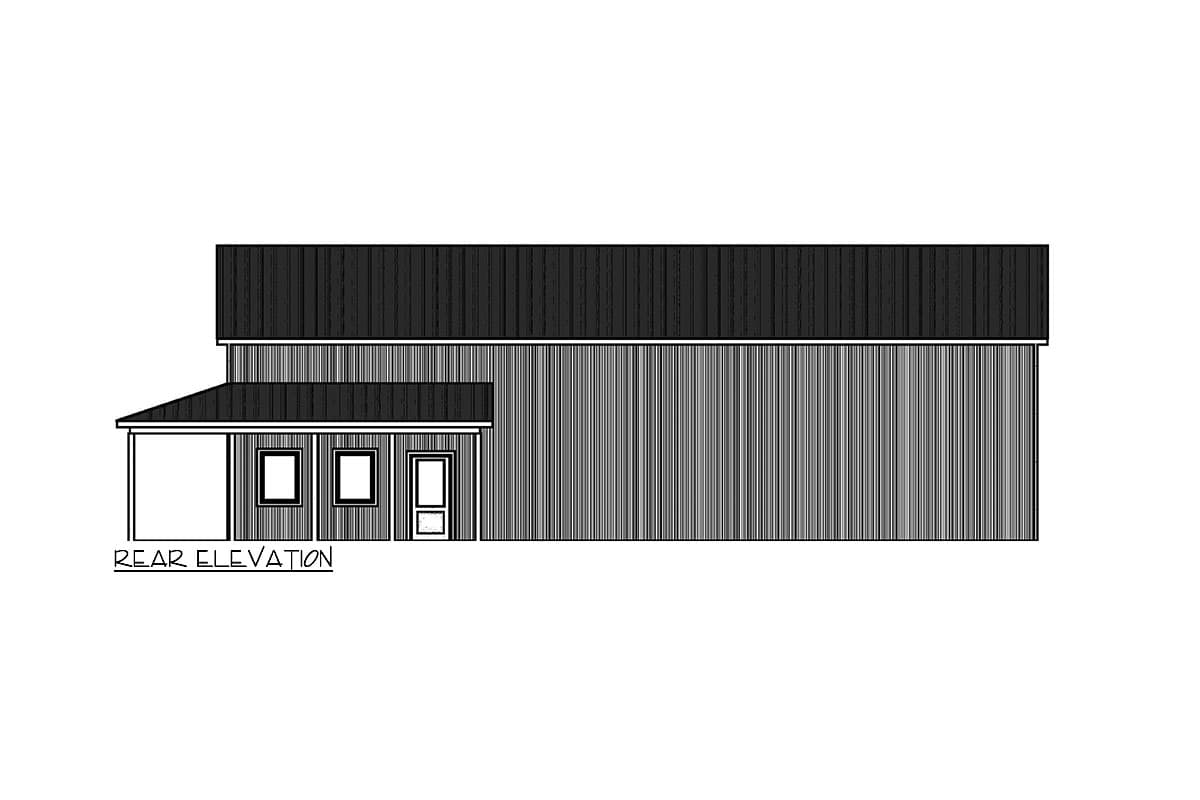

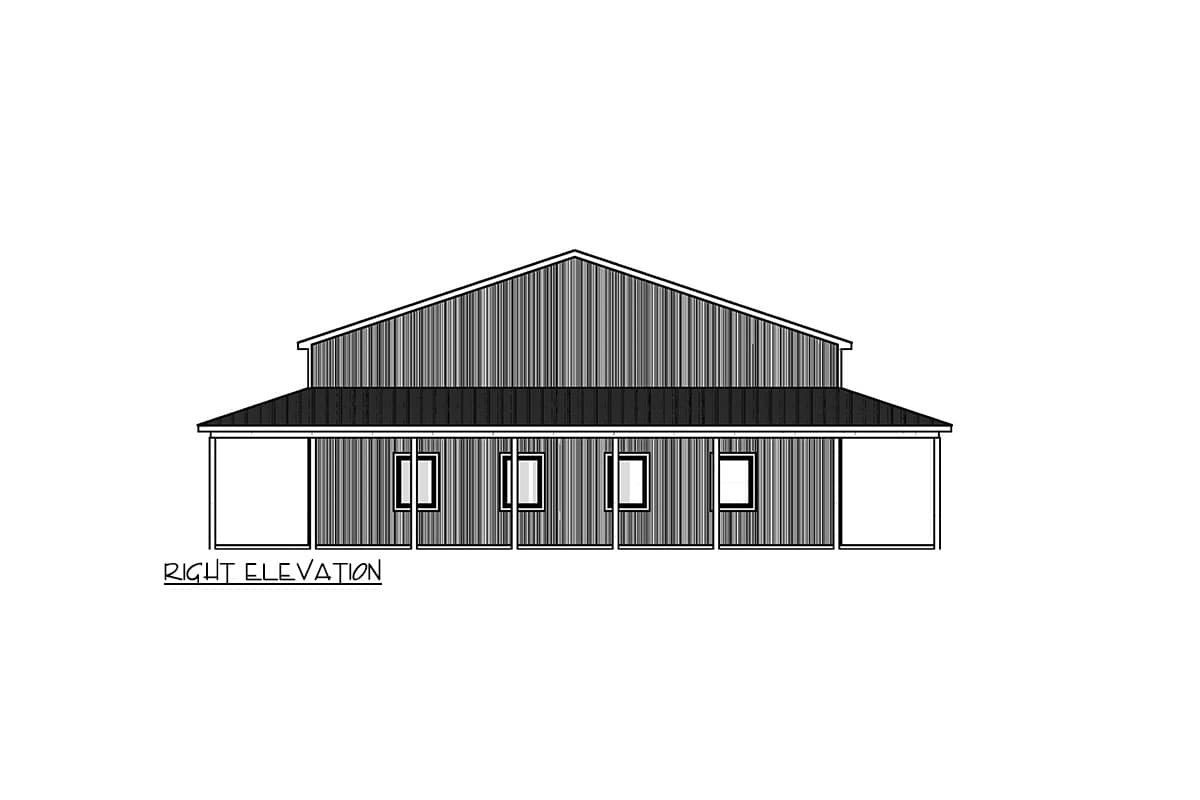

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
