Plan 39275ST
Prairie Style House Plan with Open Layout
Heated S.F.
1,833
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 39275ST

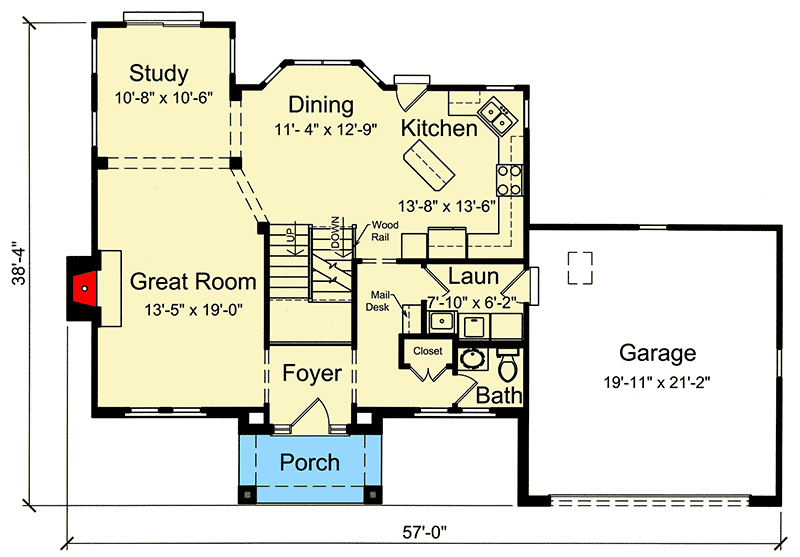

Main Level
slide image 0

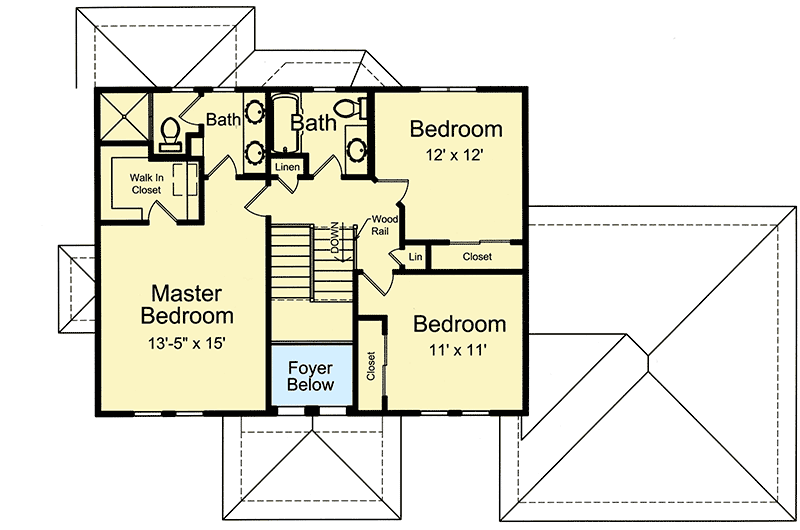

2nd Floor
slide image 1

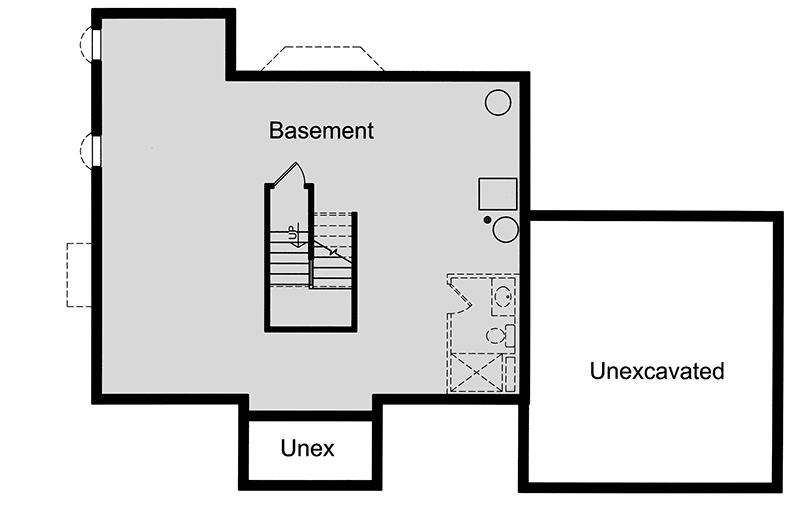

Lower Level
slide image 2

Plan 39275ST

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details
  • This two-story Prairie style home offers an open floor plan with functional spaces.
  • The kitchen offers an angled sink, pantry cabinet and island with seating, opening generously to the dining area creating a large visual living space.
  • The master suite is located on the second floor and features a double sink vanity, shower and large walk-in closet.
  • Two additional bedrooms keep the younger family members close at hand.
What's Included
  • General notes and specifications

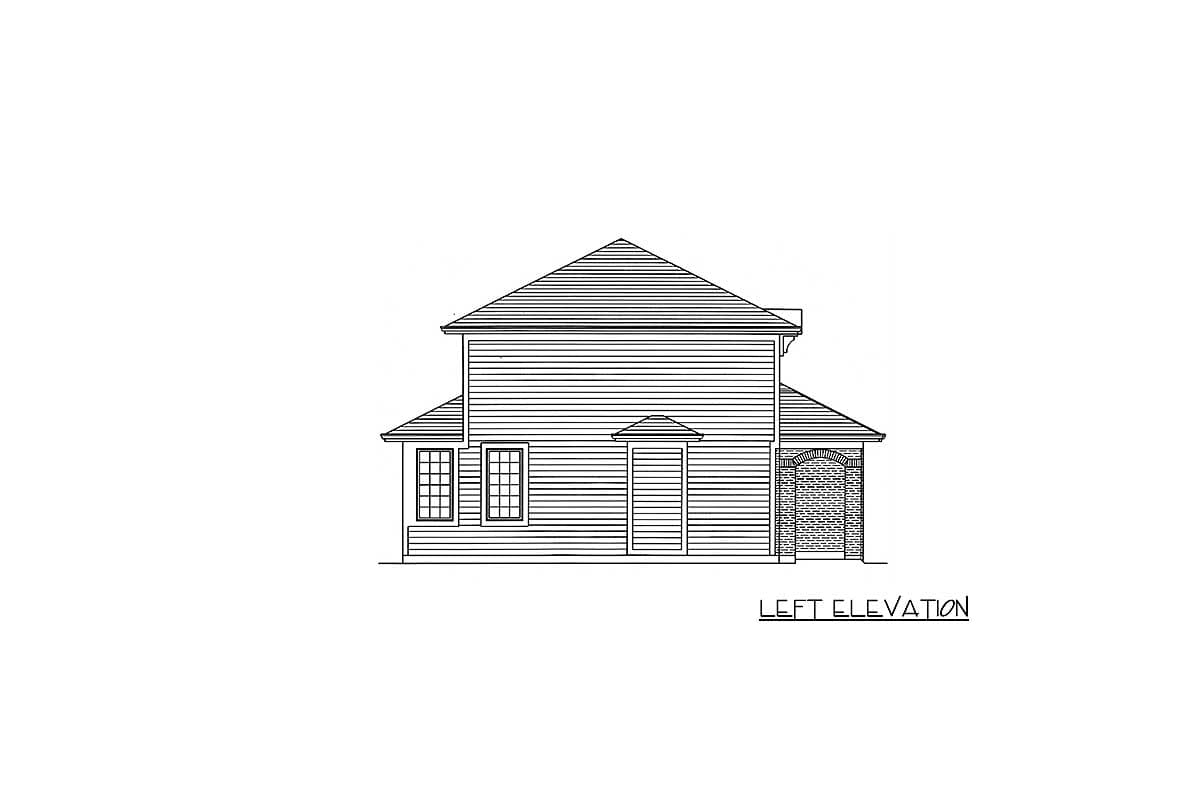

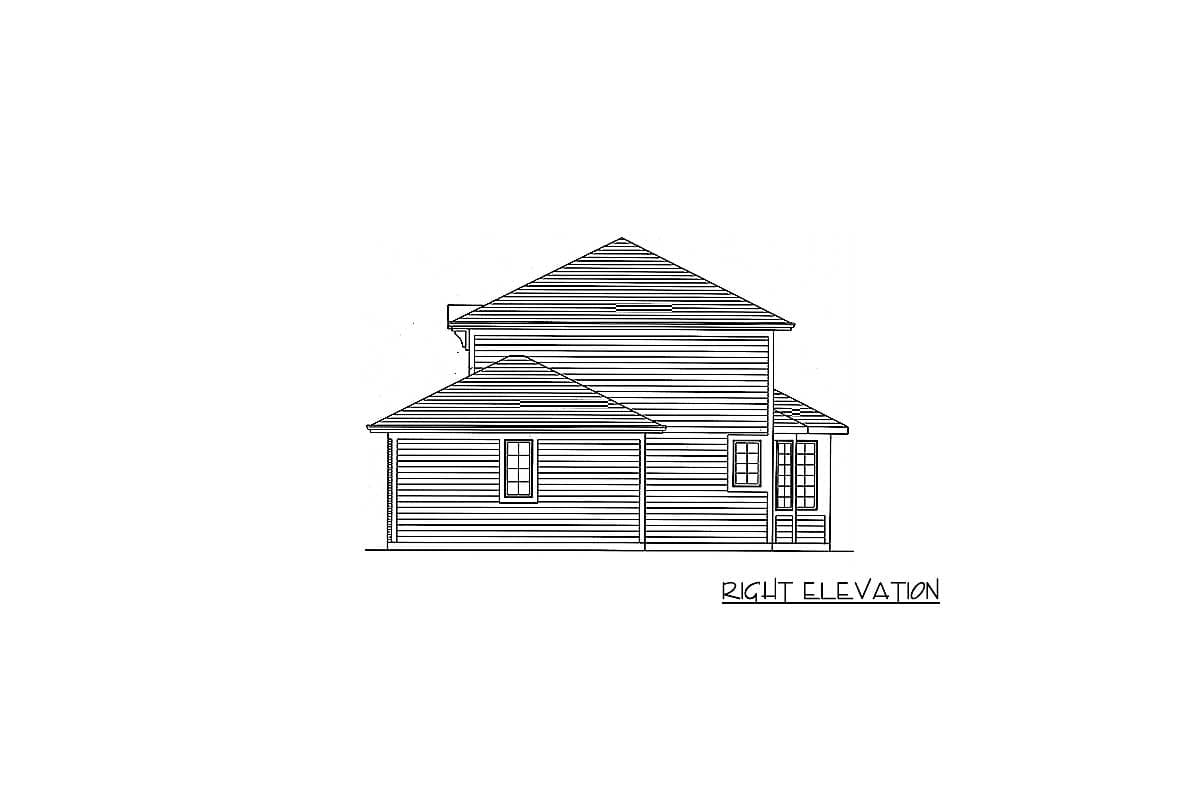

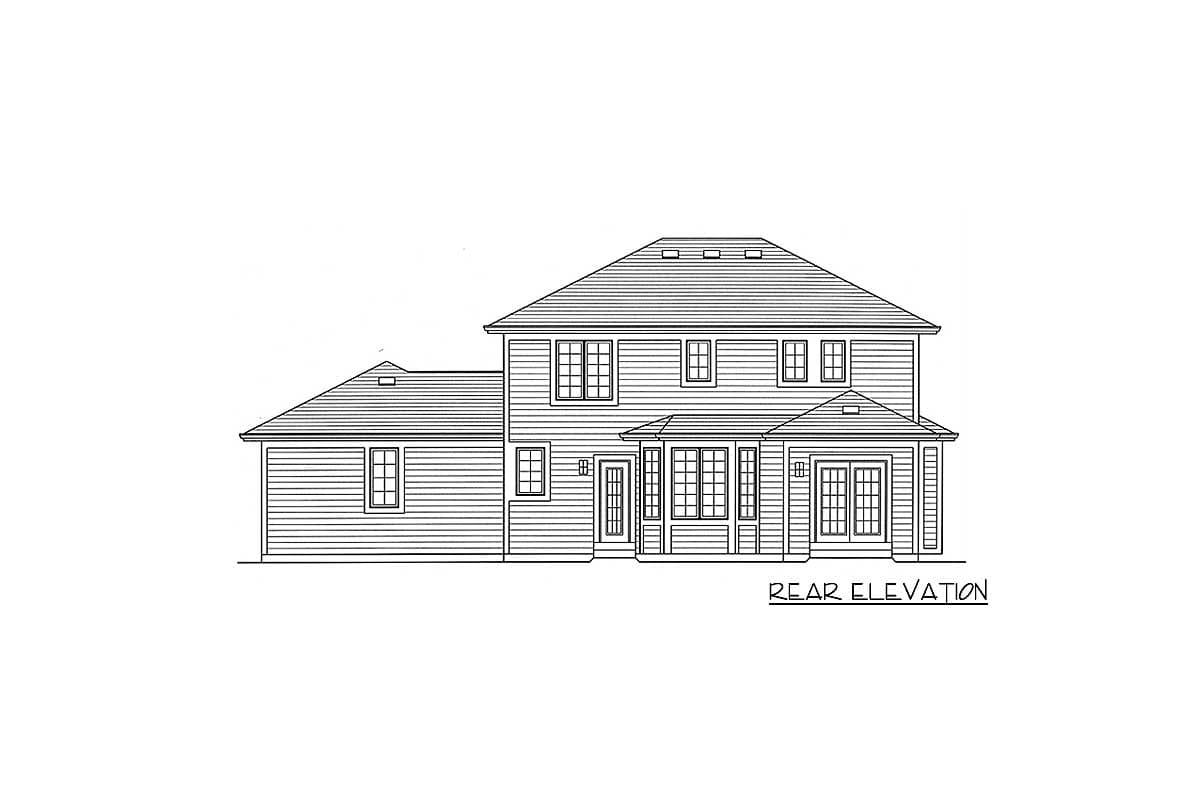

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,833 sq. ft.

1st Floor

1,012 sq. ft.

2nd Floor

821 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

38' 4"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,833 sq. ft.

1st Floor

1,012 sq. ft.

2nd Floor

821 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

38' 4"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom
