Plan 23739JD
Prairie Style House Plan with Rec Room and Exercise Room
Heated S.F.
4,022
Beds
3 - 5
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 23739JD

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 23739JD

1-800-854-7852

1-262-521-4596

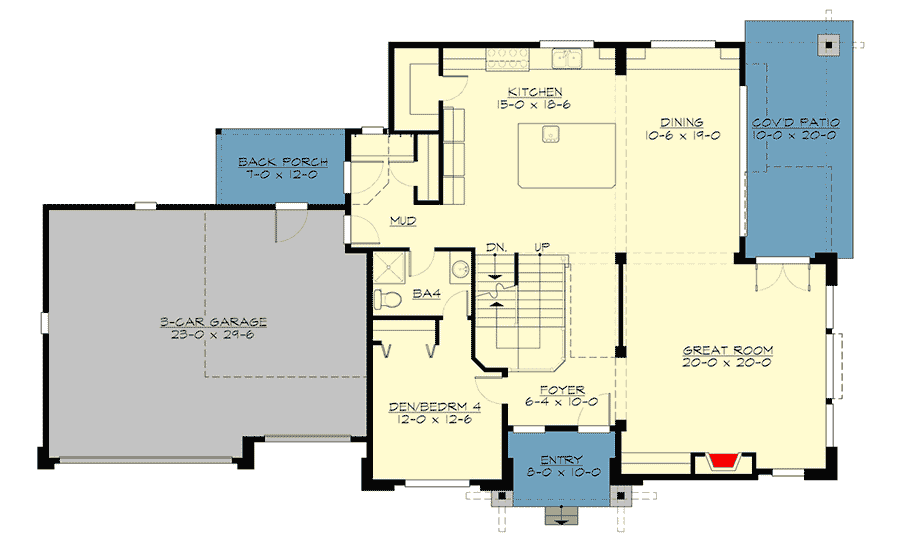

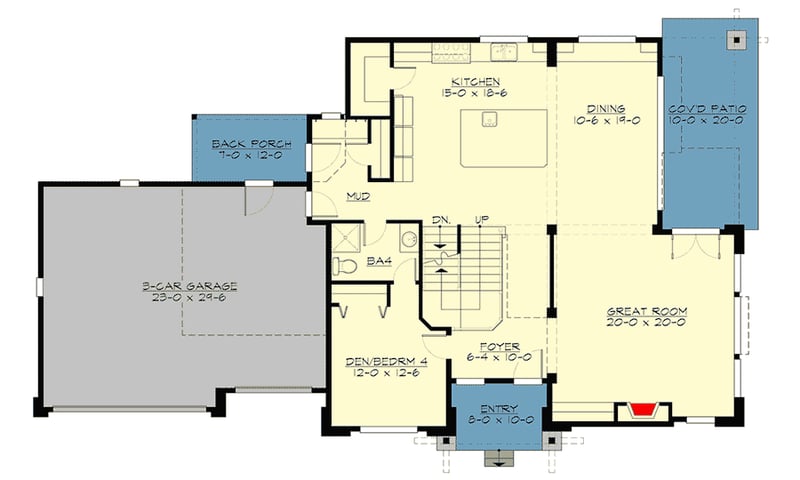

Main Level
floor plan image Main Level

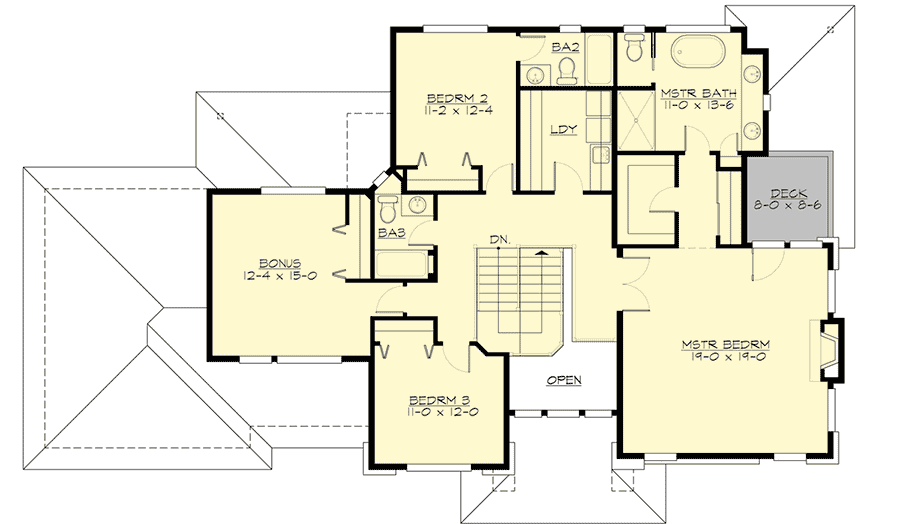

Second Level
floor plan image Second Level

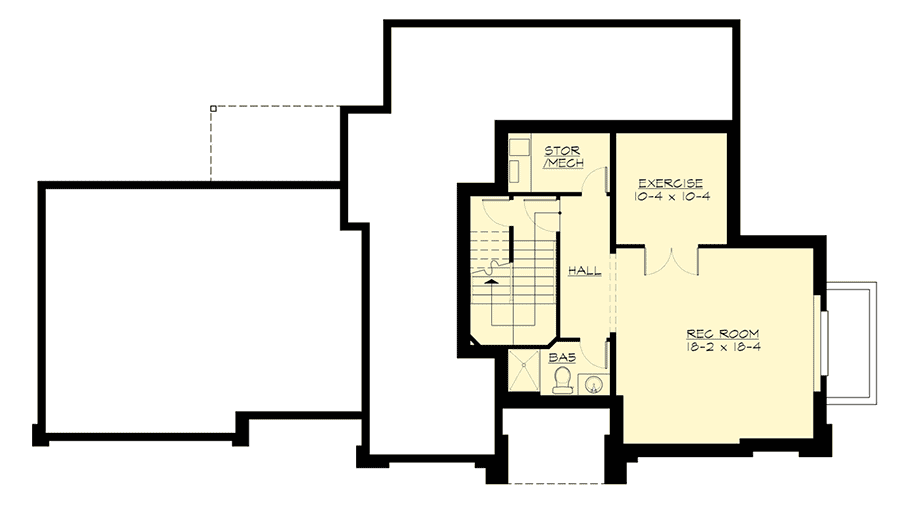

Lower Level
floor plan image Lower Level
Plan Details
  • This two-story Prairie style house plan delivers four bedrooms, an open floor plan and a big second floor bonus room, all with great style.
  • Get an upscale kitchen with a walk-in food storage pantry and room for an eight burner cook top.
  • The huge kitchen island comes with a second sink so you can have more than one person helping out in the kitchen.
  • Built-ins lie to the right of the great room fireplace and double doors lead out to the side covered porch.
  • Building out over the garage makes the second floor even bigger than the first floor so you get three bedrooms, a laundry room with folding counter and that big bonus room.
  • Homeowners get their own private deck and a romantic fireplace in the luxurious master suite.
  • The finished lower level features a dedicated exercise room, a full bathroom and a fun rec room for the whole faily to enjoy.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
  • Related Plan: Get a smaller version with a different layout with 23750JD (3,014 sq. ft.).
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,022 sq. ft.

Lower Level

819 sq. ft.

1st Floor

1,553 sq. ft.

2nd Floor

1,650 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

84 sq. ft.

Balcony / Veranda

68 sq. ft.

Covered Patio

200 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 5"

Depth

74' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

689 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Northwest

Prairie

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,022 sq. ft.

Lower Level

819 sq. ft.

1st Floor

1,553 sq. ft.

2nd Floor

1,650 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

84 sq. ft.

Balcony / Veranda

68 sq. ft.

Covered Patio

200 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 5"

Depth

74' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

689 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Northwest

Prairie

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Sloping Lot
