Plan 80911PM
Prairie Style Split Level House Plan
Heated S.F.
1,986
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 80911PM

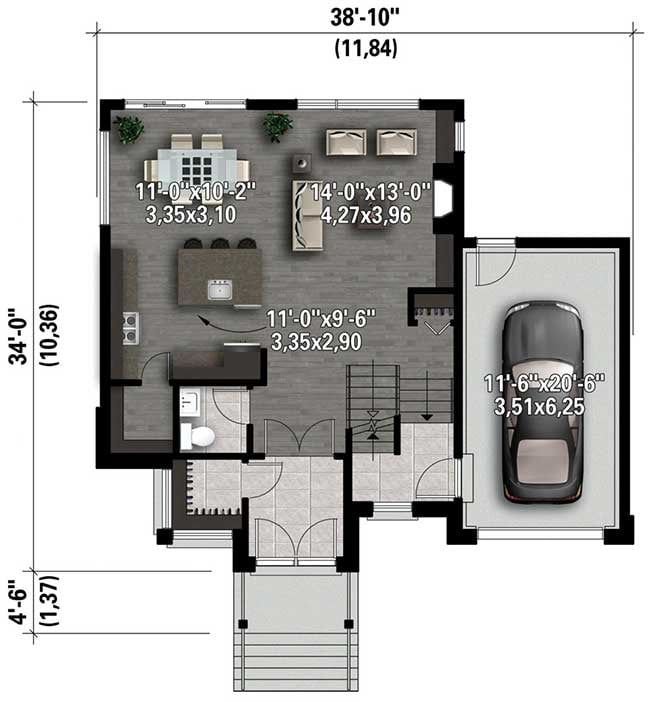

Main Level
slide image 0

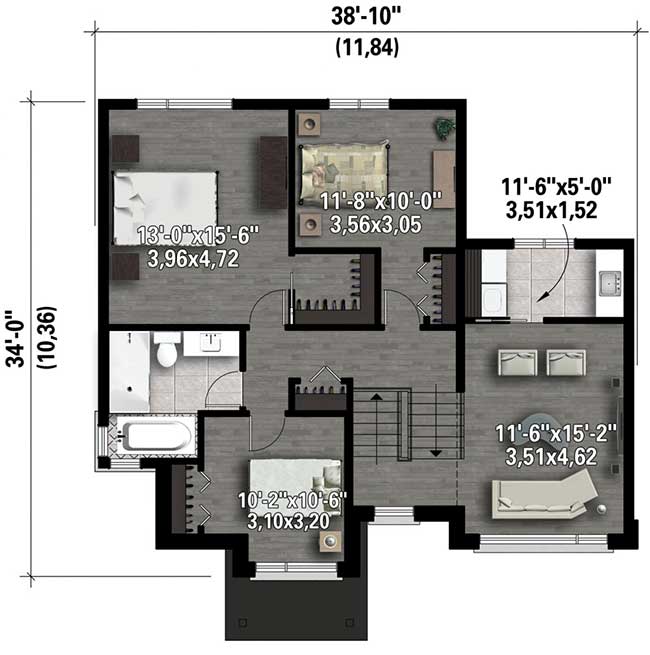

2nd Floor
slide image 1

Plan 80911PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A garage level foyer is just four steps down from the open layout main living area in this split level house plan.
  • The main entrance has an air-lock foyer for keeping cold air out in the winter and a nice walk-in coat closet.
  • You can seat three people at the island counter and the sink faces the dining area and living room.
  • Head up to the second floor where a landing takes you to the family room and laundry room.
  • Bedrooms are six steps up on another level where the master suite gets a walk-in closet.
  • All three bedrooms share a large hall bathroom with both a tub and a shower.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

814 sq. ft.

2nd Floor

1,082 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

34' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

236 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Split Level

Plan Collections

Split Level House Plans

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

814 sq. ft.

2nd Floor

1,082 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

34' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

236 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Split Level

Plan Collections

Split Level House Plans
