Plan 80998PM
Prestigious Bungalow Plan with Front and Rear Porch
Heated S.F.
1,896
Beds
4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 80998PM

Main Level
slide image 0

Plan 80998PM

1-800-854-7852

1-262-521-4596

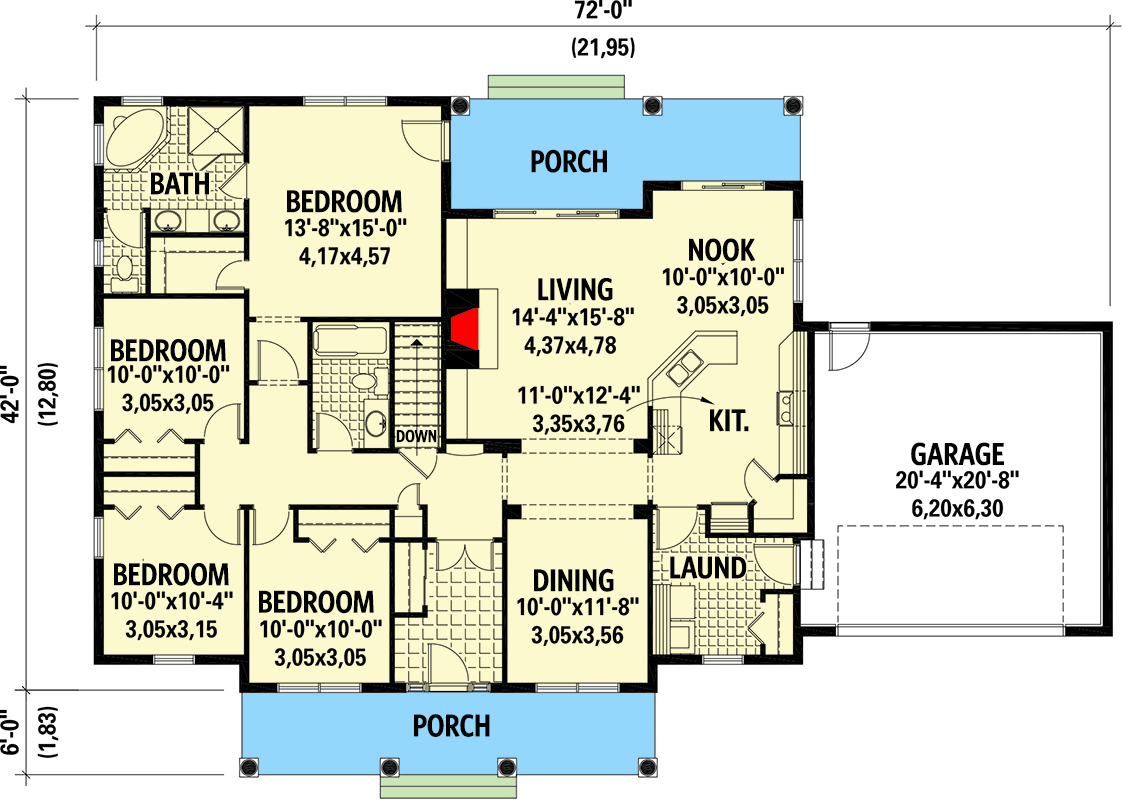

Main Level
floor plan image Main Level
Plan Details

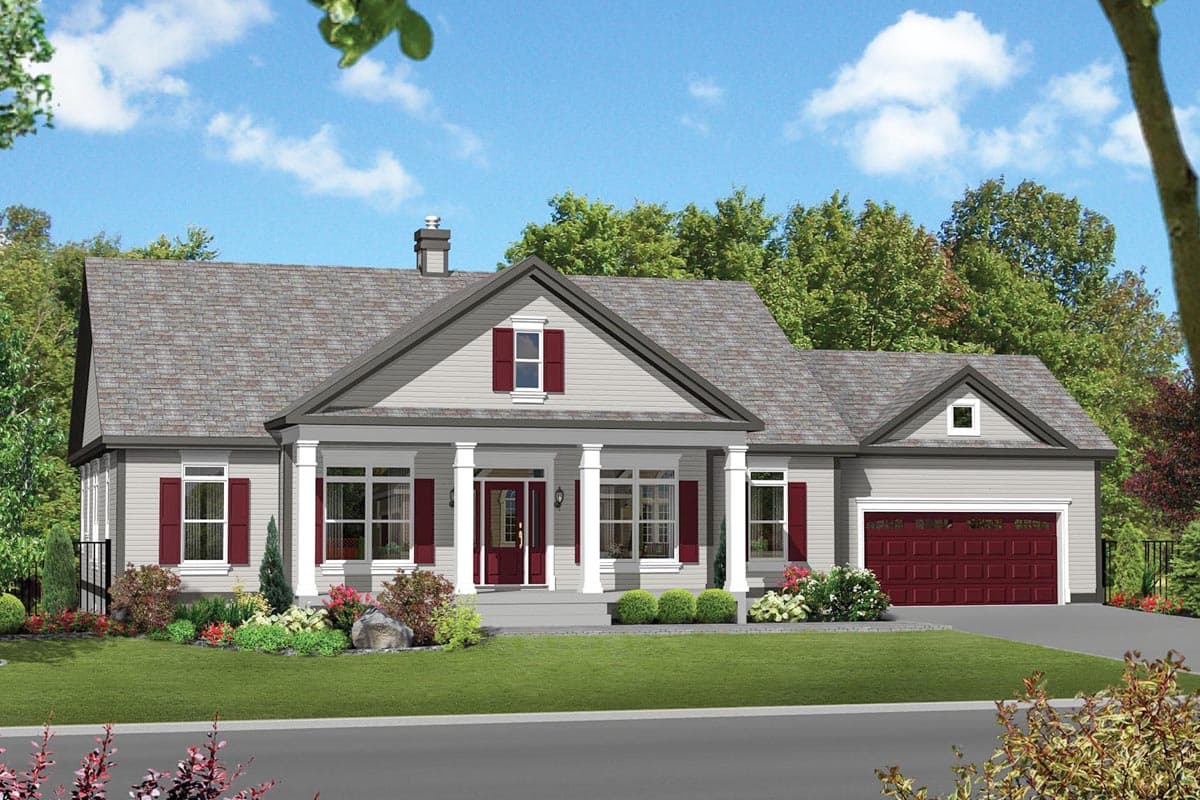

  • Decorative shutters and four pillars enhance the exterior of this Prestigious Bungalow plan that gives you 1,896 square feet of living space.
  • The kitchen's peninsula with a double-bowl sink provides views into the adjoining dining nook and living area, and glass sliders invite you to spend time outdoors on the covered porch.
  • A 10' by 11'8" formal dining room overlooks the front porch and creates a memorable space to share meals.
  • Four bedrooms are clustered along the left side of the home, including a master bedroom with walk-in closet, private bathroom, and access to the rear balcony.
  • The 469 square foot, two-car garage has two doors; one that provides access to the mud / laundry room and another that leads to the rear garden.
What's Included
Please note this plan is designed to the National Building Code of Canada.

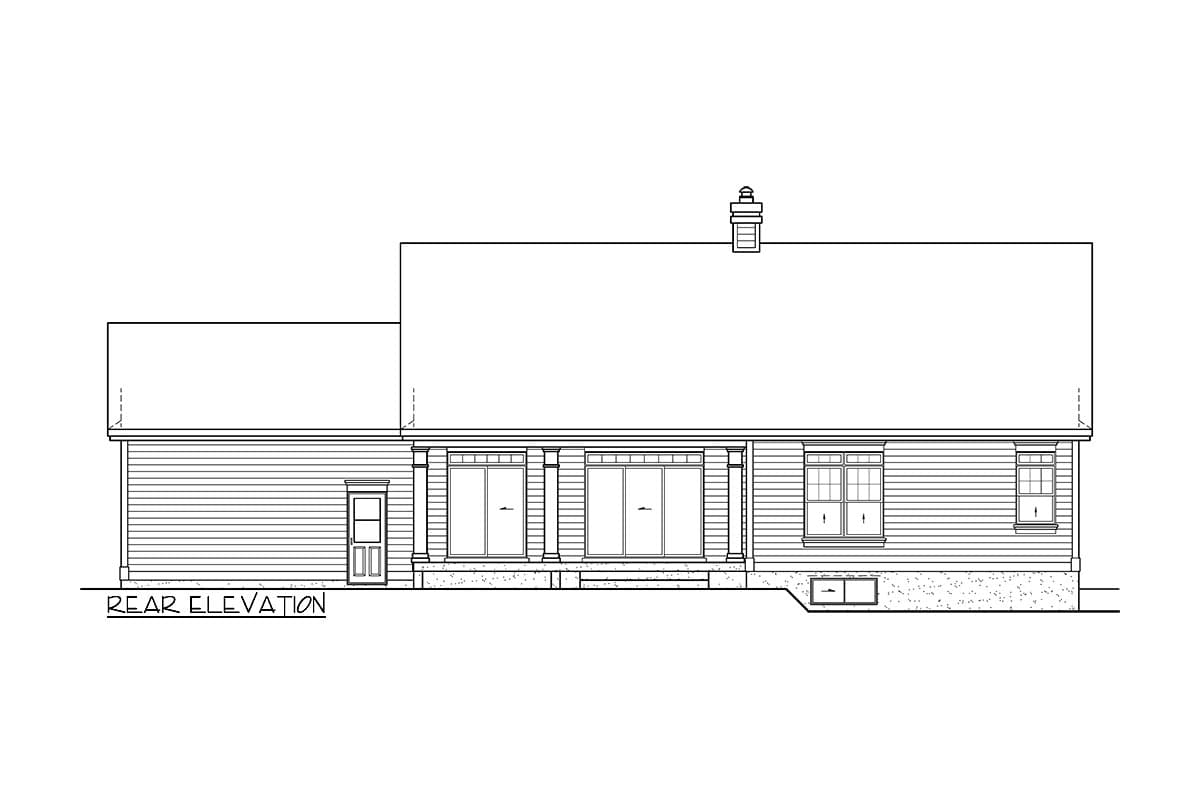

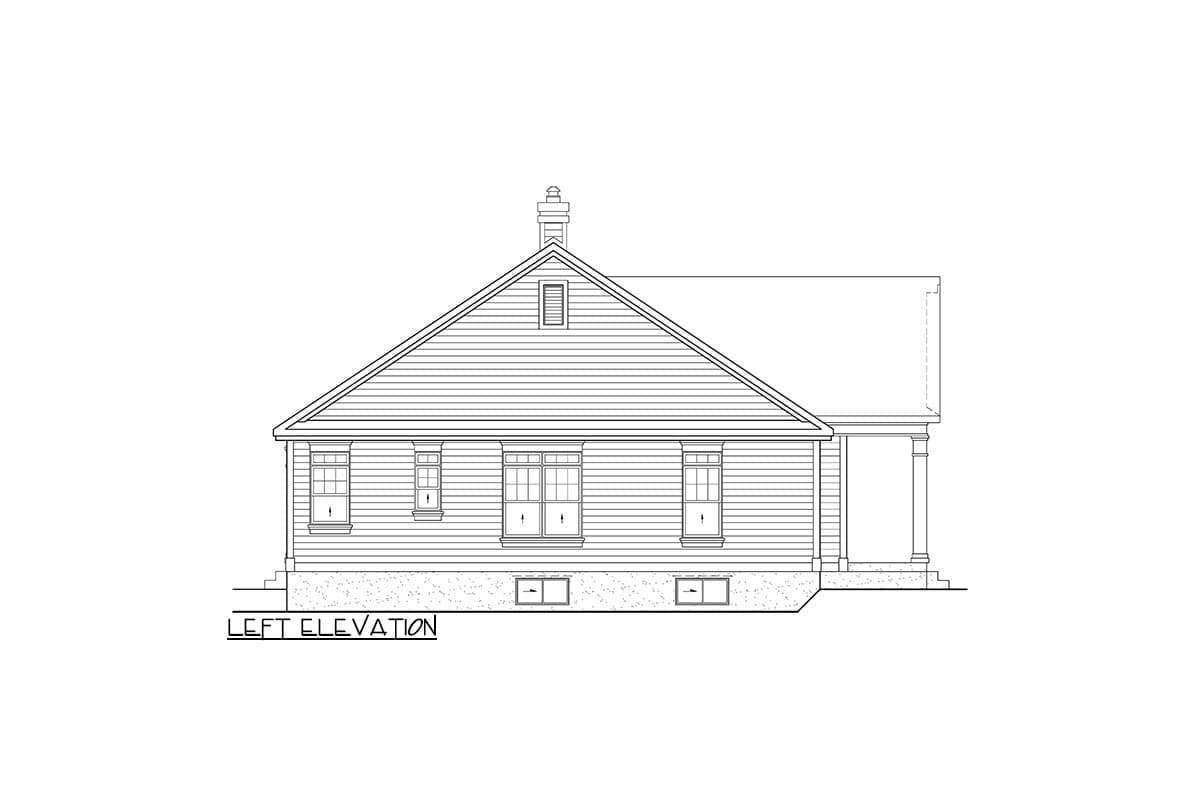

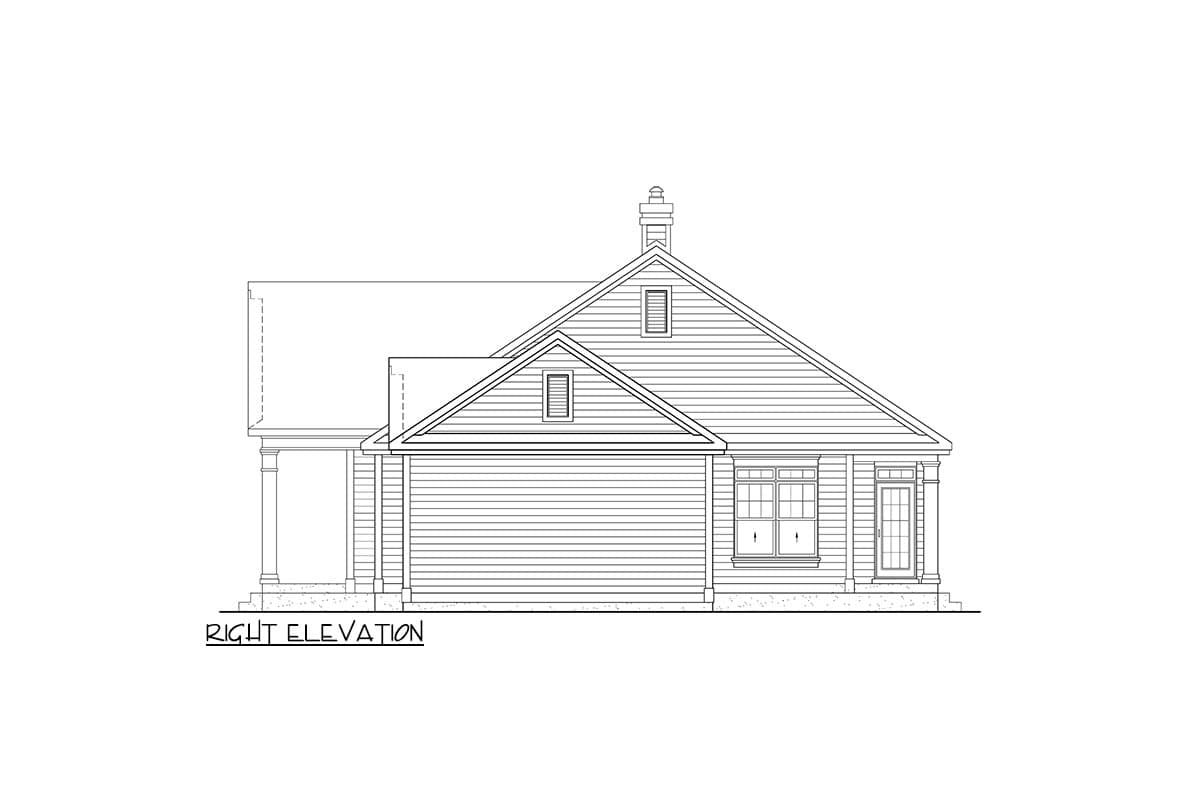

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,896 sq. ft.

1st Floor

1,896 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

42' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,896 sq. ft.

1st Floor

1,896 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

42' 0"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
