Plan 80672PM
Prestigious Multi-generational Home Plan
Heated S.F.
3,455
Beds
5
Baths
3.5
Stories
2
Floor Plan

Plan 80672PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80672PM

1-800-854-7852

1-262-521-4596

Main Level

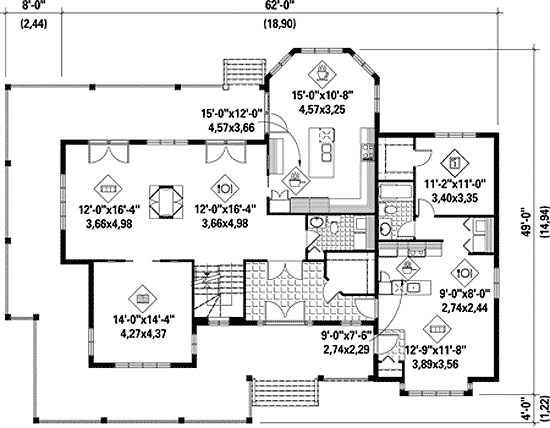

floor plan image Main Level
2nd Floor

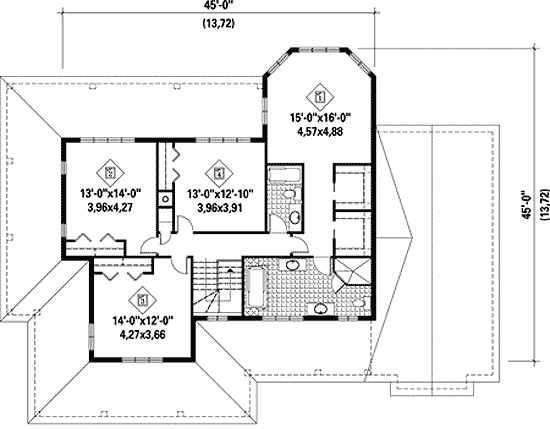

floor plan image 2nd Floor
Plan Details

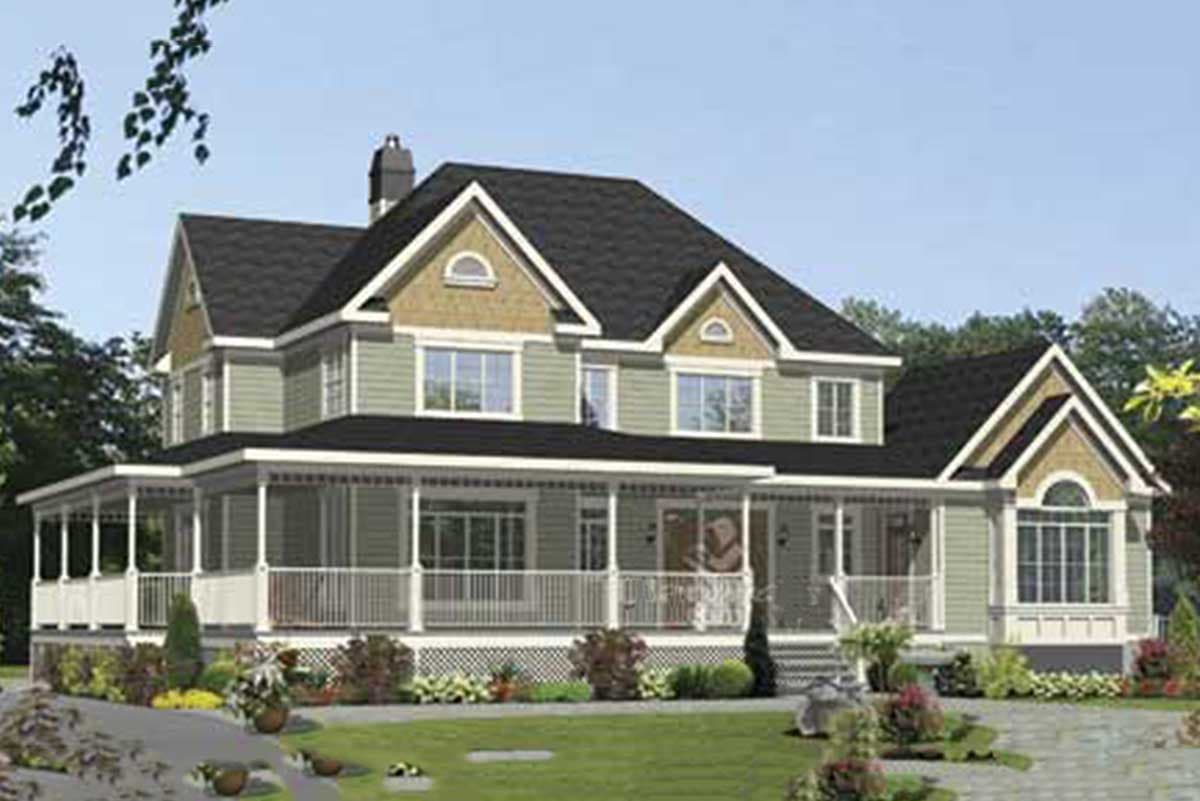

  • This prestigious multigenerational house plan will catch the eye with its gables, its cedar shingles and its huge veranda. The home is 62 feet wide by 49 feet deep and provides a 3,455 square feet living area.
  • The ground floor is divided into two distinct sections and covers 2,037 square feet. One of the sections includes a living room, a dining room, a kitchen, a bathroom as well as a bedroom. The other consists of a reading area, a powder room, a large kitchen with breakfast nook, a living room and a dining room divided by a see-through fireplace.
  • The second floor has 1,418 square feet of living space and consists of a family bathroom, and four bedrooms including a master bedroom with large windows, two walk-in closets and a huge private bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.

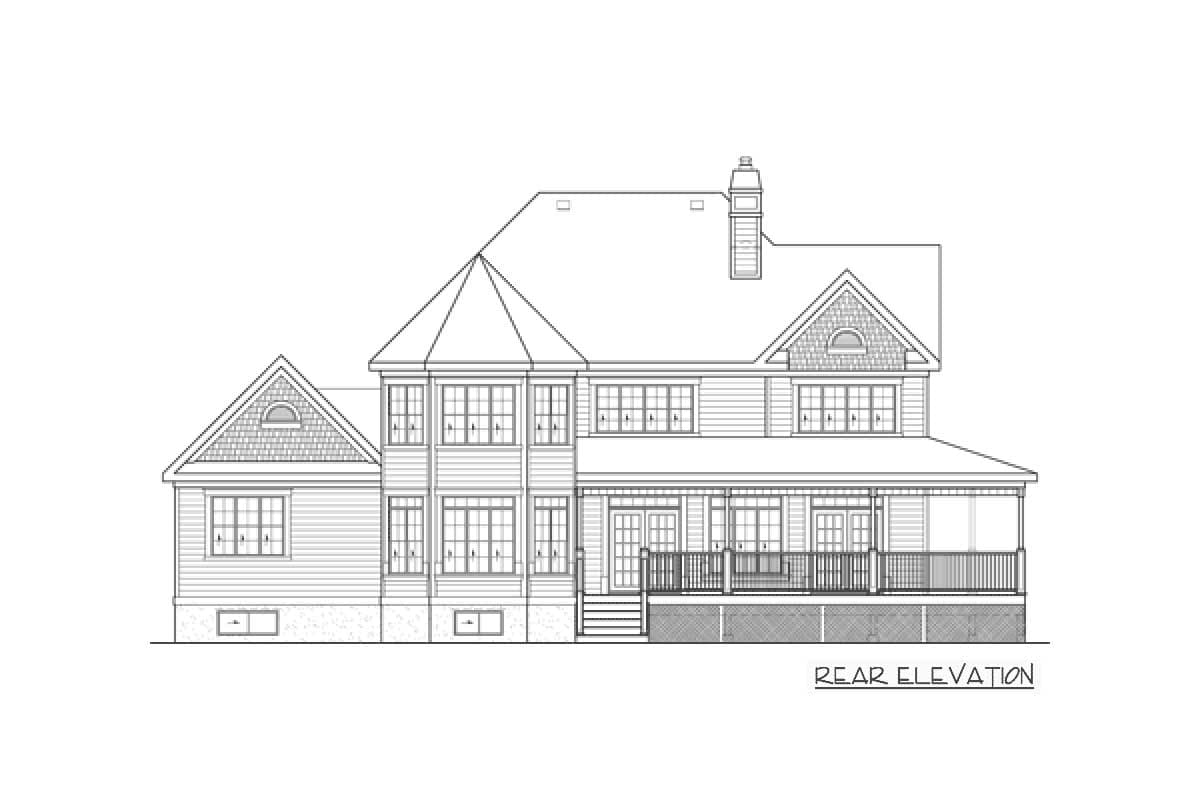

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,455 sq. ft.

1st Floor

2,037 sq. ft.

2nd Floor

1,418 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

49' 0"

Max Ridge Height

41' 8"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Breakfast Nook

In-Law Suite

Master Suite - 2nd Floor

Two Master Suites

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric

Multi-Generational

Two Master Suites

Square Footage Breakdown

Total Heated Area

3,455 sq. ft.

1st Floor

2,037 sq. ft.

2nd Floor

1,418 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

49' 0"

Max Ridge Height

41' 8"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Breakfast Nook

In-Law Suite

Master Suite - 2nd Floor

Two Master Suites

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric

Multi-Generational

Two Master Suites
