Plan 80918PM
Prominent 3-Bed Modern House Plan
Heated S.F.
1,666
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 80918PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80918PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary, 3-bedroom house plan has a prominent front elevation featuring concrete and wood siding components.

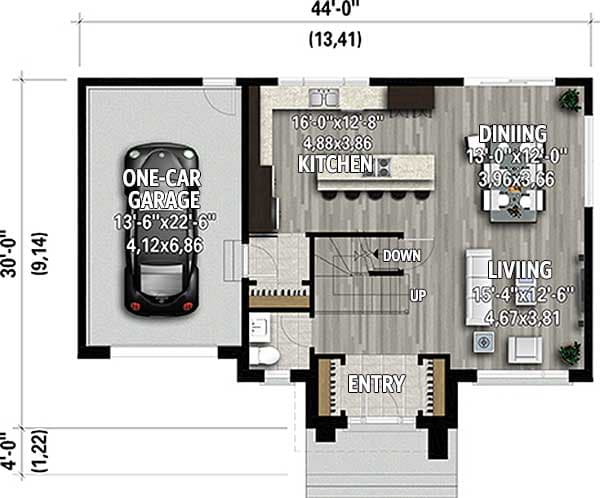

  • Dual closets border the foyer upon entry. An open-concept floor plan greets you allowing clean sight lines between the living room, dining room, and kitchen. An oversized island in the kitchen offers seating for five and provides ample workspace.
  • Sliding doors off the dining room lead outside and lend additional natural light on the main floor.

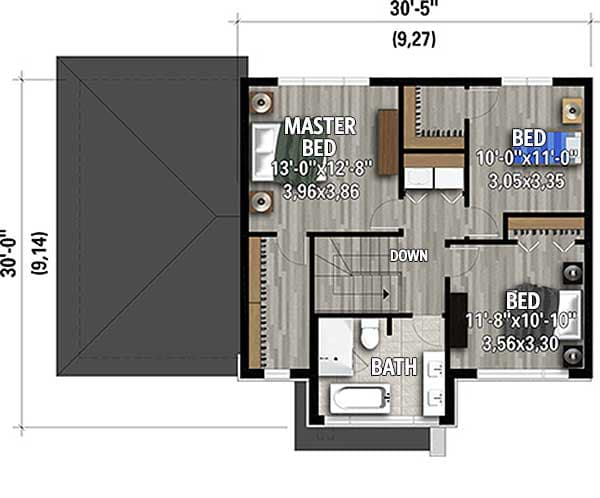

  • The second level boasts three bedrooms, two large, walk-in closets, a 5-fixture bathroom, and a laundry closet.
  • From the garage, a small landing with a coat closet sits just inside.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,666 sq. ft.

1st Floor

833 sq. ft.

2nd Floor

833 sq. ft.

Basement Unfinished

833 sq. ft.

Porch, Front

78 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

30' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

336 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Prairie

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,666 sq. ft.

1st Floor

833 sq. ft.

2nd Floor

833 sq. ft.

Basement Unfinished

833 sq. ft.

Porch, Front

78 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

30' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

336 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Modern

Northwest

Prairie

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
