Name: Plan 66183WE: Radial Glass Walls
SKU: 66183WE
Price: 1487.5 USD
Availability: InStock

Plan 66183WE

Radial Glass Walls

Heated S.F.

4,381

Beds

Baths

4.5

Stories

Cars

Floor Plan

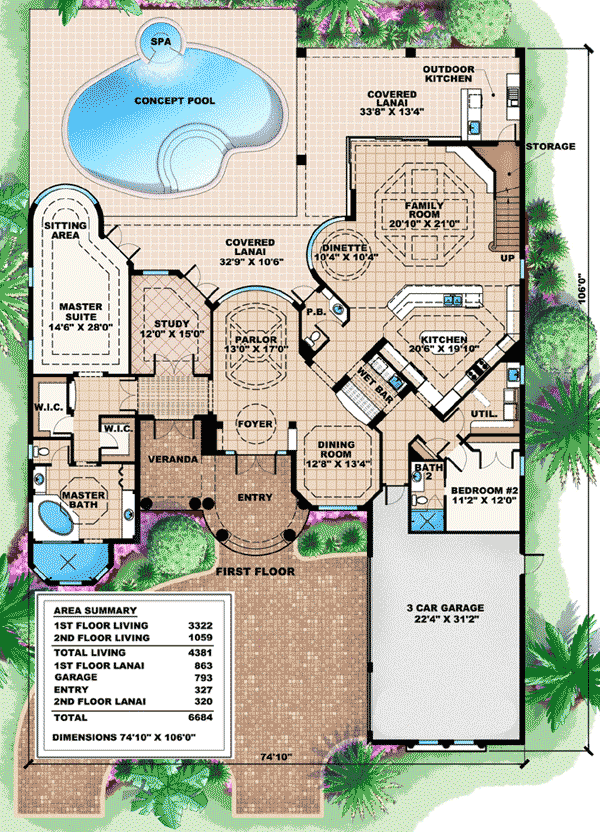

Main Level

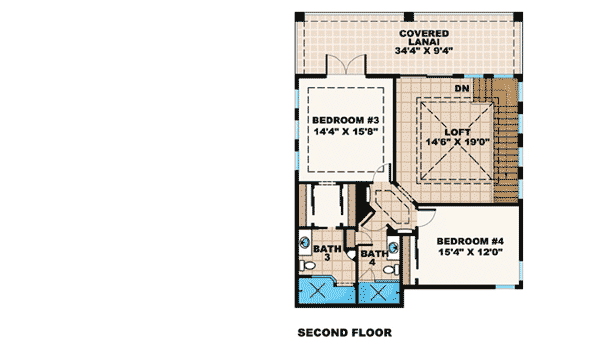

2nd Floor

Plan Details

A unique entry tucked into a rotunda sets this home plan apart. Simple elegance abounds as rooms flow into one another easily, creating a relaxed lifestyle.
A radial glass window located just off the rear of the parlor is your first glimpse of what this house plan has to offer. To the left of the foyer, at the entrance to the master suite, is a captivating barrel ceiling, separating the grand study from a French door that leads to the verandah.

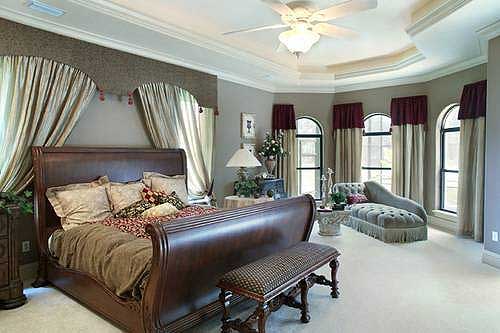

Through that entry unfolds an impressive master bedroom with yet another radial window situated in the sitting area, offering panoramic views of the outside.
The parlor begins the entertaining experience with the formal dining room and alluring wet bar with a barrel ceiling. The family room, dinette and kitchen are all opened together creating an intimate, casual atmosphere.
Only a wall of sliding glass doors separates the outside where the outdoor kitchen and pool area are waiting. Also downstairs is an inconspicuous, private suite.
The stairway is located off the family room and leads to the private loft which can easily become a play room or game room. Two additional bedroom suites and a covered lanai complete the casual feel of this home.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
