Plan 39170ST
Rear Covered Porch a Plus
Heated S.F.
2,594
Beds
4
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 39170ST

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 39170ST

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement

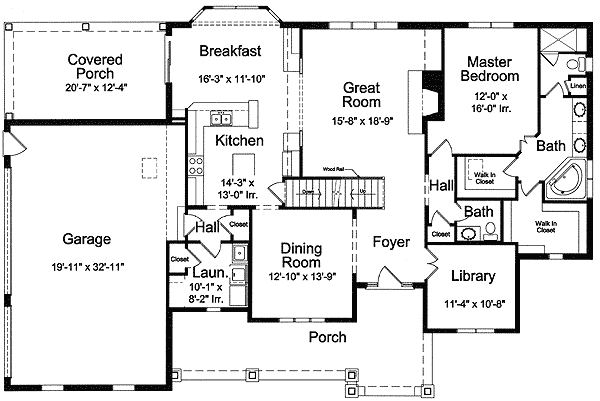

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A spectular exterior of brick, stone, shakes and wood trim decorate this beautiful two-story home plan. Formal and informal dining, a private library, master suite with whirlpool tub, double bowl vanity and two walk-in closets make the interior exciting and functional.
  • The large great room with alcove for built-ins and gas fireplace enjoys an 18' ceiling height and view to the rear yard.
  • Nine foot ceiling heights are standard throughout the main level and the foyer ceiling height reaches 14'.
  • The kitchen enjoys a counter with seating and is convenient to the great room, breakfast room and laundry.
  • A covered rear porch offers outdoor living space.
  • Related Plan: Get an expanded breakfast area with house plan 39217ST (2,690 sq. ft.).
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,594 sq. ft.

1st Floor

1,895 sq. ft.

2nd Floor

699 sq. ft.

Porch, Rear

254 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 0"

Depth

49' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

686 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,594 sq. ft.

1st Floor

1,895 sq. ft.

2nd Floor

699 sq. ft.

Porch, Rear

254 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

75' 0"

Depth

49' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

686 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Library/Study

Master Suite - 1st Floor
