Plan 23637JD

Richly Detailed Craftsman House Plan with Angled 3-Car Garage

Heated S.F.

5,340

Beds

4 - 5

Baths

3.5 - 4.5

Stories

Cars

Photos

Floor Plan

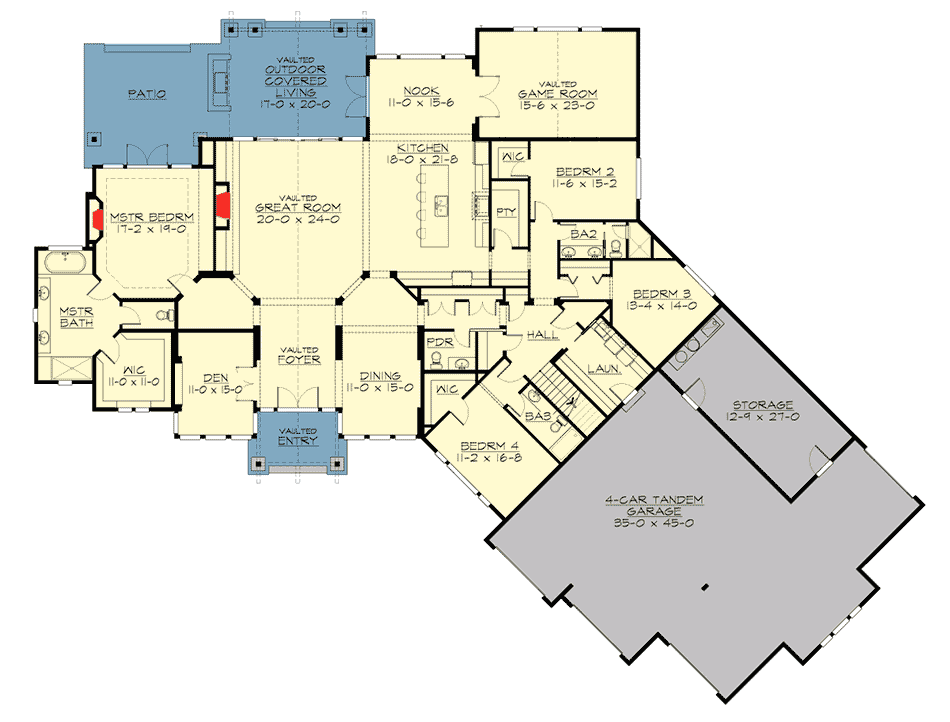

Main Level

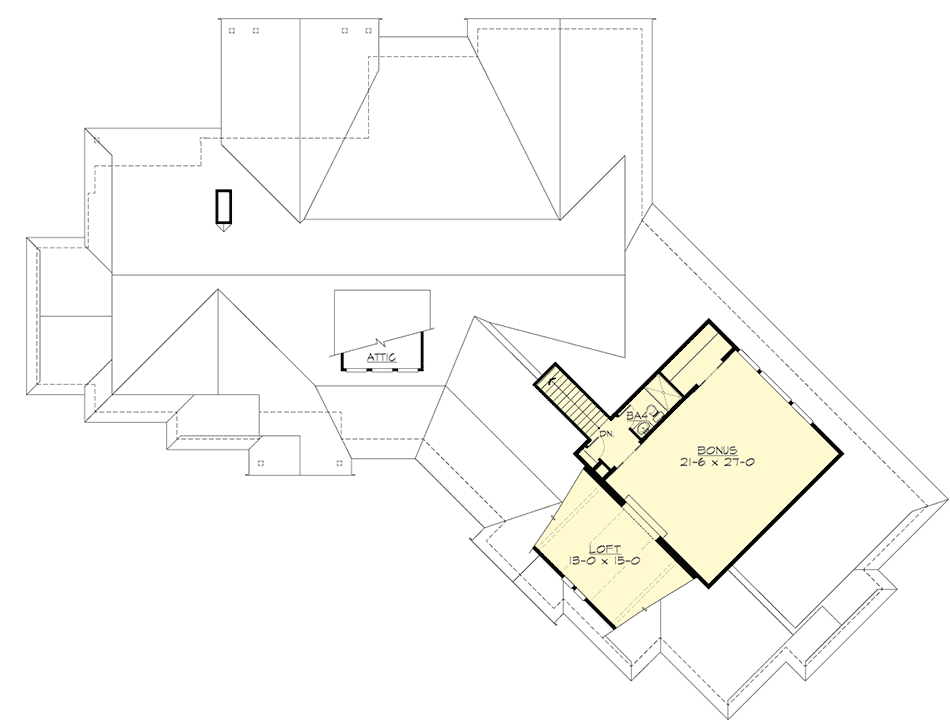

2nd Floor

Plan Details

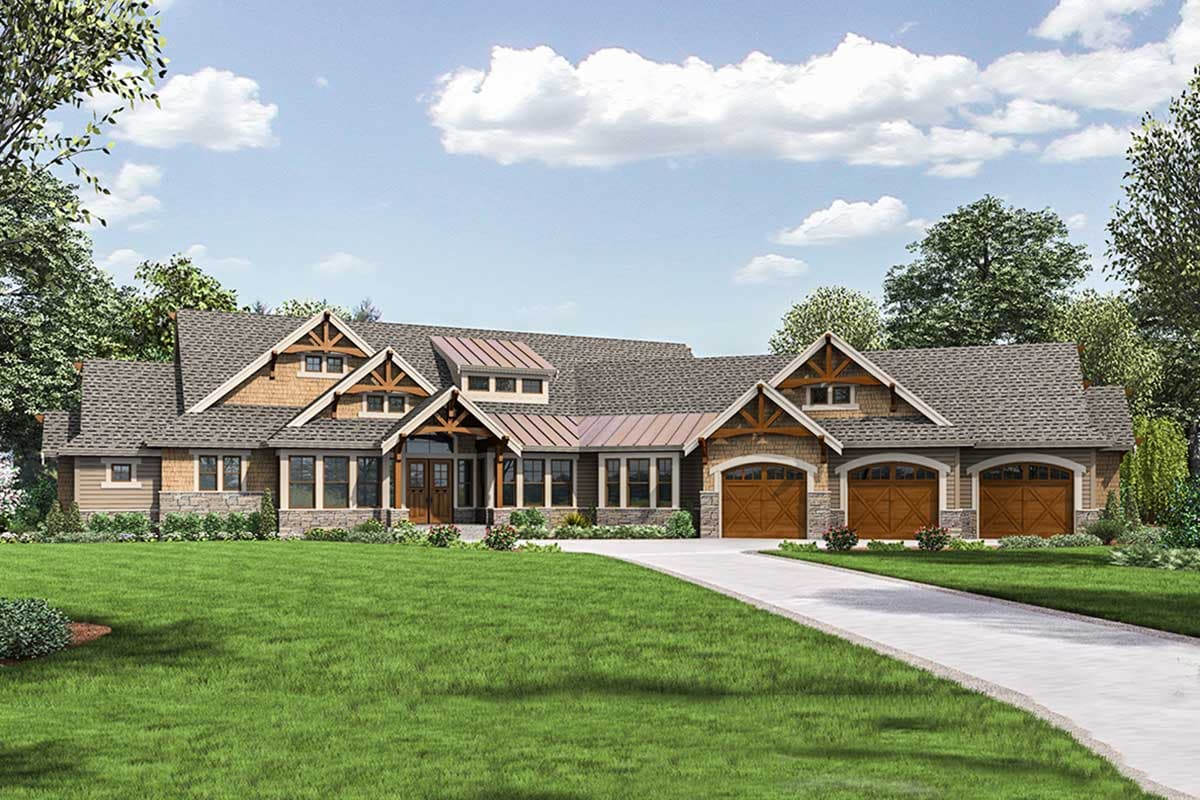

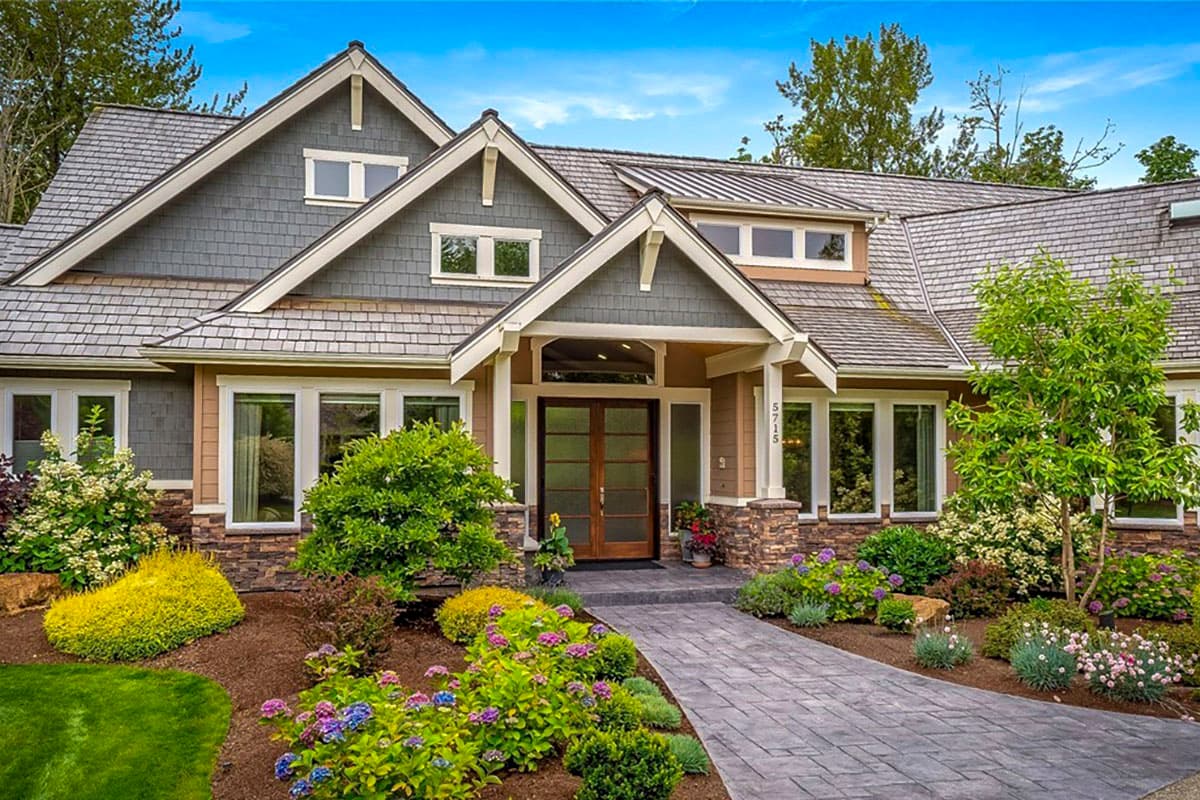

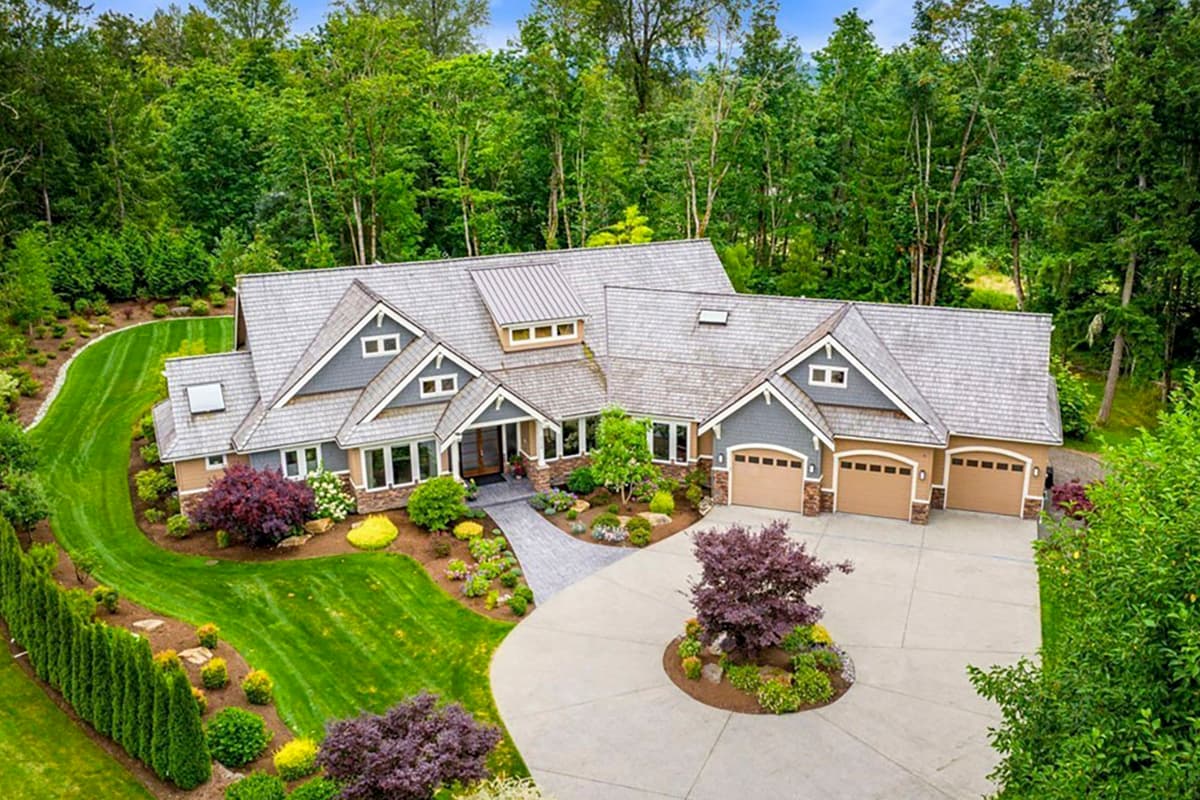

You can tell right away from the richly detailed exterior, that this Craftsman house plan is very special.

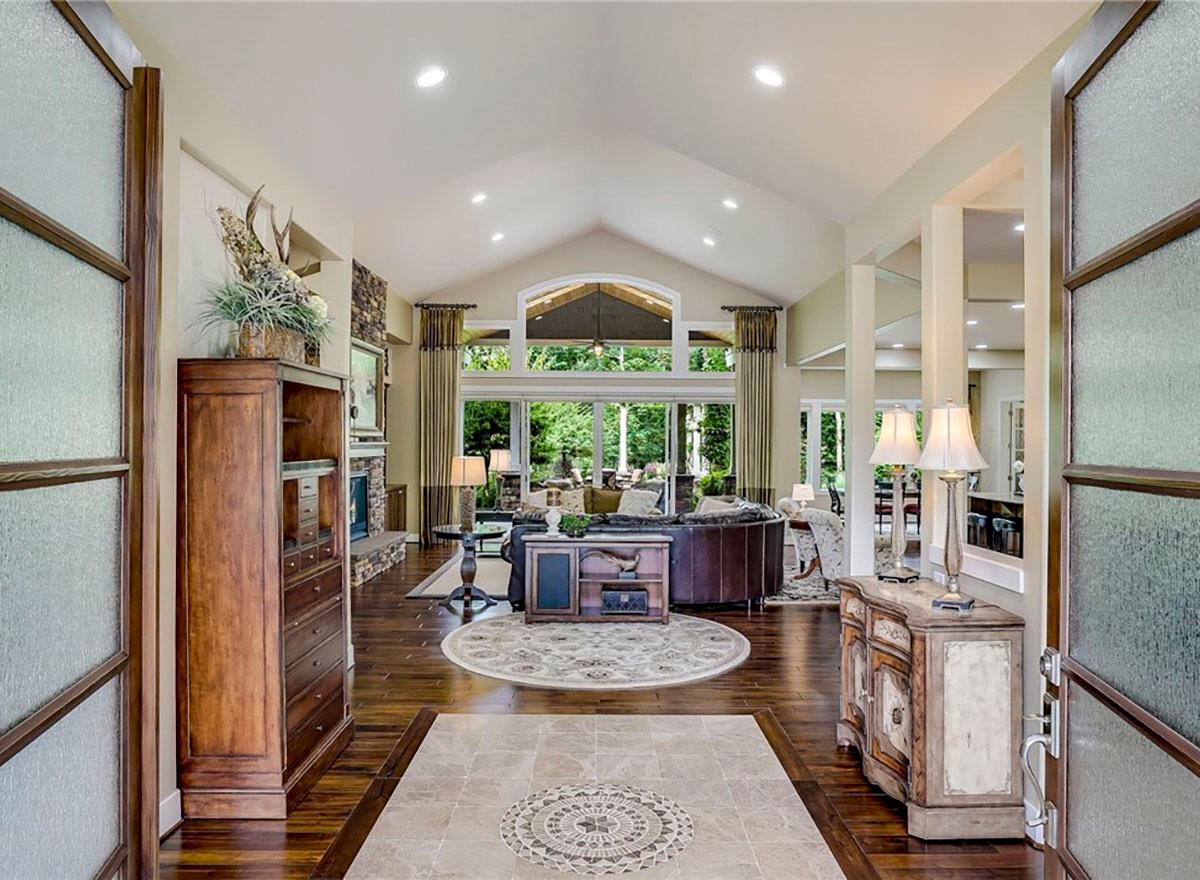

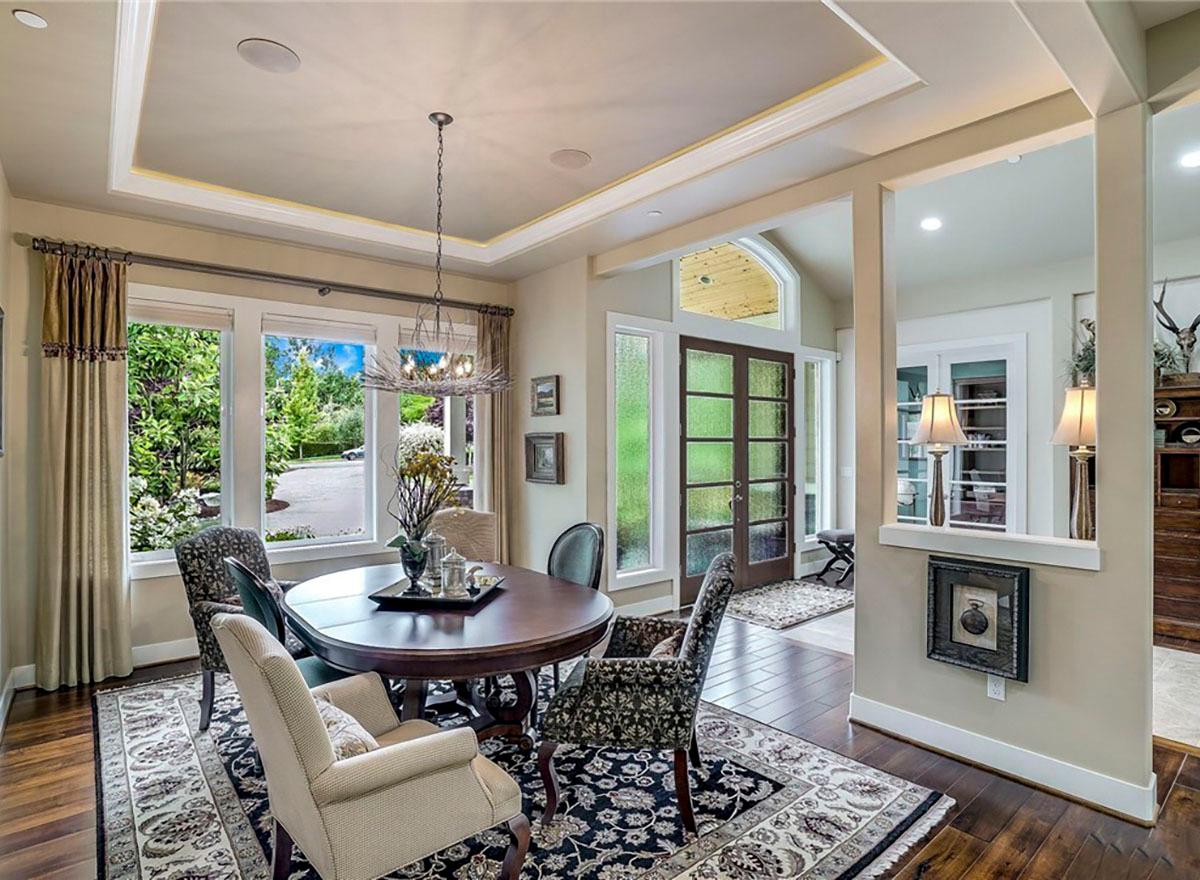

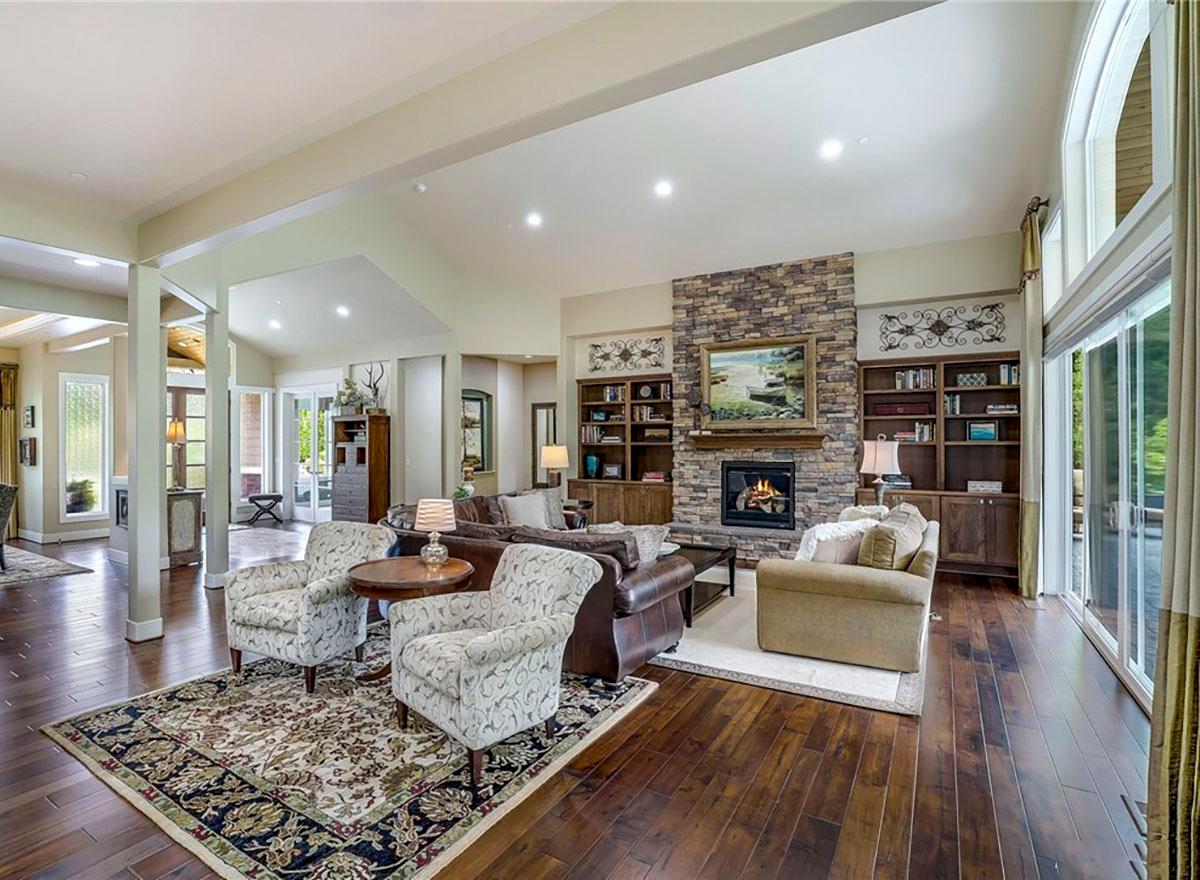

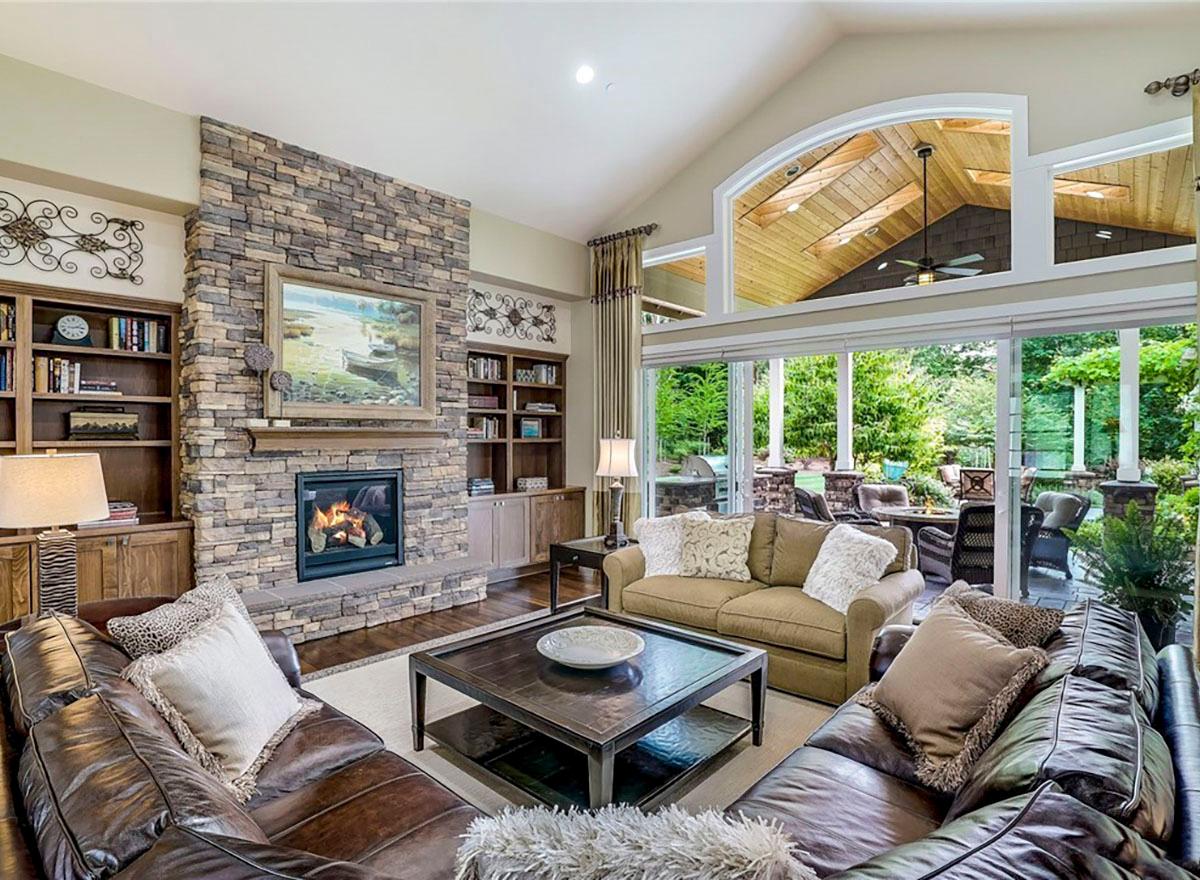

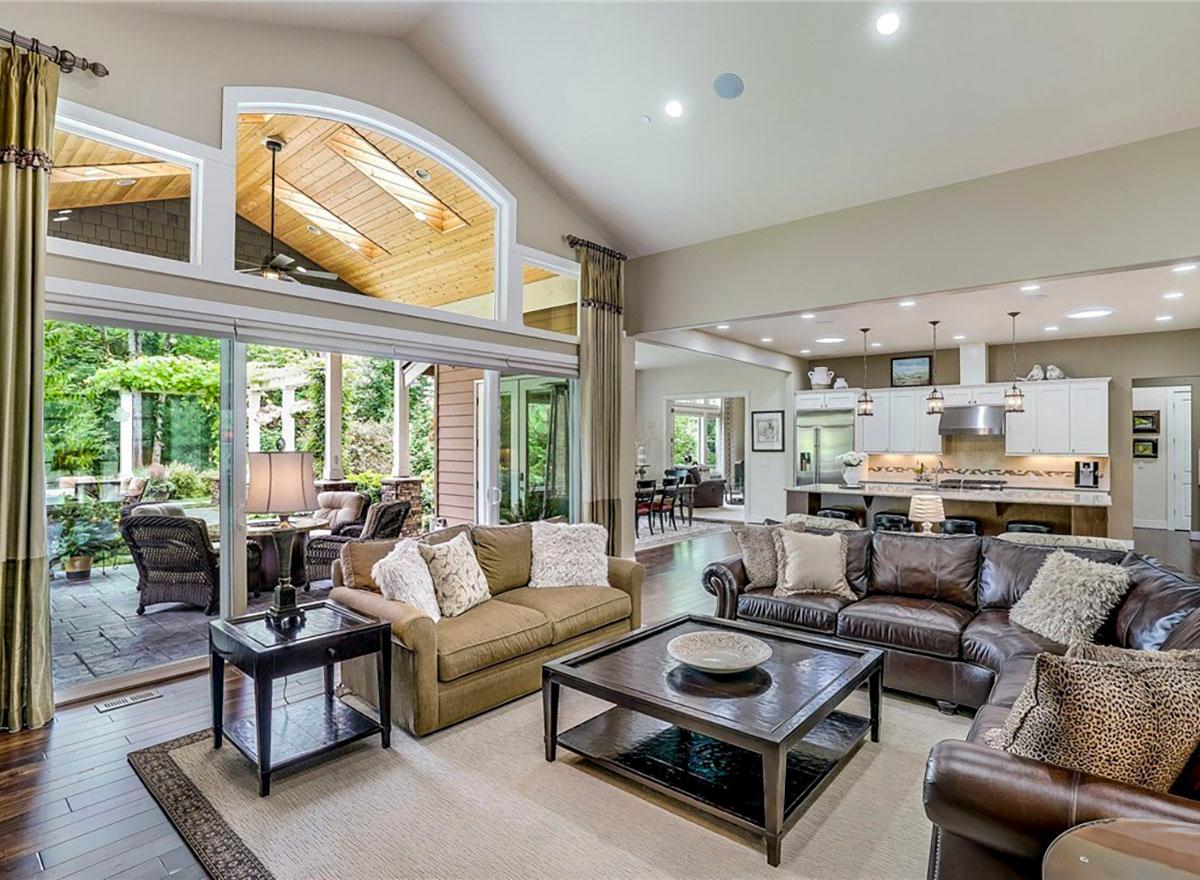

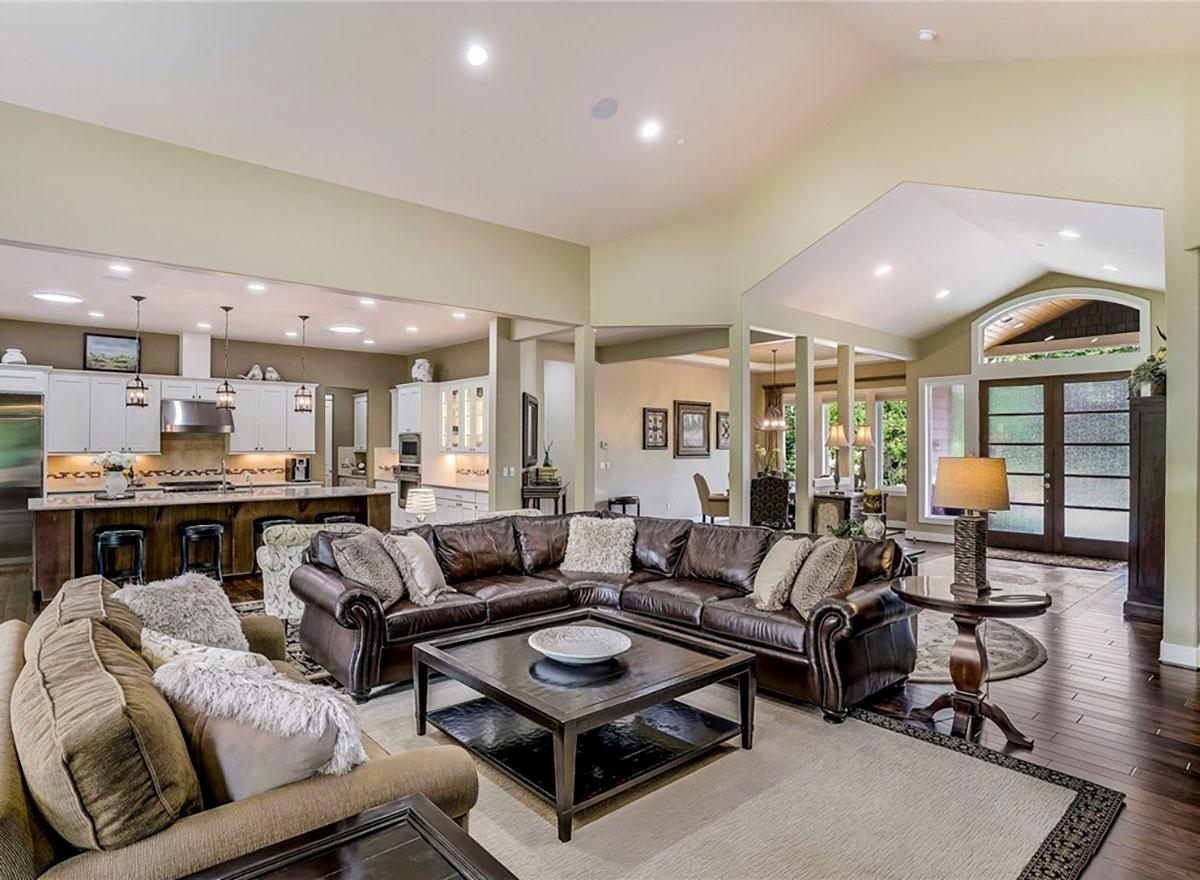

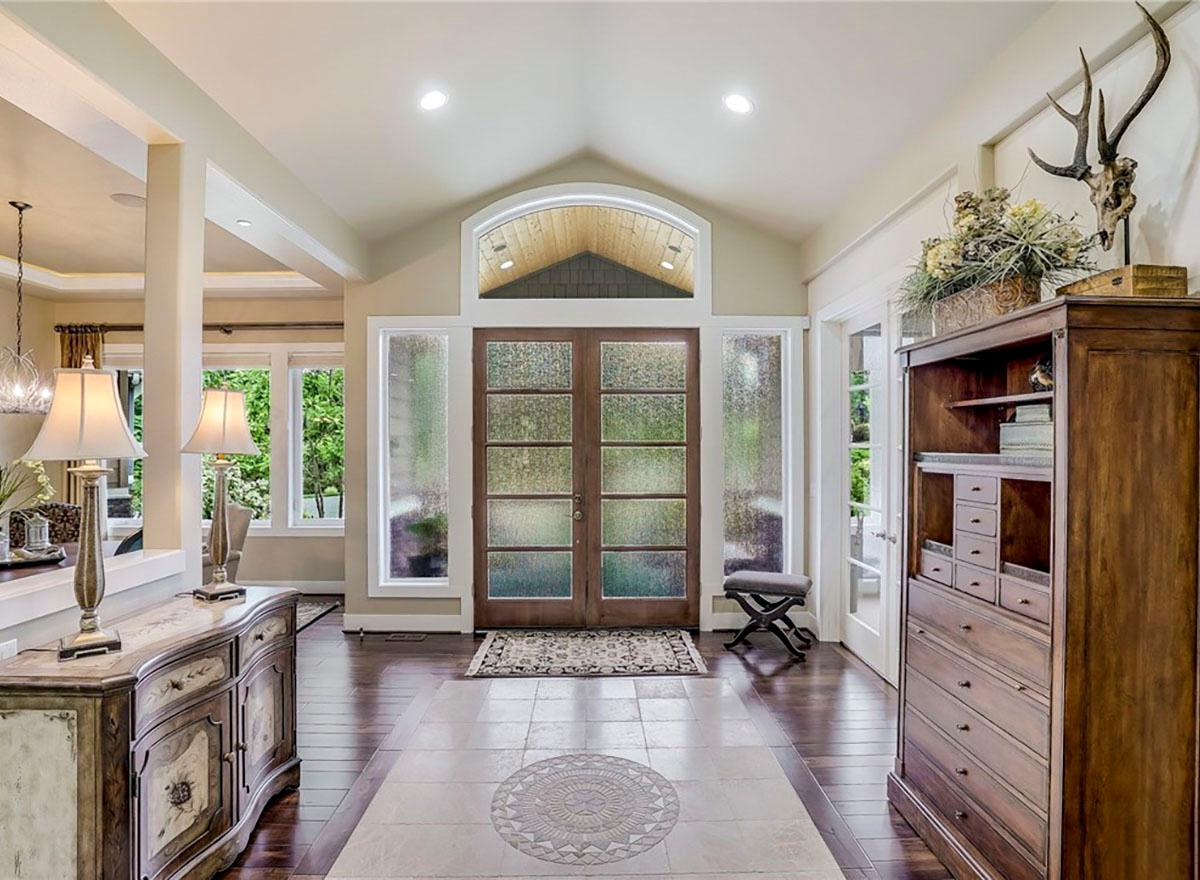

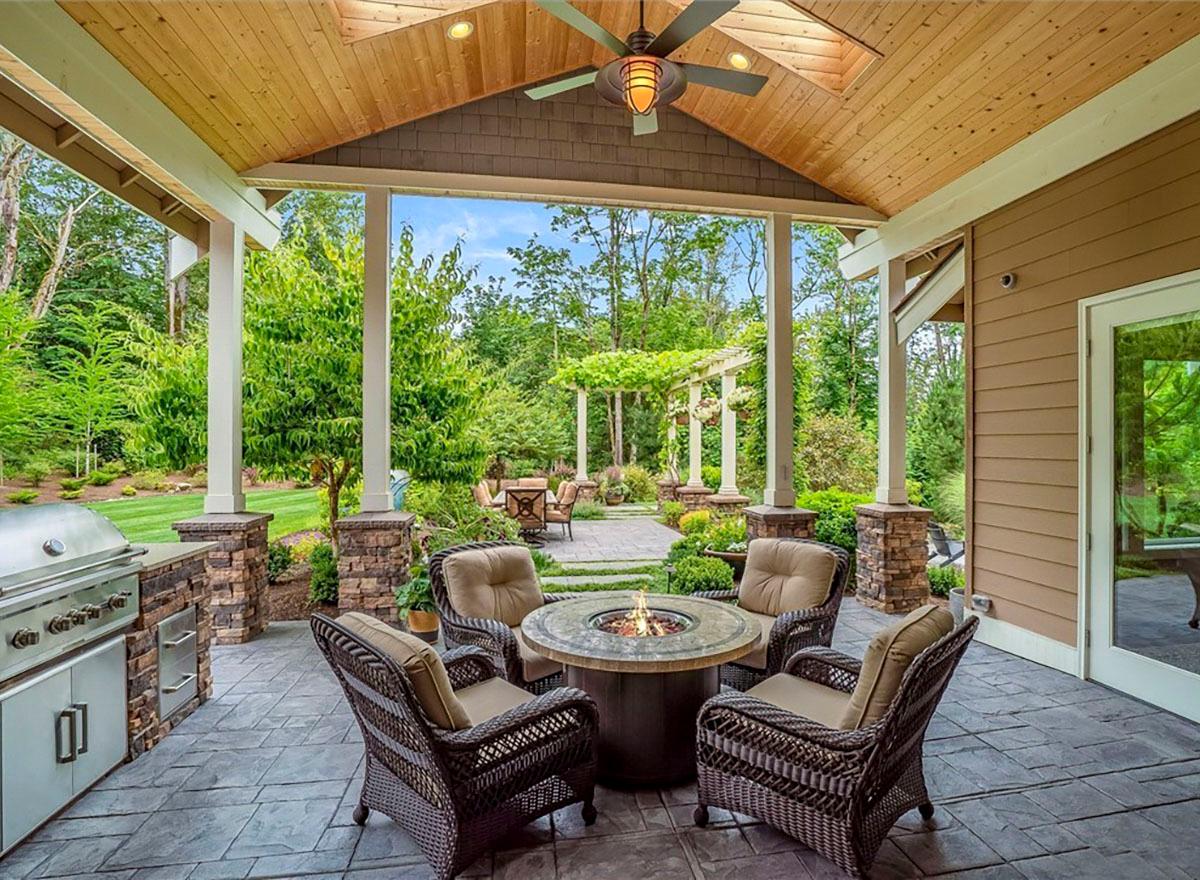

And that feeling continues as you enter the home through the vaulted foyer where both the great room and the covered outdoor living area are also vaulted.
Interior columns keep the living space open and built-ins enhance your storage options.

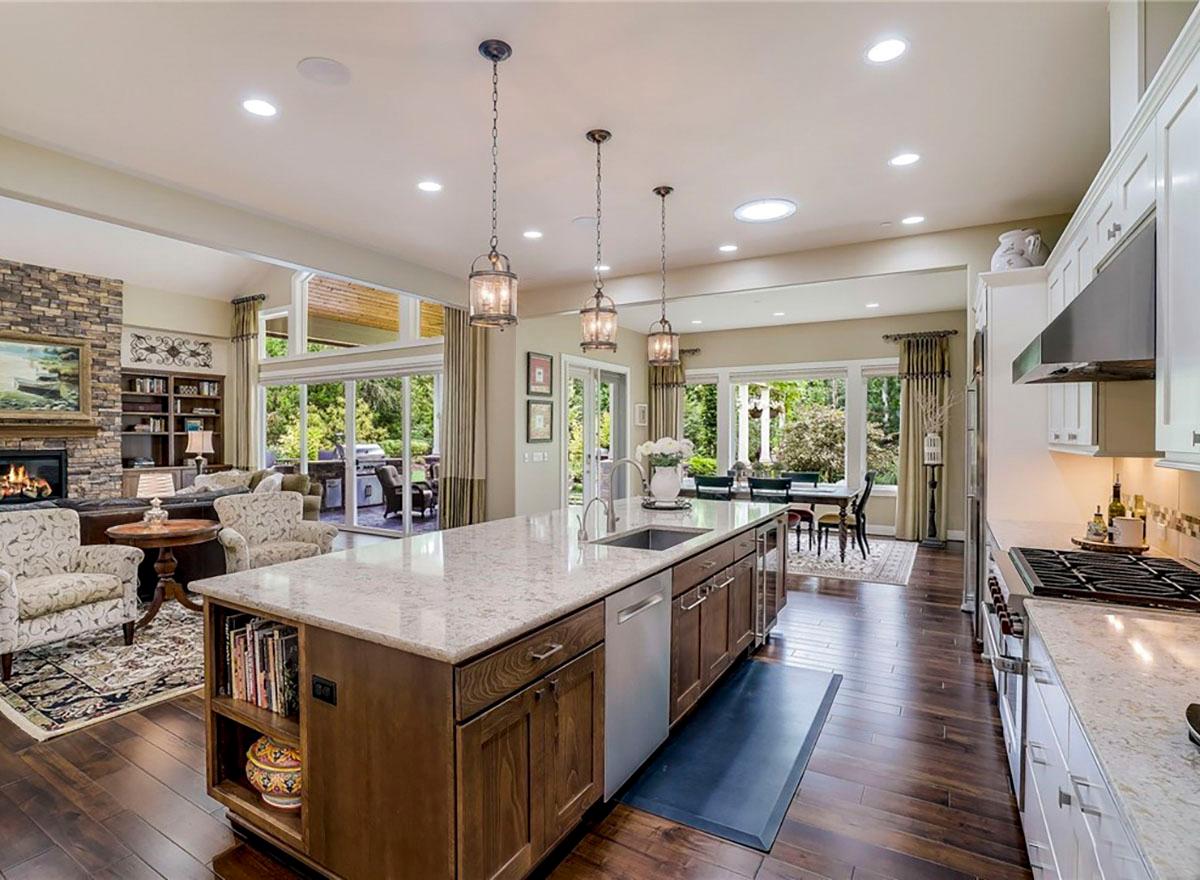

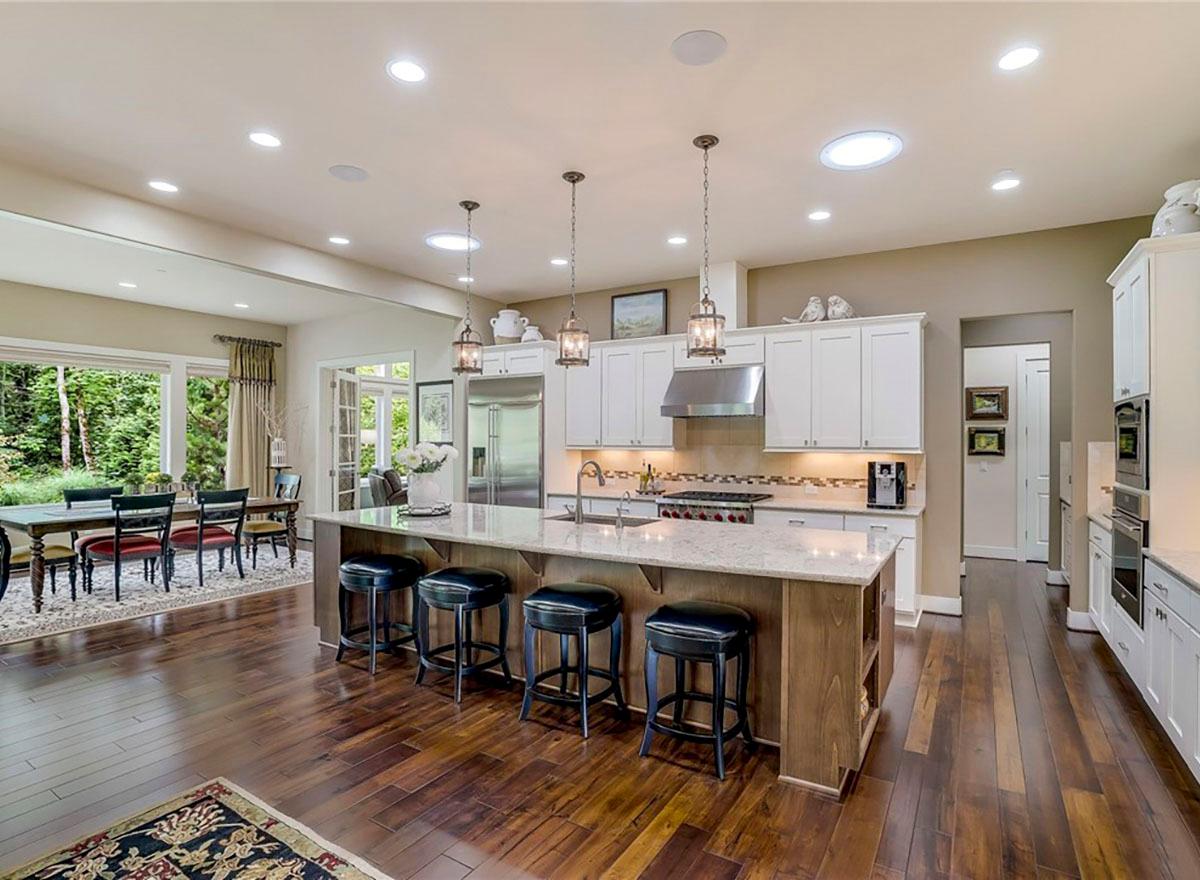

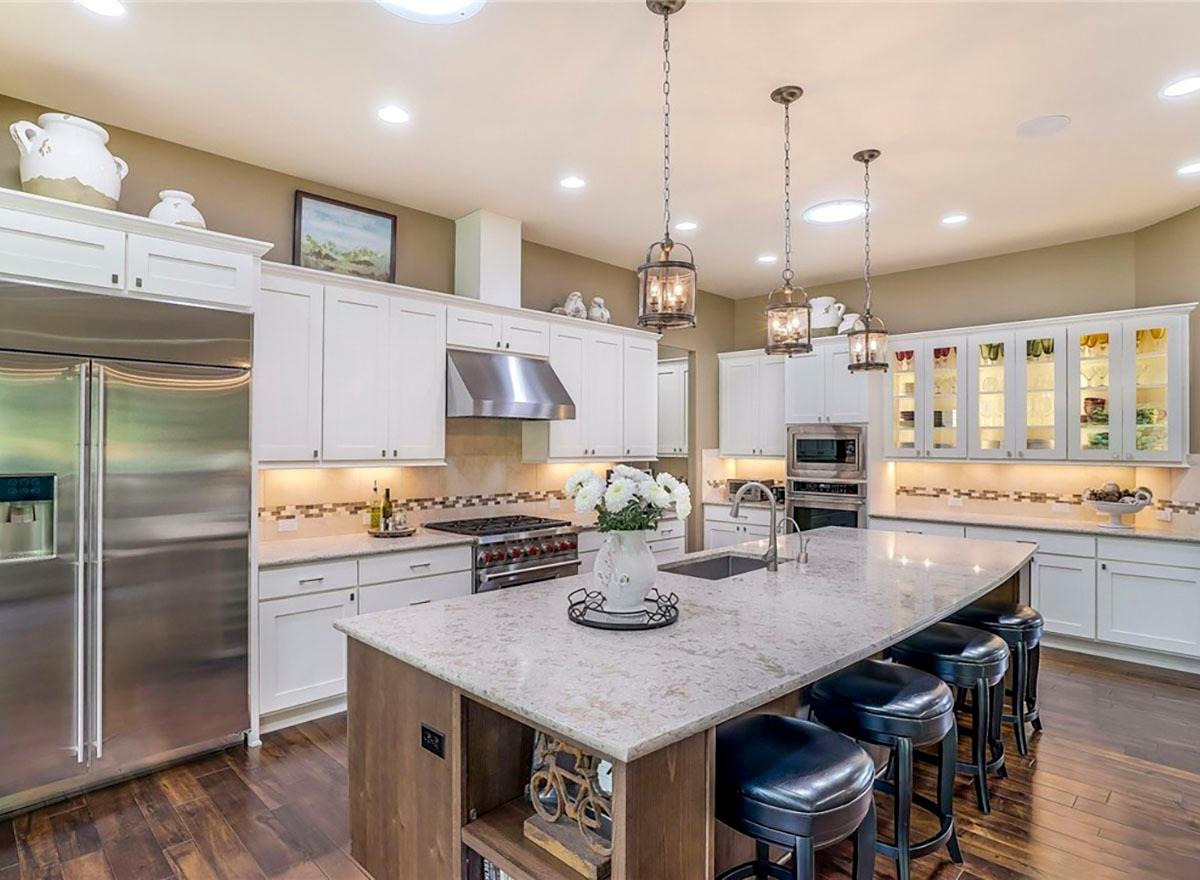

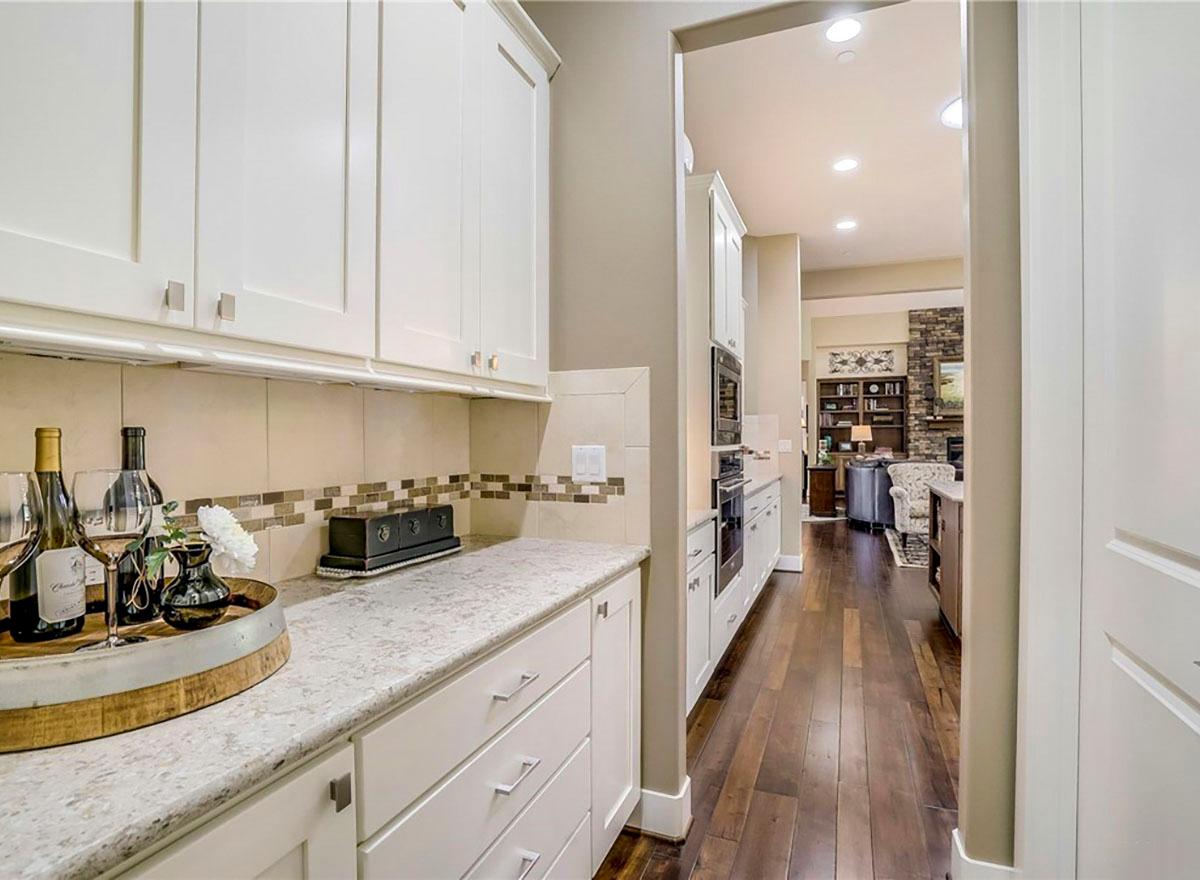

A huge island in the kitchen has seating for four and there's extra storage in the walk-in pantry.

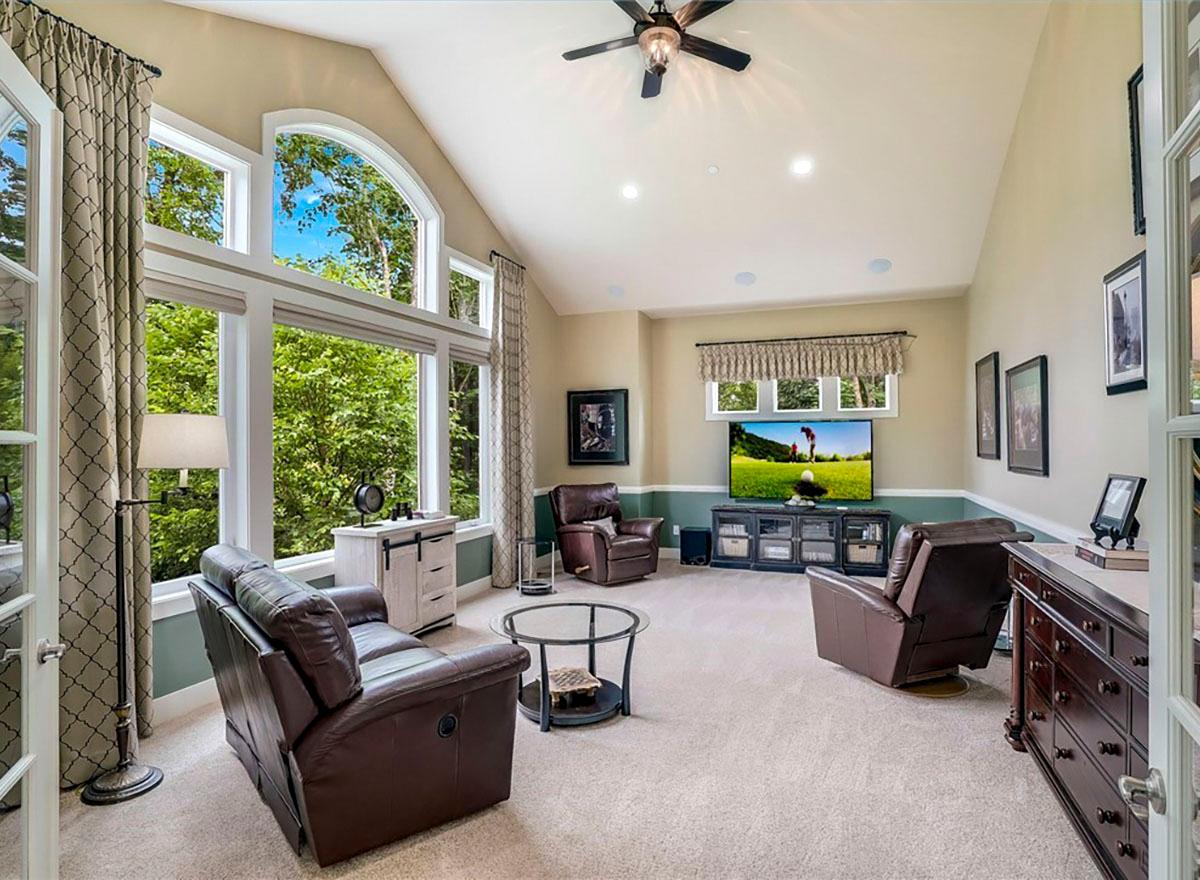

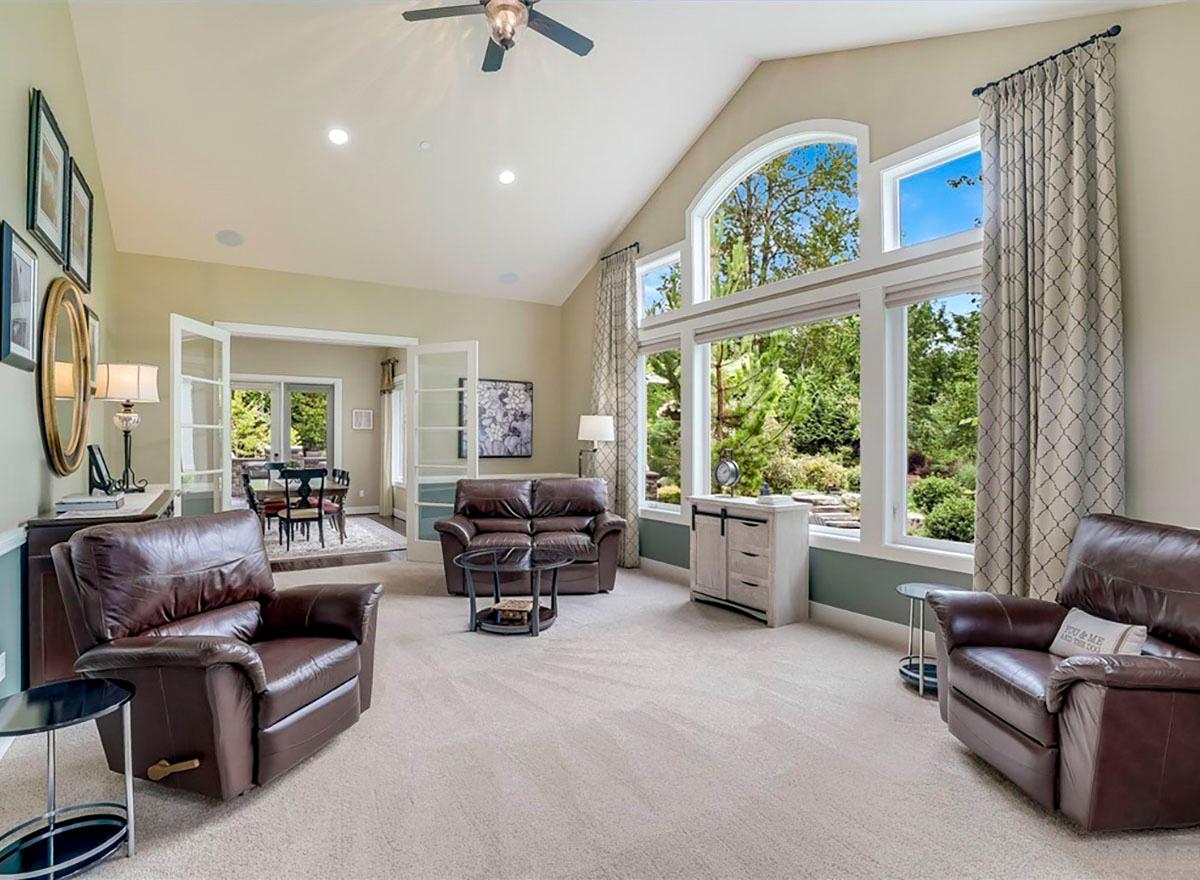

Send the kids to play in the vaulted great room where the noise can be muted by closing the double doors.
Or let them hang out in the second floor bonus room with its attached loft area.

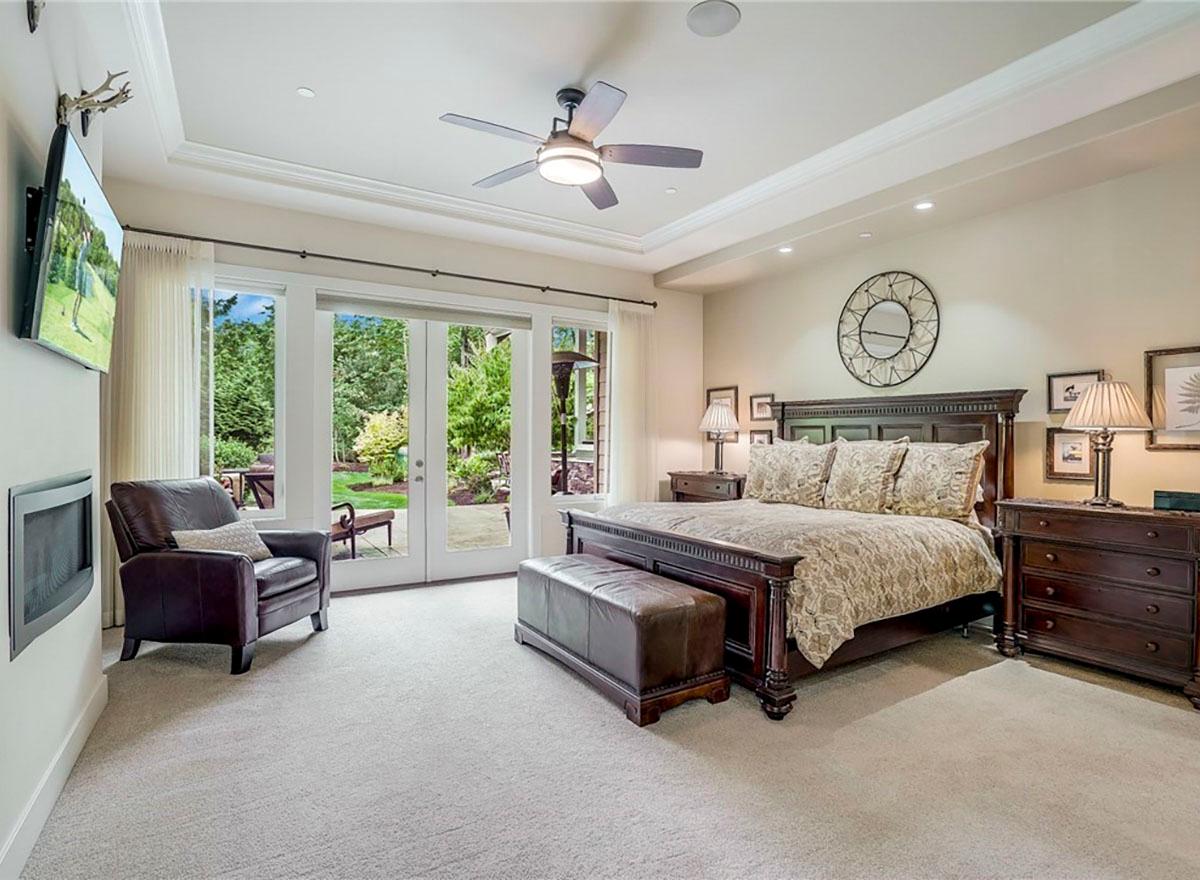

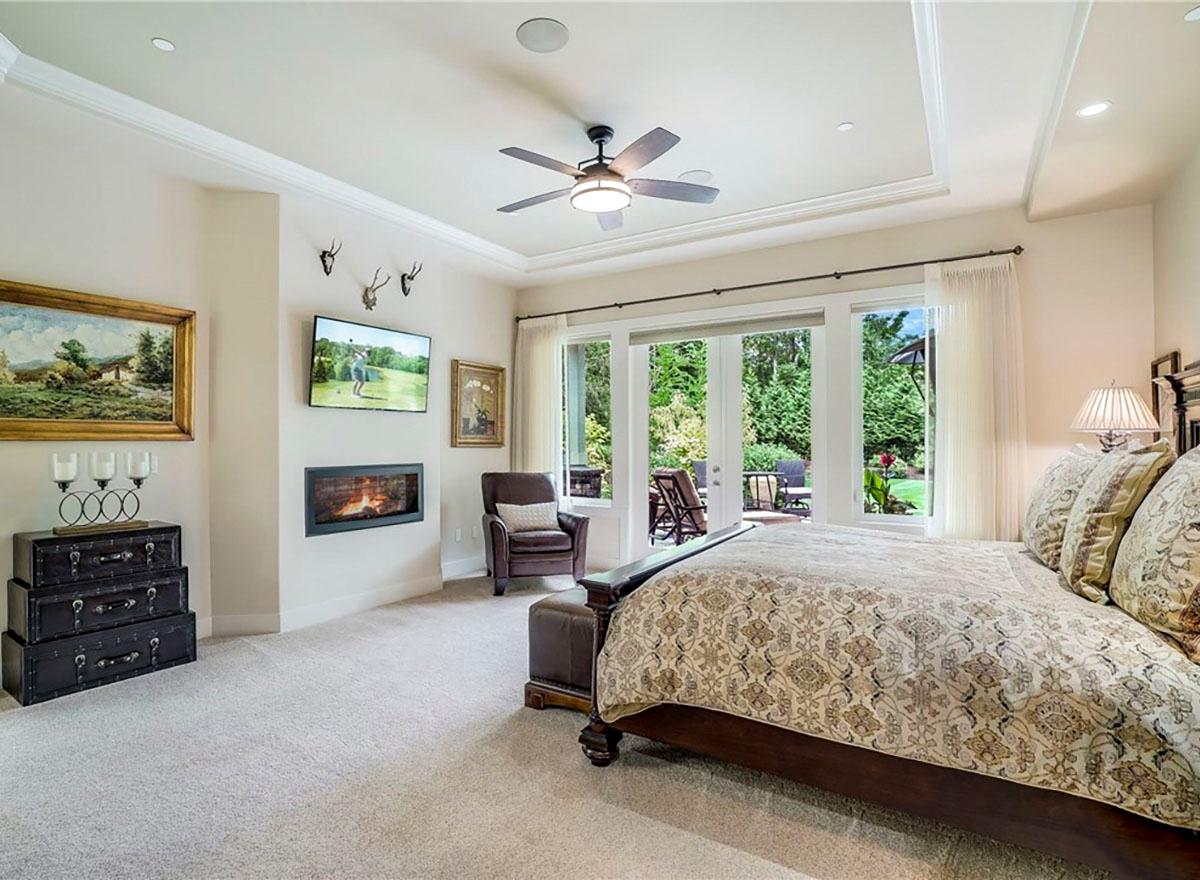

The master bedroom gets a fireplace of its own and double doors to an outdoor patio.
Related Plan: Get alternate versions with house plans 23568JD, 23623JD and 23681JD.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 23637JD Comes to Life in North Carolina

Photos

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

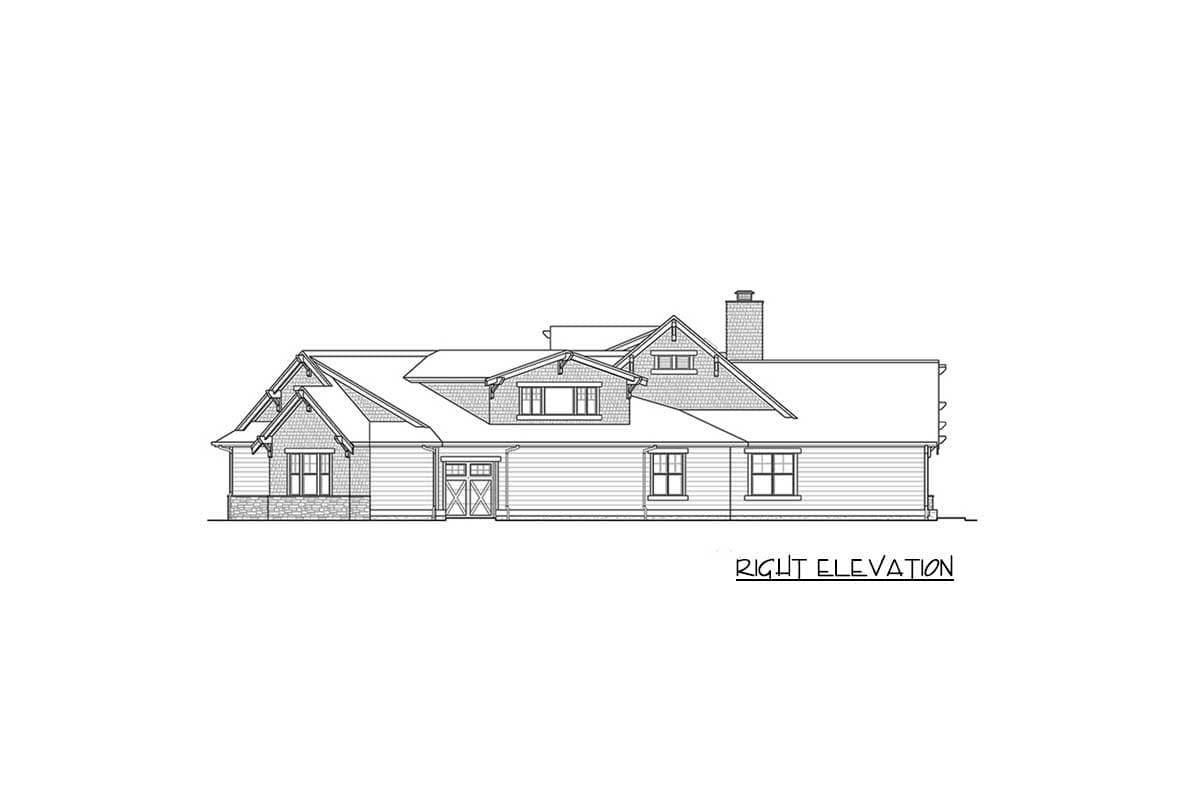

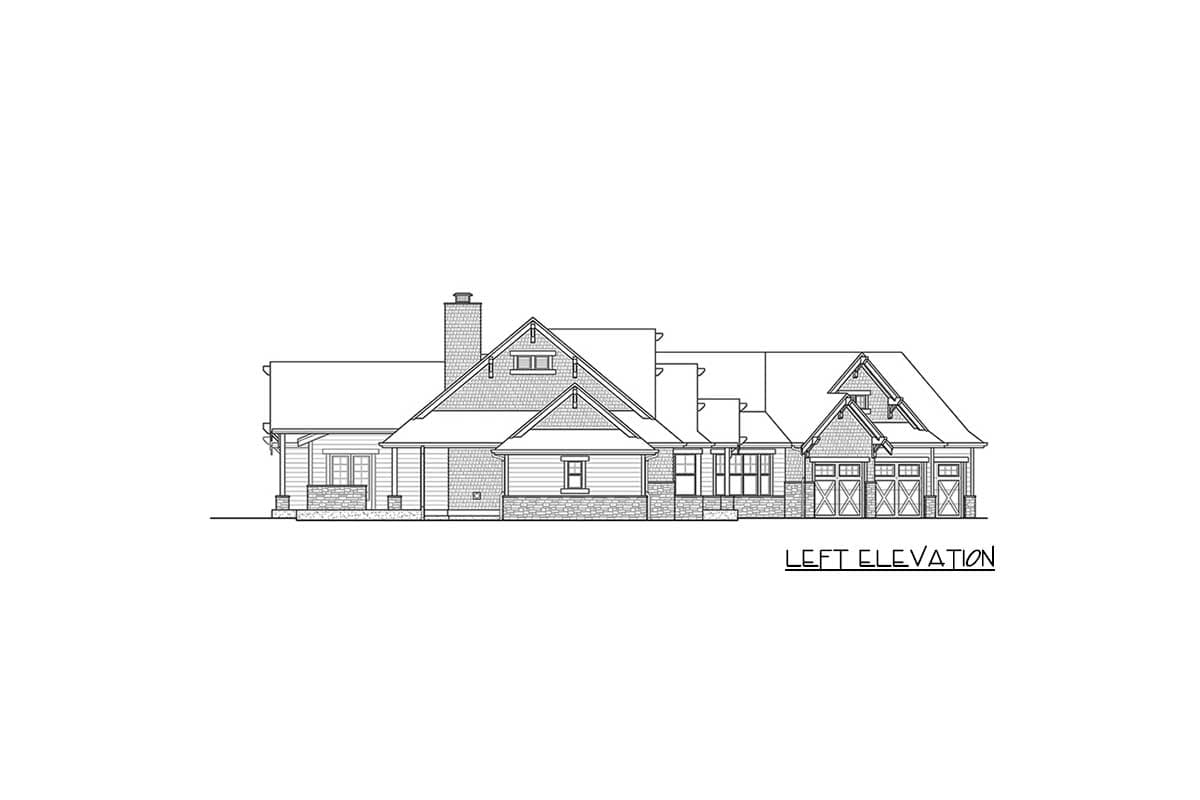

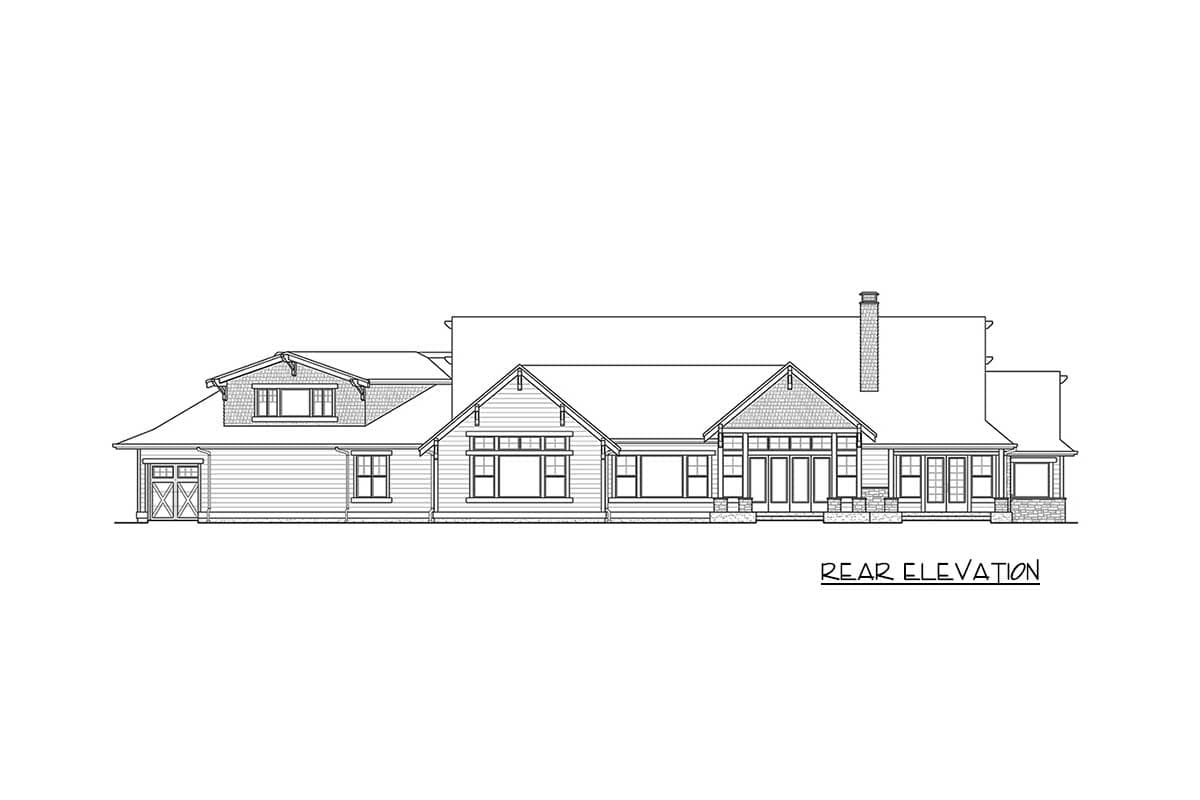

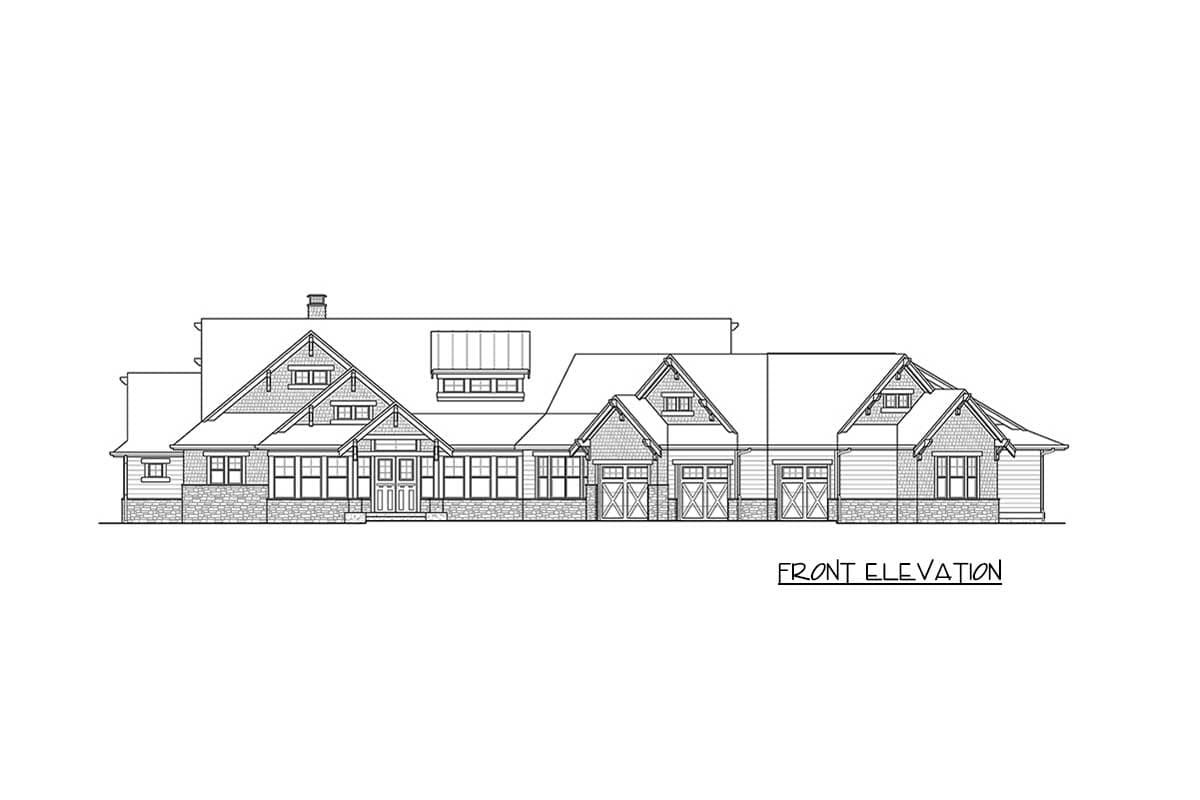

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
