Plan 77638FB

Exclusive

Roomy Craftsman with Room for Expansion

Heated S.F.

4,304

Beds

4 - 6

Baths

3.5 - 4.5

Stories

1

Cars

3

Floor Plan

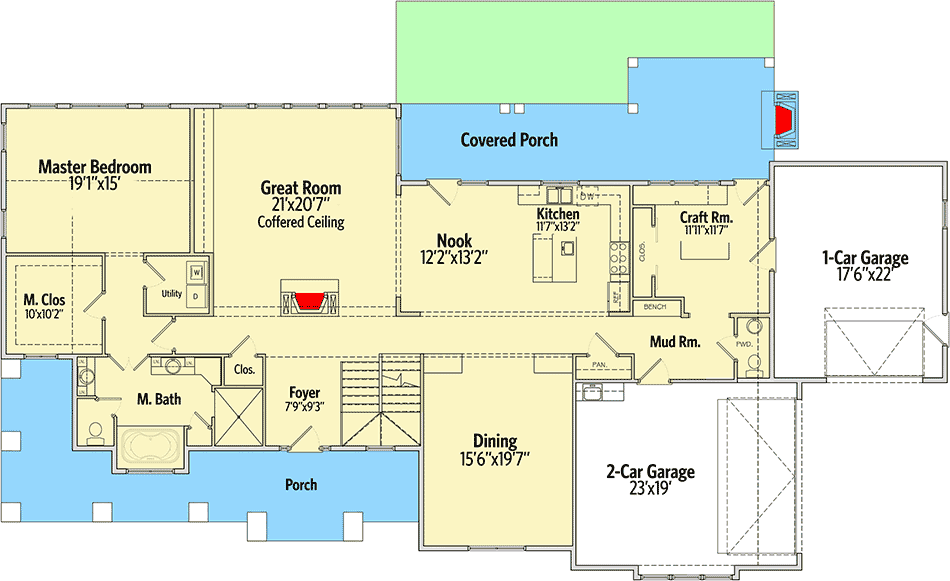

Main Level

floor plan image Main Level

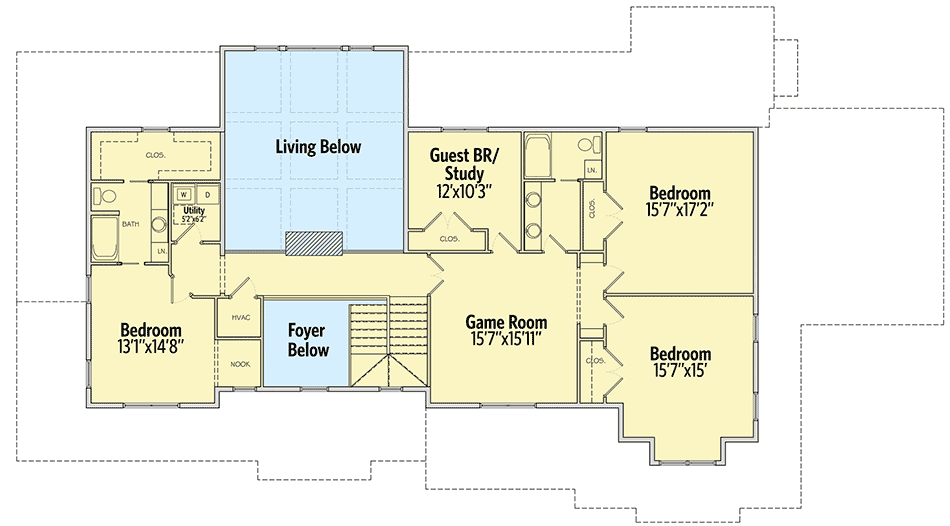

2nd Floor

floor plan image 2nd Floor

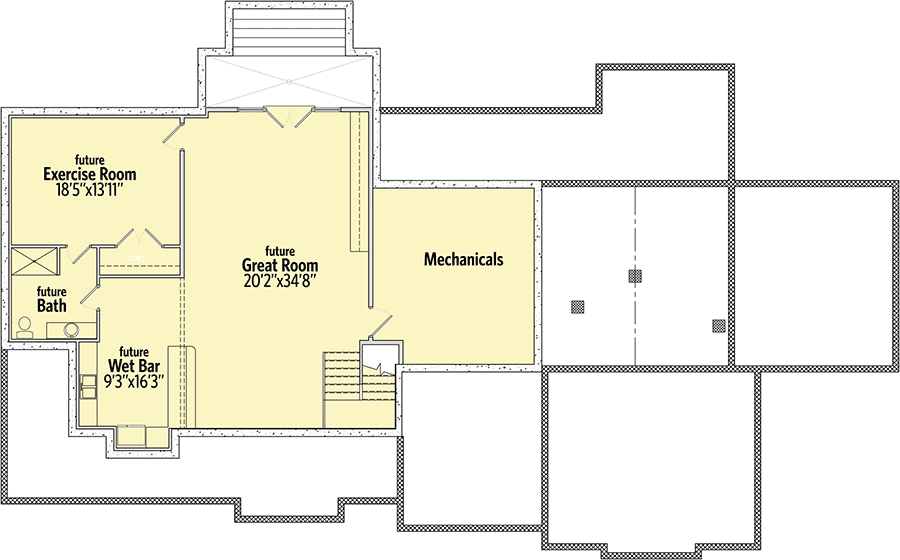

Basement

floor plan image Basement

Plan Details

With plenty of room for a large family, this good-looking Craftsman home can even be expanded further by finishing the lower level.
The huge dining room stands ready for all your entertaining and holiday meals.
There's a second sink in the kitchen island and a six burner stove, making this kitchen a chef's delight.
Views extend all the way through the nook to the giant great room with its lovely coffered ceiling.
And who wouldn't love a craft room set up with lots of storage and a triple window to bring in light?
The first floor master suite comes with its own laundry room.
Upstairs, a second laundry room serves the four bedrooms on this level.
The game room is for all to enjoy or to use as a playroom or teen hang out.
Finish the optional lower level to gain an extra bedroom, wet bar and massive great room.

What's Included

Cover page
Foundation plan
Floor Plan

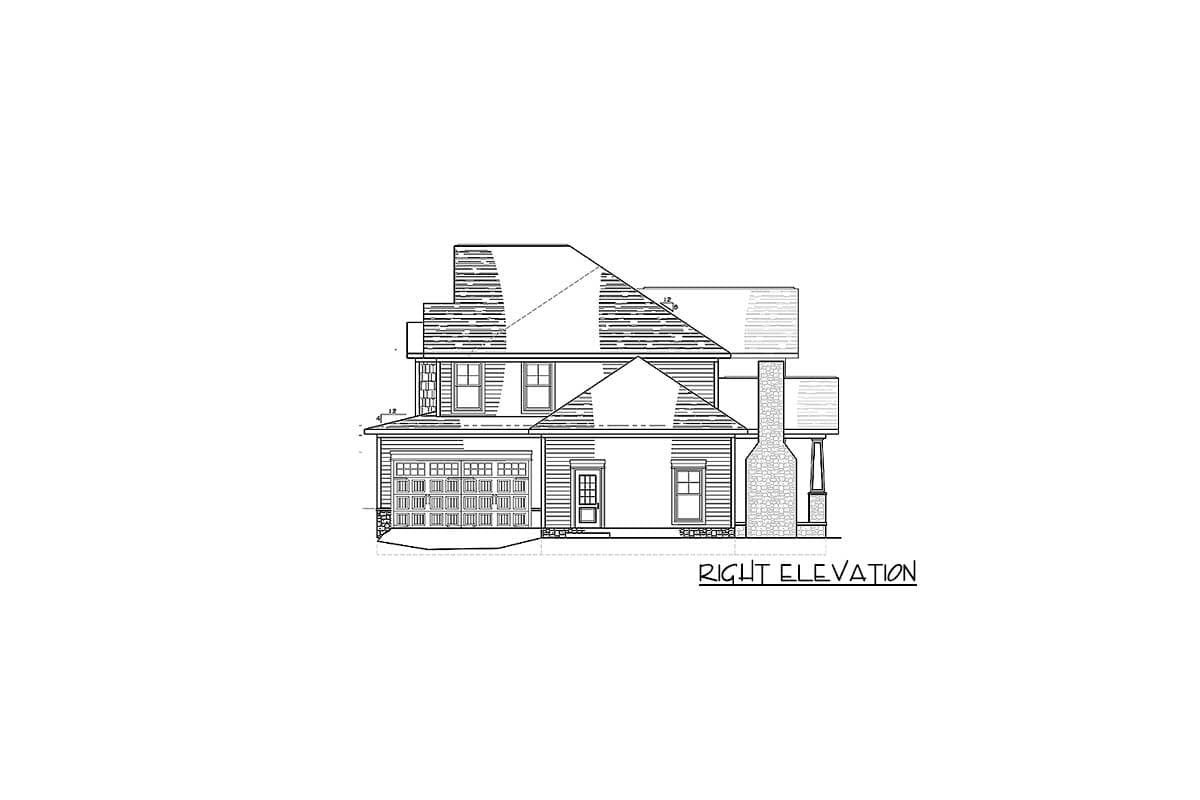

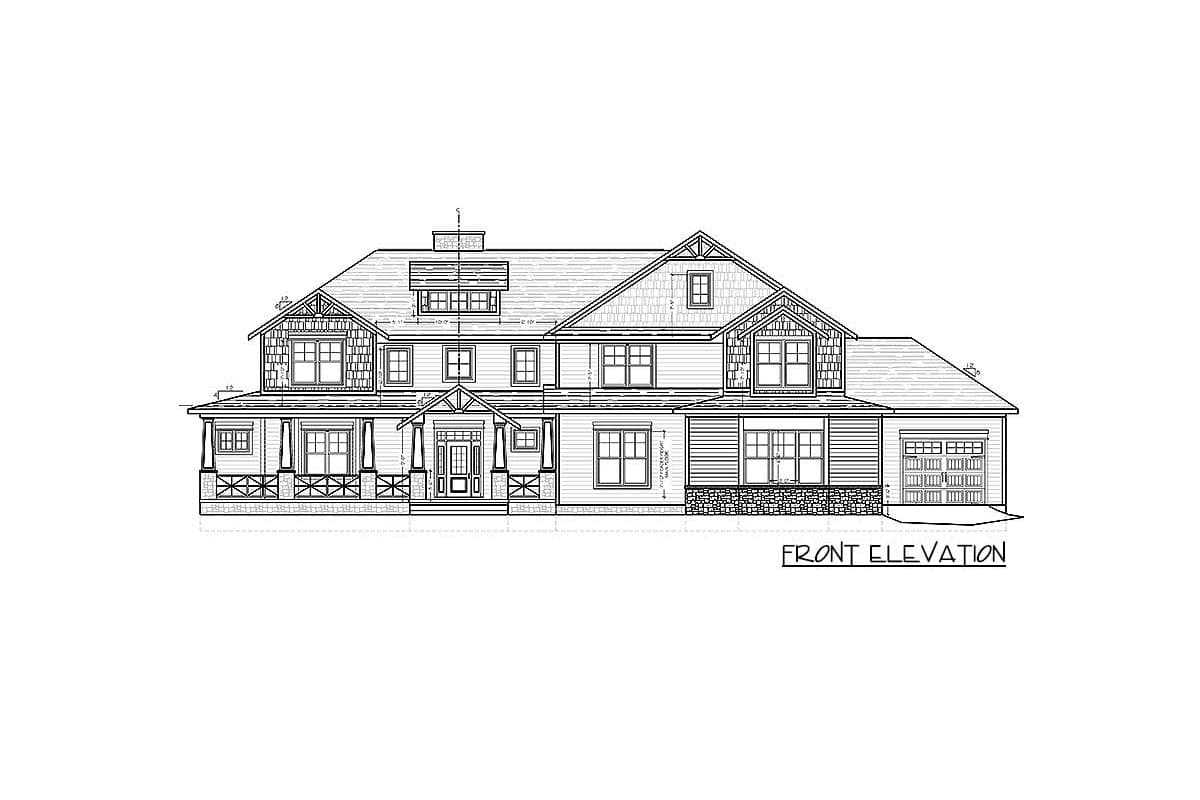

Elevations
Section View
Construction details
Electrical Layout
Roof Plan (if needed)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,304 sq. ft.

1st Floor

2,560 sq. ft.

2nd Floor

1,744 sq. ft.

Basement Unfinished

1,691 sq. ft.

Porch, Combined

781 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

98' 4"

Depth

53' 3"

Max Ridge Height

34' 7"

Garage

Type

Attached

Area

822 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections
