Name: Plan 64459SC: Rugged Craftsman Retreat Ideal For A Front Sloping Lot - 2357 Sq Ft
SKU: 64459SC
Price: 1550.0 USD
Availability: InStock

Plan 64459SC

Rugged Craftsman Retreat Ideal For A Front Sloping Lot - 2357 Sq Ft

Heated S.F.

2,357

Beds

2 - 5

Baths

2.5 - 4.5

Stories

Cars

Floor Plan

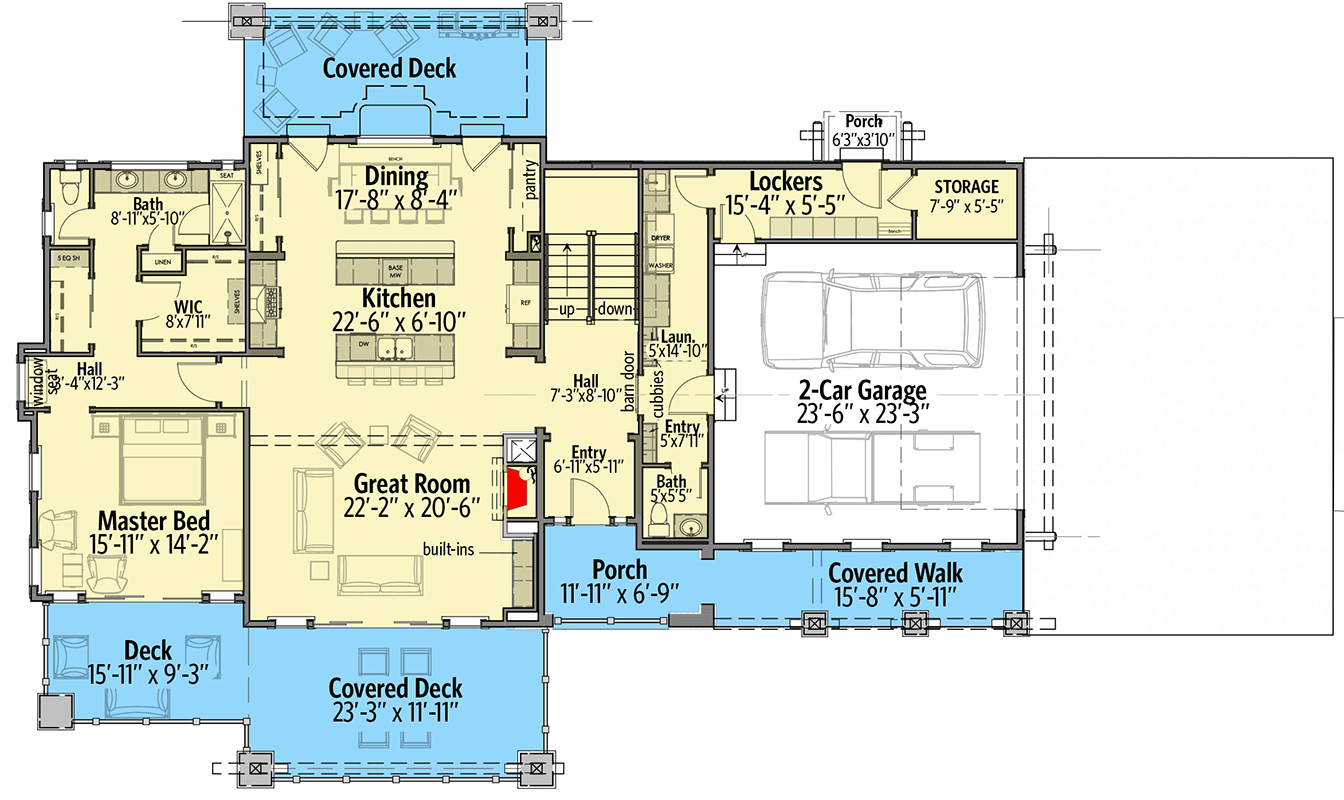

Main Level

2nd Floor

Lower Level

Plan Details

This rugged house plan has a clean, rustic aesthetic to the exterior with tall peaks in front and lower ones in back. Ideal for a sloping lot, it gives you two levels above ground (2 beds, 2 full and 1 half bath) plus an optional finished lower level with 3 more beds and 2 baths.
The central portion of the home is open and combines the great room, dining room, kitchen and breakfast nook.
The back side of the home has a large covered deck on the main level and a covered patio on the lower level as well.
The top floor gives you a sleeping loft with its own bath.
NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
