Plan 24109BG

Rugged Mountain Home Plan with Spectacular Porches

Heated S.F.

3,033

Beds

4 - 5

Baths

4

Stories

1

Floor Plan

Main Level

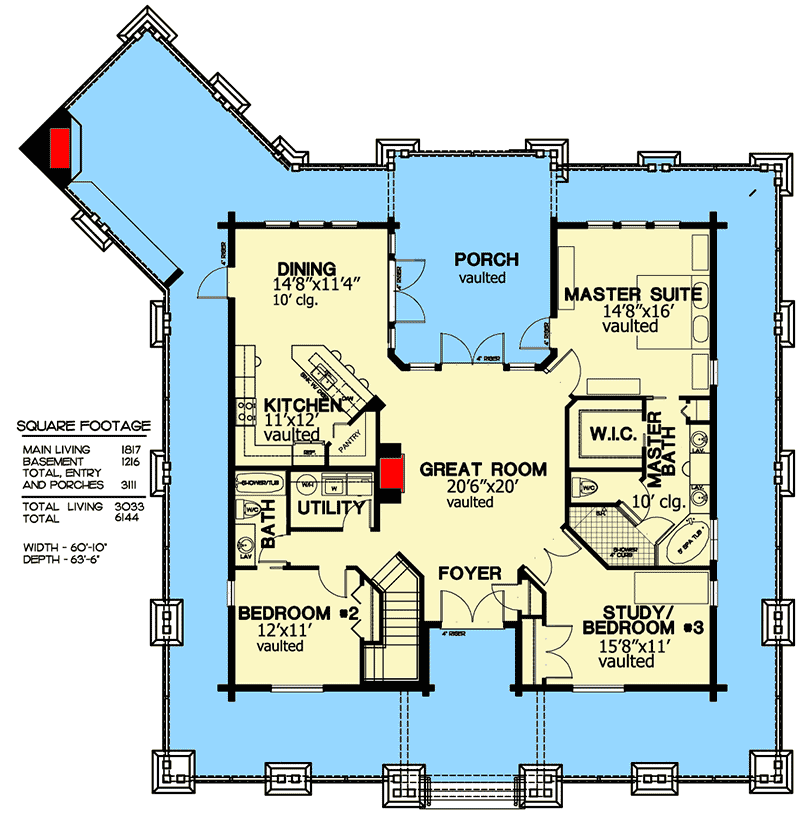

floor plan image Main Level

Lower Level

floor plan image Lower Level

Plan Details

A metal hip roof with a cupola tops this striking Mountain home plan with a finished lower level. It is designed with 2x6 construction and log siding giving you the energy-savings of thicker walls and the rustic appeal of a log home.
With a porch wrapping around the entire main floor, you never have far to go to step out and enjoy the outdoors.
Vaulted ceilings in most of the rooms soar up for a dramatic effect.
Two bedrooms and a massive game room occupy the lower level.

What's Included

Cover page showing front elevation, contents and notes
Fully dimensioned floor plans including ceiling heights
Roof plan

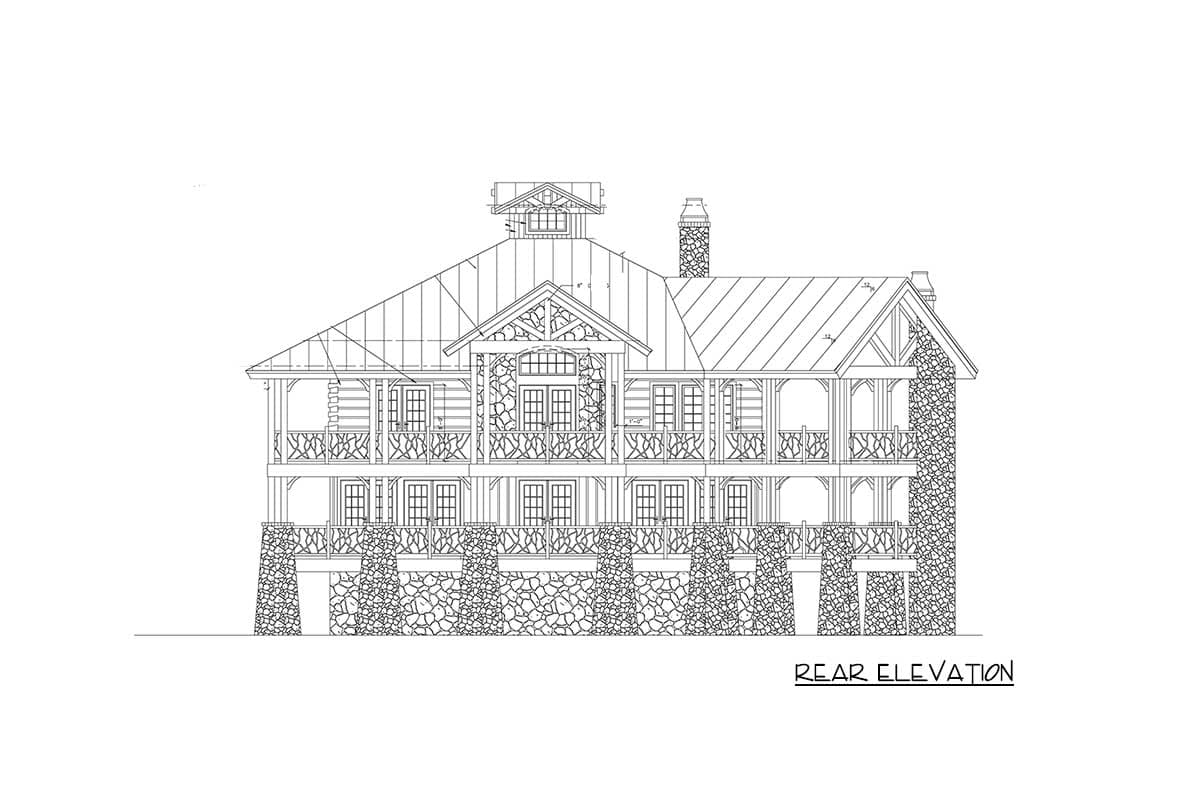

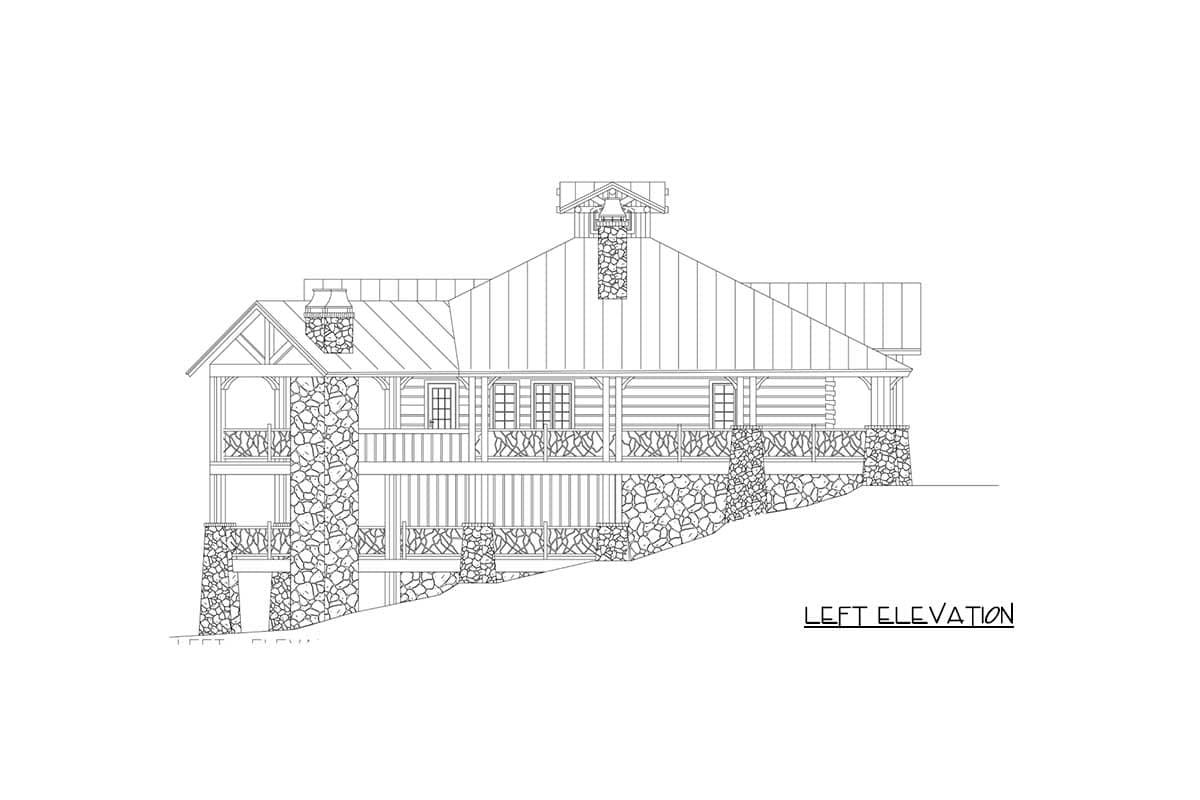

All four exterior elevations
Typical cross section
Suggested electrical schematic

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Framing - layouts with beam sizes and locations
Energy calculations - handled locally when required
Roof truss design - to be created by the truss manufacturer in accordance with local code requirements

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

Lower Level

1,216 sq. ft.

1st Floor

1,817 sq. ft.

Porch, Combined

3,111 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 10"

Depth

63' 6"

Max Ridge Height

29' 6"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

3,033 sq. ft.

Lower Level

1,216 sq. ft.

1st Floor

1,817 sq. ft.

Porch, Combined

3,111 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 10"

Depth

63' 6"

Max Ridge Height

29' 6"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Wrap Around Porch
