Plan 280188JWD
Rustic Barndominium with Large Loft and Tack Room
Heated S.F.
1,580
Beds
1
Baths
1
Stories
1-2
Cars
3- 4
Floor Plan

Plan 280188JWD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 280188JWD

1-800-854-7852

1-262-521-4596

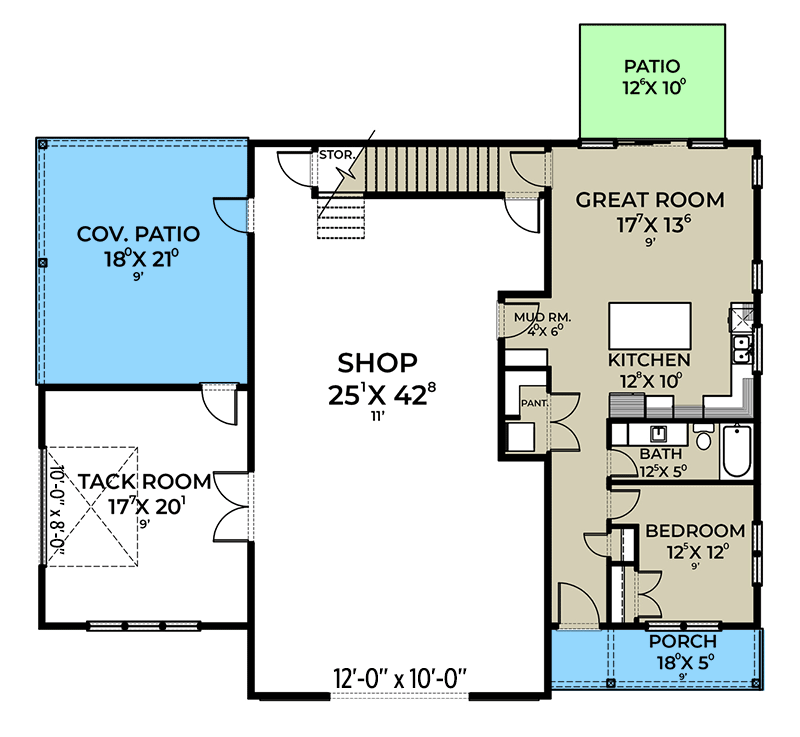

Main Level
floor plan image Main Level

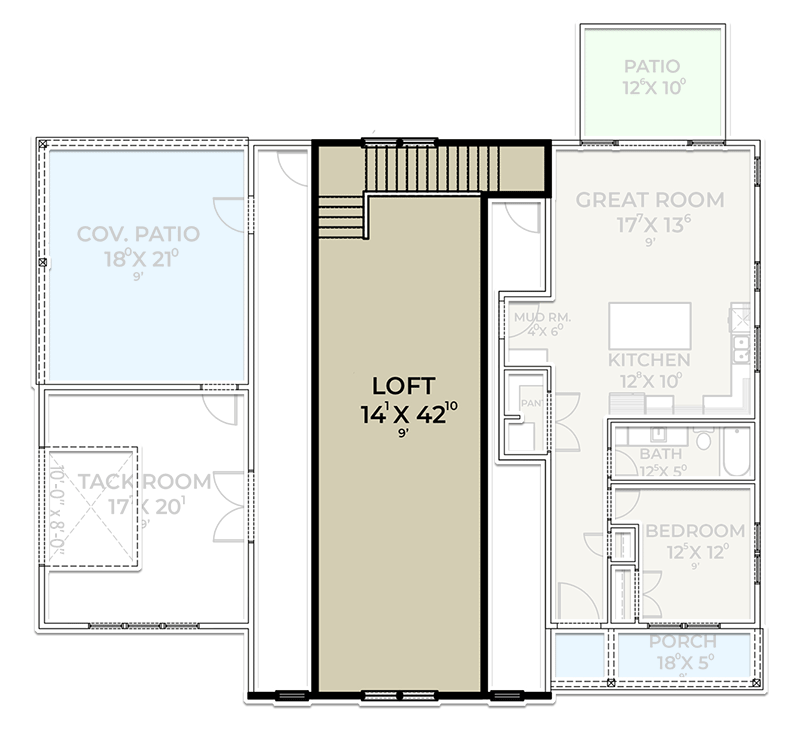

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Filled with character inside and out, this Rustic Barndominium plan delivers large barn doors that open into a 1,072 square foot workshop and tack room.
  • The living space lines the right side of the design and includes an island kitchen, great room, bedroom, and a combined pantry / laundry closet.
  • Choose sun or shade when spending time outdoors and enjoy the surrounding views from every angle.
  • A 14' by 42' loft tops the garage providing a multi-purpose space.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,580 sq. ft.

1st Floor

833 sq. ft.

2nd Floor

747 sq. ft.

Porch, Front

90 sq. ft.

Covered Patio

378 sq. ft.

Tack Room

378 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

48' 0"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

1072 sq. ft.

Count

3 or 4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Shop

11' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Barndominium

Carriage

Country

Rustic

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Workshop

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,580 sq. ft.

1st Floor

833 sq. ft.

2nd Floor

747 sq. ft.

Porch, Front

90 sq. ft.

Covered Patio

378 sq. ft.

Tack Room

378 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

48' 0"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

1072 sq. ft.

Count

3 or 4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Shop

11' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Barndominium

Carriage

Country

Rustic

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Workshop

Plan Collections

ADU
