Plan 70777MK

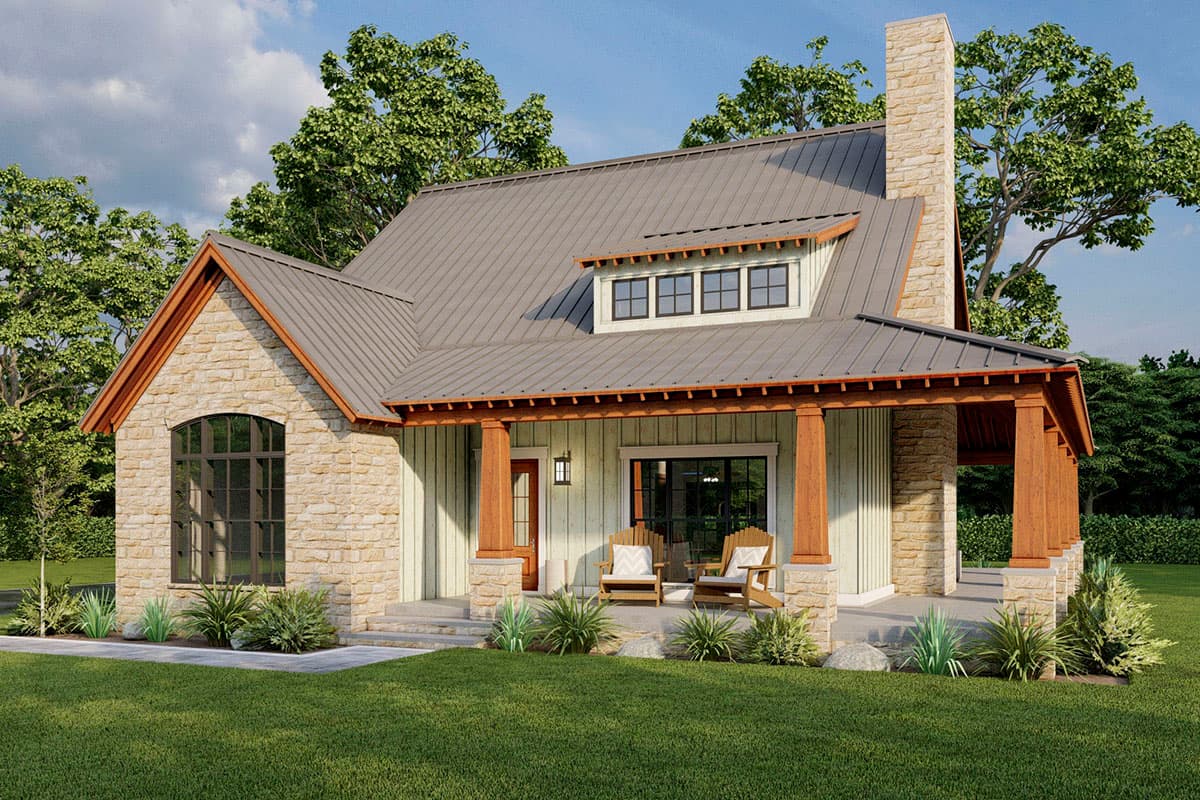

Rustic Cabin House Plan with Optional 2-Car Detached Garage - 2006 Sq Ft
Heated S.F.
2,006
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 70777MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70777MK

1-800-854-7852

1-262-521-4596

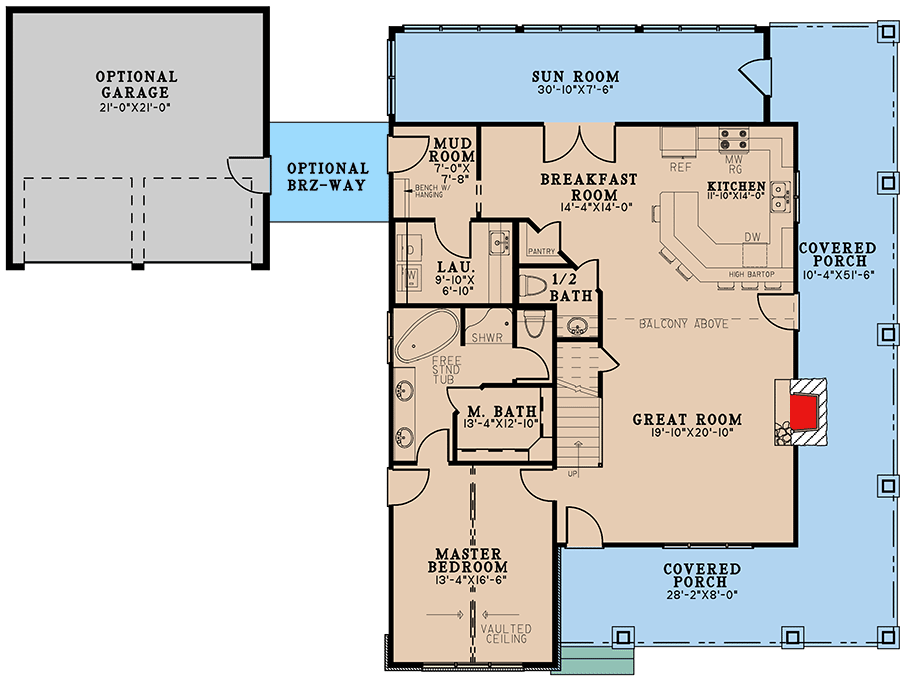

Main Level
floor plan image Main Level

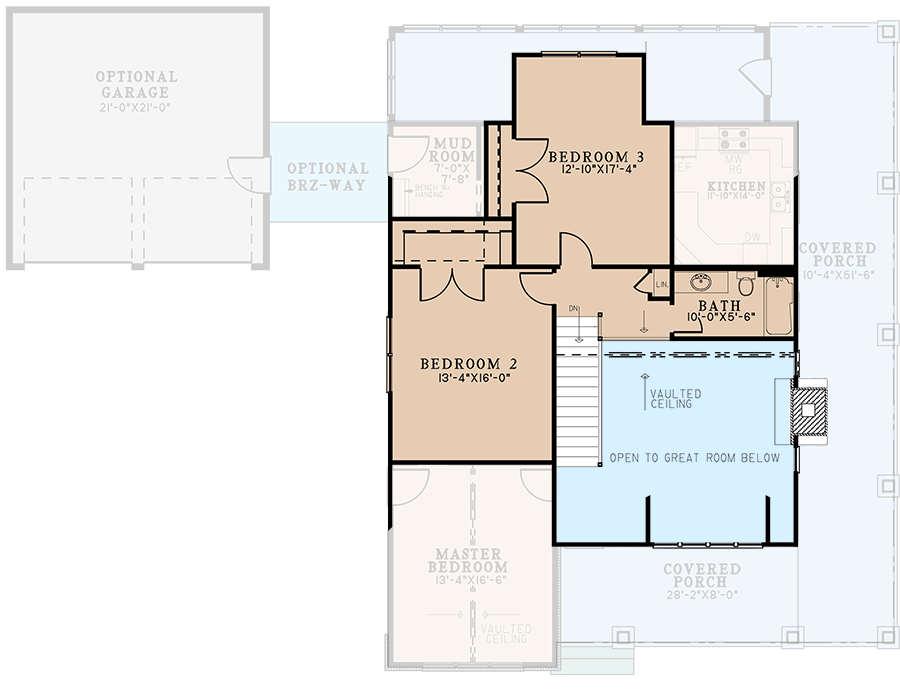

2nd Floor
floor plan image 2nd Floor
Plan Details

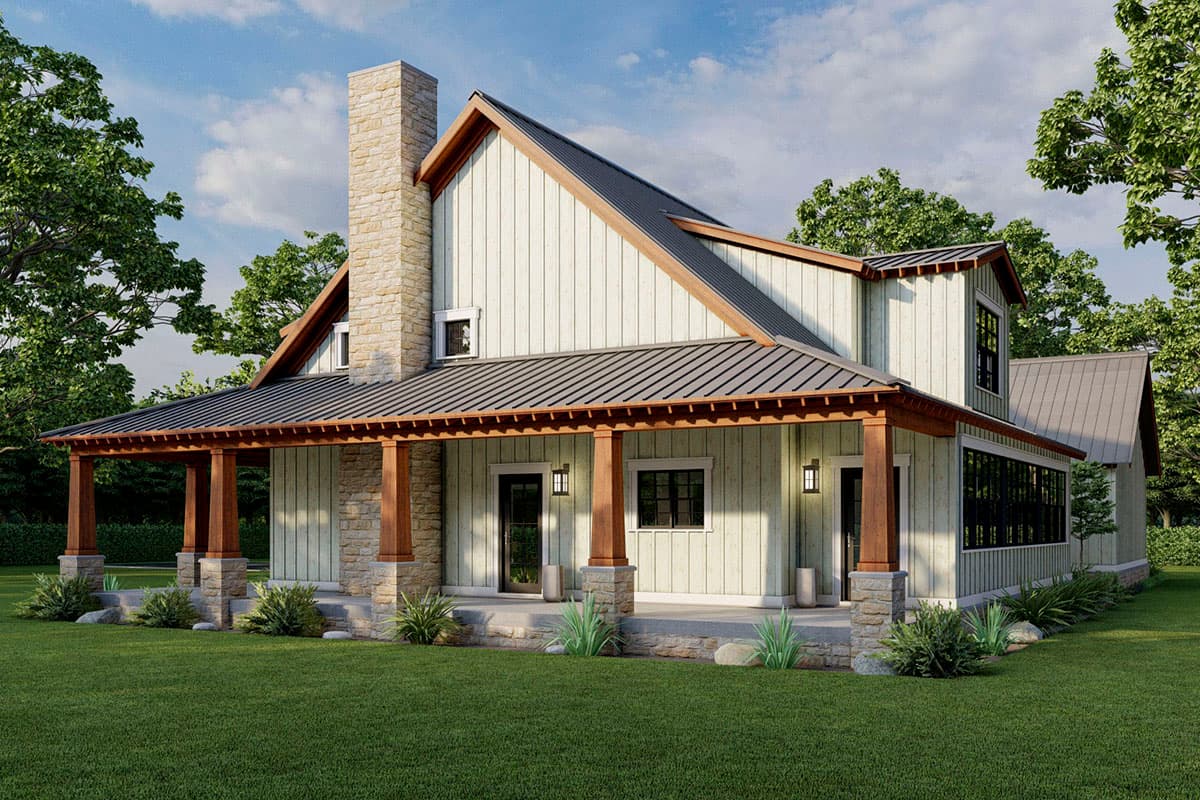

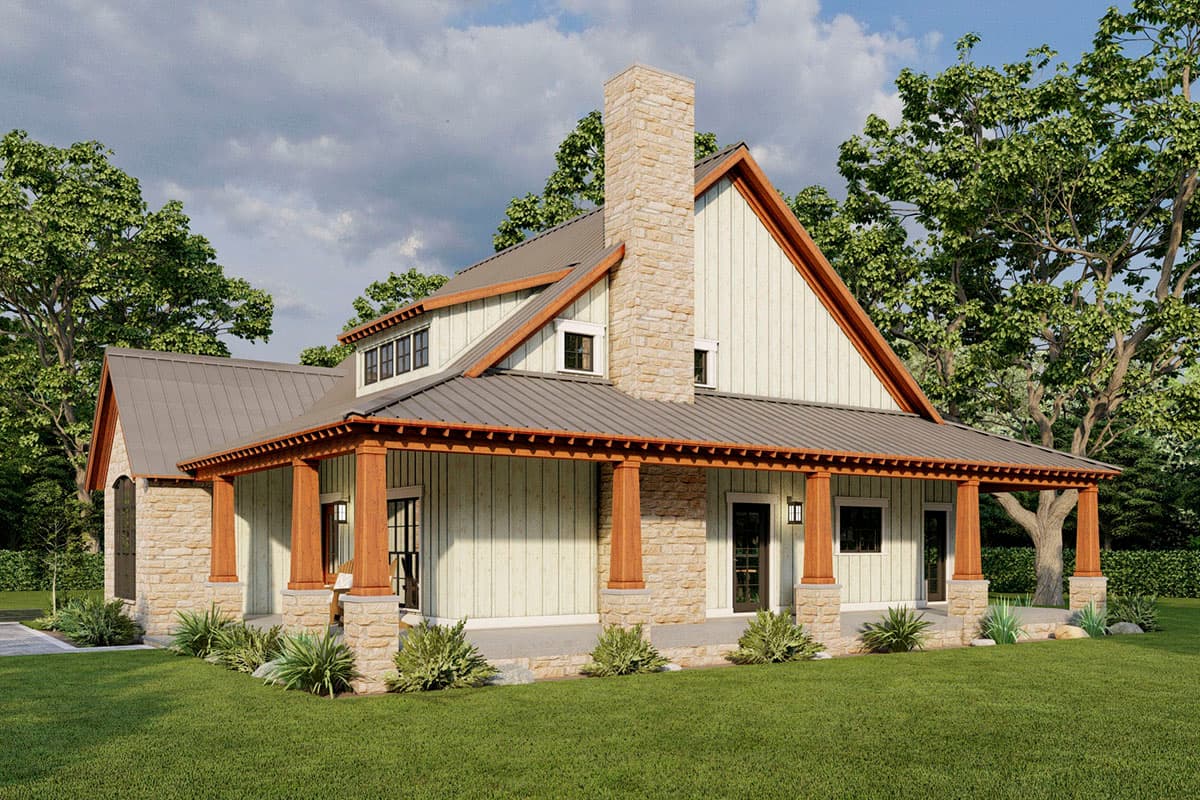

  • With all of the charms that come with a rustic cabin house plan, this home design offers a great open layout with a wrap around porch and an optional detached 2-car garage.
  • An open balcony upstairs offers tall ceilings with great views of the outdoors.

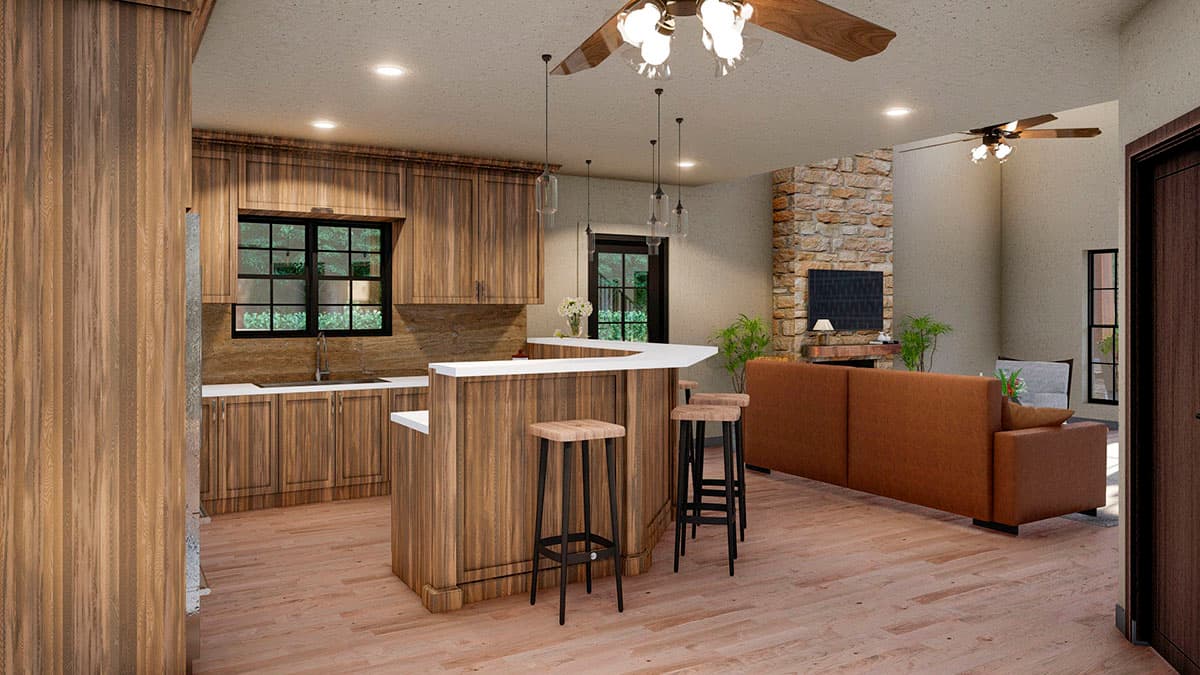

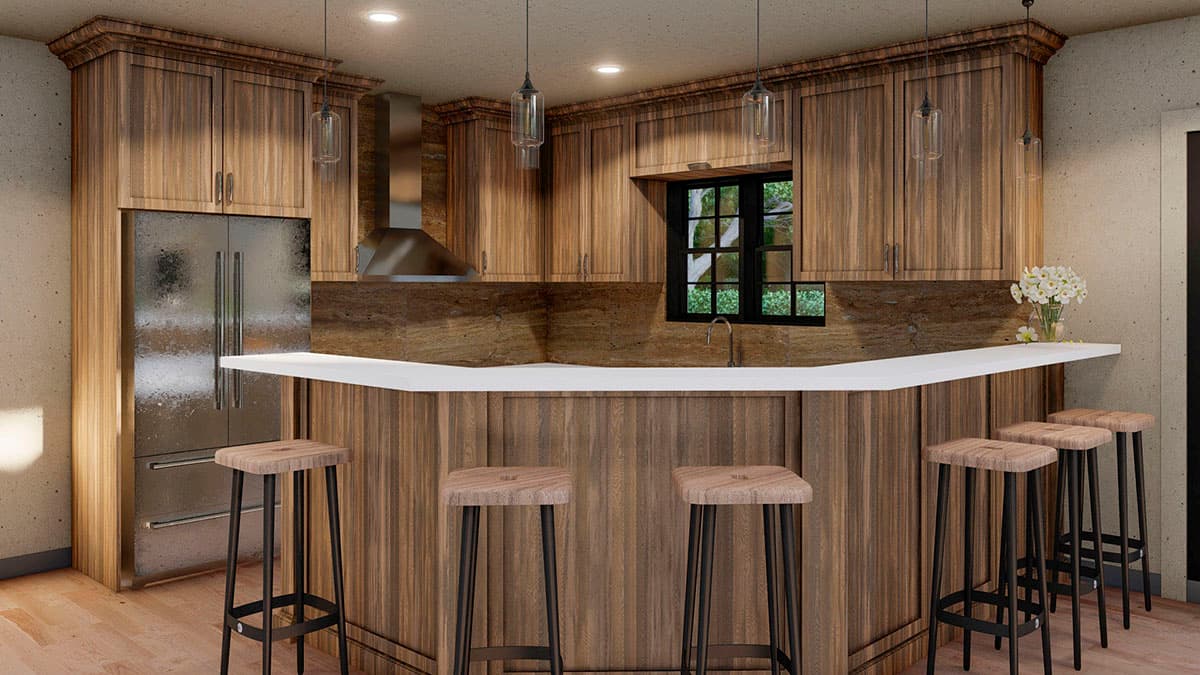

  • A large eat-at bar top gives a great opportunity to entertain while leaving plenty of room for your growing family as well.
  • The master suite can be found on the main level while the other two bedrooms can be found upstairs with a bathroom to share.

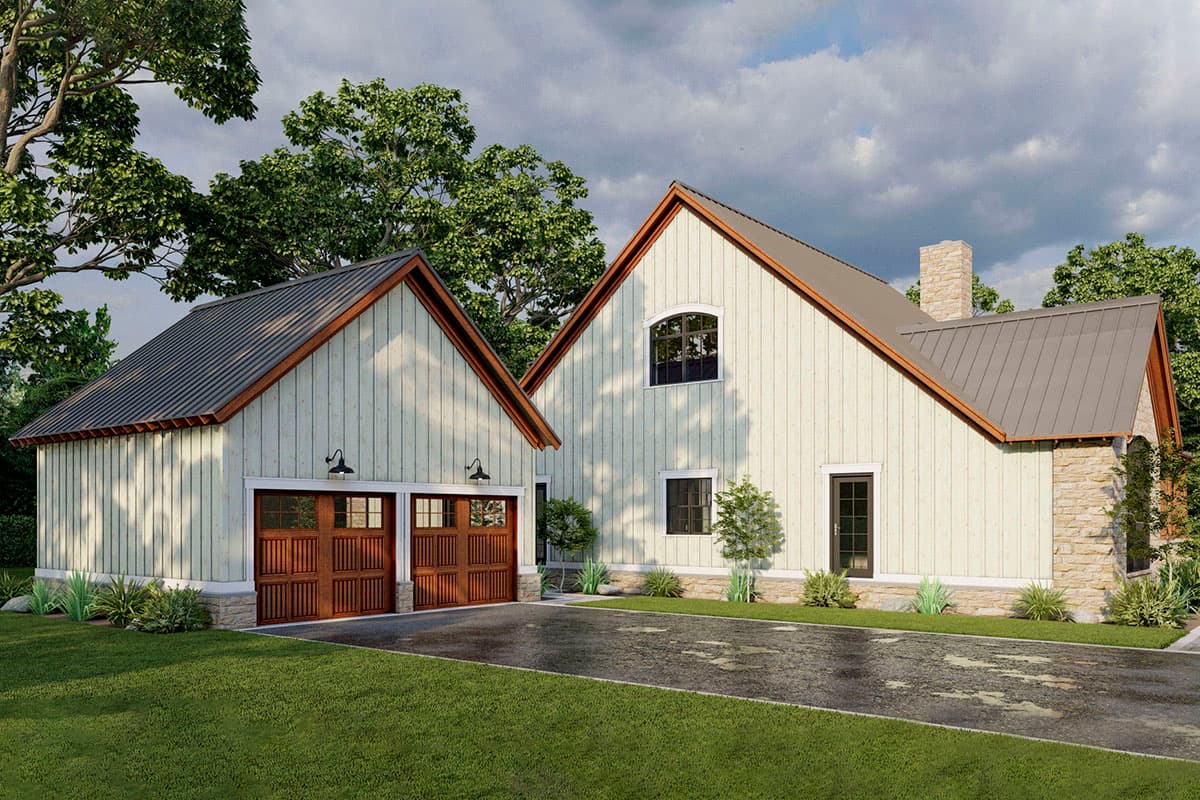

  • Available for an additional fee, an optional detached garage can serve as great auto storage or a great shop building for future project (+$250 option). An option breezeway offers cover between the two structure.
  • Related Plans: Get a version without a sunroom with house plan 70682MK and an alternate version with house plans 70620MK, 70780MK and 70789MK. Get a larger version with a garage with house plan 70901MK.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,006 sq. ft.

1st Floor

1,367 sq. ft.

2nd Floor

639 sq. ft.

Porch, Combined

833 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 2"

Depth

55' 2"

Max Ridge Height

25' 10"

Garage

Type

Detached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Rustic

Vacation

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sunroom

Two Story Great Room

Wrap Around Porch
