Plan 11523KN
Rustic Cottage with 2 Beds and Upstairs Expansion - 1053 Sq Ft
Heated S.F.
1,053
Beds
2
Baths
1
Stories
1-2
Cars
1
Floor Plan

Plan 11523KN

Main Level
slide image 0
2nd Floor
slide image 1

Plan 11523KN

1-800-854-7852

1-262-521-4596

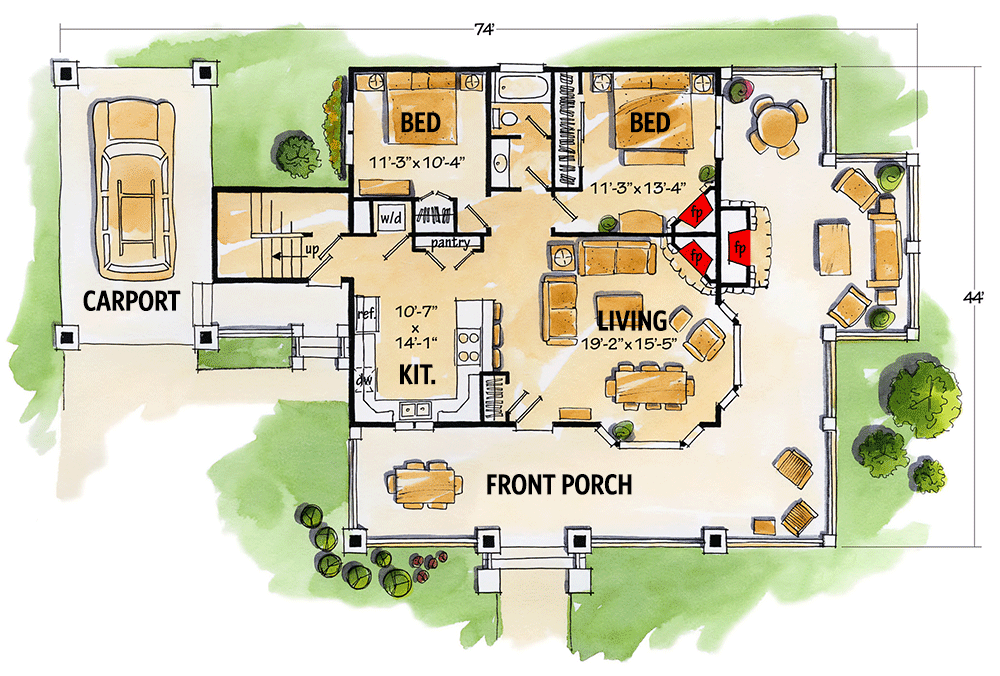

Main Level
floor plan image Main Level

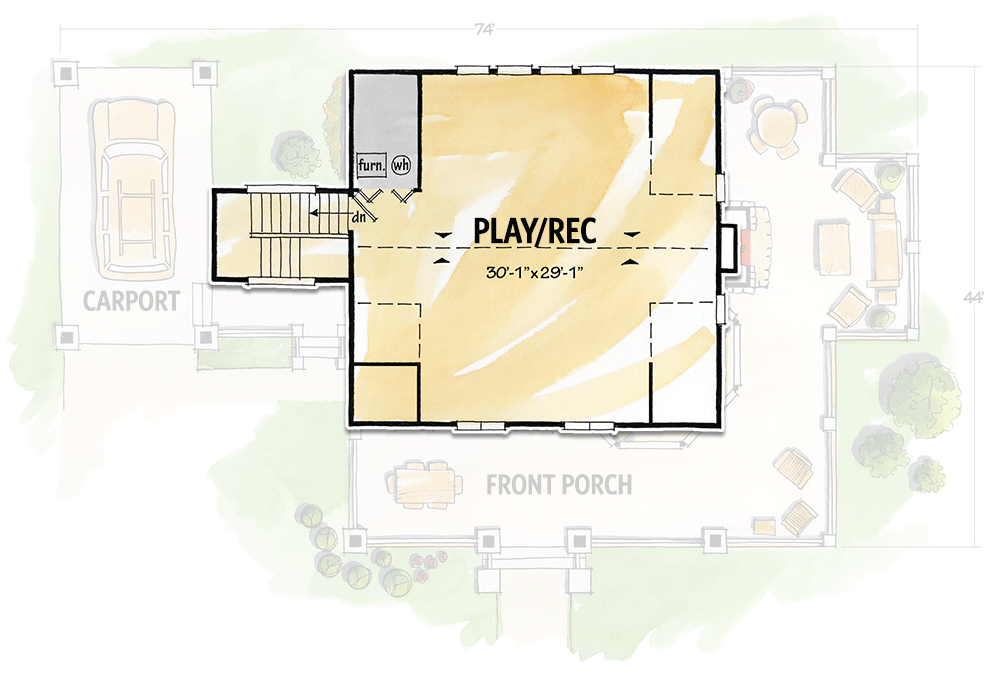

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A shed dormer and rustic exterior enhance this rustic cottage with 2 beds and 1,053 square feet of heated living and 960 square feet of upstairs bonus expansion. Both a covered porch and large open deck area warmed by the stone fireplace extend the living to the outdoors.
  • The living room/dining area has two bays and another fireplace as well as access to the deck.
  • The U-shaped kitchen features an eating bar, pantry closet and close proximity to the stack washer/dryer for convenience.
  • Two bedrooms share the hall bath with the master bedroom warmed by a romantic fireplace.
  • Upstairs, bonus space can be finished off to add extra bedrooms or a play room.
What's Included

  • Floor plans at ¼" scale
  • All exterior elevations at ¼" scale
  • Roof plan at ¼" scale
  • Building sections at ¼" scale
  • Completed foundation plan at ¼" scale
  • Completed floor/roof framing plan at ¼" scale
  • Building height profiles at ¼" scale
  • Door and window schedules
  • General construction notes and building schedules
  • Exterior finish schedule
  • Architectural details
  • Construction details for cabinets, interior built-ins and stairs
  • Designations for all floor, wall and ceiling surfaces
  • Details and specifications for all ceiling treatments
  • All square footage calculations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,053 sq. ft.

1st Floor

1,053 sq. ft.

Bonus

960 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

44' 0"

Max Ridge Height

30' 5"

Garage

Type

Carport

Area

240 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Cabin

Square Footage Breakdown

Total Heated Area

1,053 sq. ft.

1st Floor

1,053 sq. ft.

Bonus

960 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

44' 0"

Max Ridge Height

30' 5"

Garage

Type

Carport

Area

240 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'
