Plan 80678PM

Rustic Cottage with Wrap-around Porch

Heated S.F.

1,288

Beds

Baths

1.5+

Stories

Floor Plan

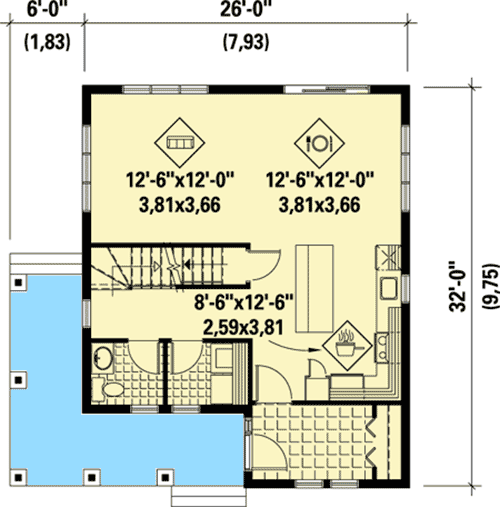

Main Level

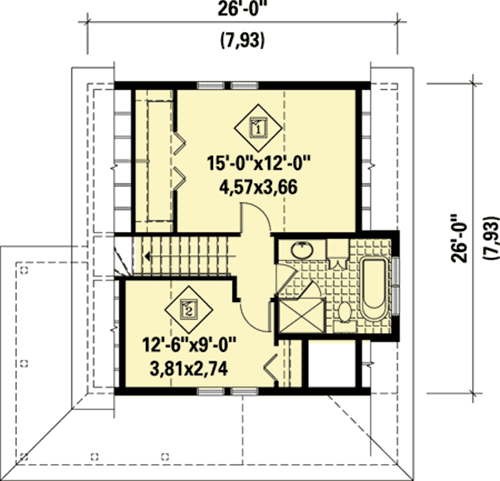

2nd Floor

Plan Details

With its large windows and corner veranda in the front, this charming country-style two-story cottage will please those who are looking for rest and relaxation.
The ground floor has a living area with an open layout and features a closed entrance hall, a powder room and a laundry room.
In kitchen, an island adds plenty of extra counter space.
The upper floor has 534 square feet of living space and includes two bedrooms and a bathroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.

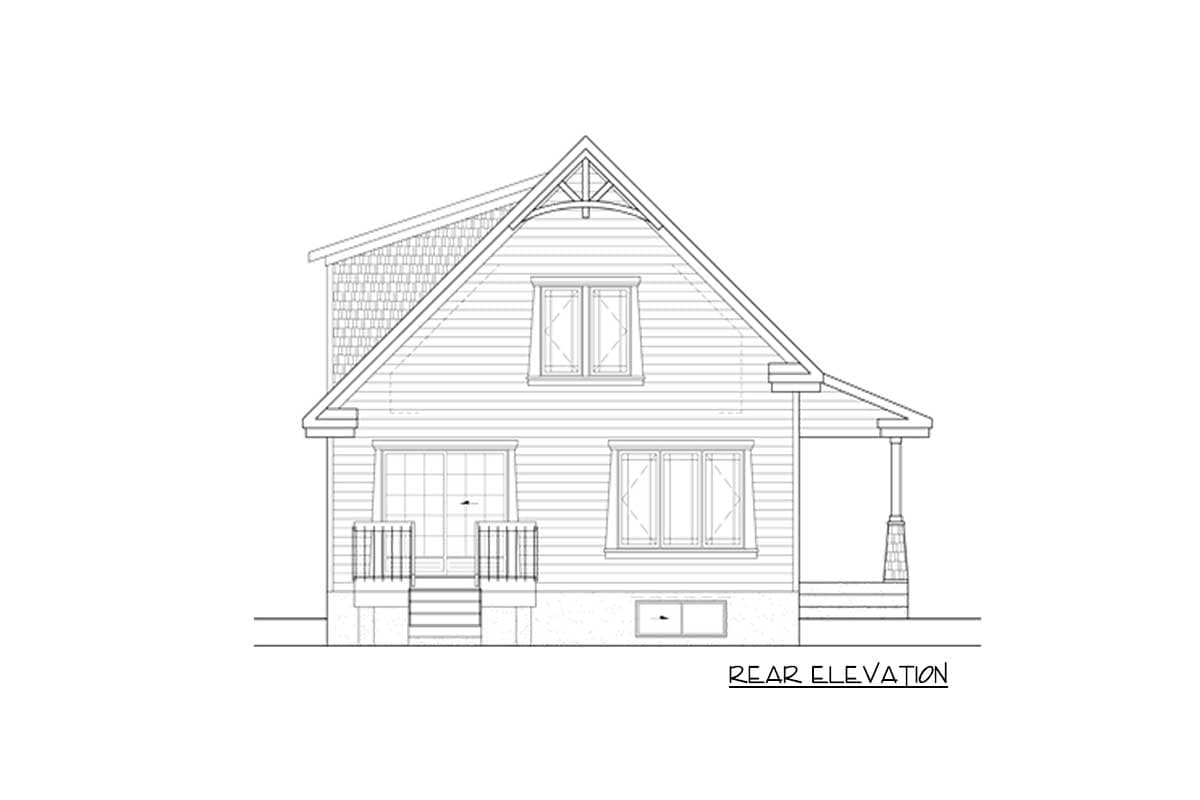

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
