Plan 350052GH
Rustic Country 2-Bed House Plan with Home Office and Carport
Heated S.F.
1,662
Beds
2
Baths
3
Stories
2
Cars
1
Floor Plan

Plan 350052GH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 350052GH

1-800-854-7852

1-262-521-4596

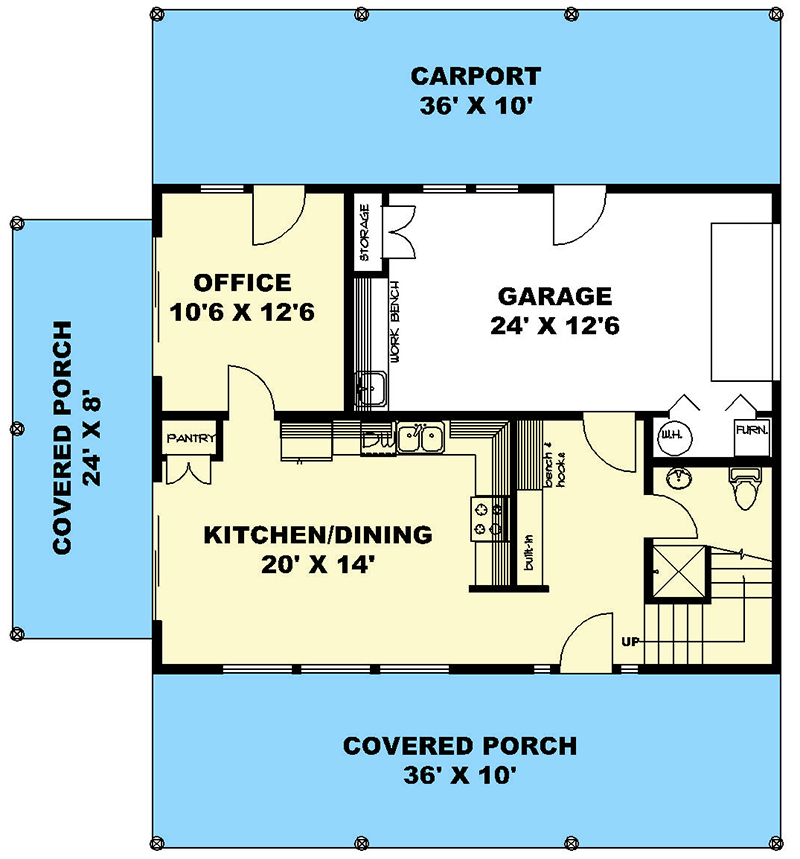

Main Level
floor plan image Main Level

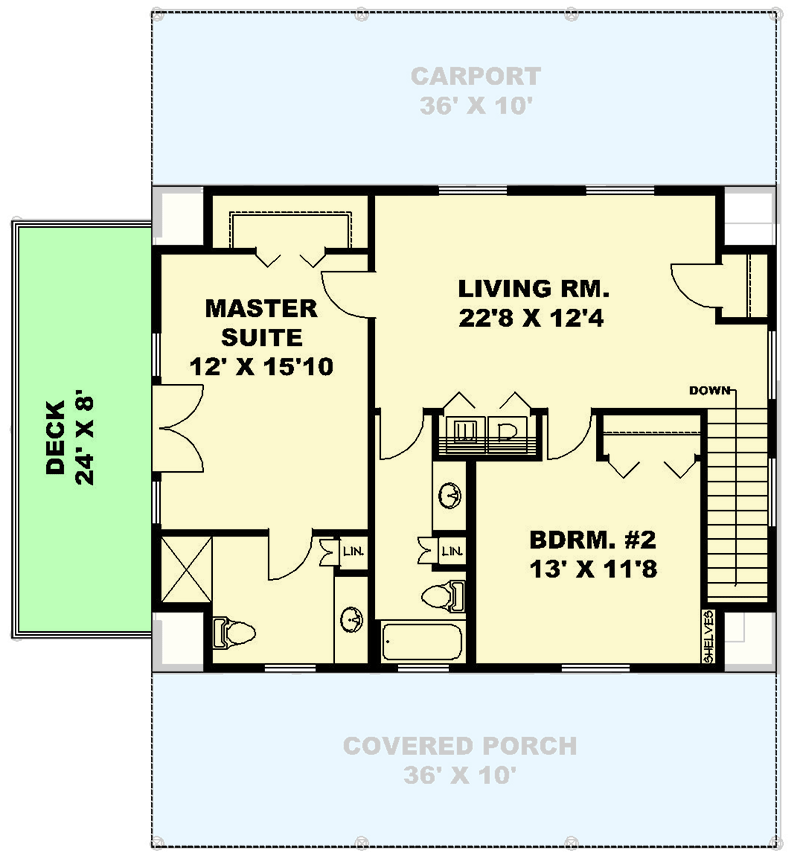

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This rustic country 2-bed house plan gives you 1,662 square feet of heated living and has three outdoor spaces on the ground floor and one on the second floor expanding your livability.
  • There is a full bath on the main floor located by the garage with work bench giving you a handy spot to clean up after working on your vehicles or outside.
  • A home office has access from the side porch, the carport and the kitchen dining room.
  • Both bedrooms are upstairs and each has access to the living room. The master suite has a private deck. Laundry is tucked behind a pair of bifold doors.
What's Included

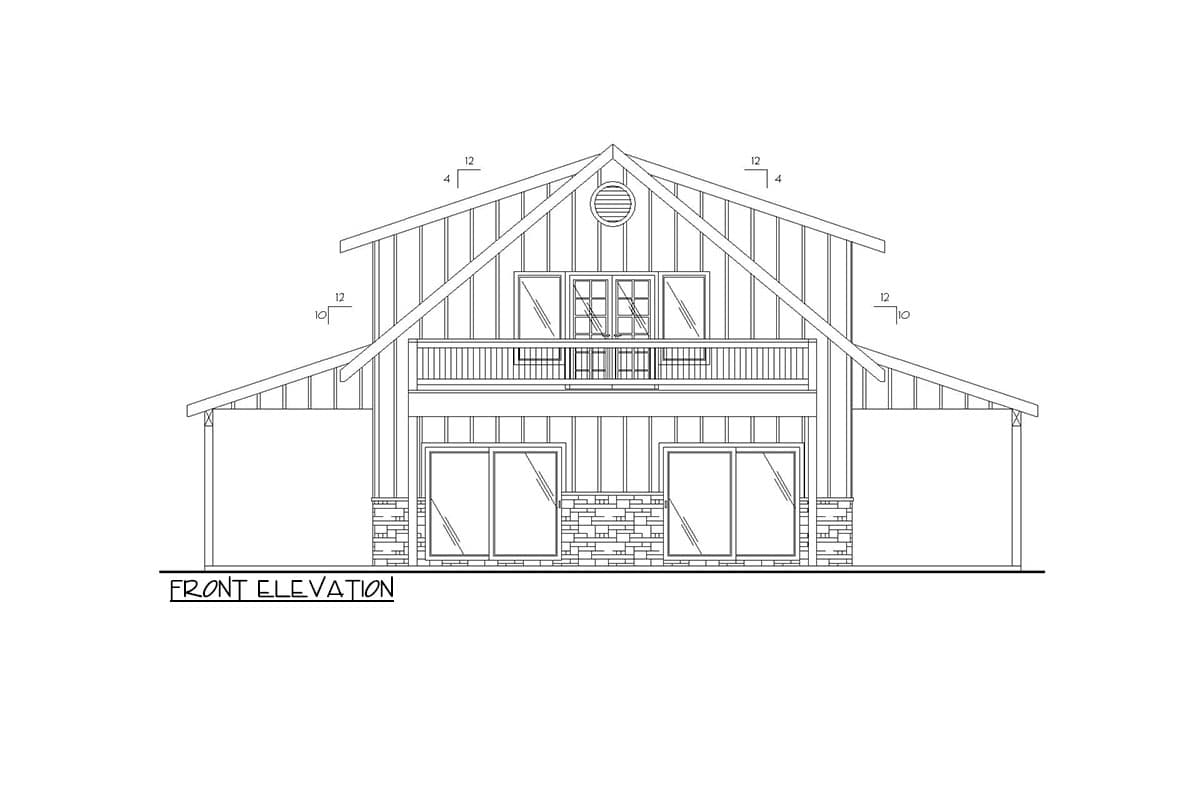

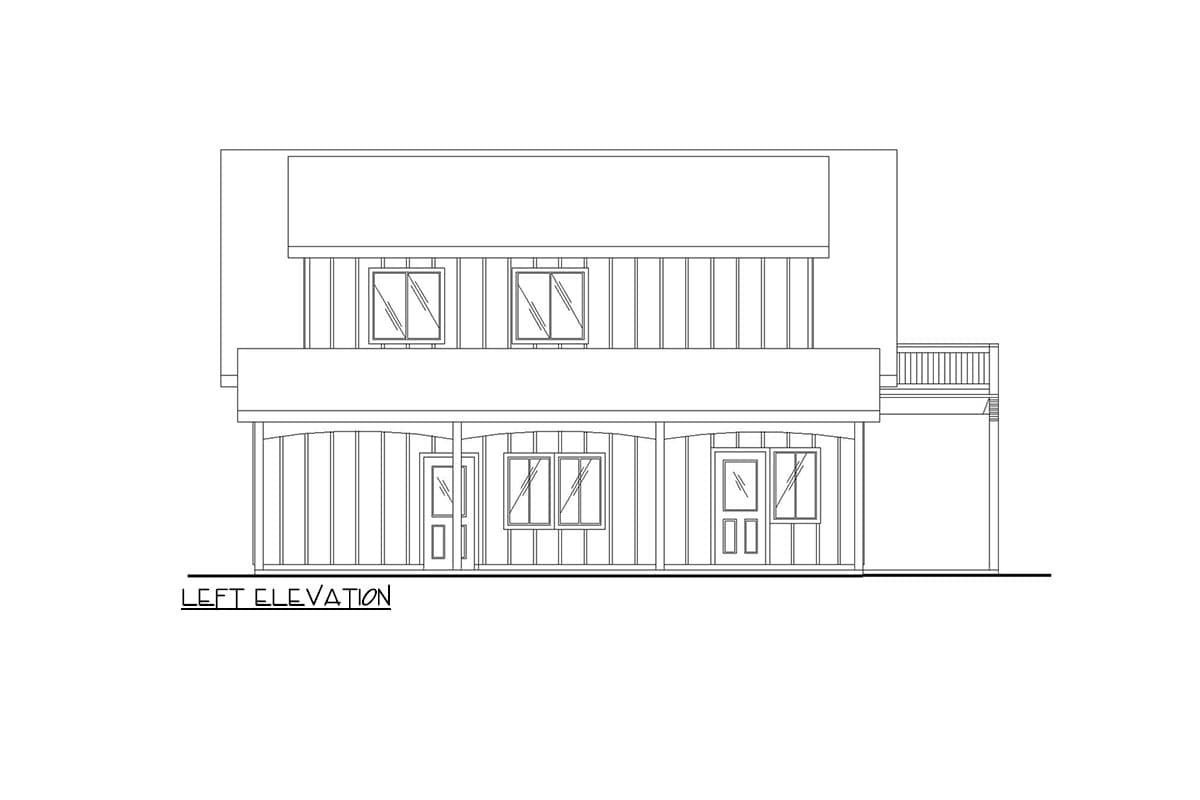

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,662 sq. ft.

1st Floor

696 sq. ft.

2nd Floor

966 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

44' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached, Carport

Area

323 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Rustic

Special Features

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,662 sq. ft.

1st Floor

696 sq. ft.

2nd Floor

966 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

44' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached, Carport

Area

323 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Rustic

Special Features

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor
