Plan 17807LV
Rustic Craftsman Cottage
Heated S.F.
1,601
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 17807LV

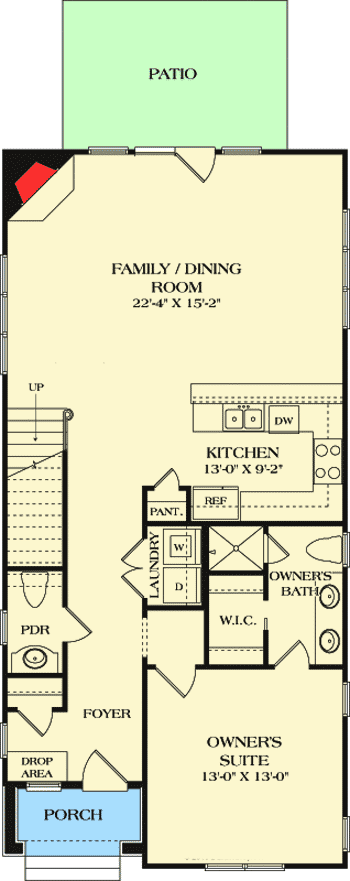

Main Level
slide image 0

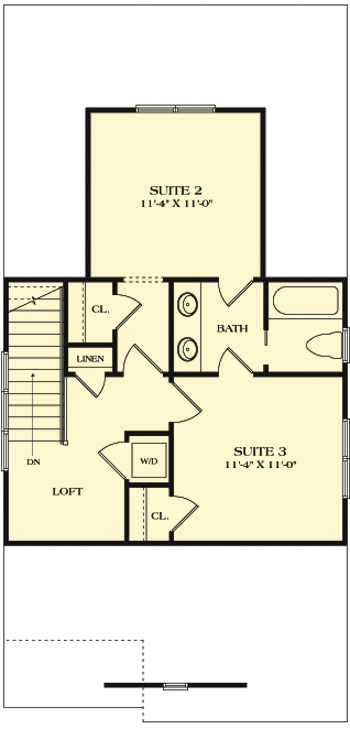

2nd Floor
slide image 1

Plan 17807LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Rustic shakes and stone adorn this cozy Cottage house plan.
  • The entire main living area is all in back with a marvelous open concept layout that makes the home feel bigger.
  • The corner fireplace can be seen from every room and a rear patio is perfect for grilling or relaxing.
  • Get a first floor master suite with a private bathroom and walk-in closet and nearby laundry closet.
  • Two more bedrooms are upstairs and they share the handy second laundry closet and loft space.
  • Related Plan: Need something smaller with only two bedrooms? See house plan 17804LV (1,379 sq. ft.).
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,601 sq. ft.

1st Floor

1,053 sq. ft.

2nd Floor

548 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

23' 0"

Depth

48' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,601 sq. ft.

1st Floor

1,053 sq. ft.

2nd Floor

548 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

23' 0"

Depth

48' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor
