Name: Plan 25740GE: Rustic Craftsman Plan with Walkout Basement - 4042 Sq Ft
SKU: 25740GE
Price: 2295.0 USD
Availability: InStock

Plan 25740GE

Rustic Craftsman Plan with Walkout Basement - 4042 Sq Ft

Heated S.F.

4,042

Beds

Baths

3.5+

Stories

Cars

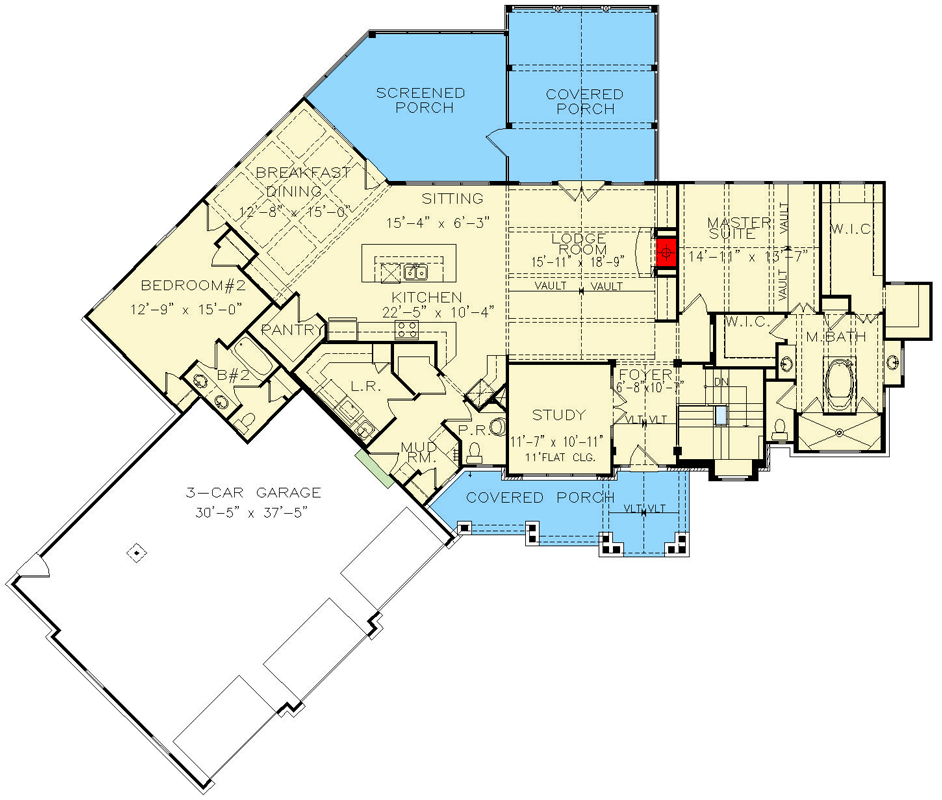

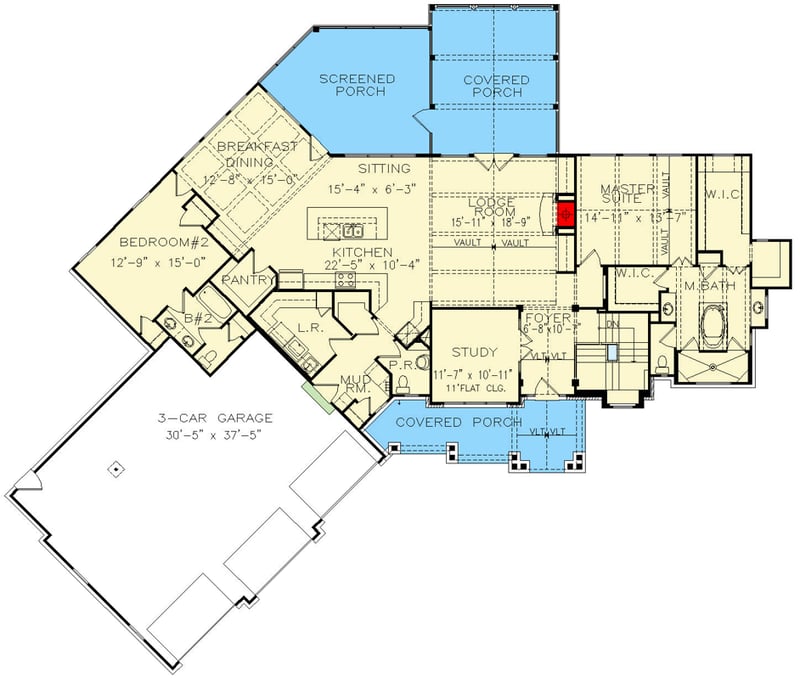

Floor Plan

Main Level

Lower Level

Plan Details

Timber-framed gables and sloped eaves add character to the exterior of this Rustic Craftsman home plan.
The lodge room offers elegance overhead with its vaulted ceiling that extends through the adjacent covered porch. The free-flowing kitchen features a sitting nook, walk-in pantry, and neighboring dining room with a coffered ceiling.
The master suite provides a roomy, yet cozy, space for the homeowners to relax, and features two walk-in closets and a freestanding tub in front of the oversized shower.
Other notable features include a quiet study, large laundry room, mudroom, and a 3-car garage.

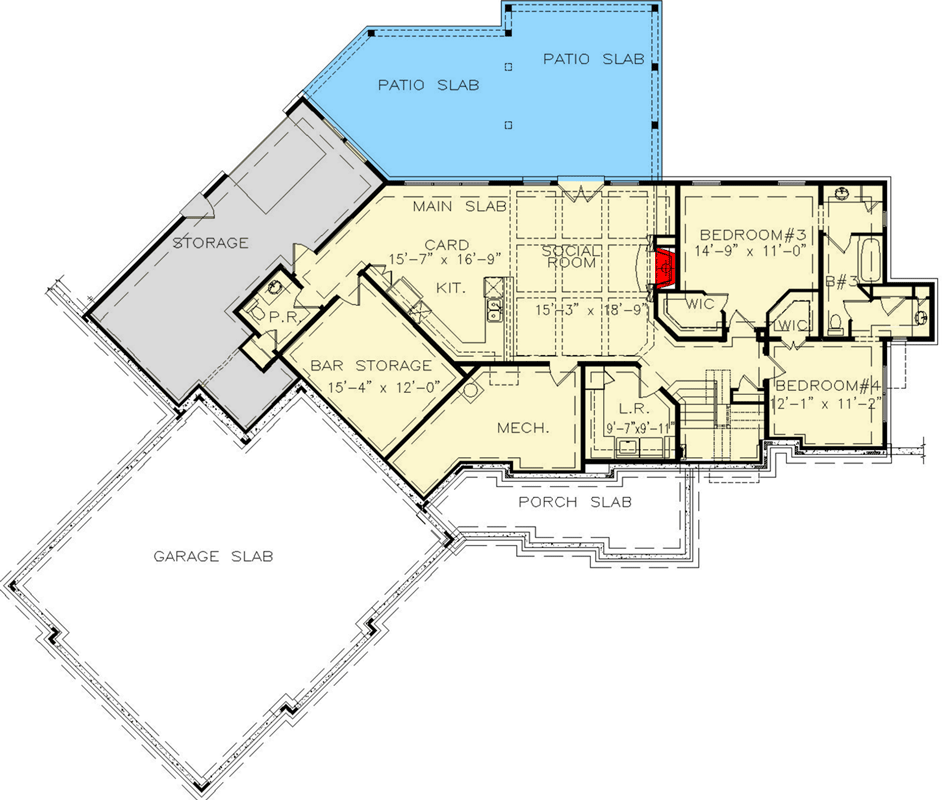

The lower level is ideal for entertaining with its social room, kitchenette, card room, and sizable bar storage. Two bedrooms with a Jack-and-Jill bath and a second laundry room complete the downstairs.

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
