Plan 60642ND
Rustic Craftsman with Wrap-Around Porch
Heated S.F.
2,877
Beds
3 - 4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 60642ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 60642ND

1-800-854-7852

1-262-521-4596

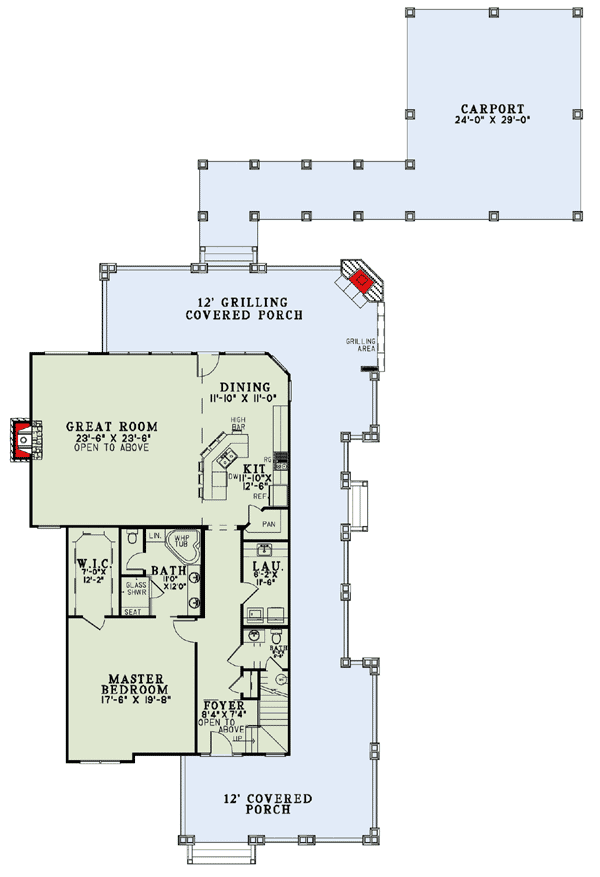

Main Level
floor plan image Main Level

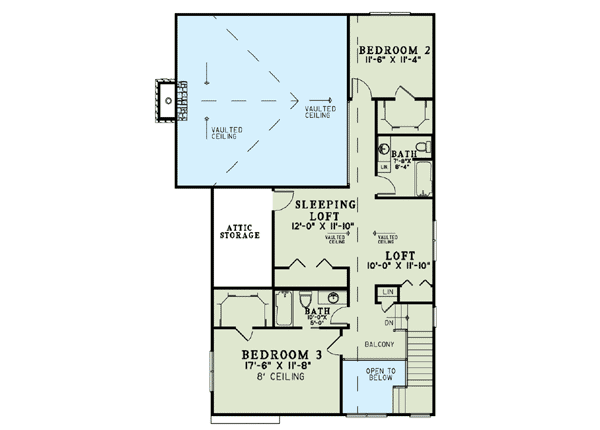

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This beautiful rustic home has some Craftsman style elements and features a massive wrap-around porch.
  • The foyer is open to a balcony above with the huge master bedroom on the left.
  • It features plenty of space and a great walk-in closet.
  • The master bath offers a corner glass shower with a seat, a double vanity, and a corner whirlpool tub.
  • The great room is spacious with a fireplace and is open to the dining room and kitchen.
  • The kitchen features a wrap-around, eat-at island bar and a corner walk-in pantry.
  • Upstairs, bedrooms 2 and 3 each have a full bath and a walk-in closet.
  • The large loft has a vaulted ceiling and 2 closets.
  • The wrap-around porch has a grilling area in the back with a corner fireplace, perfect for entertaining.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,877 sq. ft.

1st Floor

1,852 sq. ft.

2nd Floor

1,025 sq. ft.

Porch, Combined

1,333 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

76' 2"

Depth

115' 0"

Max Ridge Height

29' 6"

Garage

Type

Carport

Area

976 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Mountain

Northwest

Rustic

Vacation

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor

Wrap Around Porch
