Plan 680460VR
Rustic Detached 3-Car Garage with Second Level Apartment - 1143 Sq Ft
Heated S.F.
1,143
Beds
1
Baths
1.5
Stories
2
Cars
3
Floor Plan

Plan 680460VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680460VR

1-800-854-7852

1-262-521-4596

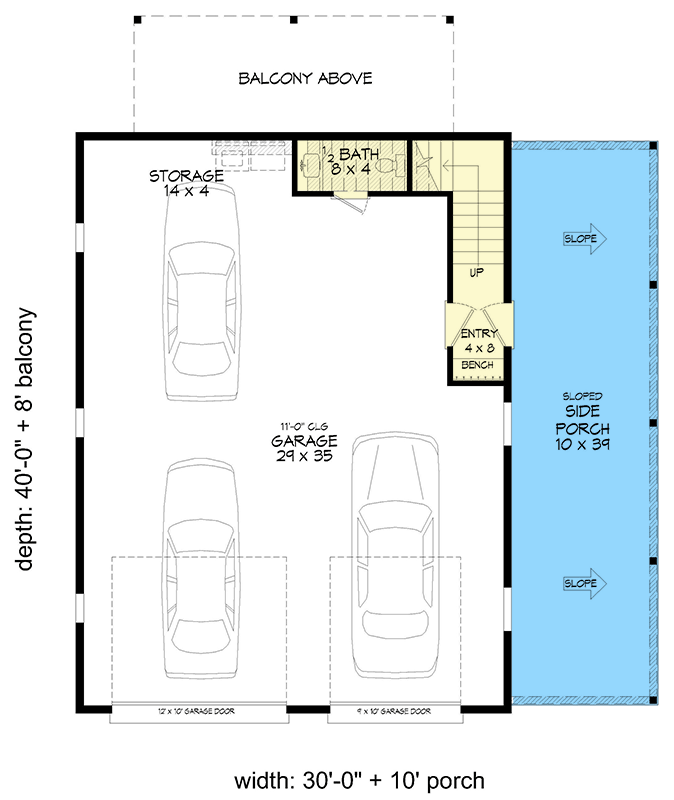

Main Level
floor plan image Main Level

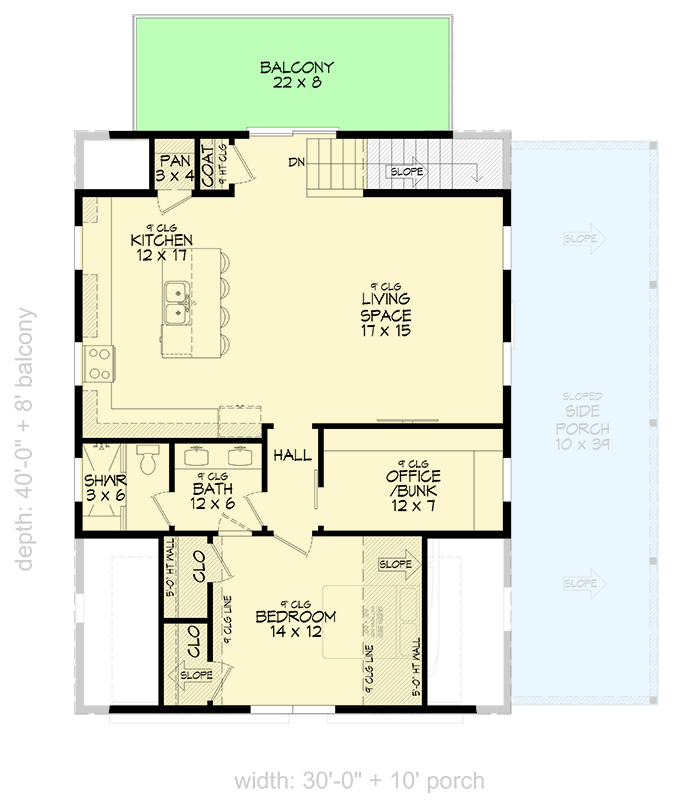

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This rustic detached garage plan offers you 1,143 square feet of heated living space with 1 beds, 1.5 baths and a 1,076 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

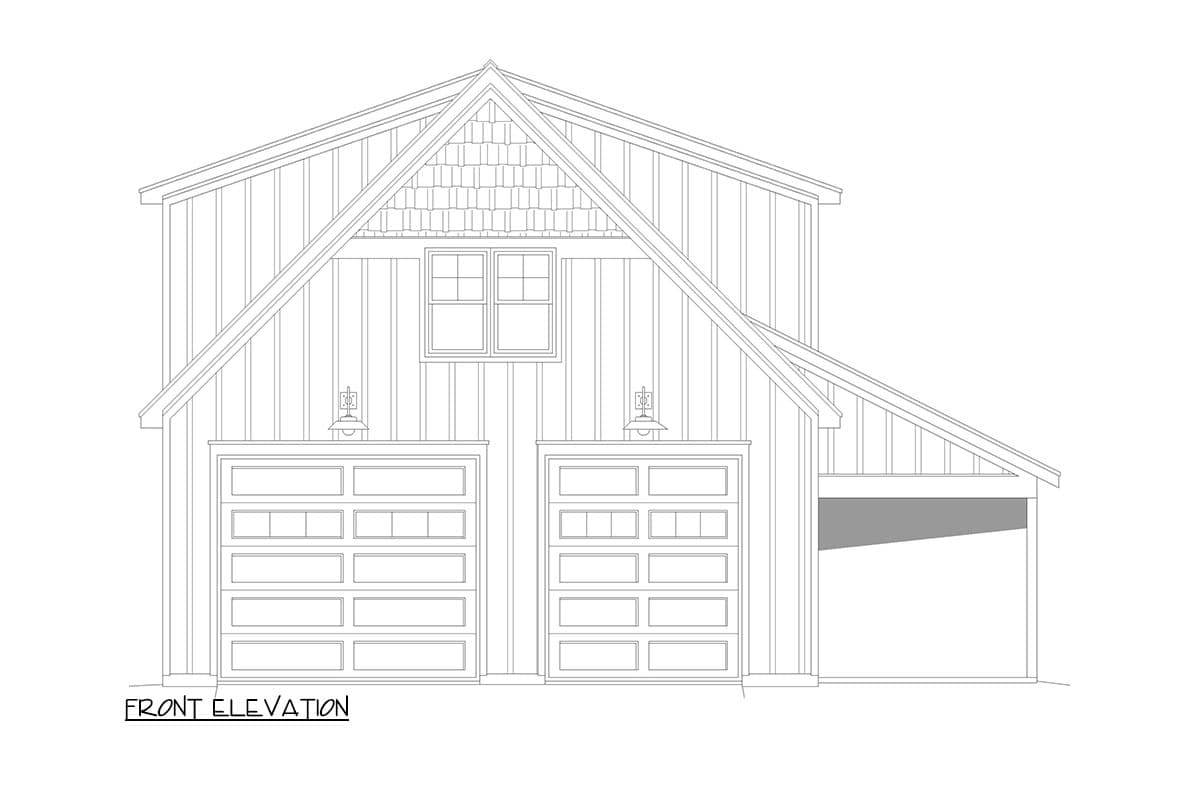

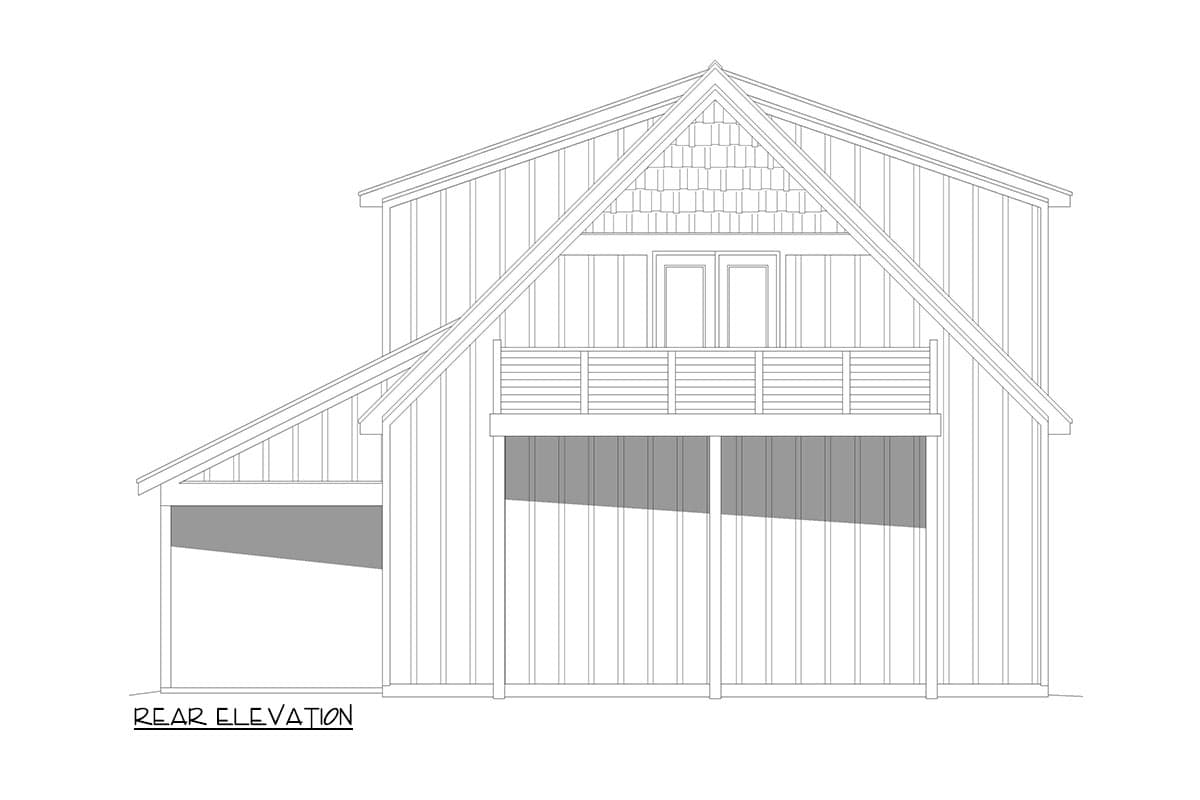

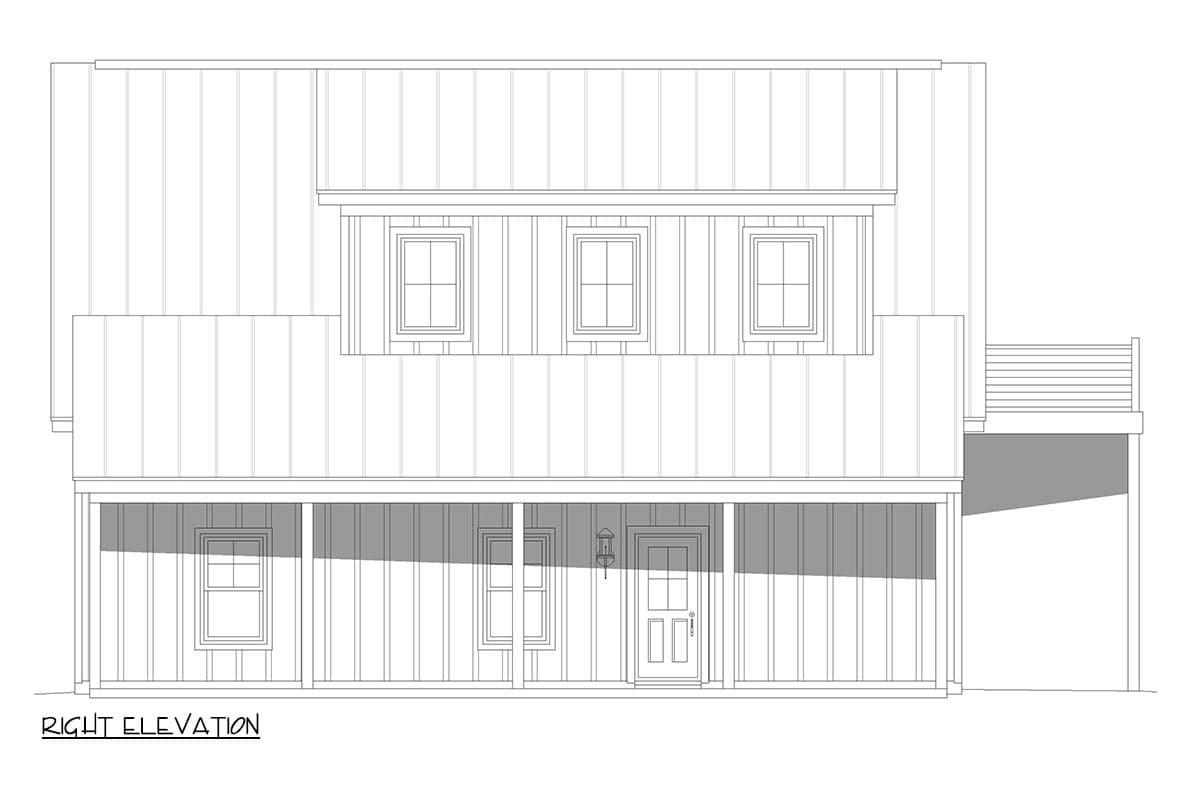

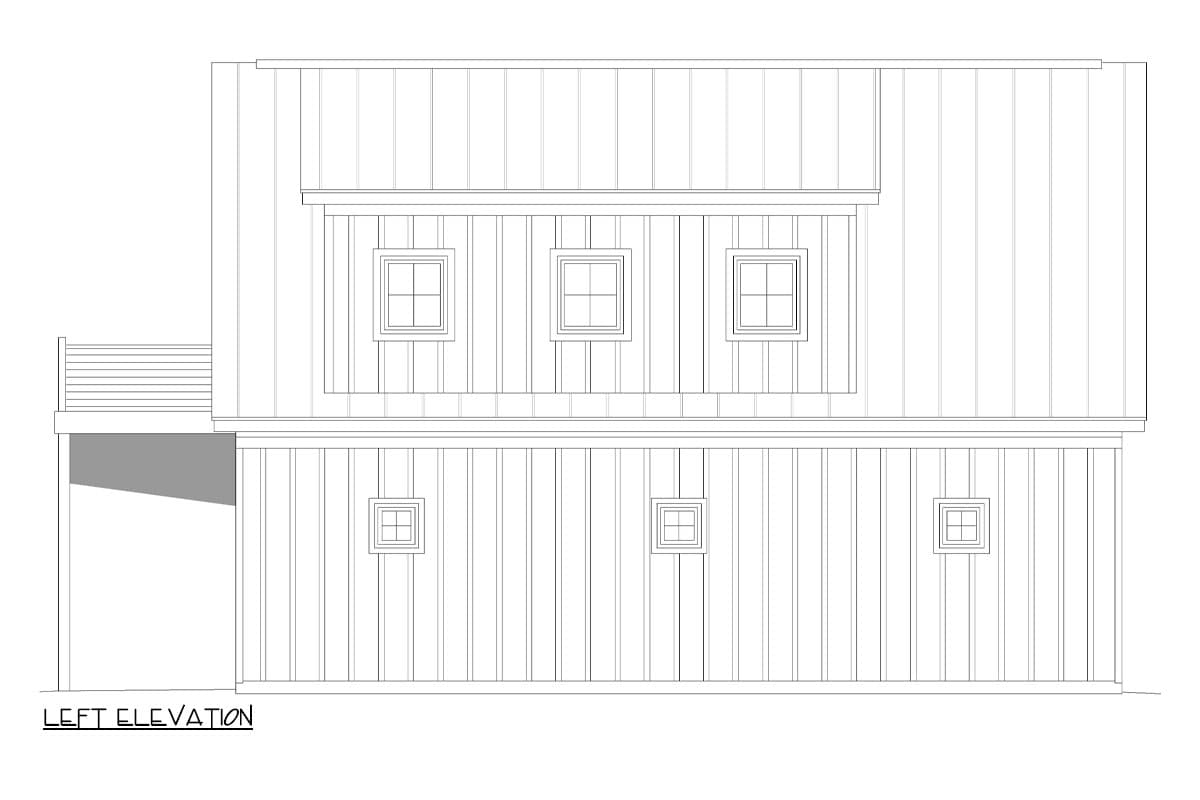

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,143 sq. ft.

1st Floor

124 sq. ft.

2nd Floor

1,019 sq. ft.

Porch, Combined

367 sq. ft.

Balcony / Veranda

176 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

27' 11"

Garage

Type

Detached

Area

1076 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Rustic

Special Features

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,143 sq. ft.

1st Floor

124 sq. ft.

2nd Floor

1,019 sq. ft.

Porch, Combined

367 sq. ft.

Balcony / Veranda

176 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

27' 11"

Garage

Type

Detached

Area

1076 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Rustic

Special Features

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 2nd Floor
