Plan 80849PM
Rustic Farmhouse House Plan
Heated S.F.
2,701
Beds
3
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 80849PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80849PM

1-800-854-7852

1-262-521-4596

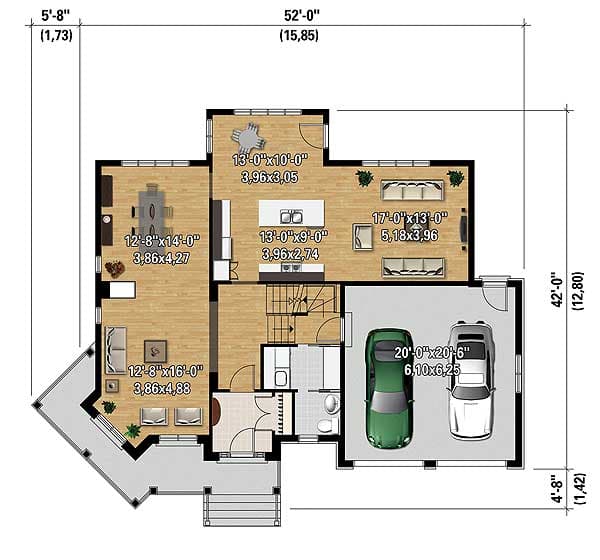

Main Level
floor plan image Main Level

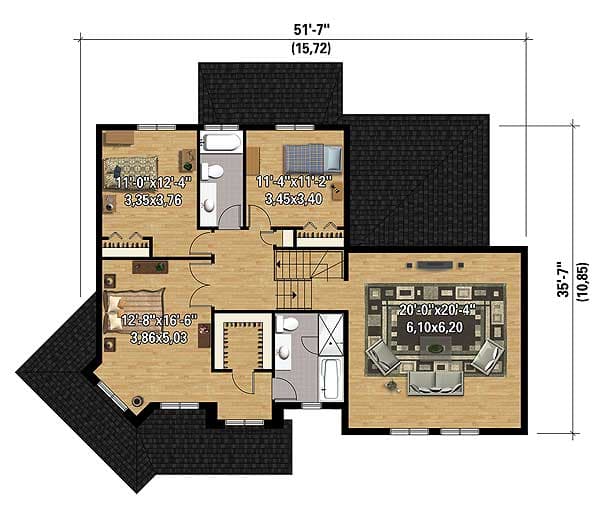

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A covered porch wraps around the living room of this rustic Farmhouse house plan.
  • The two-way fireplace warms both the living room and the large dining room.
  • In the informal area in back, the kitchen sink is perfectly positioned to take in views of both the breakfast nook and the casual gathering room.
  • Your family will enjoy the huge family room that lies on a landing halfway up the stairs to the second floor.
  • Double doors reveal the master suite with its private bathroom and walk-in closet.
  • Two family bedrooms share a hall bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,701 sq. ft.

1st Floor

1,282 sq. ft.

2nd Floor

1,419 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

42' 0"

Max Ridge Height

38' 4"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Special Features

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
