Plan 70808MK
Rustic Getaway with 2-Story Great Room and Upstairs Sleeping Loft - 1764 Sq Ft
Heated S.F.
1,764
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 70808MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70808MK

1-800-854-7852

1-262-521-4596

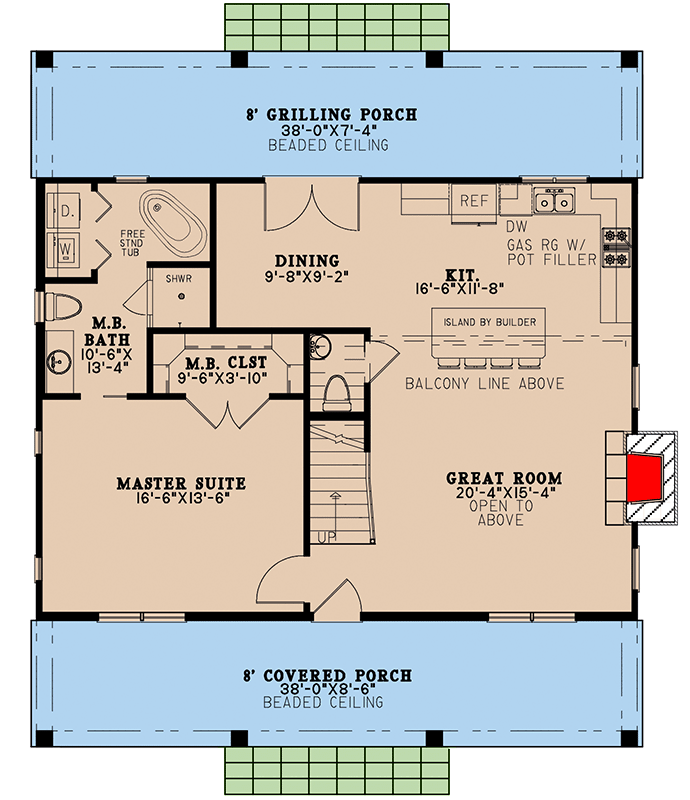

Main Level
floor plan image Main Level

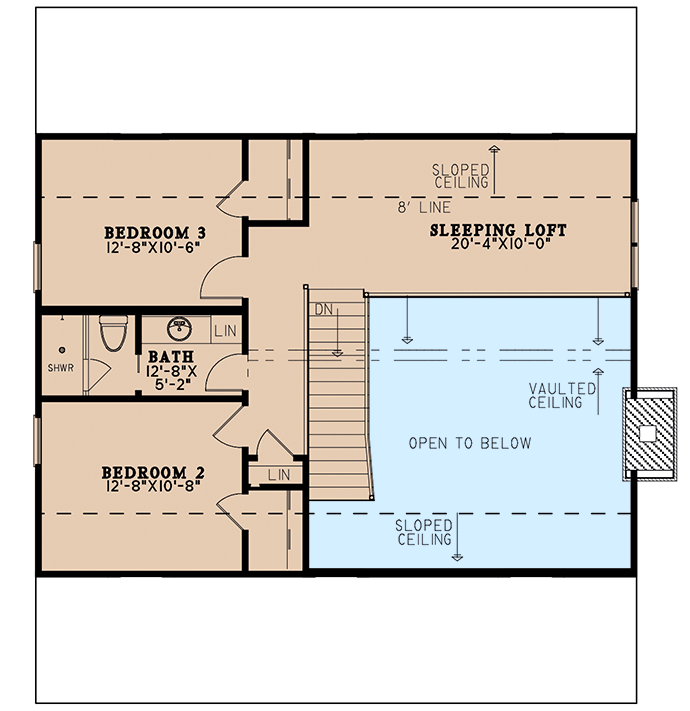

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Solid wooden columns paired with a metal-covered porched frame picture windows with a natural wood front door to giving this 3-bed house plan rustic curb appeal.
  • The great room has vaulted ceilings with the upstairs loft overlooking the space from above.
  • The kitchen is complimented by an eat-at kitchen island, a healthy amount of cabinet storage, and a connected dining area featuring the back entry leading to outdoor grilling porch at the back of the house.
  • The main level master suite offers both privacy and beautiful wrap around views of your property.
  • An open floor plan concept also provides ample space for both entertaining and spending time as a family. Beautiful vaulted ceilings compliment the upstairs sleeping loft leading to the 2 upstairs bedroom and full bathroom.
  • Related Plans: Get alternate versions with house plans 70537MK, 70596MK and 60616ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,064 sq. ft.

2nd Floor

700 sq. ft.

Porch, Combined

608 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 4"

Depth

44' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

New American

Northwest

Rustic

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,764 sq. ft.

1st Floor

1,064 sq. ft.

2nd Floor

700 sq. ft.

Porch, Combined

608 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 4"

Depth

44' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

New American

Northwest

Rustic

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor
