Plan 31058D
Rustic Hill Country House Plan - 2809 Sq Ft
Heated S.F.
2,809
Beds
4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 31058D

Main Level
slide image 0
Optional
slide image 1

Plan 31058D

1-800-854-7852

1-262-521-4596

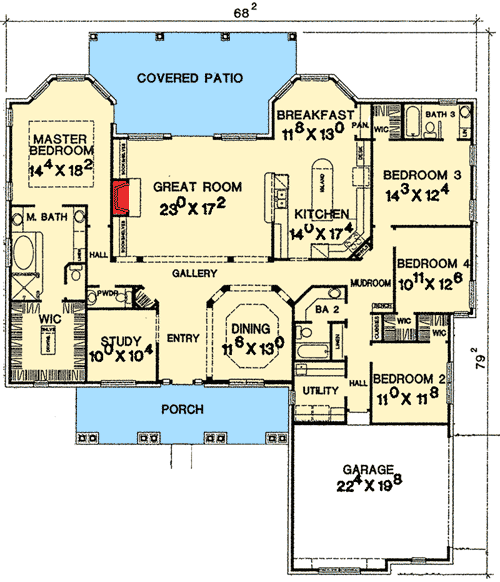

Main Level
floor plan image Main Level
Optional
floor plan image Optional
Plan Details

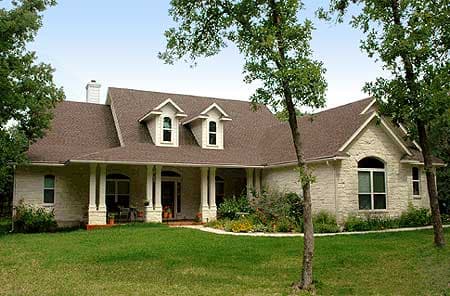

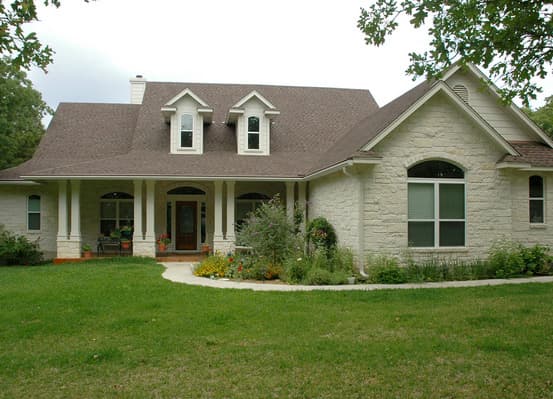

  • A pair of dormers and a rustic stone facade greet guests to this attractive hill country house plan.
  • A split bedroom layout affords privacy to the master suite. A bumpout lets in abundant natural light and a door gives access to the covered patio.
  • The great room is open to the kitchen and features a fireplace and covered patio access.
  • The entry is flanked by your formal dining room and study.
  • Three bedrooms are clustered of the side-entry 2-car garage.
  • The porches measure approximately 30'-6" X 8'-5" for the front porch and 30'-0" X 14'-8" (deepest and widest portions) for the rear porch.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,809 sq. ft.

1st Floor

2,809 sq. ft.

Basement Unfinished

2,809 sq. ft.

Porch, Front

259 sq. ft.

Covered Patio

386 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 2"

Depth

79' 2"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

518 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Special Features

Bedrooms - Split

Formal Dining

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Plan Collections
