Plan 18783CK

Rustic Luxury With 3 Bedrooms

Heated S.F.

2,128

Beds

3

Baths

3

Stories

2

Cars

2

Floor Plan

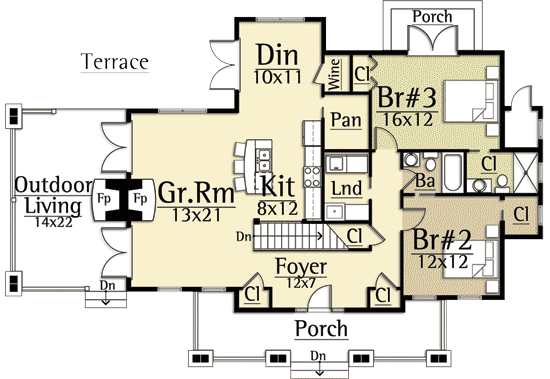

Main Level

floor plan image Main Level

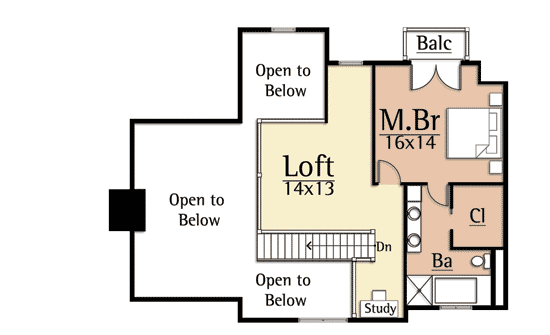

2nd Floor

floor plan image 2nd Floor

3rd Floor

floor plan image 3rd Floor

Plan Details

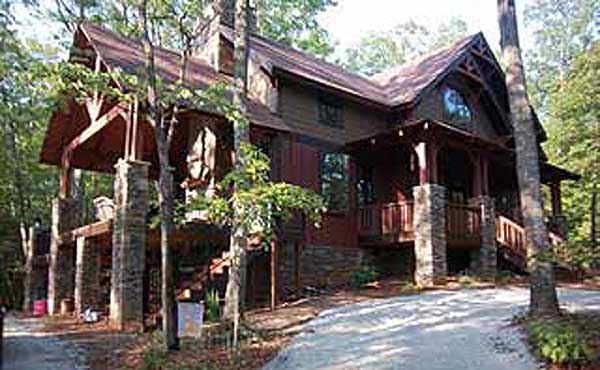

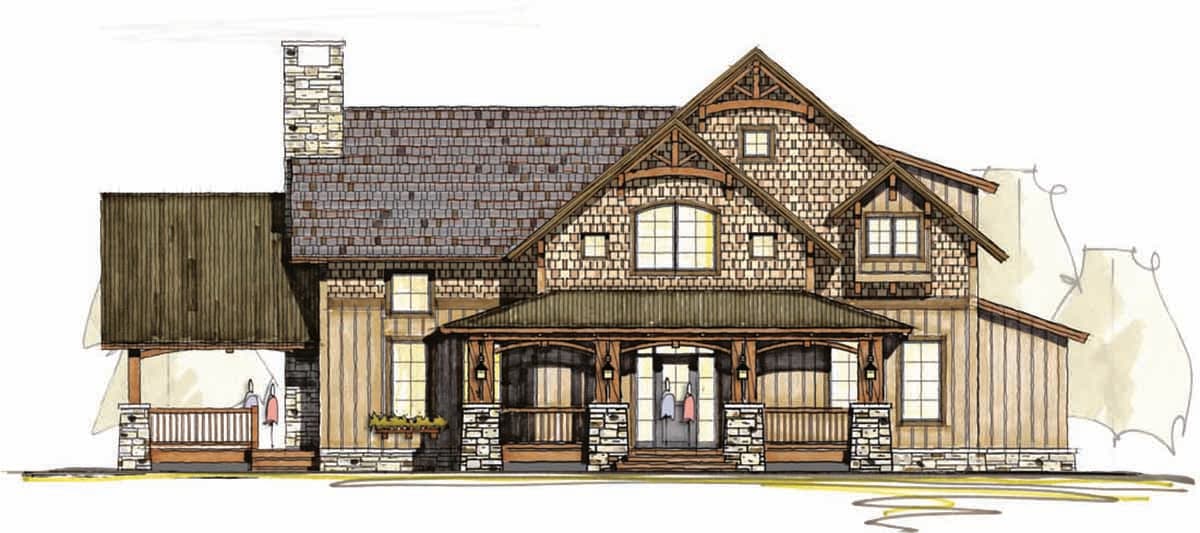

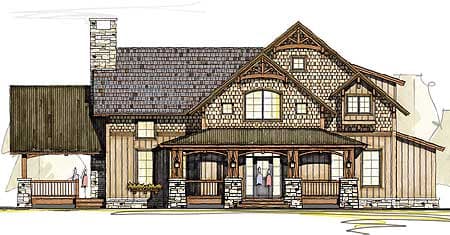

The exterior of this rustic house plan features natural materials of wood, stone, timbers, and glass.
The interior is designed with all the comforts of modern living.
A soaring great room has a loft above that looks down onto the massive fireplace below.
An outdoor living area with fireplace creates an ideal space for enjoying the outdoors and creating memories for a lifetime.
Each of the downstiars bedrooms is a generous size and has private baths.
Almost the entire upper level is devoted to the luxurious master suite with a balcony of its own.

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule
Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,128 sq. ft.

1st Floor

1,409 sq. ft.

2nd Floor

719 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

51' 0"

Depth

36' 0"

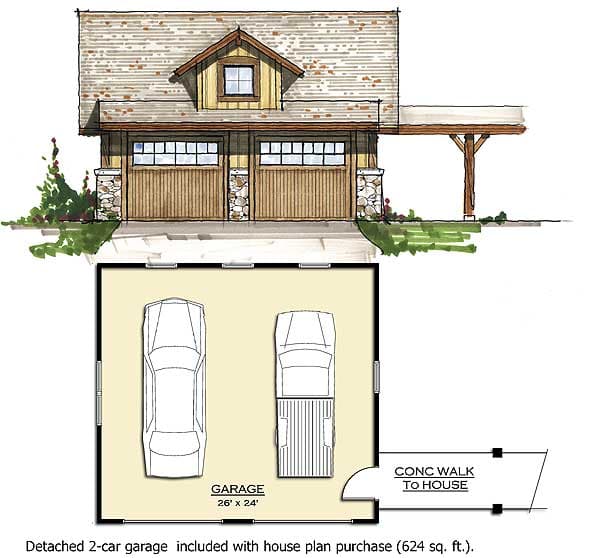

Garage

Type

Detached

Area

624 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor
