Plan 440017PWL

Exclusive

Rustic New American Home Plan with Large Back Patio
Heated S.F.
2,894
Beds
4
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 440017PWL

Main Level
slide image 0

Plan 440017PWL

1-800-854-7852

1-262-521-4596

Main Level

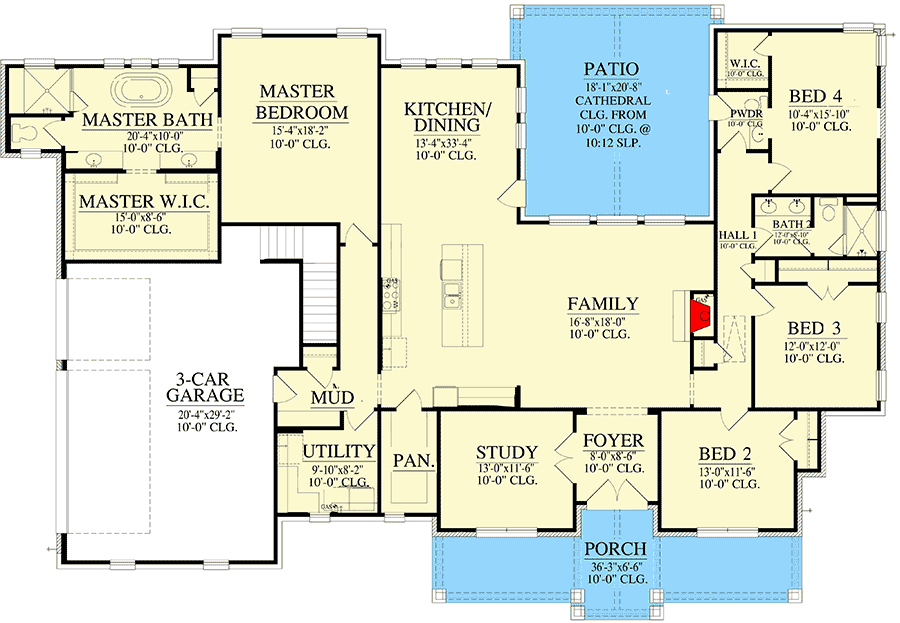

floor plan image Main Level
Plan Details
  • Stone, brick, and vertical siding compliment each other on the exterior of this rustic New American home plan, which is exclusive to Architectural Designs.
  • Inside, french doors to the left of the foyer open to a quiet study. Straight ahead, natural light fills the open living space that overlooks the back patio, topped by a cathedral ceiling.
  • The dining room is attached to the kitchen with plenty of room for a large dining table.
  • The master bedroom provides a serene space for homeowners to enjoy, tucked behind the 3-car garage, and paired with a 5-fixture bath and sizable walk-in closet.
  • Discover three additional bedrooms lining the right side of the home with dual sinks in the compartmentalized hall bath.
What's Included
  • Detailed Floorplans with notes (door and window sizes, plumbing and cabinet locations)
  • Electrical plan with notes
  • Exterior Elevations
  • Roof plan with pitches, notes and direction
  • Foundation outline that locates plumbing fixtures
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,894 sq. ft.

1st Floor

2,894 sq. ft.

Porch, Combined

270 sq. ft.

Covered Patio

385 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

85' 10"

Depth

59' 8"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

737 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,894 sq. ft.

1st Floor

2,894 sq. ft.

Porch, Combined

270 sq. ft.

Covered Patio

385 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

85' 10"

Depth

59' 8"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

737 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Rustic

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Home Office

Photo Gallery
