Plan 9822SW
Rustic RV Garage with Workshop
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
1
Floor Plan

Plan 9822SW

Main Level
slide image 0

Plan 9822SW

1-800-854-7852

1-262-521-4596

Main Level

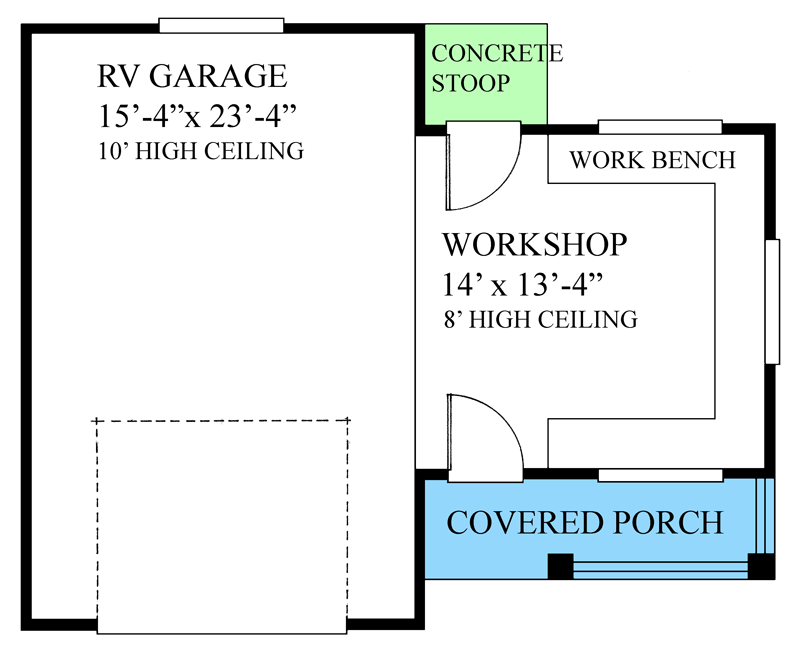

floor plan image Main Level
Plan Details
  • The exterior of this RV garage is a combination of board and batten siding and shingles, all capped with a sturdy metal roof.
  • The workshop portion of this open floor plan has a workbench wrapping three walls. Man doors give you access to the front porch and the back yard.
  • Add a partition wall to separate the garage from the workshop for additional comfort or increased security.
  • Garage door size: 10' x 8'
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

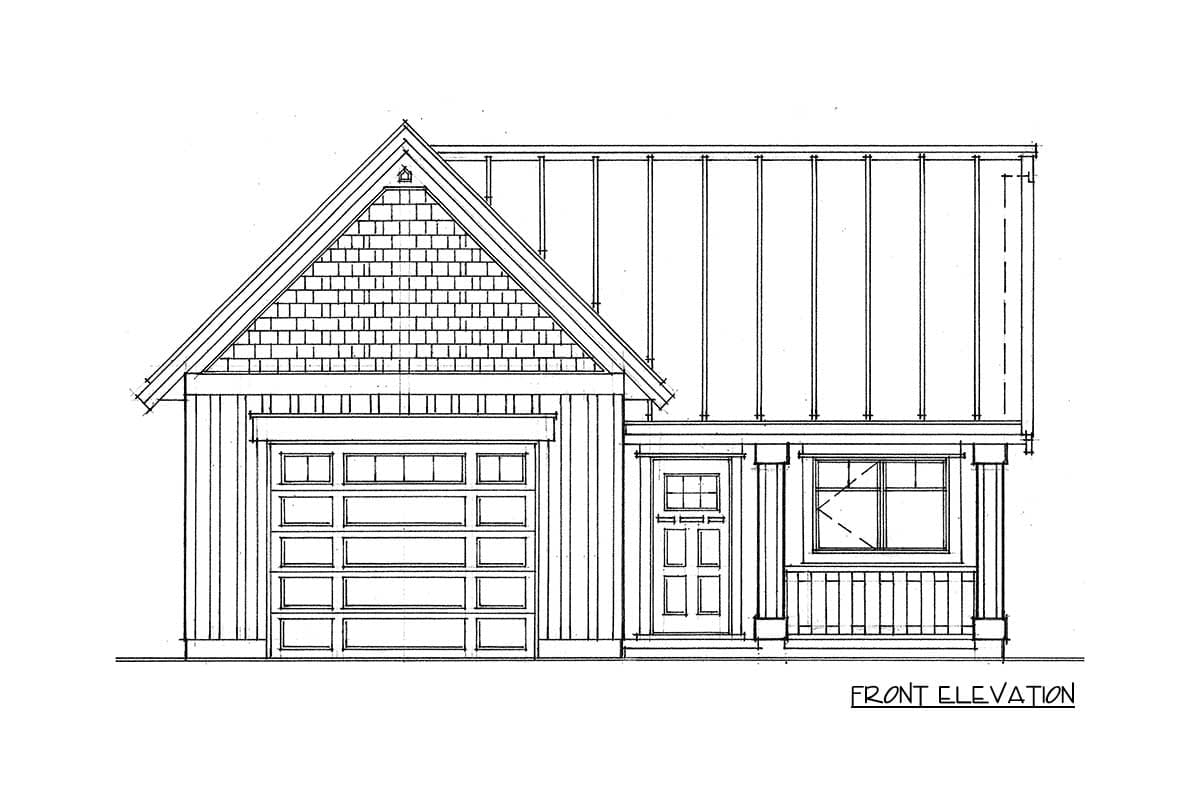

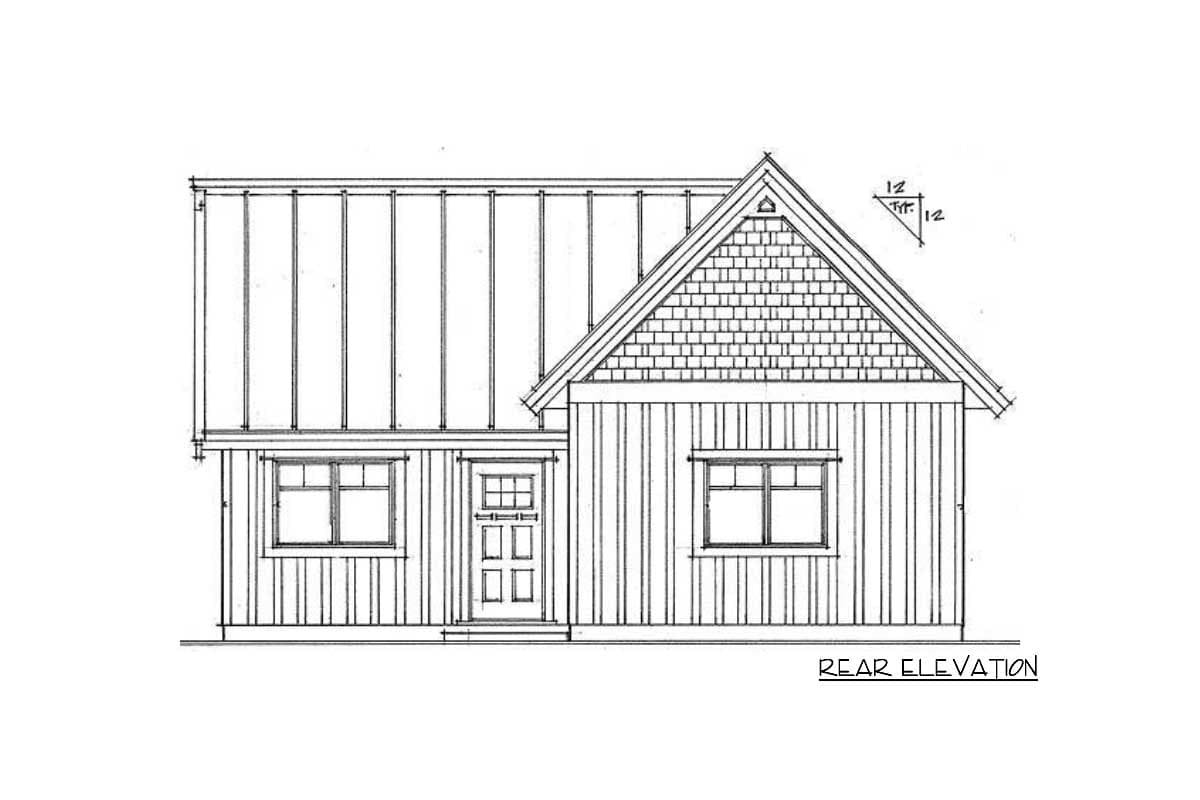

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Front

56 sq. ft.

Workshop

196 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

24' 0"

Max Ridge Height

19' 6"

Garage

Type

Detached, RV Garage

Area

384 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Rustic

Traditional

Special Features

Workshop

Plan Collections

Canadian House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Front

56 sq. ft.

Workshop

196 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

24' 0"

Max Ridge Height

19' 6"

Garage

Type

Detached, RV Garage

Area

384 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Rustic

Traditional

Special Features

Workshop

Plan Collections

Canadian House Plans

Photo Gallery
