Plan 29830RL

Rustic Style Ranch House Plan for a Rear-Sloping Lot

Heated S.F.

2,058

Beds

2 - 5

Baths

2 - 5

Stories

1

Cars

3

Floor Plan

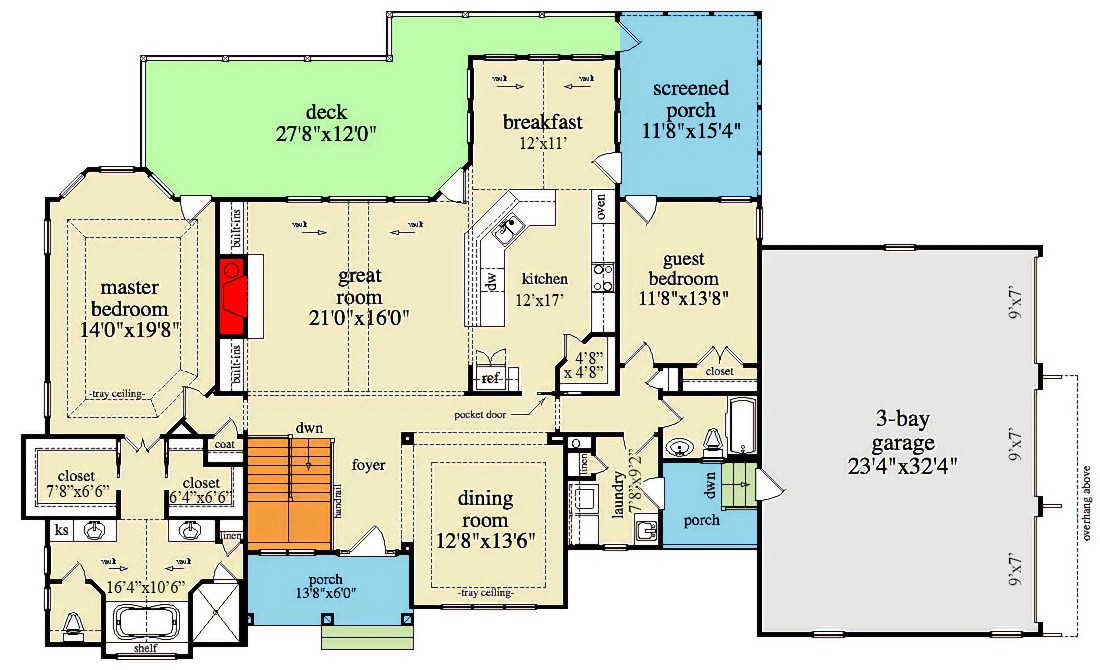

Main Level

floor plan image Main Level

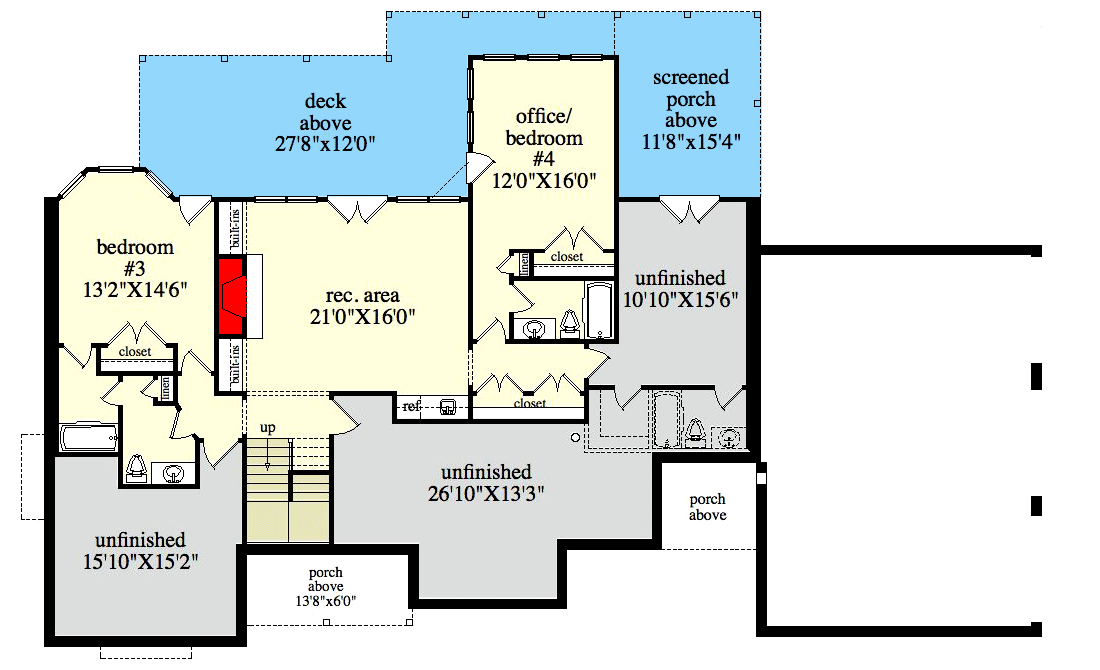

Optionally Finished Lower Level

floor plan image Optionally Finished Lower Level

Plan Details

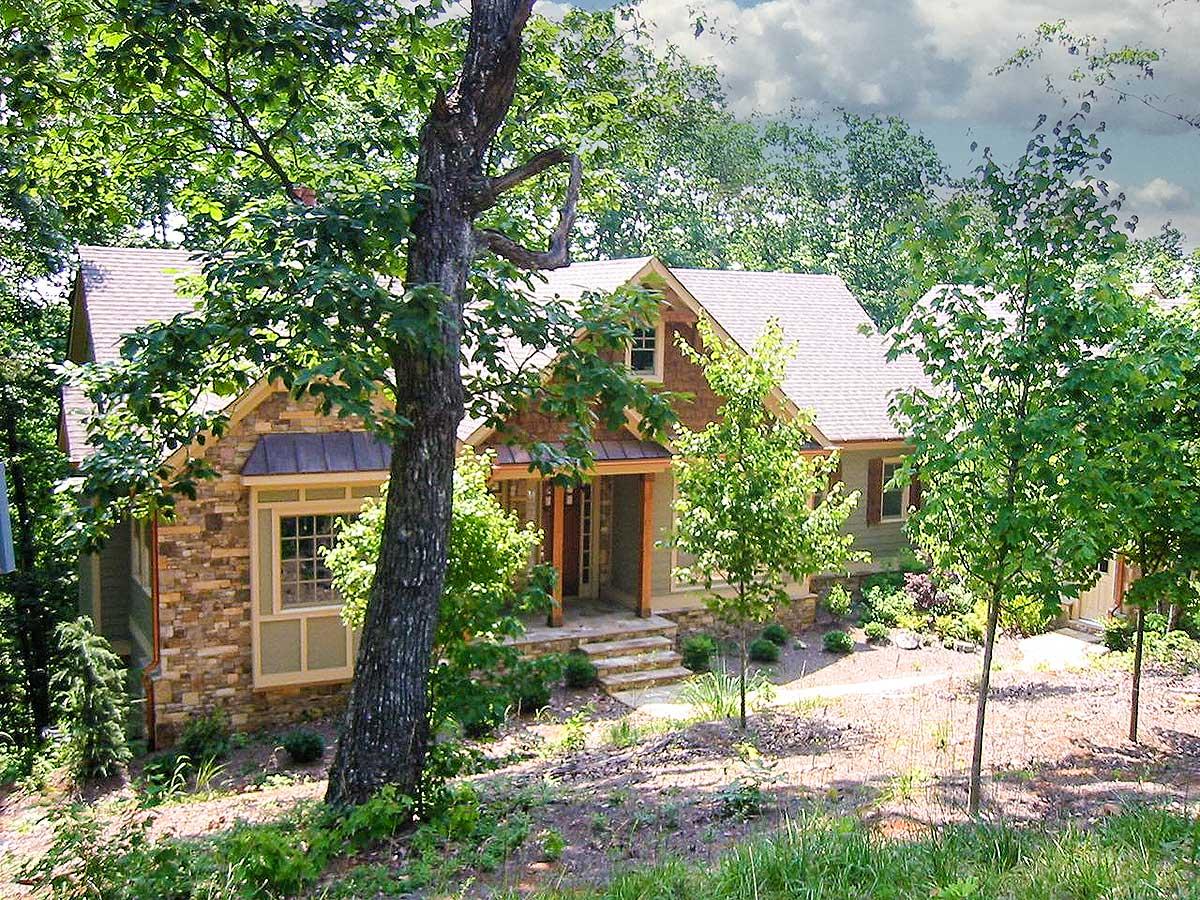

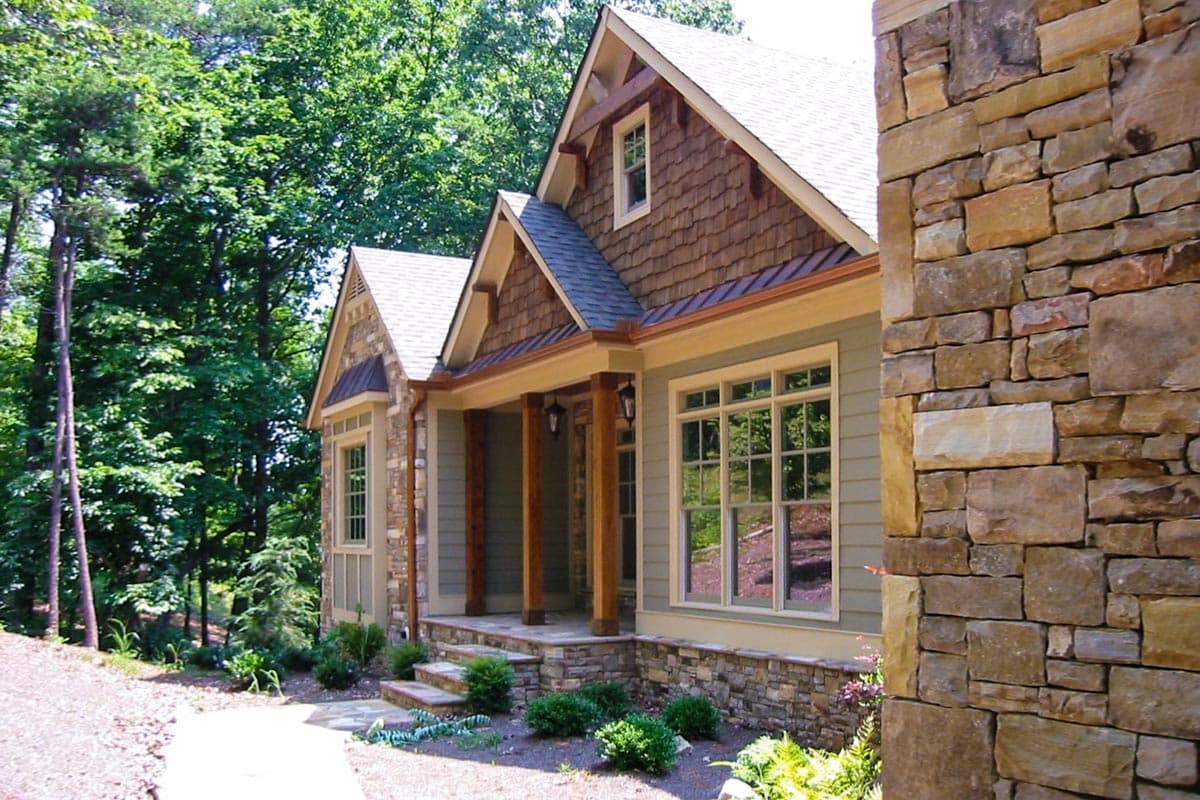

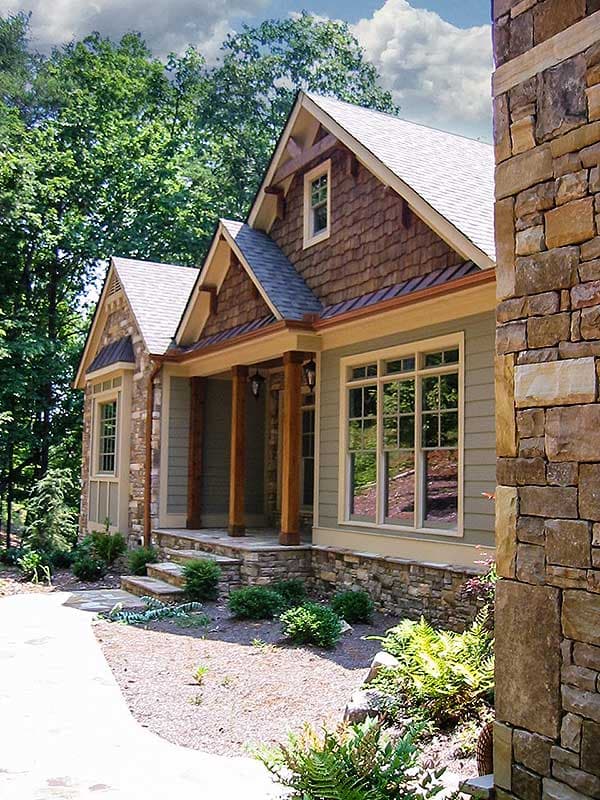

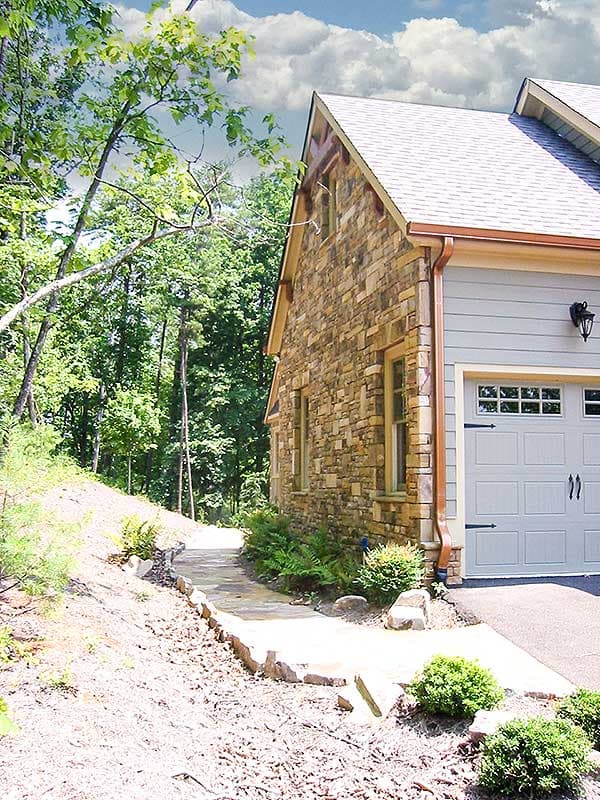

This rustic style ranch is a perfect mountain or vacation home. It has an attached garage and plenty of decks and porches to enjoy the outdoors.

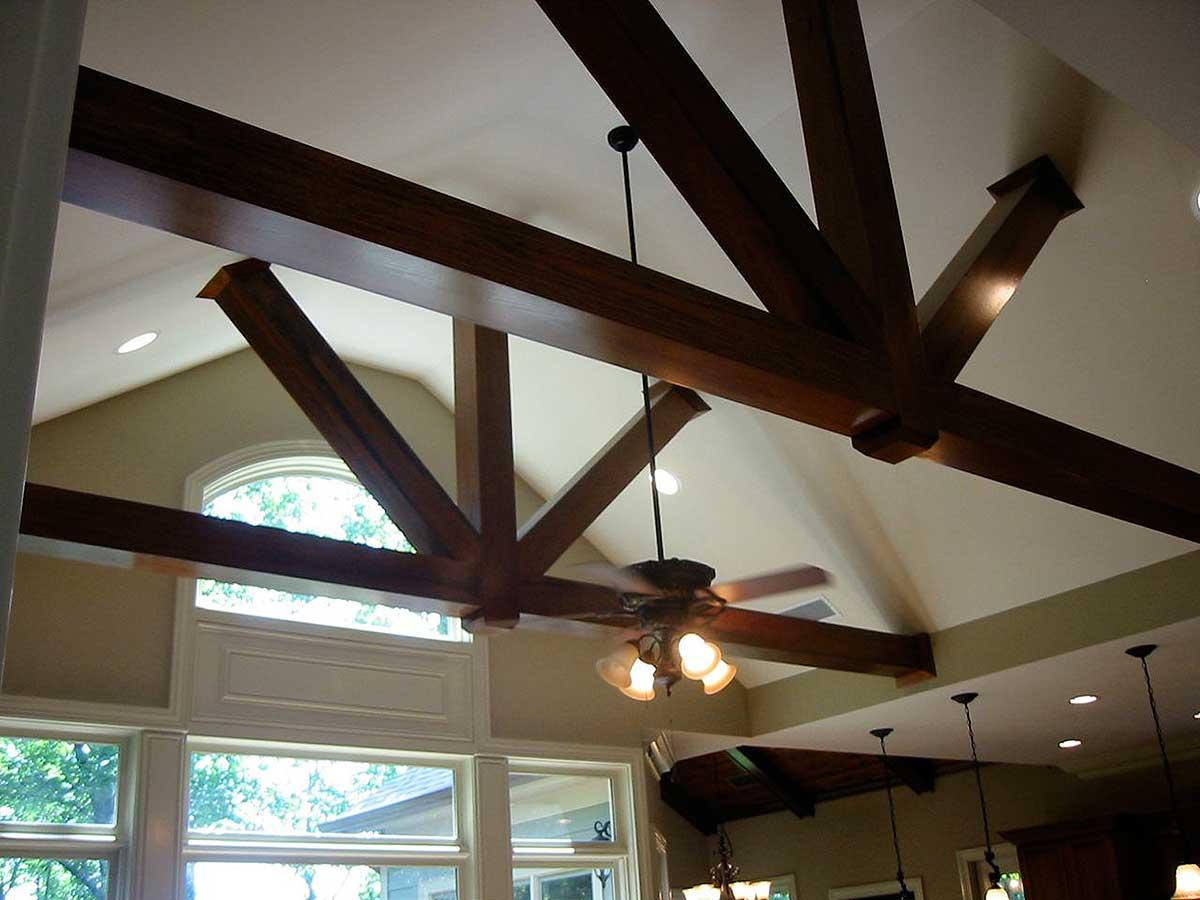

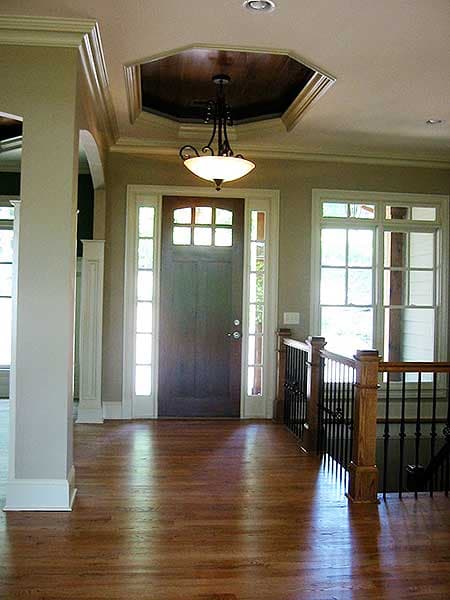

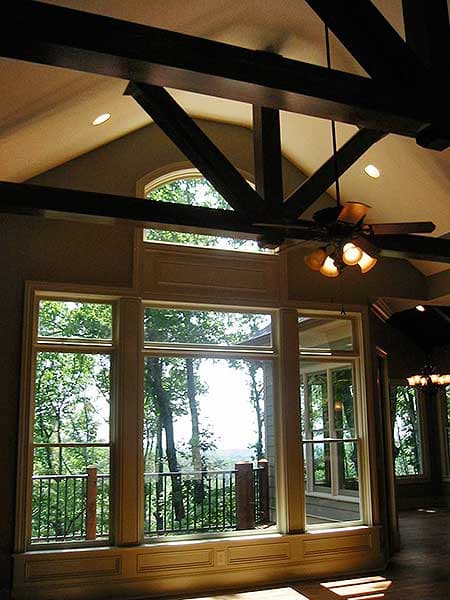

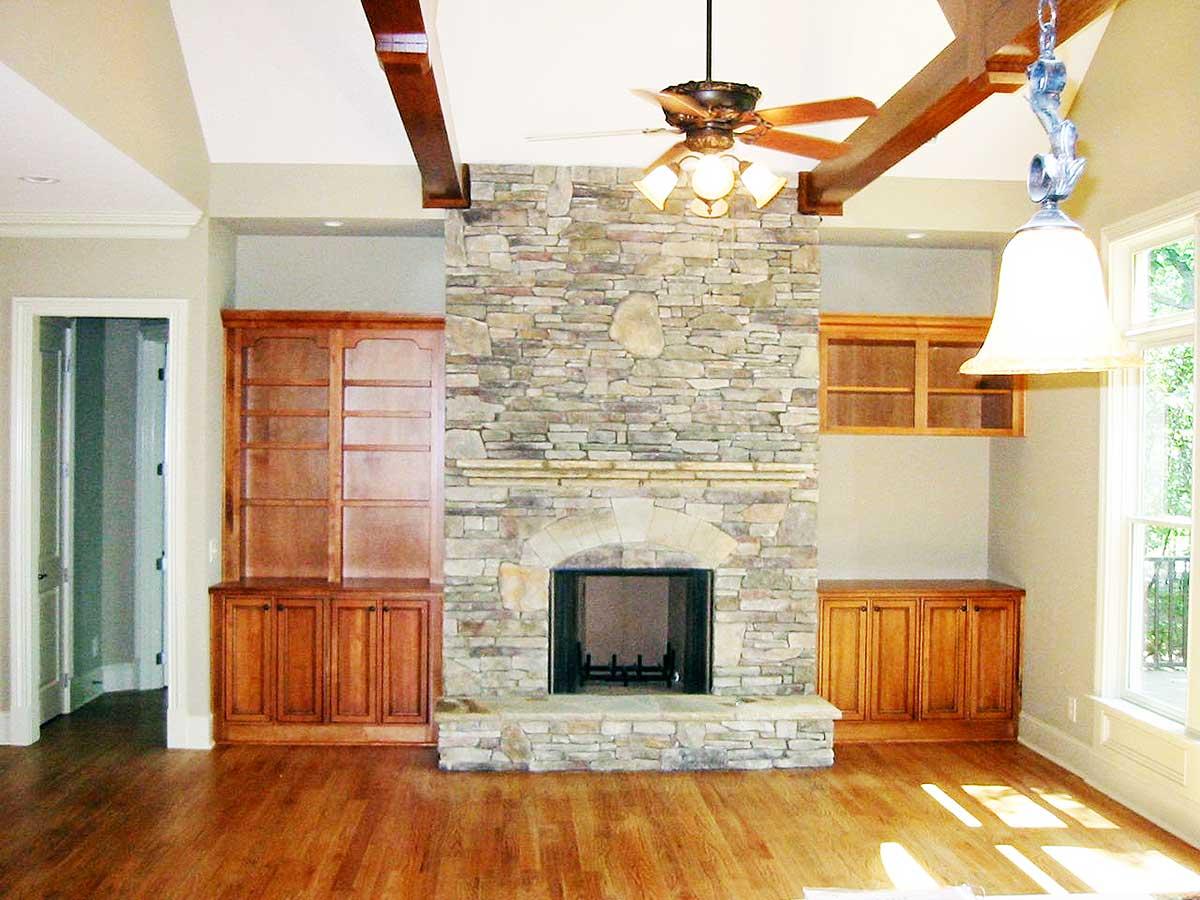

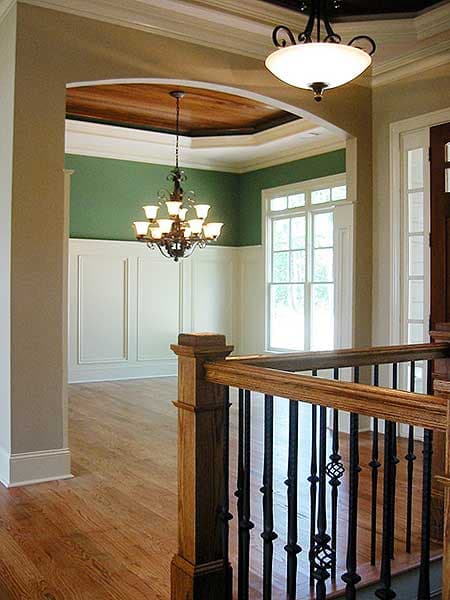

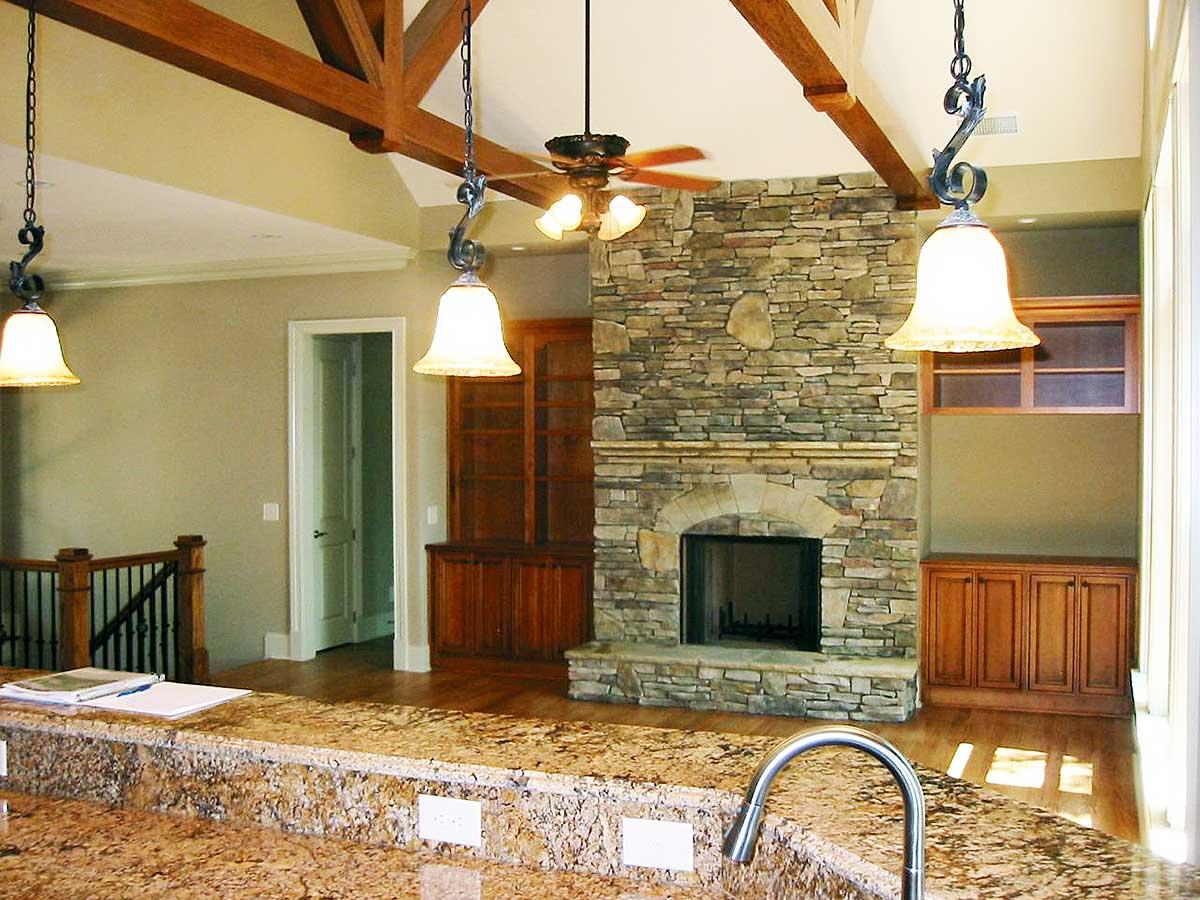

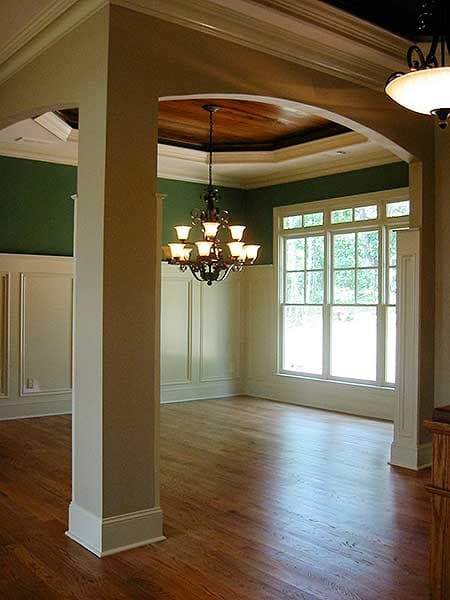

From the front door, the foyer opens to the dining room and large vaulted great room with a fireplace and built-ins.
This ranch has a split-bedroom layout with the private master suite on the opposite side of the house as the guest bedroom.

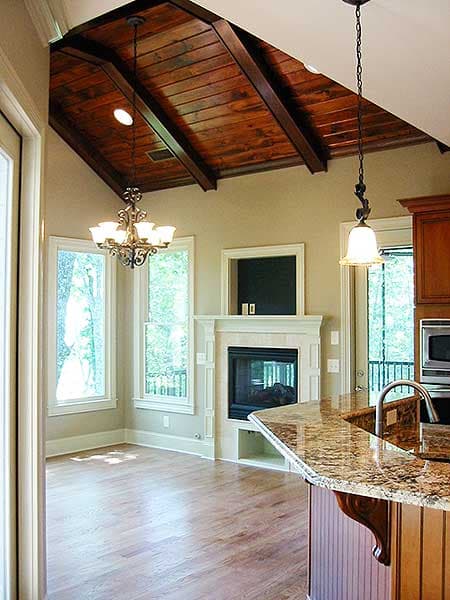

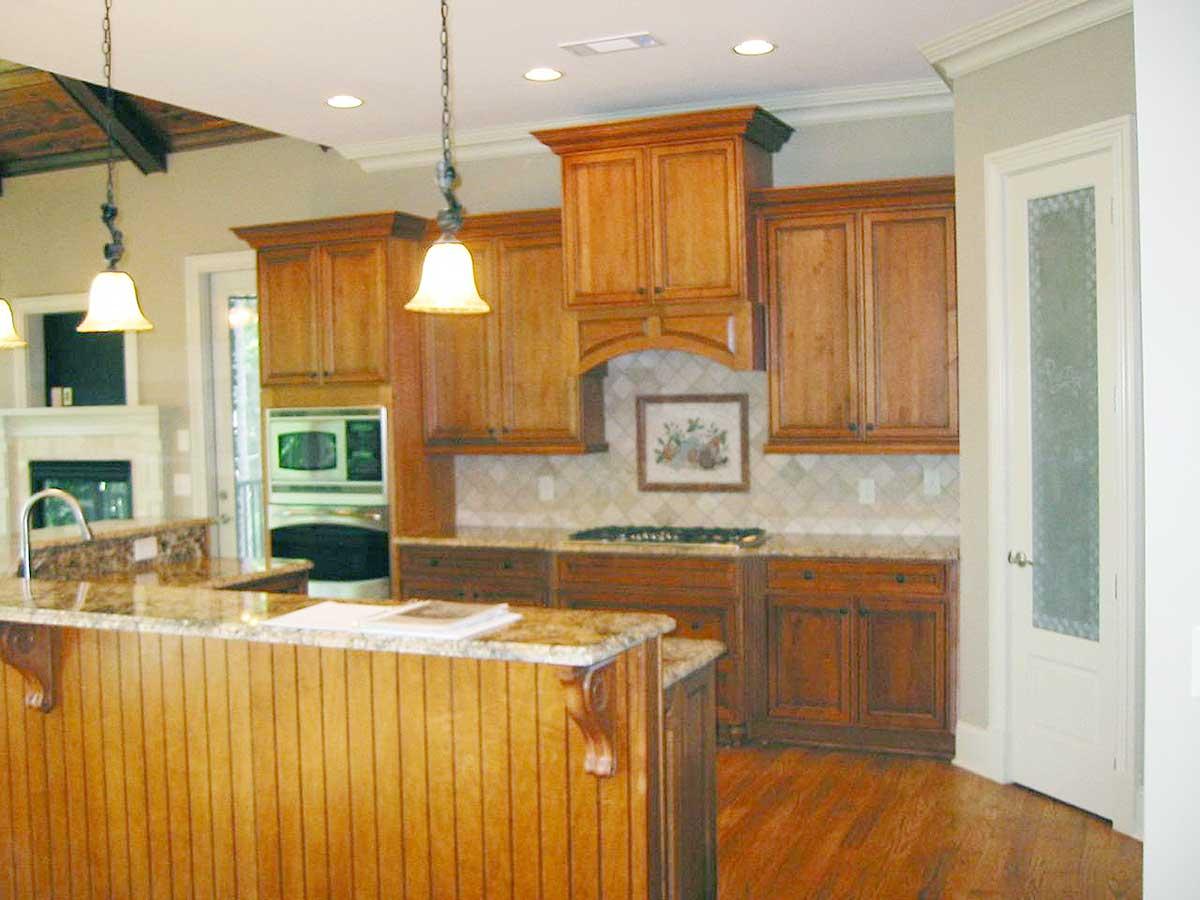

The breakfast, kitchen and great room are all open, light and bright.

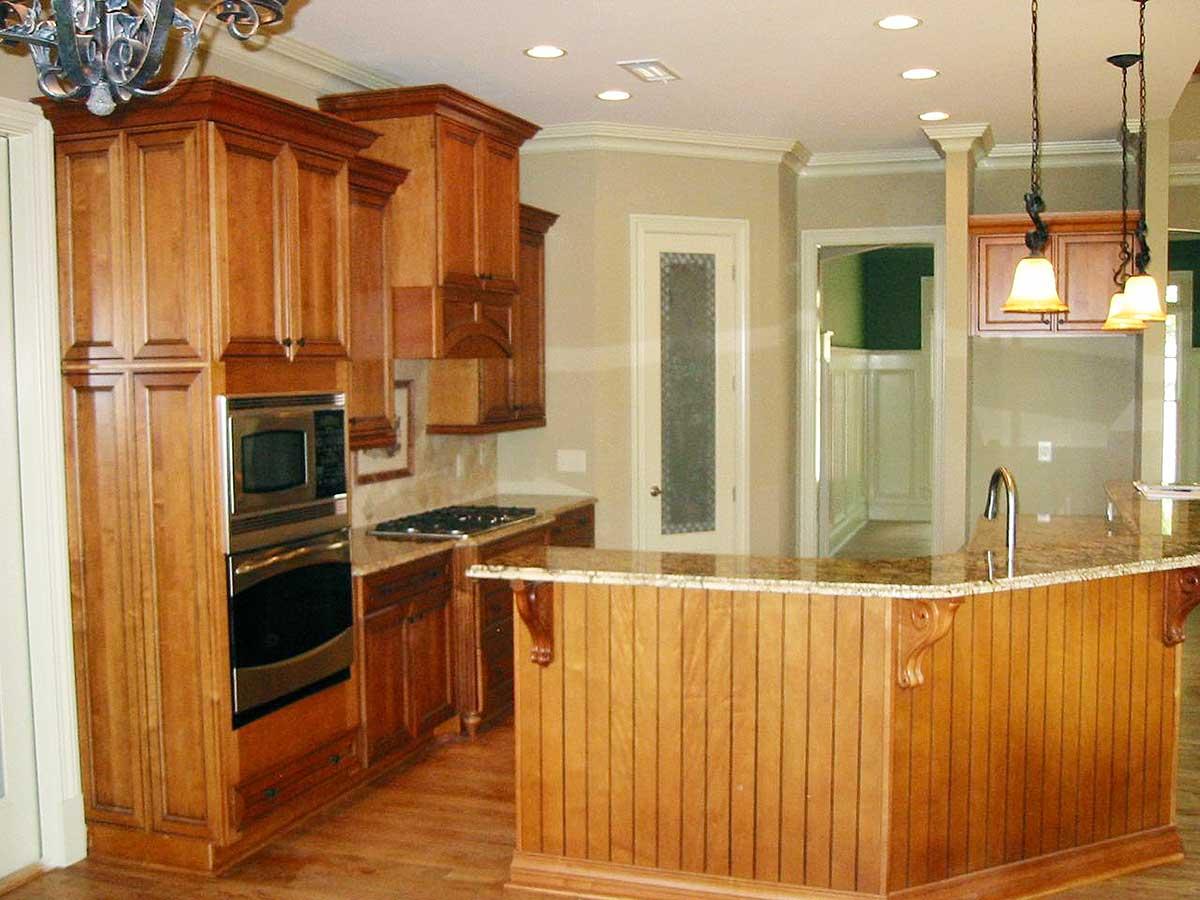

The kitchen measures 12' by 17'.
The optional terrace level below offers the ability to add a rec room, 2 additional bedrooms each with their own baths and plenty of storage.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

build gallery item - House Plan 29830RL comes to life in Georgia!

House Plan 29830RL comes to life in Georgia!

16

Photos

build gallery item - House Plan 29830RL Comes To Life in North Carolina

House Plan 29830RL Comes To Life in North Carolina

19

Photos

What's Included

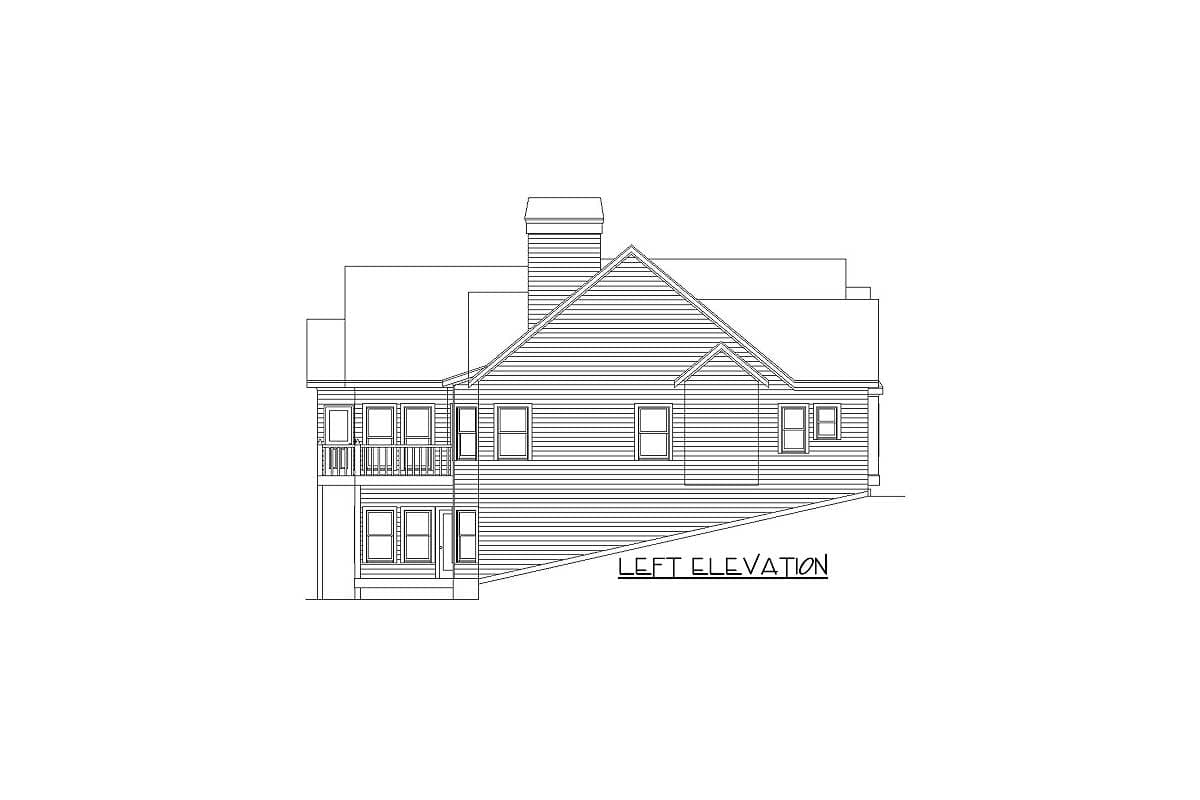

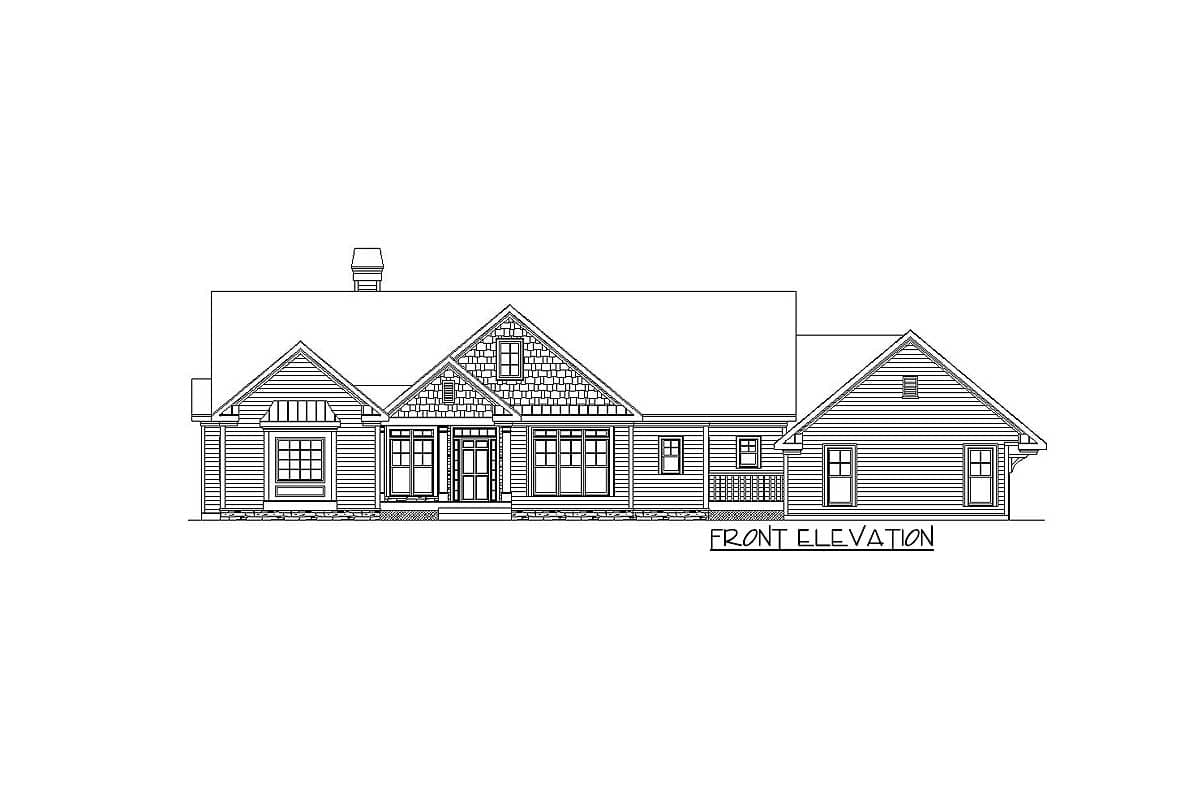

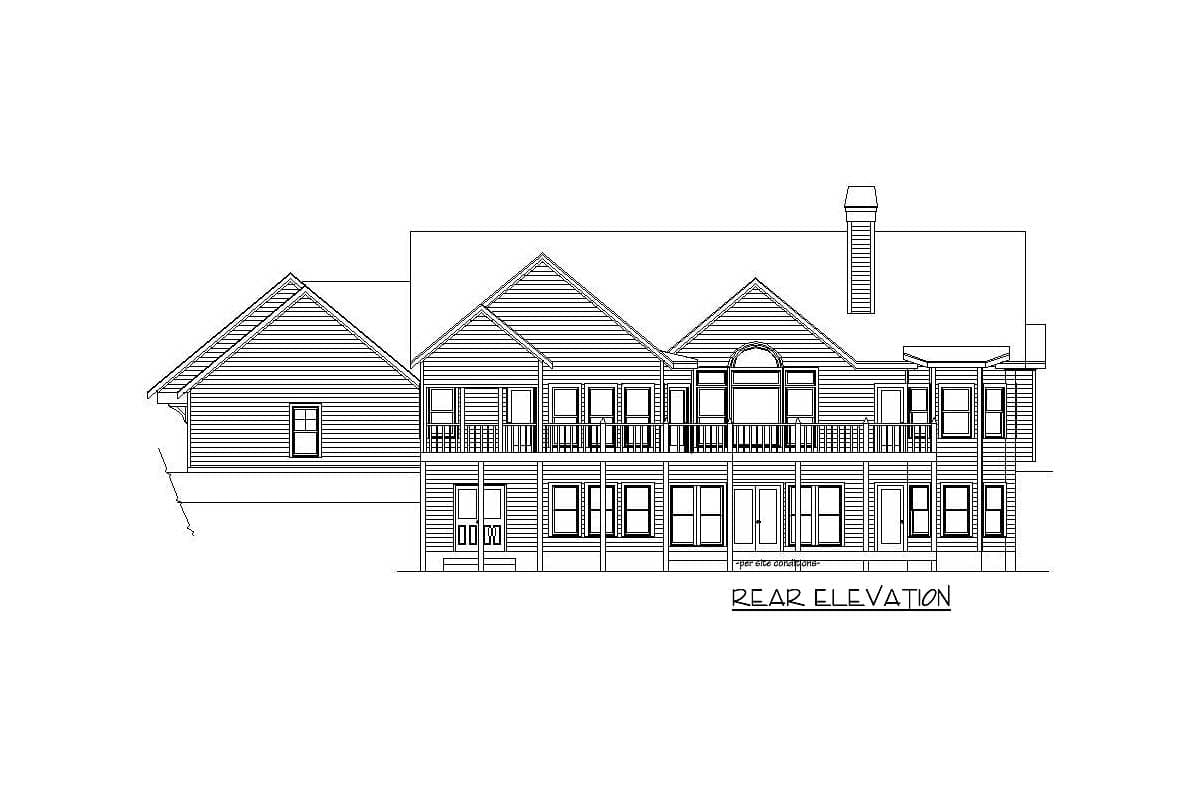

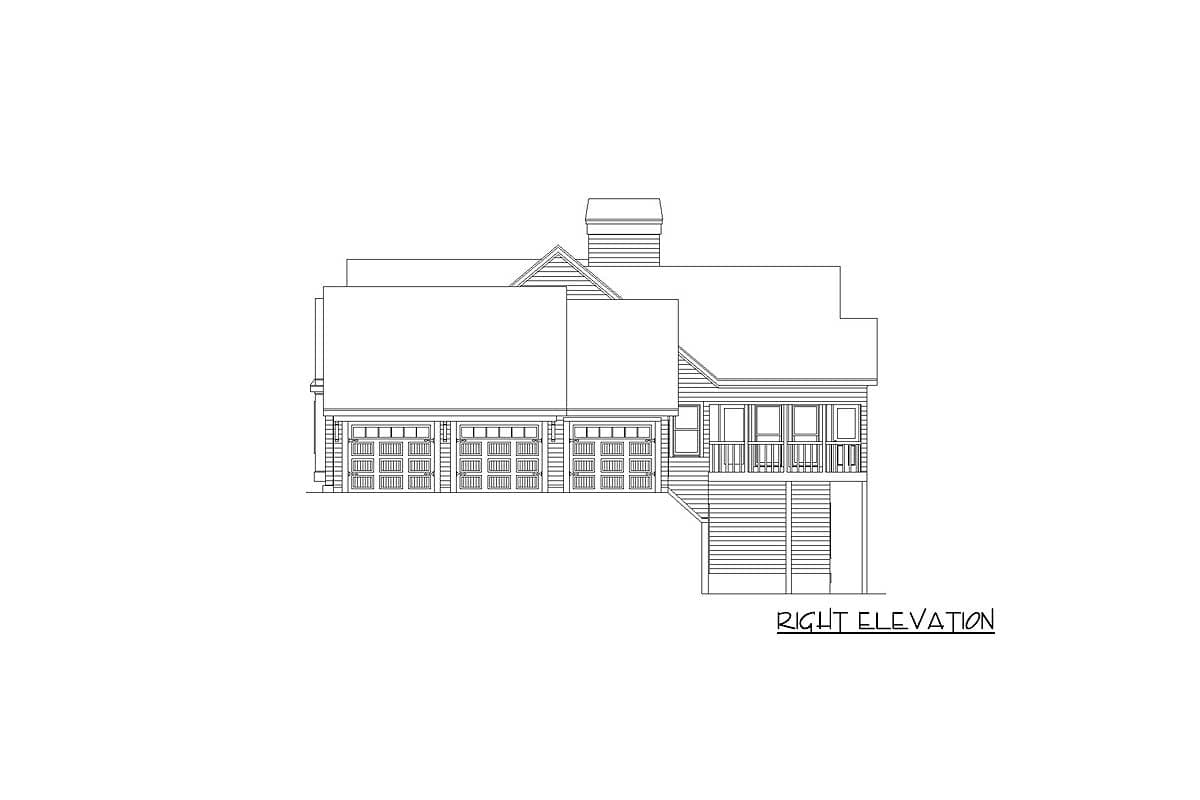

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section (Typical Wall, Stairs (if applicable))
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,058 sq. ft.

1st Floor

2,058 sq. ft.

Optional Lower Level

1,190 sq. ft.

Porch, Front

82 sq. ft.

Screened Porch

179 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, 4, or 5

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

84' 0"

Depth

53' 3"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

773 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
