Plan 373013TMB

Exclusive

Rustic Timber-Framed 3-Car Garage Barndo Plan with Large Workshop Loft - 1954 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
3
Floor Plan

Plan 373013TMB

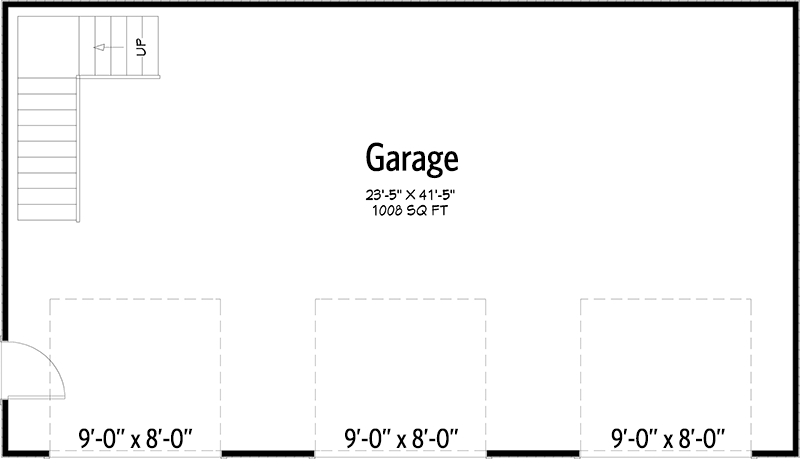

Main Level
slide image 0

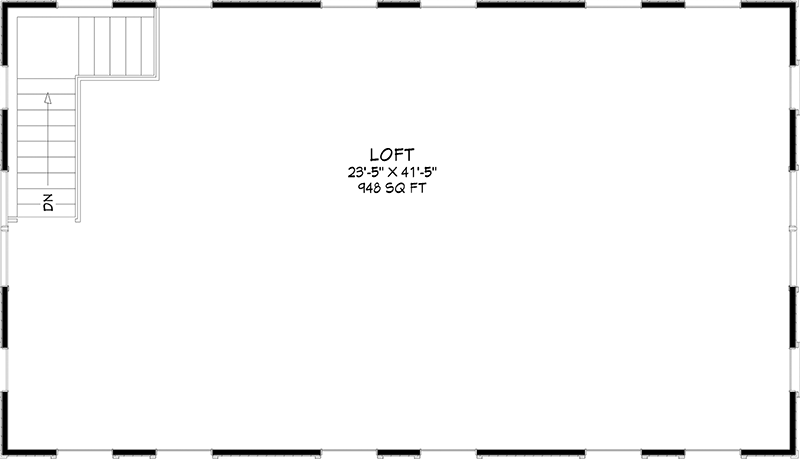

2nd Floor
slide image 1

Plan 373013TMB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

  • This versatile 24' x 42' Barn is a perfect fit for any location. Our complete plan includes everything you need to begin building your dream barn. We provide a foundation plan sample, first-floor plan sample, architectural elevations with door and window schedules, a cross-section detail, a list of timber, fasteners, and connectors, wall layouts, beam layouts, rafter layout, fastening specifics, and single beam drawings.
  • The design incorporates sturdy 8x8 and 10x10 posts, 8x12 plate beams, 8x8, 10x12, and 10x18 tie beams, 6x10 joists, 4x6 knee braces, 3x14 ridge boards, and 4x8 and 4x10 rafters. Let us guide you in starting your project today with this comprehensive set of plans!
  • These plans are comprehensive and go beyond standard blueprints by including detailed shop drawings. The shop drawings provide precise measurements for cutting the timbers, empowering you or your contractor to accurately cut and assemble the timber frame using the provided plans. This level of detail ensures a smooth and efficient building process.
  • We can modify any house plan you see on our site. Learn more about modifications here.

What's Included
  • Cover Sheet
  • Foundation Layout
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Elevations
  • Cross Section Detail
  • Electrical Plan
  • Roof Plan
  • Framing Overview
  • General Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

948 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

42' 0"

Garage

Type

Detached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Country

Farmhouse

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

948 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

42' 0"

Garage

Type

Detached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Country

Farmhouse

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive
