Plan 72430DA
RV-Friendly Detached Garage Plan with Outdoor Covered Storage - 1158 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
2
Floor Plan

Plan 72430DA

Main Level
slide image 0

Plan 72430DA

1-800-854-7852

1-262-521-4596

Main Level

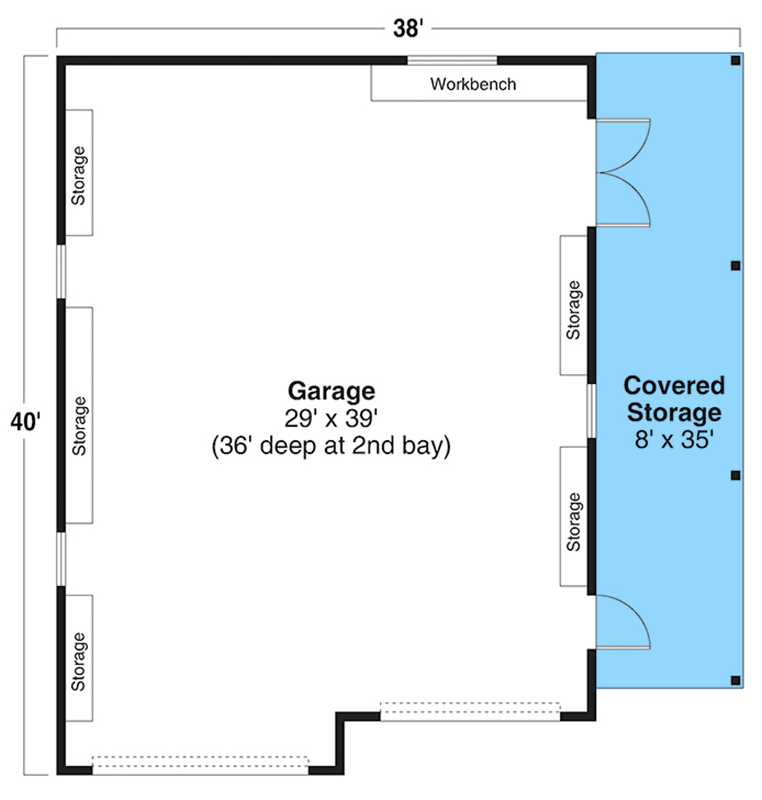

floor plan image Main Level
Plan Details
  • This RV-friendly detached garage plan gives you 1,158 square feet of garage parking and 280 square feet of covered storage running along the right side of garage.
  • The primary garage area spans 29' by 39', with an extended depth of 36' in the second bay, perfect for accommodating an RV or larger vehicles.
  • Inside, there are 5 built-in storage units and a workbench in back.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

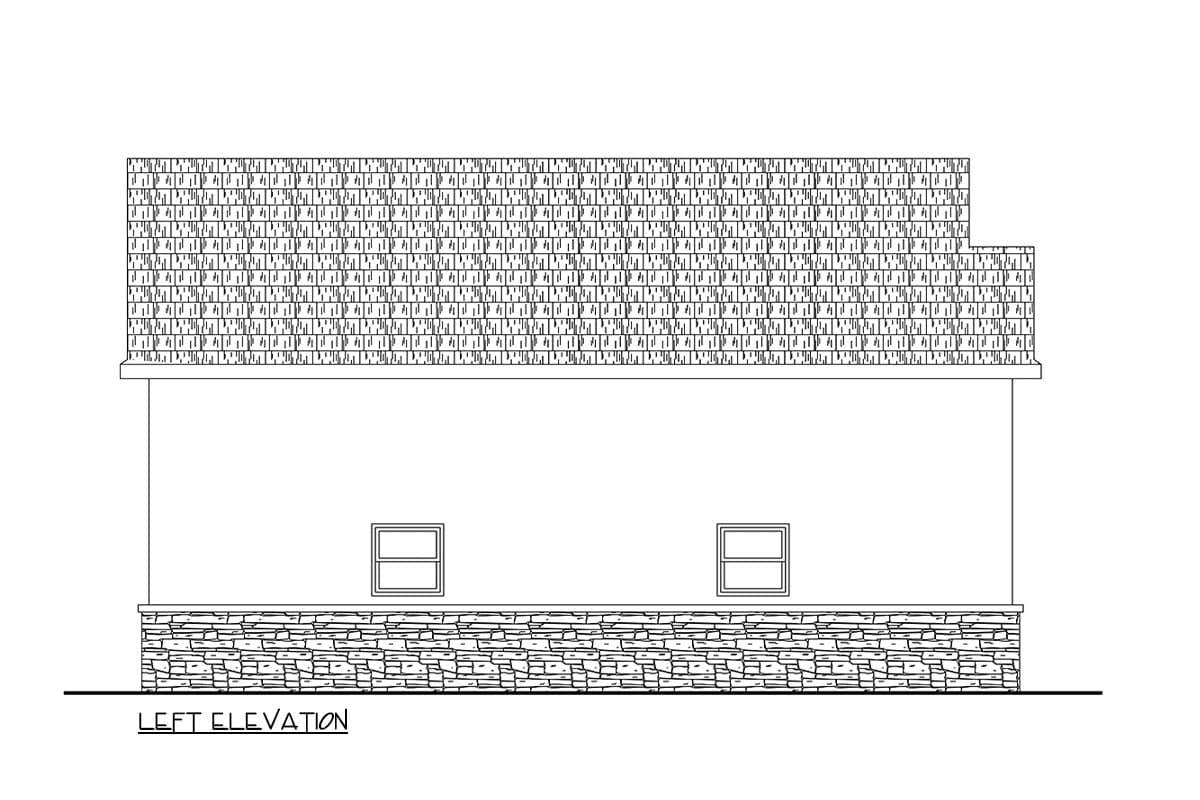

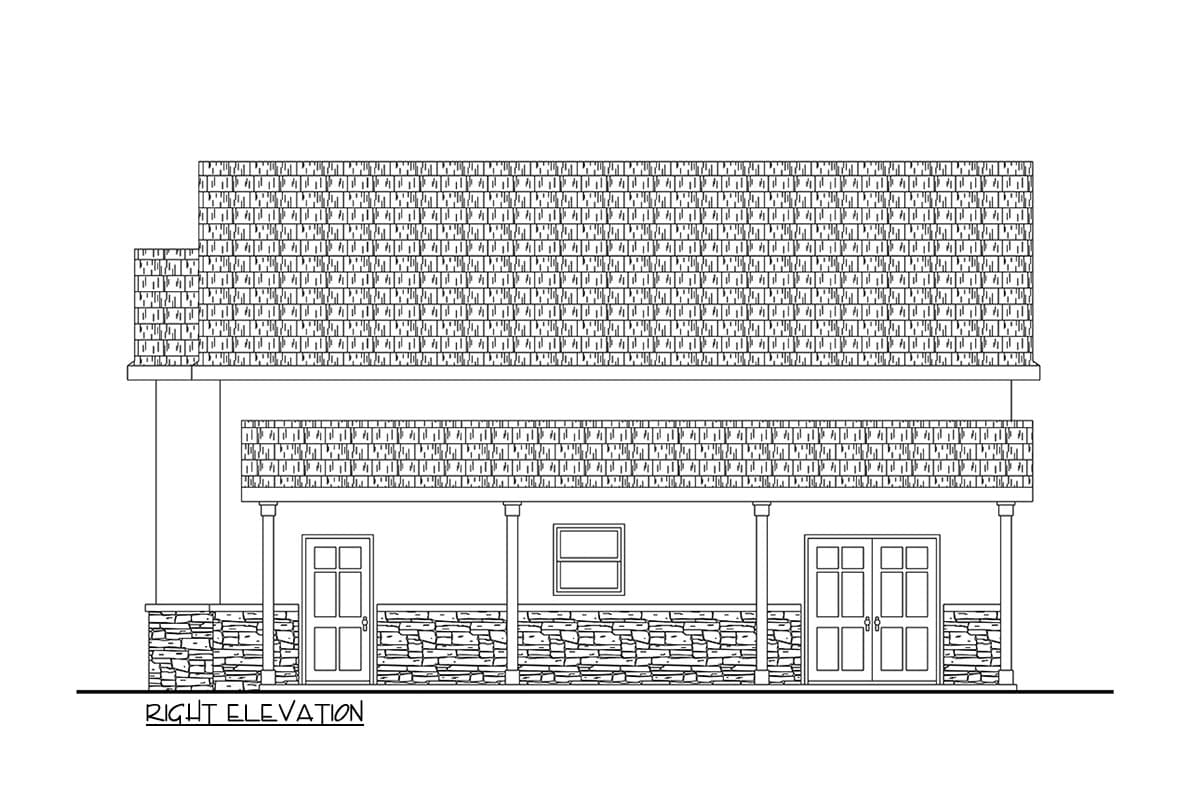

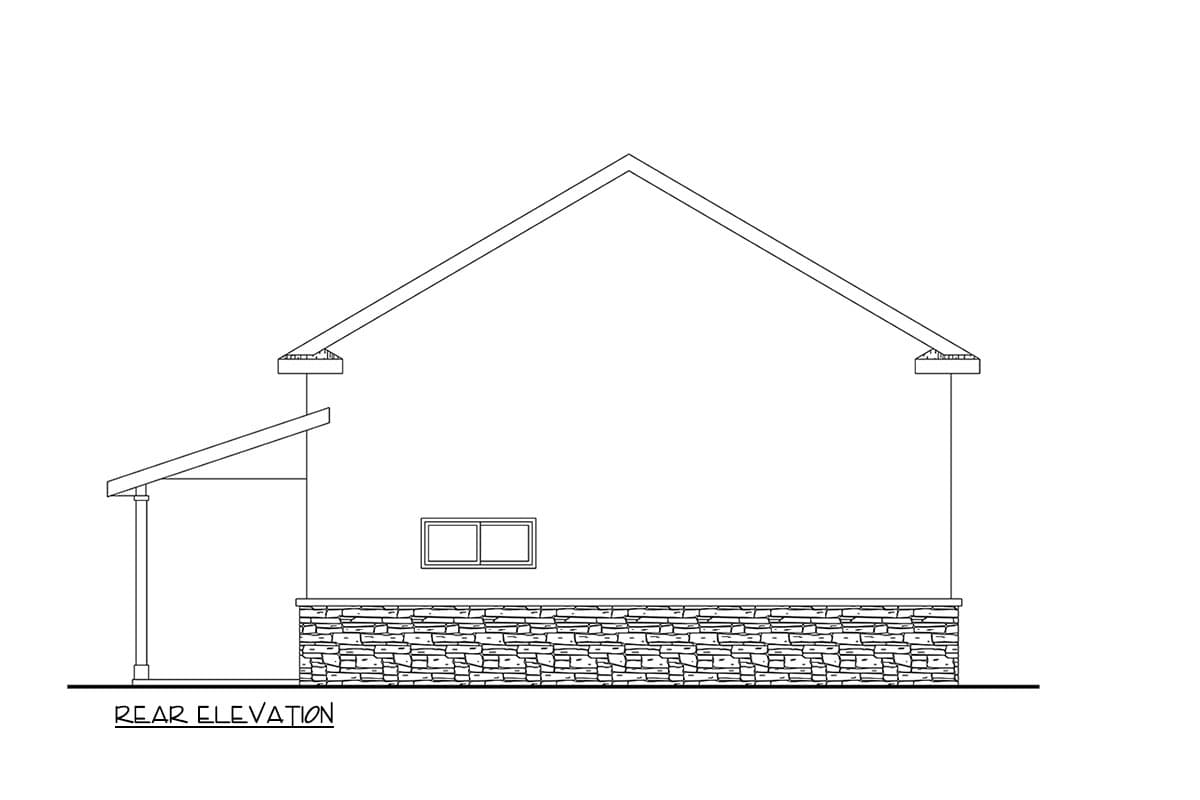

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

280 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

24' 9"

Garage

Type

Detached, RV Garage

Area

1158 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

280 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

24' 9"

Garage

Type

Detached, RV Garage

Area

1158 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

15'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Workshop
