Plan 680251VR
RV-Friendly Garage Plan with 1602 Sq Ft of Parking and a 615 Sq Ft Loft
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
3
Floor Plan

Plan 680251VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680251VR

1-800-854-7852

1-262-521-4596

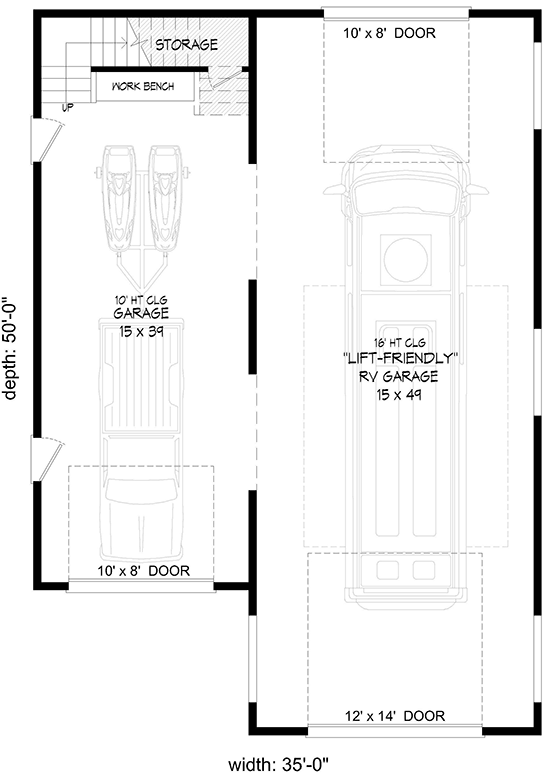

Main Level
floor plan image Main Level

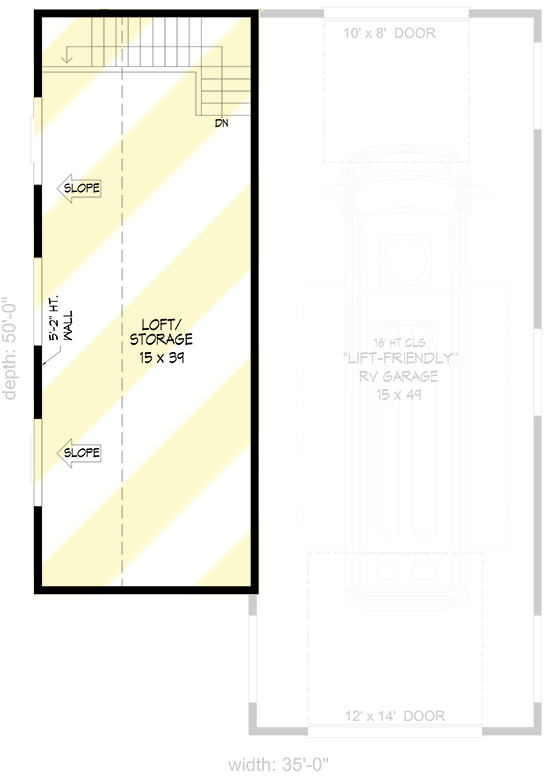

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This RV-friendly detached garage plan gives you 1,602 square feet of parking space with a 615 square foot loft over the left side.
  • A work bench and stairs are in back of the left with which has a 10' by 8' overhead door.
  • The right bay has a 12' by 14' overhead door in front and a 10' by 8' overhead door in back.
  • Related Plan: Get an alternate version with garage plan 68674VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

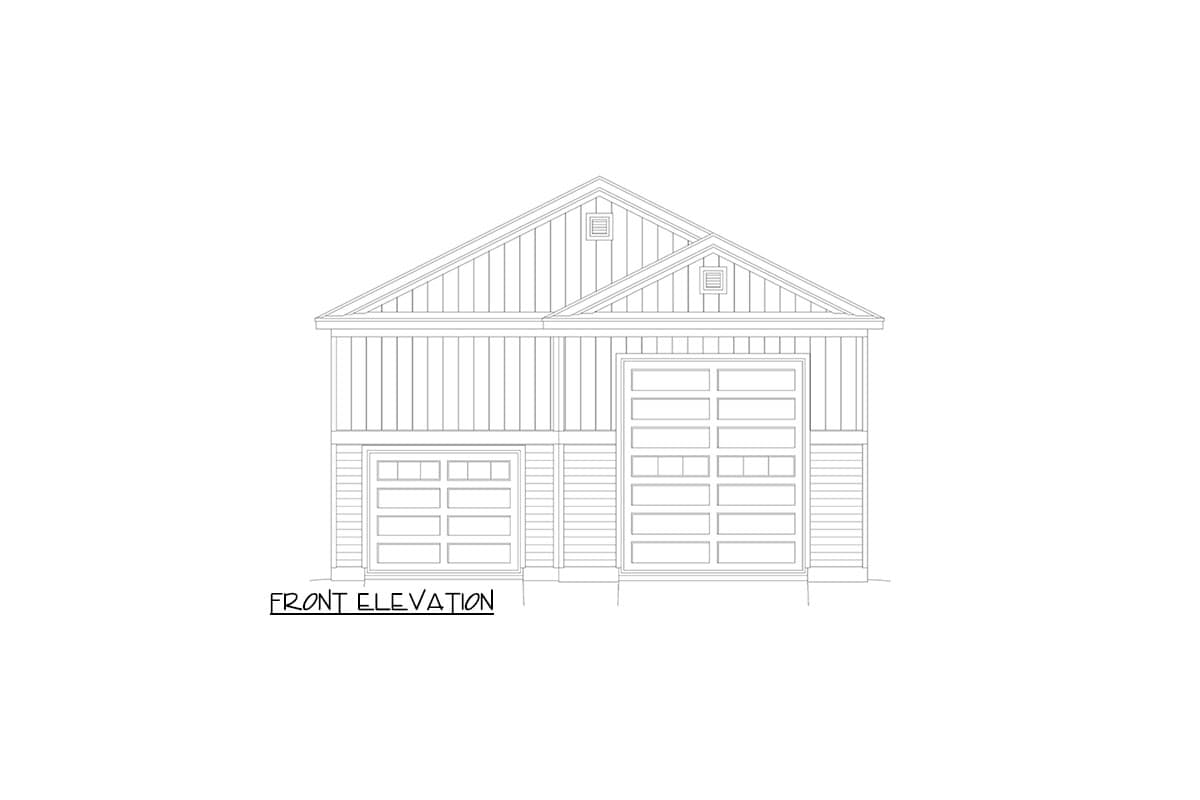

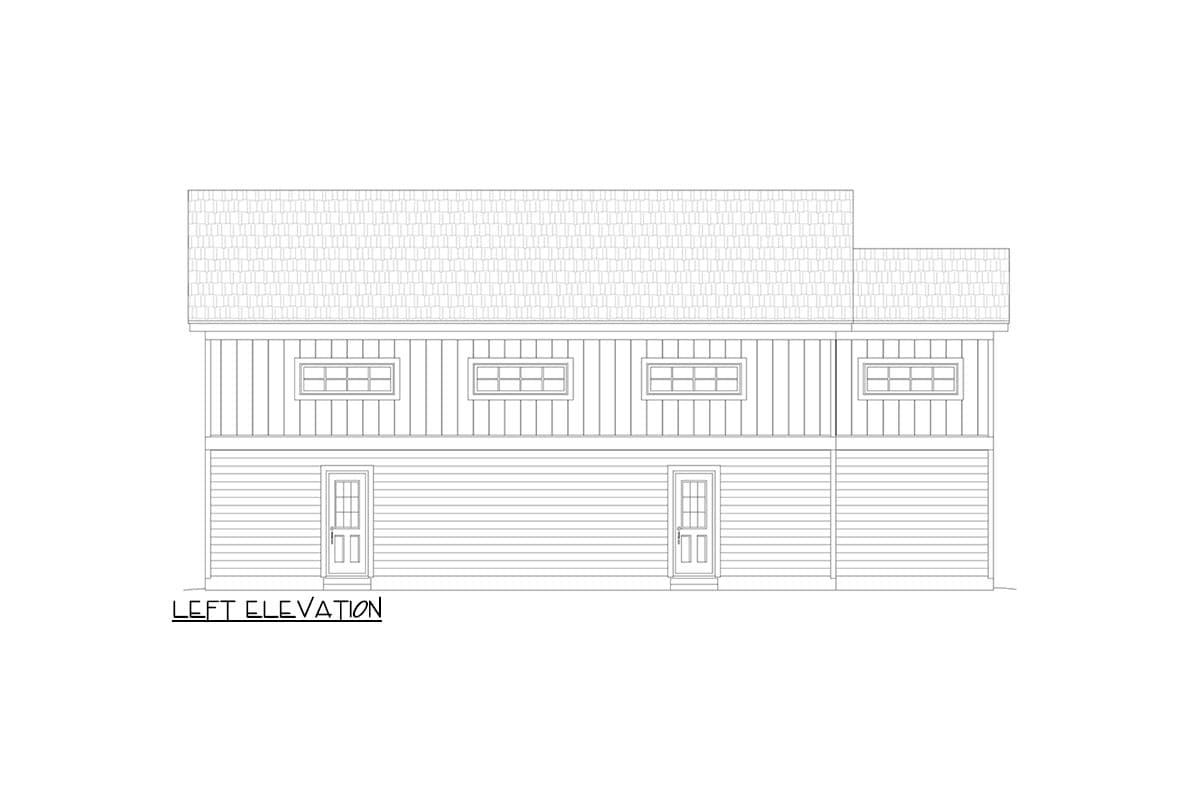

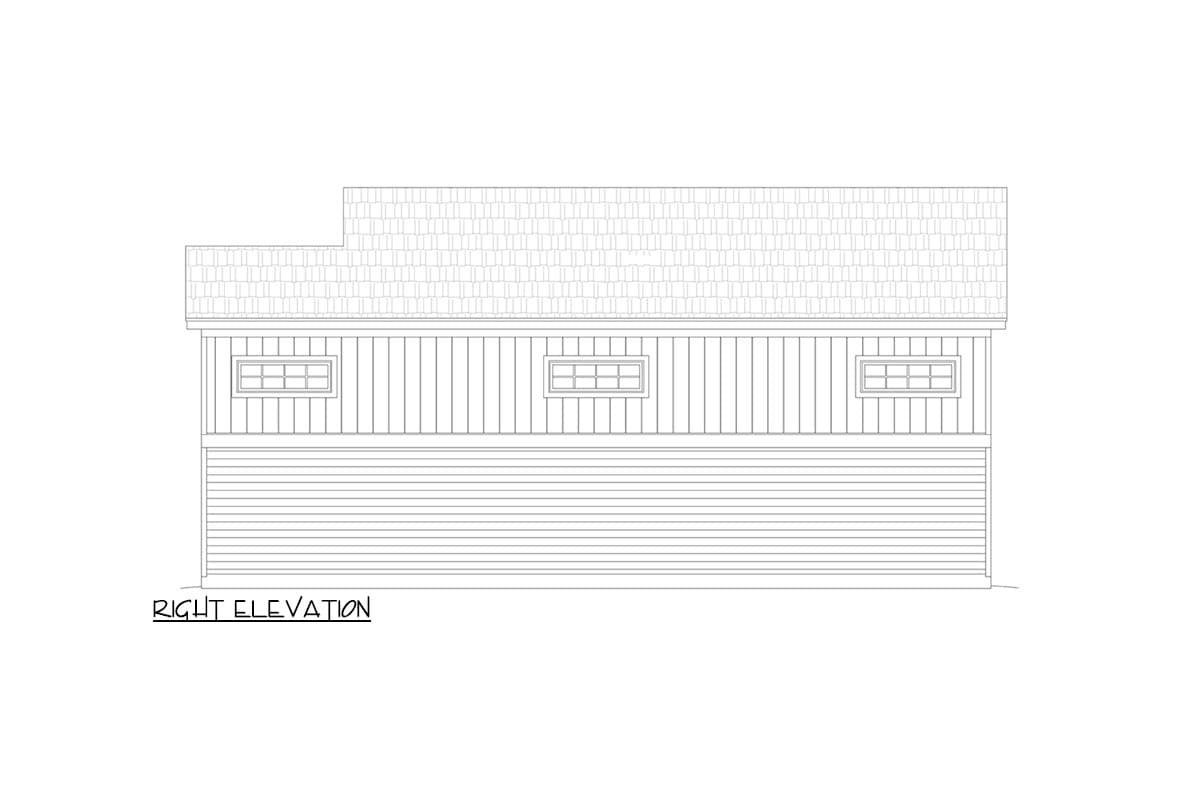

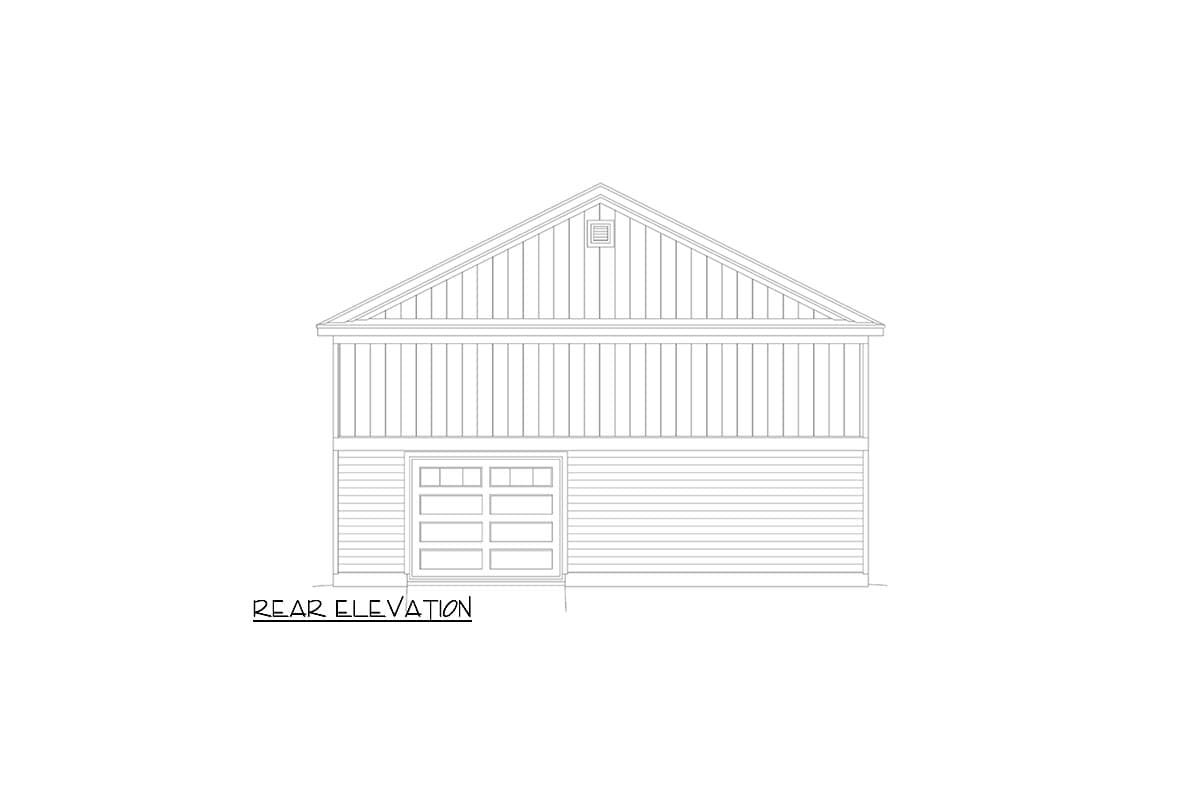

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

615 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 0"

Max Ridge Height

25' 6"

Garage

Type

Detached, RV Garage

Area

1602 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

615 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 0"

Max Ridge Height

25' 6"

Garage

Type

Detached, RV Garage

Area

1602 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Loft

Workshop
