Plan 680013VR
RV Garage Apartment Plan with Lift-friendly Boat Bay - 680 Sq Ft
Heated S.F.
680
Beds
2
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 680013VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680013VR

1-800-854-7852

1-262-521-4596

Main Level

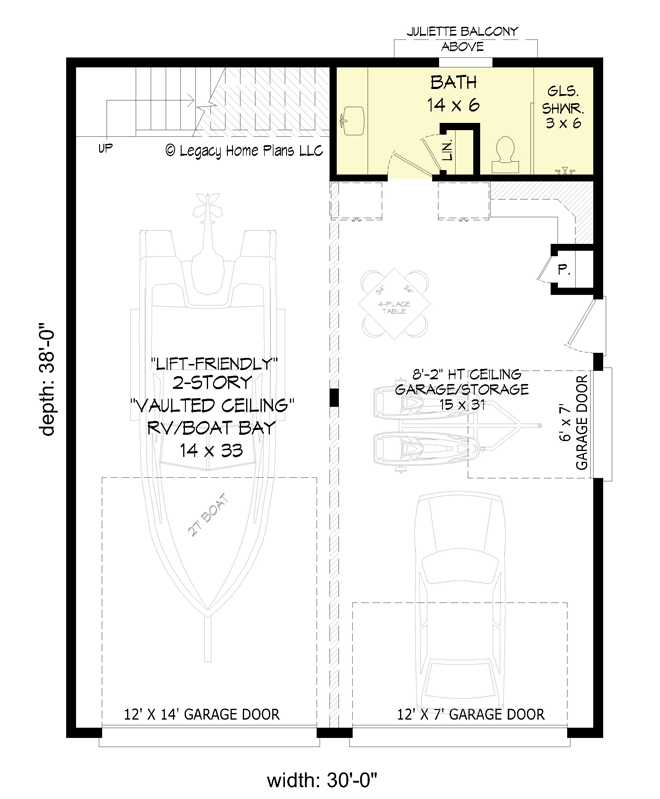

floor plan image Main Level
2nd Floor

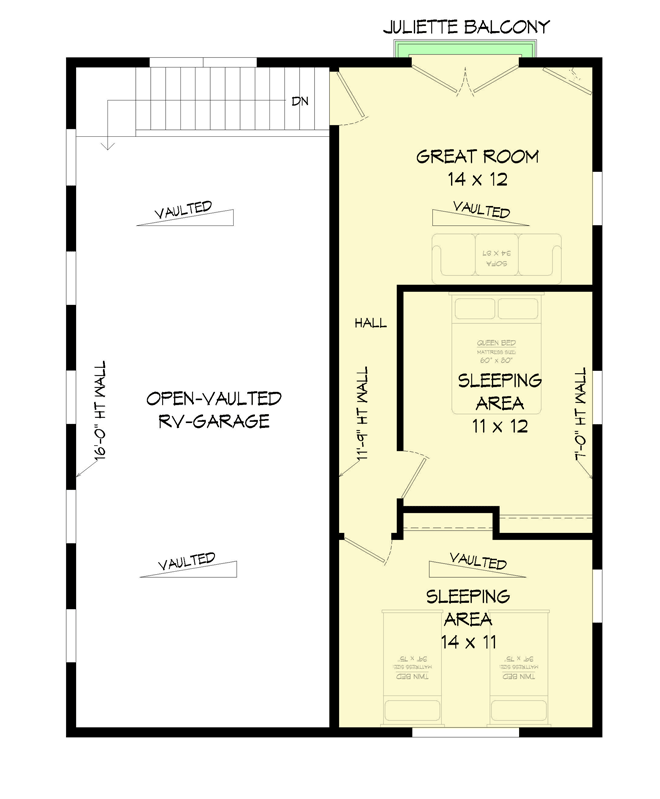

floor plan image 2nd Floor
Plan Details
  • This RV garage apartment plan features a lift-friendly bay for boats or oversized vehicles with a max height of 21' provided with the vaulted ceiling.
  • The garage includes plenty of space for storage and a 6' by 7' overhead door on the side for easy access.
  • A full bathroom with a linen closet is included on the main level, next to dedicated space for an optional kitchenette.
  • Upstairs, a great room with Juliet balcony has a vaulted ceiling. Two sleeping rooms can be found down the hall.
  • Related Plans: Get alternate versions with garage apartment plans and 680170VR (584 sq. ft.), 680229VR (496 sq. ft.) and 680230VR (499 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

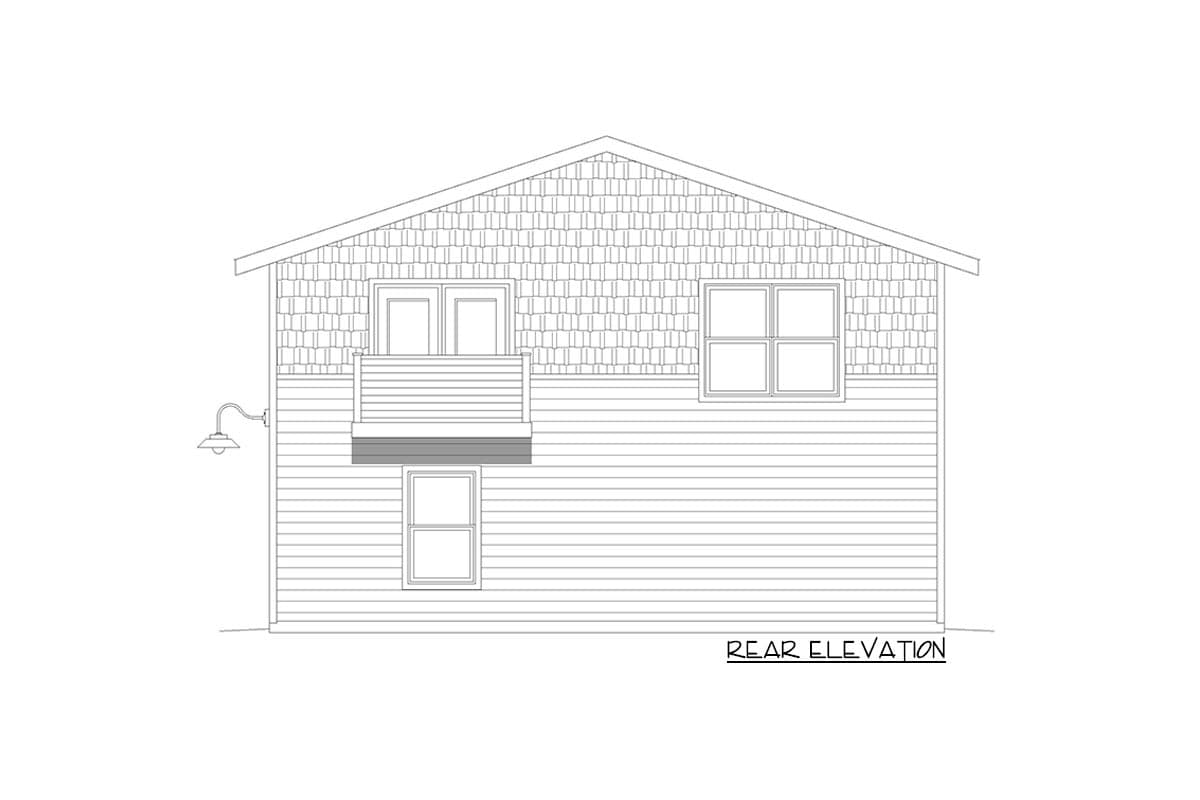

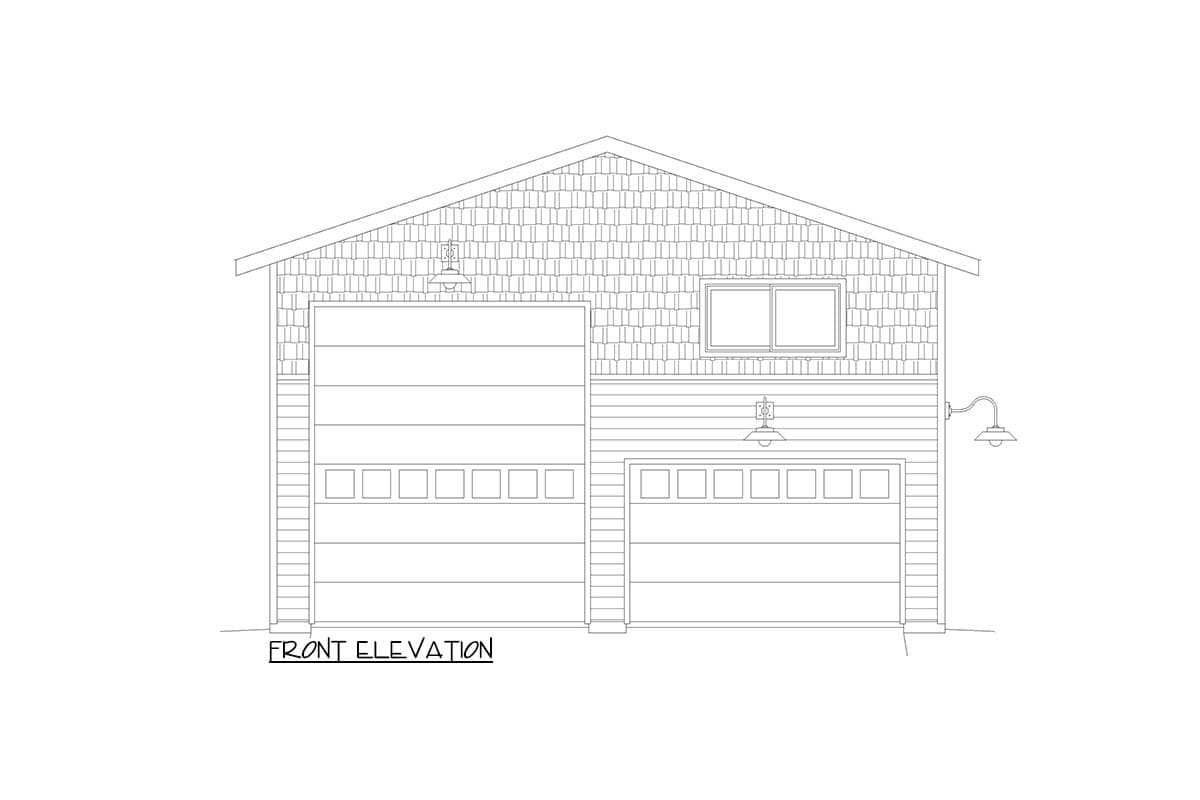

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

680 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

38' 0"

Max Ridge Height

21' 9"

Garage

Count

2 Cars

Ceiling Heights

First Floor

8' 2"

Second Floor

11' 9"

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Traditional

Special Features

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

680 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

38' 0"

Max Ridge Height

21' 9"

Garage

Count

2 Cars

Ceiling Heights

First Floor

8' 2"

Second Floor

11' 9"

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

New American

Traditional

Special Features

Master Suite - 2nd Floor
