Plan 35489GH

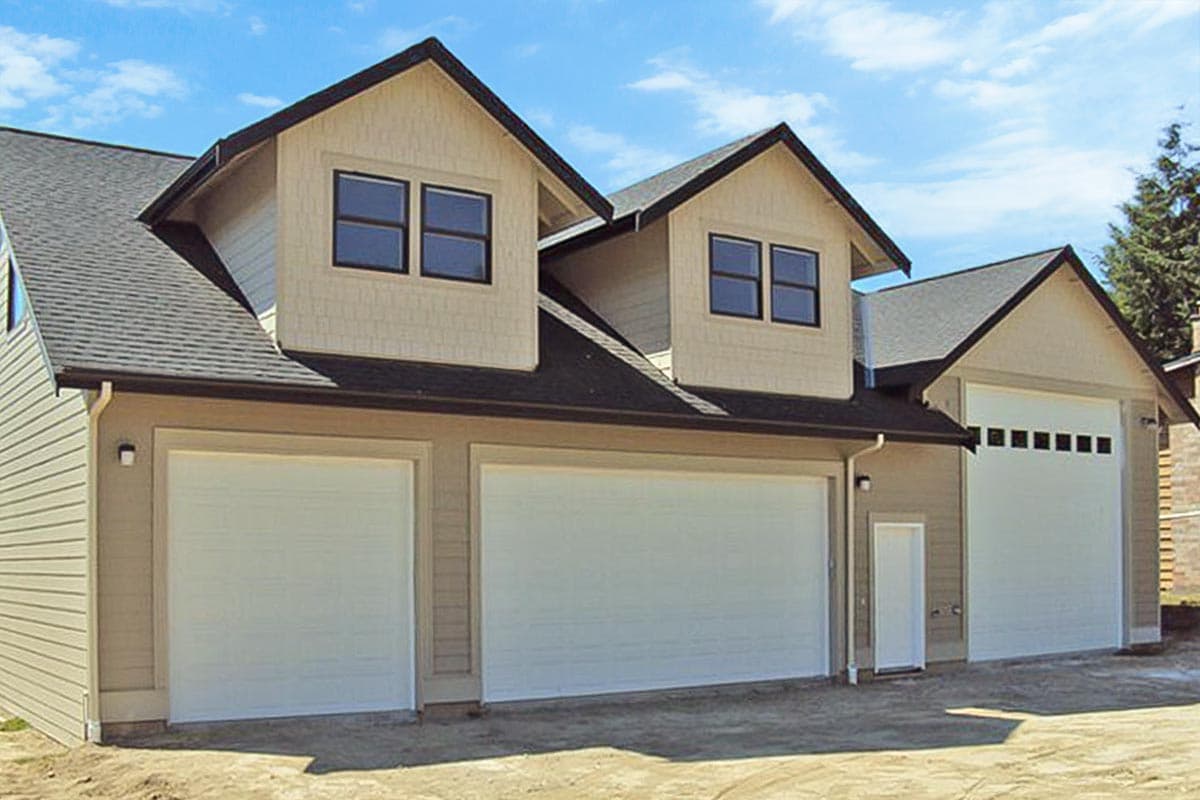

RV Garage With Apartment Above
Heated S.F.
896
Beds
2
Baths
1.5
Stories
1
Cars
4
Floor Plan

Plan 35489GH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 35489GH

1-800-854-7852

1-262-521-4596

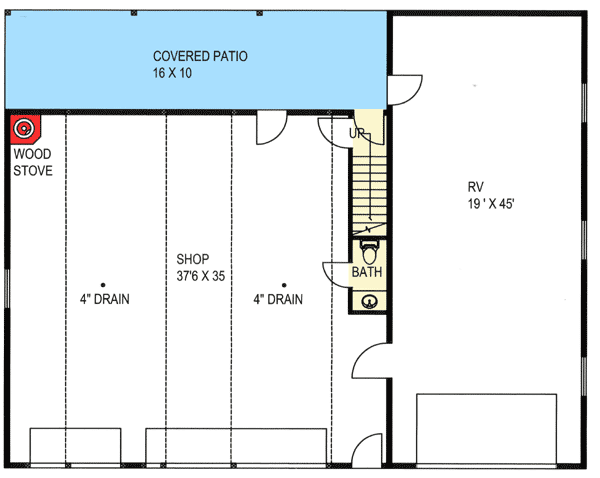

Main Level
floor plan image Main Level

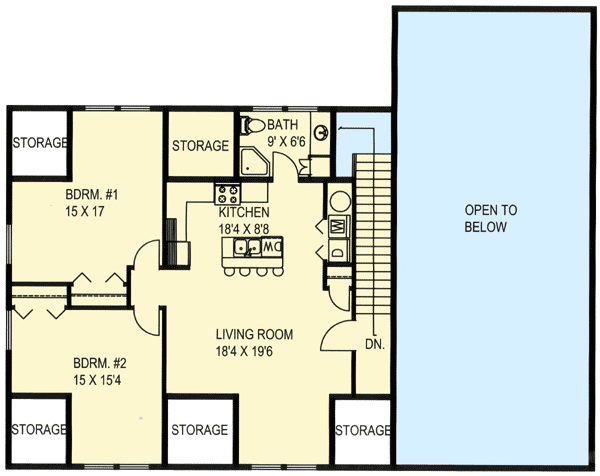

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This RV garage gives you room for your RV as well as two vehicles on the main floor and two bedrooms and kitchen and living area above.

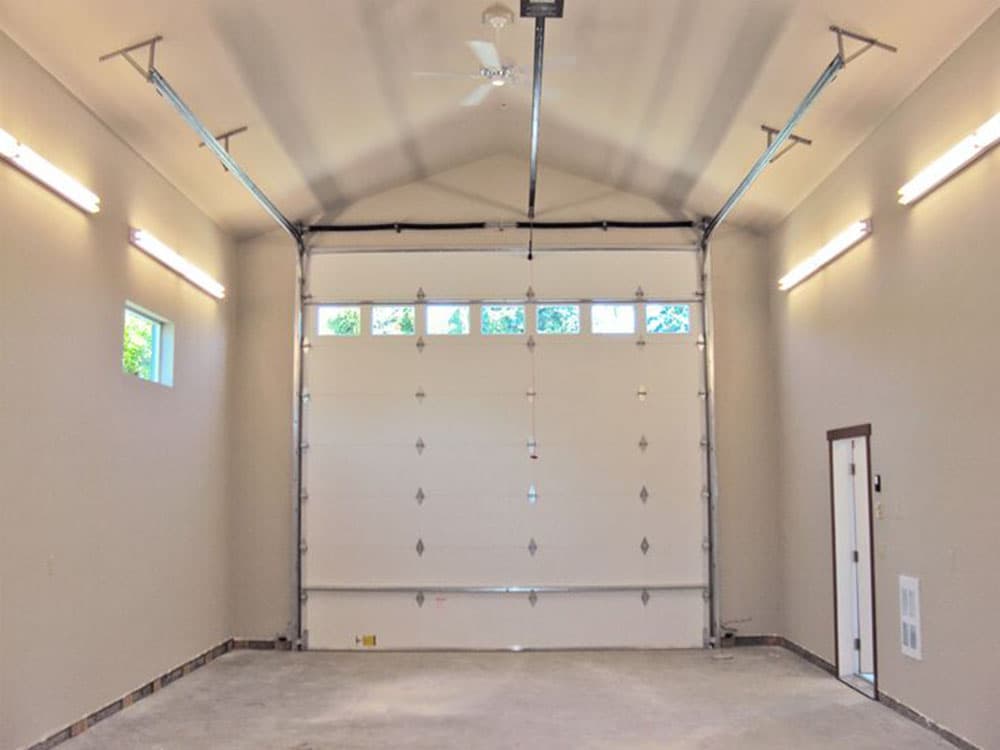

  • The RV garage door is 14' tall by 14' wide. The remaining doors are 9' tall.
What's Included

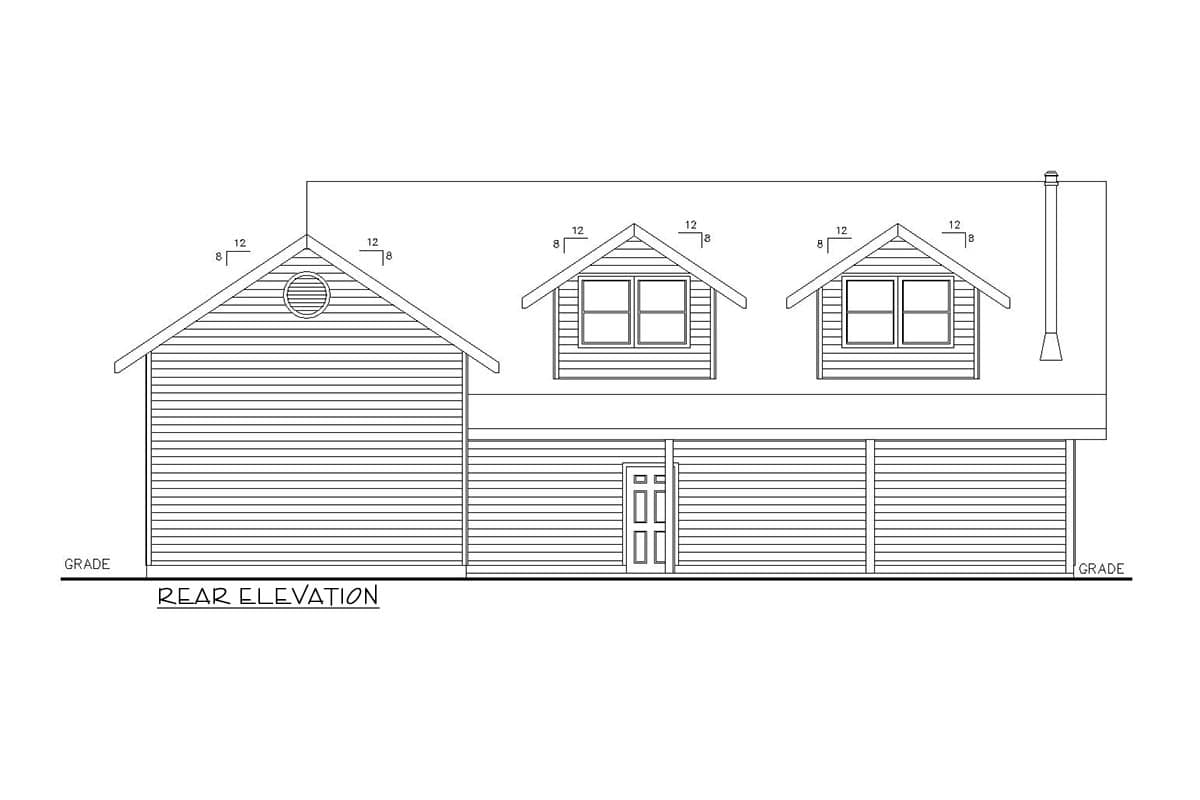

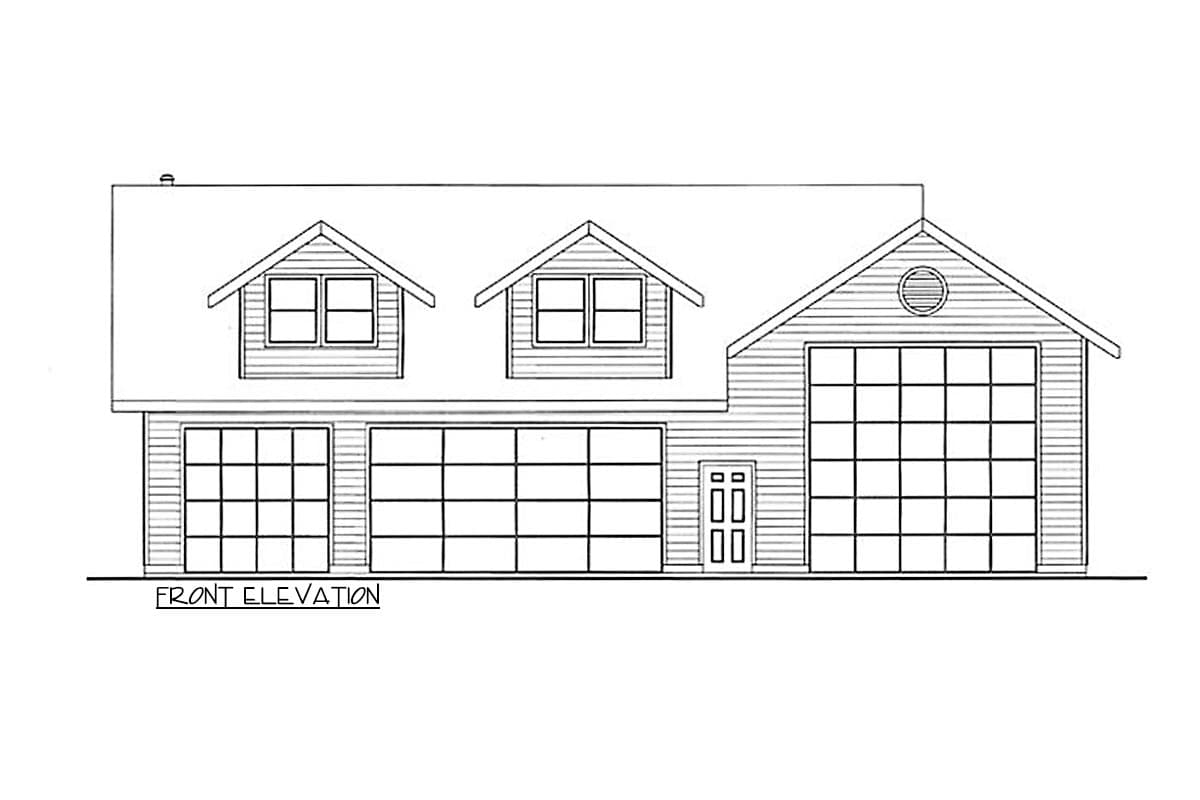

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

896 sq. ft.

1st Floor

896 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

46' 0"

Max Ridge Height

24' 0"

Garage

Type

Detached, RV Garage

Area

1940 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Carriage

Country

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Metric

Photo Gallery
